Enerdrive B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle
SKU: K-100-1 Learn More»Product Description
Enerdrive B-TEC 100Ah Lithium Battery & Charger Bundle, 5 Year Warranty. Introducing the Enerdrive B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle. Revolutionize your power setup with the Enerdrive B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle, offering unmatched performance and reliability for your energy needs. This bundle combines the cutting-edge technology of the Enerdrive B-TEC Lithium Battery with the versatile charging capabilities of the 40A DC2DC Charger, providing a comprehensive power solution for a variety of applications.

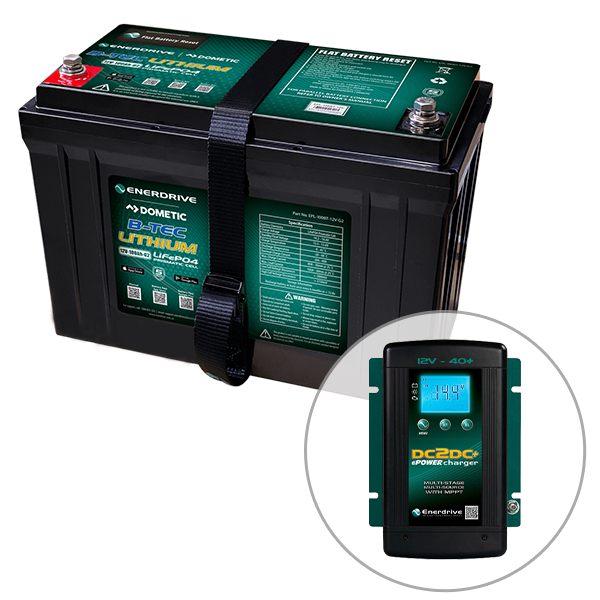

Bundle includes:
- EPL-100BT-12V-G2 - Enerdrive B-TEC 100Ah Lithium Battery
- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
AC Charger Options:
Bundle Components:

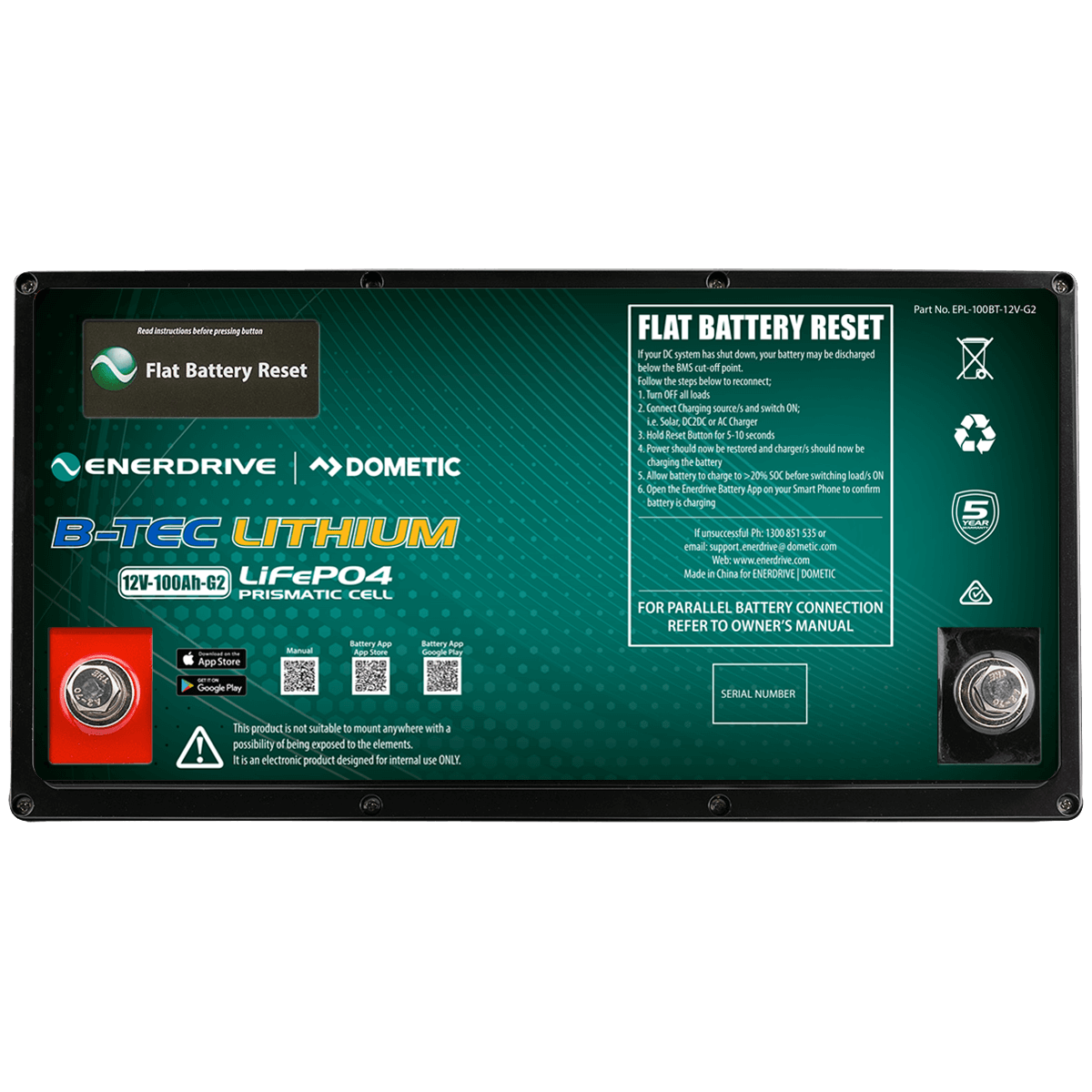

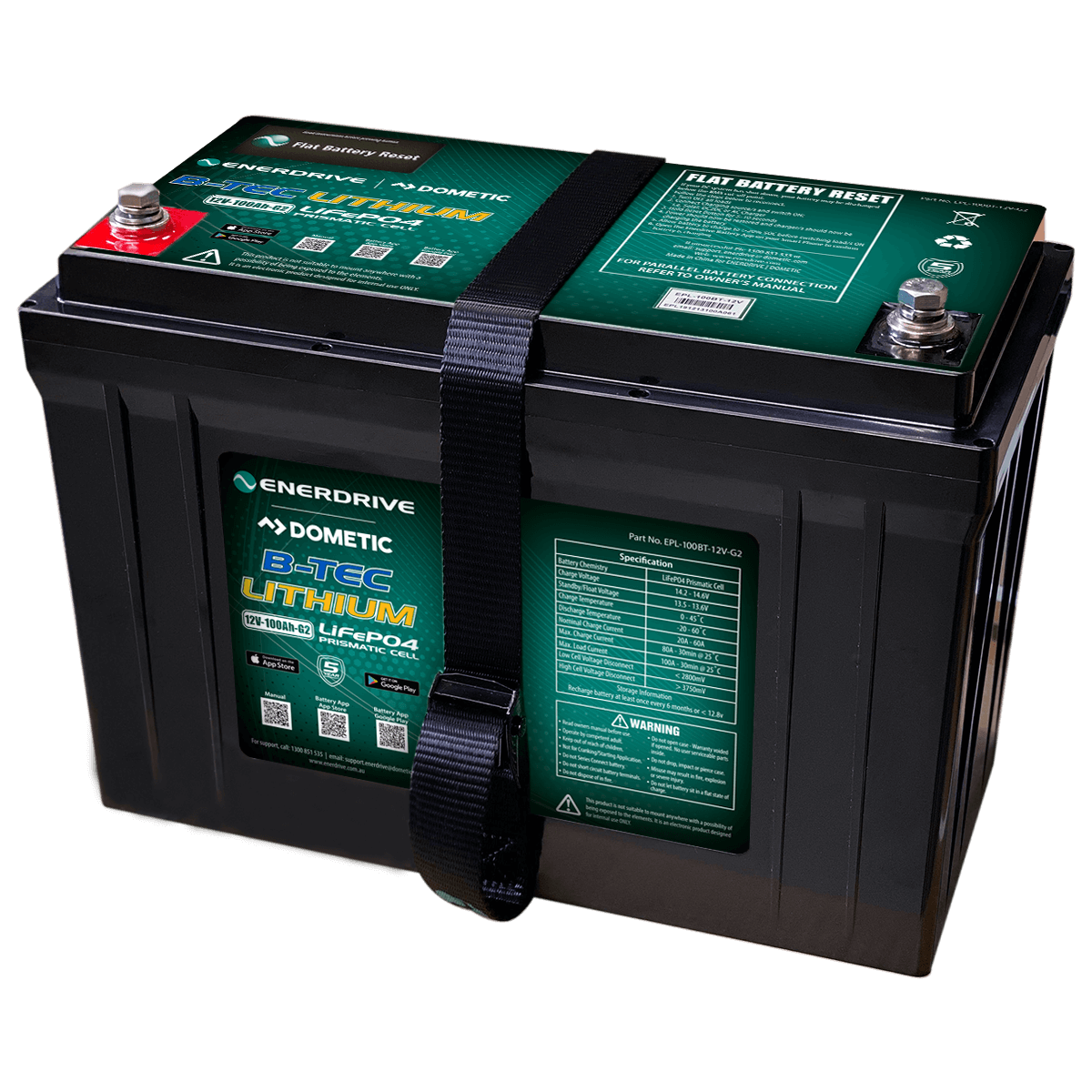

Enerdrive B-TEC 100Ah Lithium Battery (EPL-100BT-12V-G2):

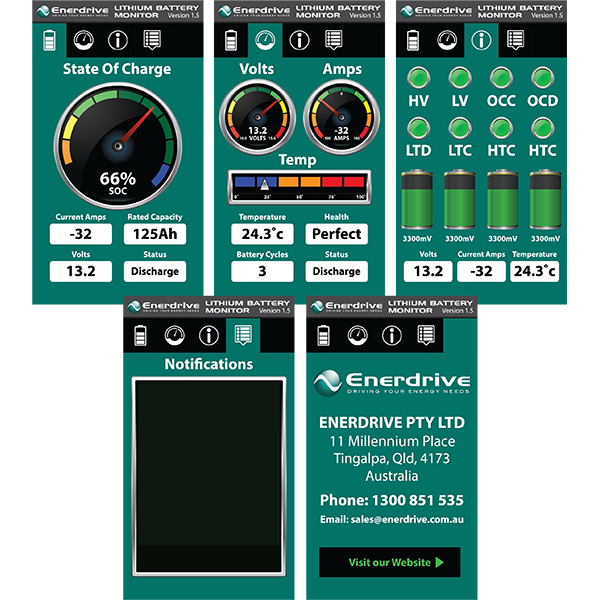

The Enerdrive B-TEC 100Ah Lithium Battery sets a new standard in energy storage with its advanced features and smart design. Equipped with wireless Battery Monitoring Technology, allowing real-time monitoring of essential battery parameters via a smartphone or tablet. Incorporates an internal Battery Management System for optimal performance and protection against overcharge, over-discharge, over-temperature, and short circuits. Offers significant size and weight savings compared to traditional AGM batteries, providing more usable power in a smaller and lighter package. Features a built-in reset button for easy reactivation of the battery, ensuring hassle-free operation. Perfect for a wide range of applications including camper trailers, 4WDs, caravans, marine vessels, and more.

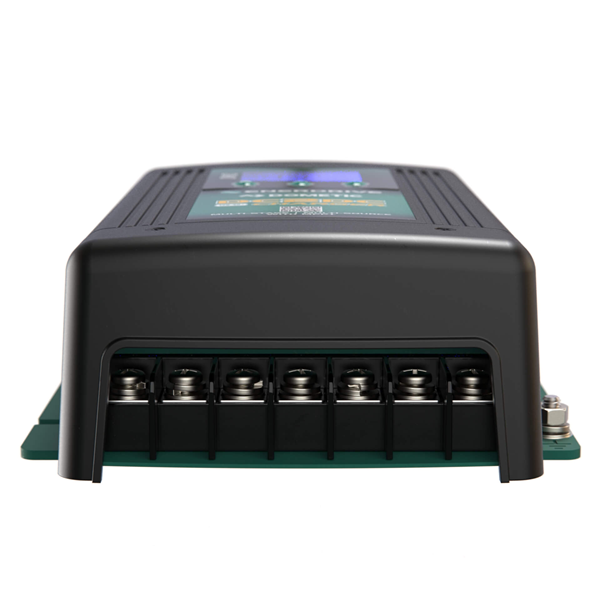

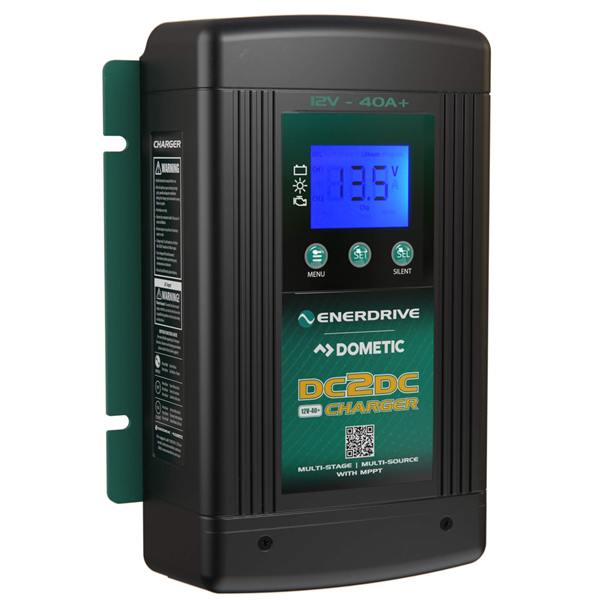

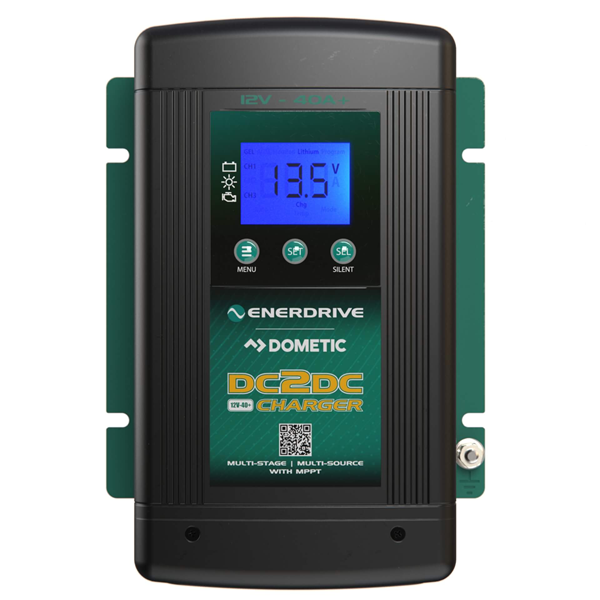

Enerdrive 40A DC to DC Battery Charger (EN3DC40+):
Designed to meet the rugged demands of Australian conditions, the Enerdrive 40A DC2DC Charger delivers reliable and efficient charging for DC systems. Offers multiple source charging capability, allowing charging from both an alternator linked to a battery and solar power via the built-in MPPT Solar Controller. Features two independent DC inputs for engine and solar charging, ensuring flexibility and efficiency in charging your battery bank. Utilizes multistage smart charging technology for optimal battery health and performance, with customizable charging profiles for various battery types including GEL, AGM, Flooded, Custom Programmable, and Lithium. Equipped with a fully programmable LCD display for easy monitoring of charging status, voltage, amperage, and source selection. Includes a temperature sensor for precise battery charging in diverse environmental conditions. Ideal for applications such as camper trailers, 4WDs, marine vessels, and off-grid power systems.
Optional AC Charger Options:
Enerdrive 20A AC Battery Charger (EN31220):
Fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks. Programmable for Lithium batteries, offering constant full rated output with automatic switch to power supply mode upon reaching peak voltage. Features current control, smart charging technology, wide AC input range, LED display, silent mode, and temperature sensor for enhanced charging efficiency and battery health. Perfect complement to the B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle for comprehensive charging solutions.
Enerdrive 40A AC Battery Charger (EN31240):
Fully automatic multistage battery charger with 40A output and the ability to charge 3 separate battery banks. Programmable for Lithium batteries, ensuring efficient and accurate charging performance. Offers current control, smart charging features, wide AC input range, LED display, silent mode, and temperature sensor for optimal charging efficiency and battery longevity. Provides a high-capacity charging solution for demanding applications, seamlessly integrating with the B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle. Upgrade your power setup with the Enerdrive B-TEC 100Ah Lithium Battery & 40A DC2DC Charger Bundle, offering unmatched reliability, performance, and versatility for your energy needs.
Bundles | K-100-14 | K-100-16 | K-100-19 |
EPL-100BT-12V-G2 | * | * | * |
EN3DC40+ | * | * | * |
EN31220 | * | ||
EN31240 | * |
Battery Information:
DC Charger Information:
AC Charger Information:
Specifications
SKU K-100-1
Brand Enerdrive
GTIN 9342616001035
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 318
Battery Width (mm) 165
Battery Height (mm) 232
Battery Weight (kg) 12.6
DC Charger Output Current Rating (Amps) 40
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.60V
Maximum Charge Current 60A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 20~60A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
NOTE Specifications subject to change without notice.
