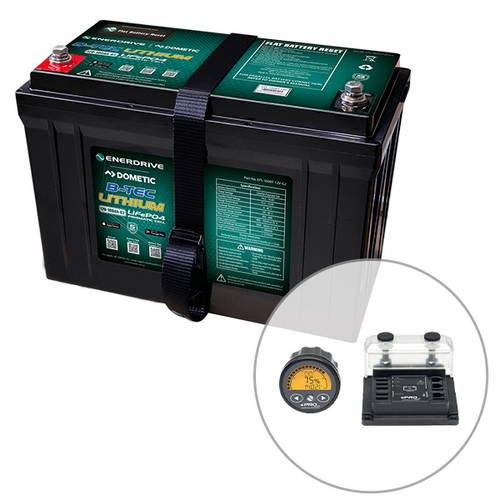

Enerdrive B-TEC 100Ah Lithium Battery & ePRO+ Monitor Bundle
SKU: K-100-18 Learn More»Product Description

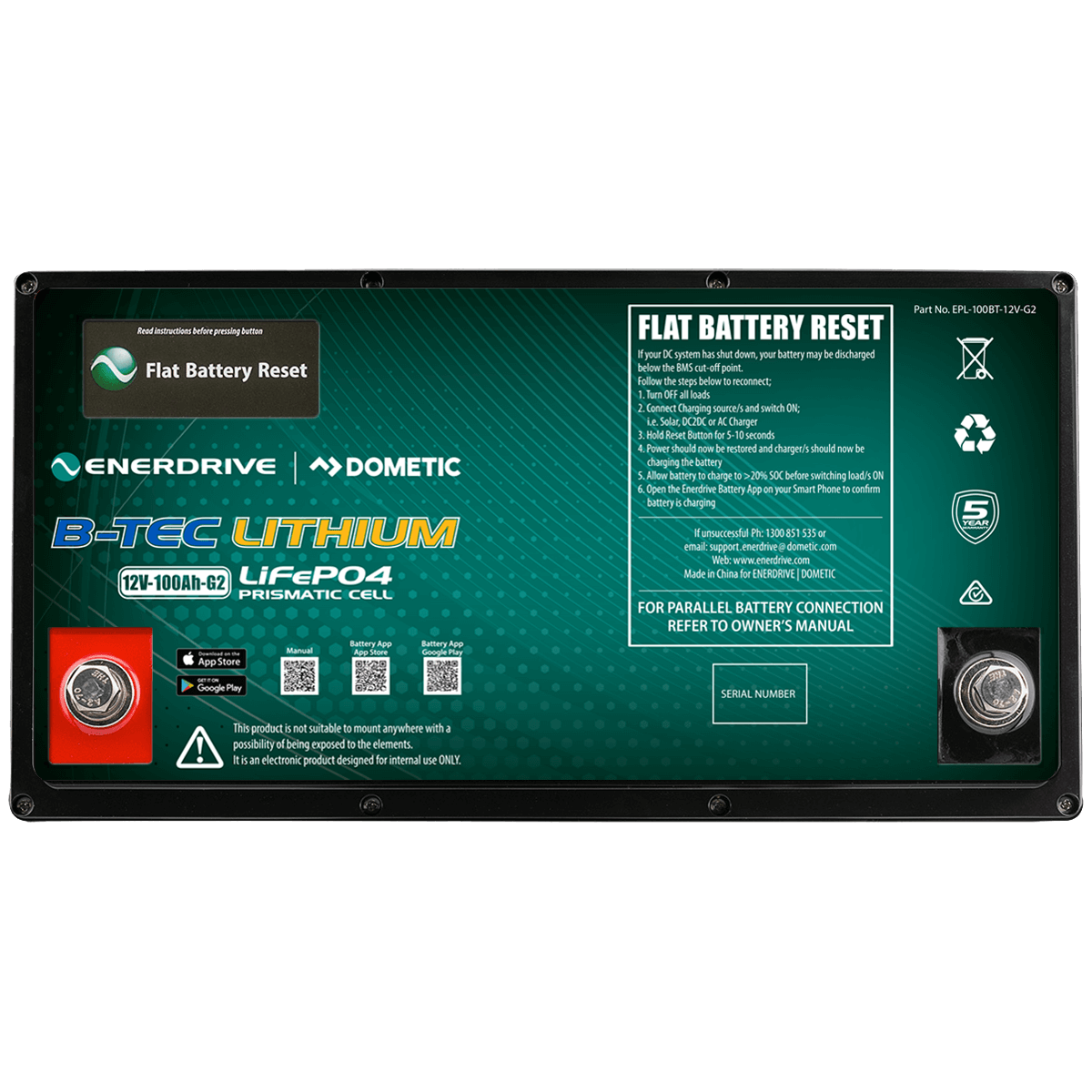

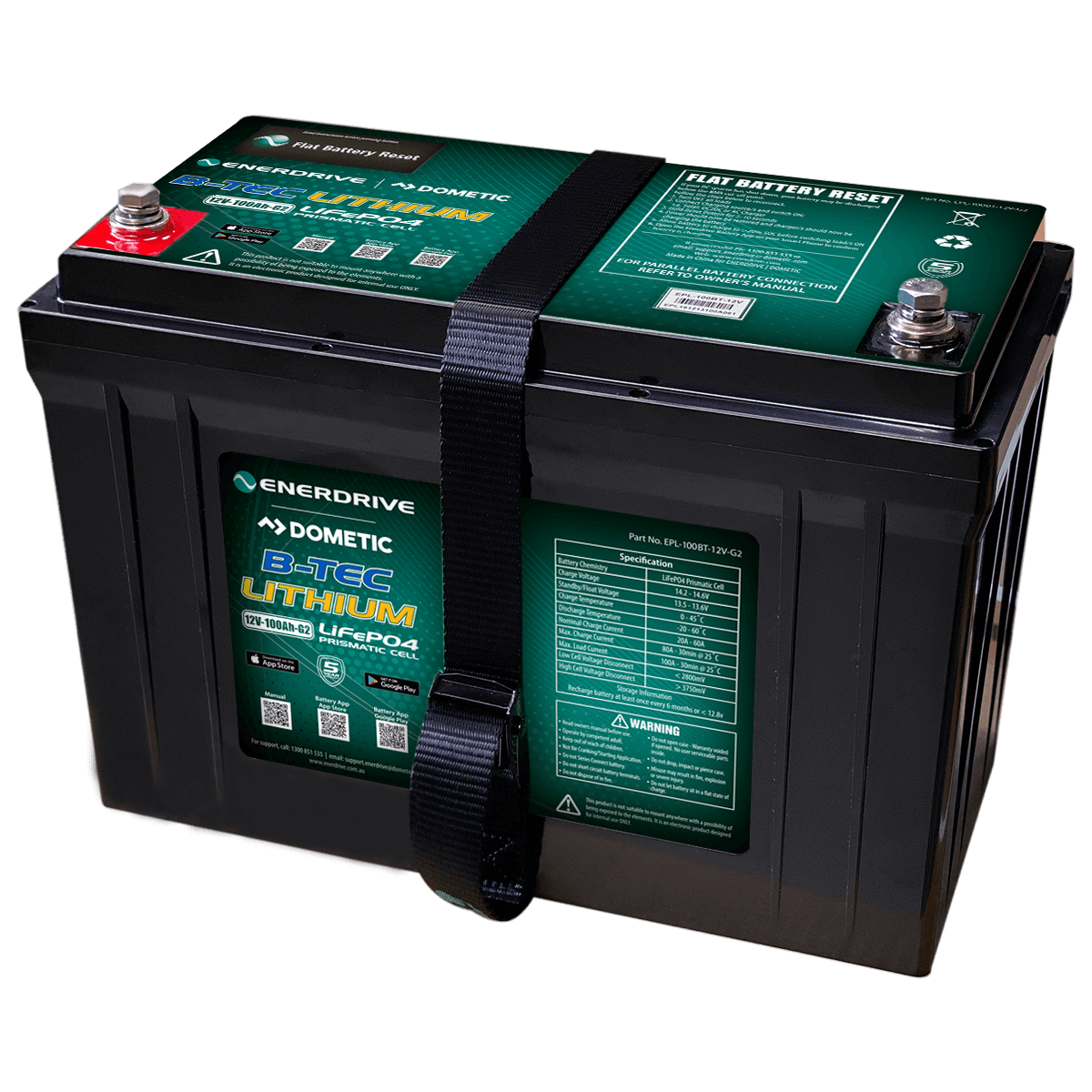

- EPL-100BT-12V-G2 - Enerdrive B-TEC 100Ah Lithium Battery
- EN55050 - Enerdrive ePRO PLUS Battery Monitor
The Enerdrive B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

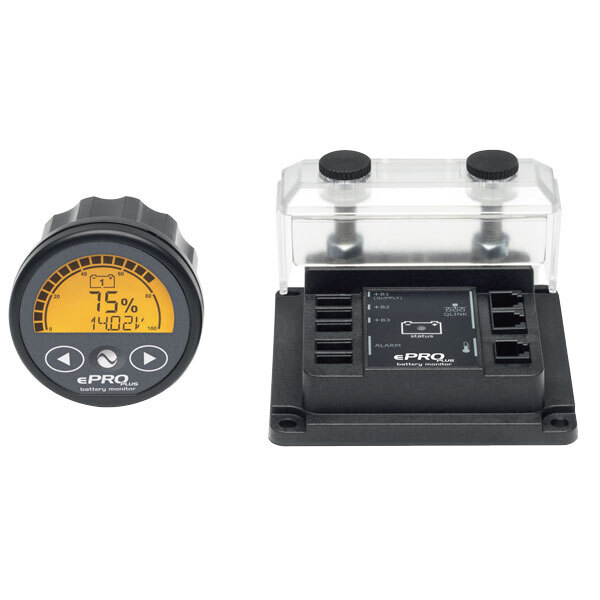

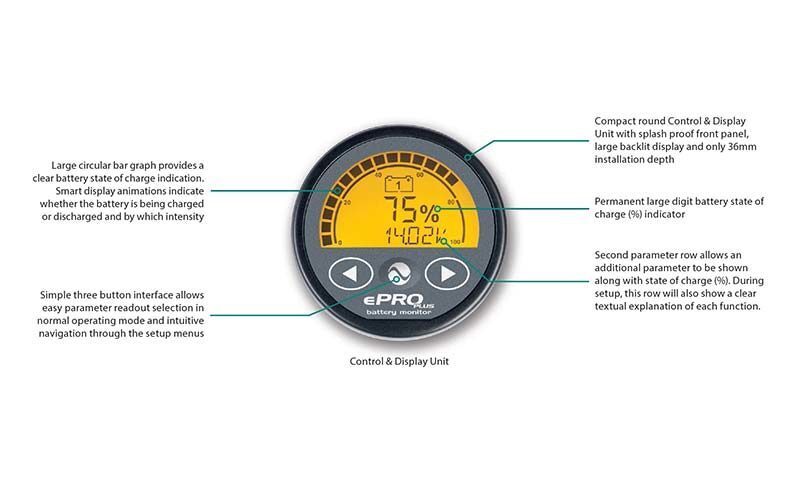

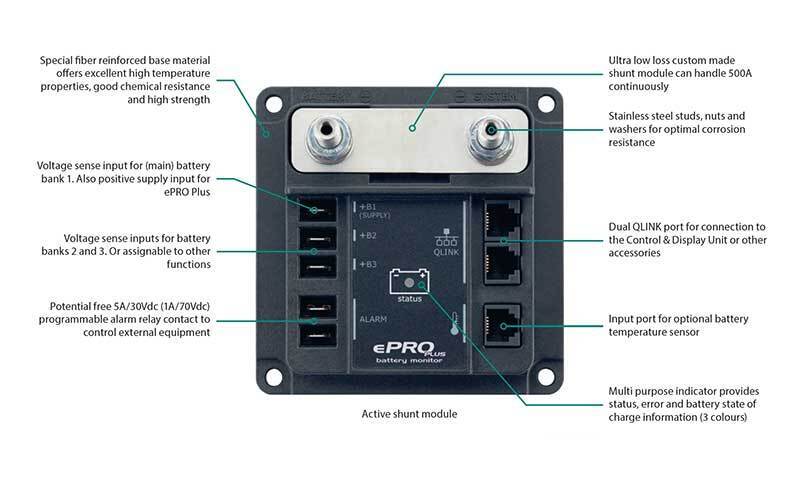

The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with Enerdrives DC Modular products.
- Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C)
- Supports up to three battery banks (12V, 24V and 48V)

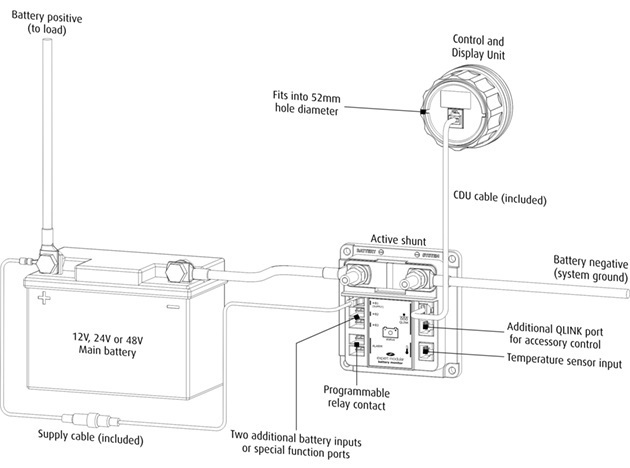

- Very simple ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products
Battery Information:
Battery Monitor Information:
NOTE: This model have changed Part Number, this is now known as K-100-18 - B-TEC 100Ah, it used to be known as K-100-11 eLITE 100Ah.
Specifications
SKU K-100-18
Brand Enerdrive
GTIN 9342616027912
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 318
Battery Width (mm) 165
Battery Height (mm) 232
Battery Weight (kg) 12.6
Nominal Voltage 12.8V (Battery)
Nominal Capacity 100Ah (Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Normal Charge Voltage CV/CC* 14.40 Ì´ 14.60V (Battery)
Standby (Float) Voltage 13.50 Ì´ 13.60V (Battery)
Maximum Charge Current 60A @ 25°C for 30mins (Battery)
Recommended Charge Current for Maximum Life 20~60A
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Battery Output Voltage Range 11.00 Ì´ 14.60V (Battery)
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Discharge Cut-off Voltage ≤ 11.20V (Battery)
Temperature range ≤ 30 days -20°C ̴ 35°C, 45 ̴ 75% RH
NOTE For any installation that requires additional wiring, we recommend you engage a licensed auto electrician.
