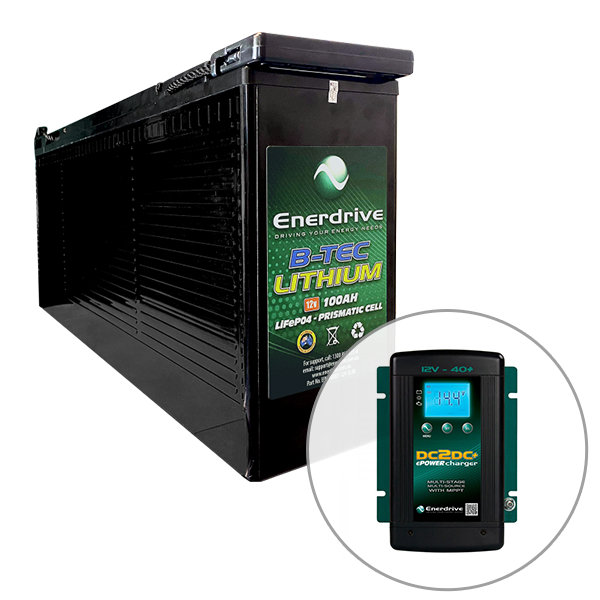

Enerdrive B-TEC 100Ah Slimline Lithium Battery & 40A DC2DC Charger Bundle
SKU: K-100-12 Learn More»Product Description
Enerdrive B-TEC 100Ah Slimline Lithium Battery & 40A DC2DC Charger Bundle, 5 Year Warranty. Introducing the Enerdrive B-TEC 100Ah Slimline Lithium Battery & 40A DC2DC Charger Bundle, a powerful and efficient solution designed to meet your energy needs wherever you go. This bundle combines the cutting-edge technology of the Enerdrive B-TEC 100Ah Slim Lithium Battery with the robust performance of the Enerdrive 40A DC to DC Battery Charger, providing you with a reliable power source for your adventures.
Bundle includes:
- EPL-100BT-12V-SLIM - Enerdrive B-TEC 100Ah Slim Lithium Battery
- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
Let's delve into the features of each component:
Enerdrive B-TEC 100Ah Slim Lithium Battery:
- Space-saving Design: The slim profile of the B-TEC 100Ah Lithium Battery makes it ideal for installations where space is limited, such as behind the back seat of dual cab utes or in narrow compartments.
- Wireless Monitoring: Stay informed about your battery's status with the built-in wireless Battery Monitoring Technology, accessible through your smartphone or tablet. Monitor vital information such as battery capacity, voltage, current, state of charge, and more.
- Advanced Battery Management: Equipped with an internal LiFePO4 Battery Management System (BMS), the battery ensures optimal performance and safety by protecting against overcharge, over-discharge, over-temperature, and short circuits.
- Size and Weight Advantage: Compared to traditional AGM batteries, the B-TEC Lithium Battery offers significant size and weight savings while providing 60% more usable power.
- Versatile Applications: Whether it's for camper trailers, 4WDs, caravans, marine vessels, or remote power systems, the B-TEC battery is the perfect choice for deep cycle applications.
Enerdrive 40A DC to DC Battery Charger:
- Multiple Charging Sources: This charger supports charging from both your vehicle's alternator while driving and solar panels while stationary, ensuring your battery is replenished no matter where you are.
- Smart Charging Technology: With multistage smart charging technology, the charger delivers efficient and accurate charging tailored to your battery's needs, maximizing its lifespan.
- LCD Display and Programmable Options: The fully programmable LCD display provides real-time information on charging status, voltage, amperage, and allows you to choose from various charging profiles including GEL, AGM, Flooded, Custom Programmable, or Lithium.
- Load-based Regulation: Prevents overcharging by regulating output based on connected loads, ensuring optimal battery health.
- Maximize Solar Harvest: The charger's Maximum Power Point Tracking (MPPT) Solar Controller optimizes solar input, allowing you to maximize your solar harvest even with varying panel configurations.
Whether you're exploring off-grid locations or powering your recreational vehicle, the Enerdrive B-TEC 100Ah Slimline Lithium Battery & 40A DC2DC Charger Bundle offers reliable, efficient, and hassle-free power solutions for your adventures. With Enerdrive's proven expertise in lithium battery systems and energy management, you can trust in the performance and durability of this bundle to meet your energy needs wherever you roam.
Battery Information:
Charger Information:
NOTE: This model have changed Part Number, it used to be called K-100S-DC40-BUNDLE, and is now called K-100-12
Specifications
SKU K-100-12
Brand Enerdrive
GTIN 9342616028681
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 100
Battery Length (mm) 551
Battery Width (mm) 109
Battery Height (mm) 239
Battery Weight (kg) 12.5
DC Charger Output Current Rating (Amps) 40
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 80A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 20A-50A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 250A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Discharge Over Current 110A for 30s – 250A for 3s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Dimensions DC to DC Charger: 242 x 172 x 74 mm (L x W x H)
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
How An Enerdrive 100Ah Battery & Redarc Inverter Work Paired Together: My Generator Customer Review
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
EN3DC40+ Enerdrive Battery Charger Run Through
Product Q&A
Customer Reviews
Great gear, Great value. Review by Mitch HowarthI already had the 40A AC Charger, this kit completed my setup, the single 100AH lithium battery out performs the dual agm batteries it replaced and the built in bms works a treat even when my camper is closed (there are some tricks to making it work with some smart phones e.g. you need to have location enabled).The dc-dc charger's built in mppt solar reg is really good value, as it allows up to 45V input and 600W, which is well and truly enough for 12V camping when combined with the right 24V panels.(Posted on 30 September 2021)
