Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery

SKU: EPL-200BT-12V-SLIM Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

Enerdrive 12V 40A AC Battery Charger

$590

SKU: EN31240

The Enerdrive ePOWER 40A AC Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

PRO TIP: Common accessories to go with this Enerdrive 40A AC to DC are either the 50Amp, 60Amp or 70Amp breakers. These are available in the Accessory List above to add as optional extras.

40A Battery Charger Features:

Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
LED Display: Easy to use “set and select” menu along with scrolling charger status.
Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
Temperature Sensor: Battery temperature sensor included with 7.5 meter cable.
5 Year Warranty from an Australian company renowned for customer support.

Enerdrive 12V 60A AC Battery Charger

$777

Enerdrive 12V 40A DC to DC Battery Charger

$517

Enerdrive ePRO PLUS Battery Monitor

$458

Enerdrive 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch

$1,225

Enerdrive ePOWER Replacement Temp Sensor for ePOWER Chargers

$62

Click '+' to show more accessories

Call 1300 400 122

Add To Wishlist

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

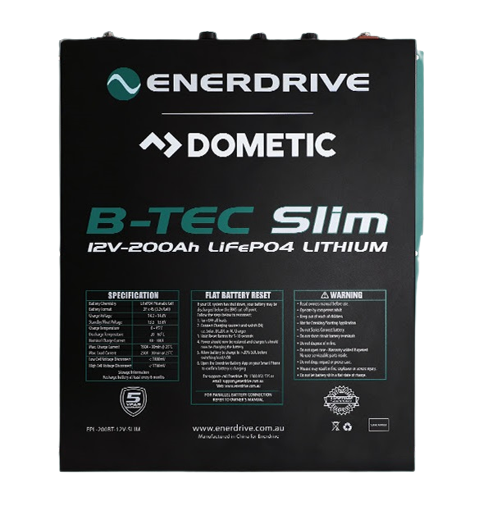

Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, 5 Year Warranty. The new 200Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

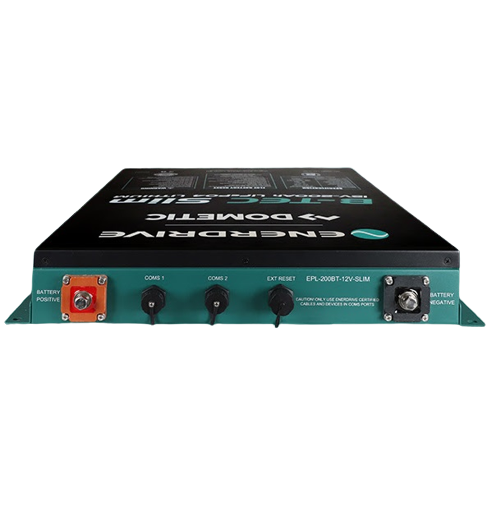

Extremely compact size W 530 x H 600 x D 83 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

Smart Phone Monitoring System: The Enerdrive Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information; Battery Capacity, Battery Voltage, Battery Current (Amps), Battery State of Charge (SOC), Battery State of Health (SOH), Battery Status, Individual Cell Voltage, Battery Temperature, Battery Cycles, Battery Alarms & Battery Event Information.

Battery Management System: The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.

Size & Weight Savings: Lithium v AGM Capacities; 200Ah Lithium = 320Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

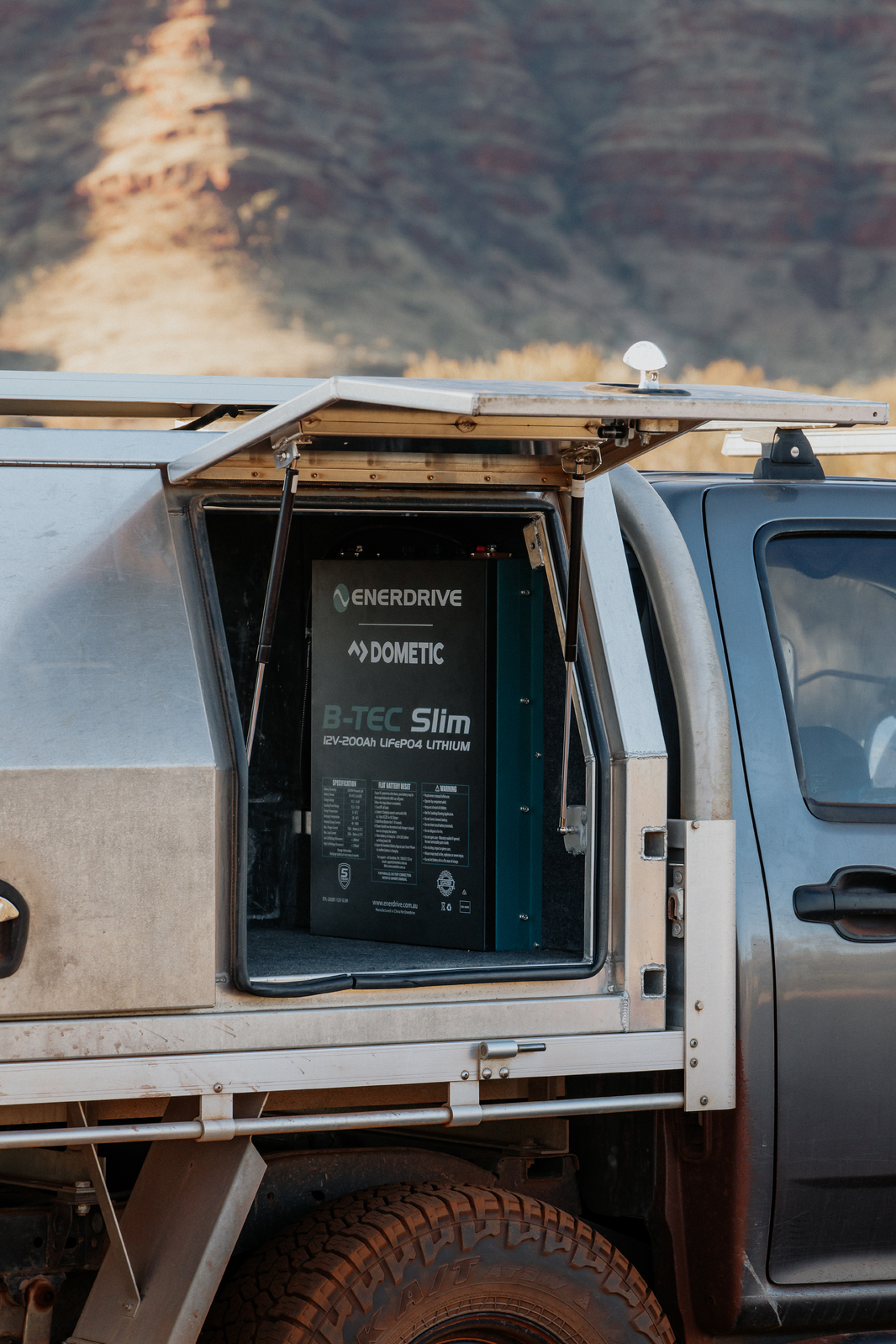

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

The 200Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than Enerdrive B-TEC battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Please note B-TEC batteries must not be installed –

In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

Go to: Product Details

Go to: Videos

Specifications

SKU EPL-200BT-12V-SLIM

Brand Enerdrive

GTIN 9342616029060

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (Ah) 200

Battery Length (mm) 530

Battery Width (mm) 83

Battery Height (mm) 600

Battery Weight (kg) 30

Nominal Voltage 12.8V

Nominal Capacity 200Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 150A @ 25°C for 30mins

Recommended Charge Current for Maximum Life 60A-120A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 250A @ 25°C ± 5°C for 30mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤ 11.20V

Over-Charge Protection Per Cell 3.75V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Discharge Over Current 280A for 25s – 400A for 3.5s

Protection Reset Time 5s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Powder Coated Zinc Plate

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

Float 13.50 - 13.80V

Total Charge Current Max 150A @ 25°C for 30mins

Dimensions 530 x 83 x 600 mm (L x W x H)

Circuit Protection The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharg

Net Weight (kg) 30.0 Kg

Go to: Specifications

Go to: Q & A

Videos

Enerdrive B-TEC Lithium Batteries - Part 1 - Application

Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications

Enerdrive B-TEC Lithium Batteries - Part 3 - Installation

Enerdrive B-TEC Lithium Batteries - Part 4 - Settings

Enerdrive B-TEC Lithium Batteries - Part 5 - Operation

Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding

The Best Caravan Battery?

What Will My Camping Battery Run?

The Latest Caravan Battery by Enerdrive: The B-TEC 200Ah 12V Generation 2 Battery

Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel

How To: Resetting A Flat Enerdrive BTEC or eLITE Battery

Product Features: The Enerdrive 200Ah Lithium Battery

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

It is possible to connect an EPL-200Btec Slim and 200Btec in parallel?

Unfortunately due to the variations in the internal BMS boards one can't parallel a normal 200BTec with a 200BTec Slim.
Can I series connect B-TEC batteries to achieve higher voltage?

No. Enerdrive offers higher voltage Lithium solutions - contact us for details.
Can I use an Inverter with my B-TEC battery?

Yes. Refer to Section 4 of the manual for more detail.
Can I install the B-TEC battery in a wet area?

No. Due to the construction of the B-TEC cases the batteries must be installed in a dry environment to protect against moisture ingress.
Can I parallel B-TEC batteries?

The short answer is yes. The long answer is - make sure the link cables are of the same size or greater than your load/charging requirements and no more than 4 batteries in parallel.

With low to medium current draw installations (the vast majority of applications) you may never see an issue and your storage capacity will be greatly increased - I.E. 2 x 200 Amp = 400 Amp capacity. When installing, fully charge the batteries separately - then let sit for 30 minutes before connecting together. When connecting in parallel - take the positive from Battery 1, and the negative from Battery 2 to your system as per the diagram below.

The Smart Phone App will only show the information from one battery at a time - not both. This is another advantage of a separate Battery Monitor - it will show the total system environment.

*Note: Slight variance of State of Charge or Amps may occur between the batteries in parallel however these should not vary by more than 5%. It is recommend that annually the batteries be disconnected and individually charged allowing them to sit at a fully charged state for 12hrs each before connecting back together.

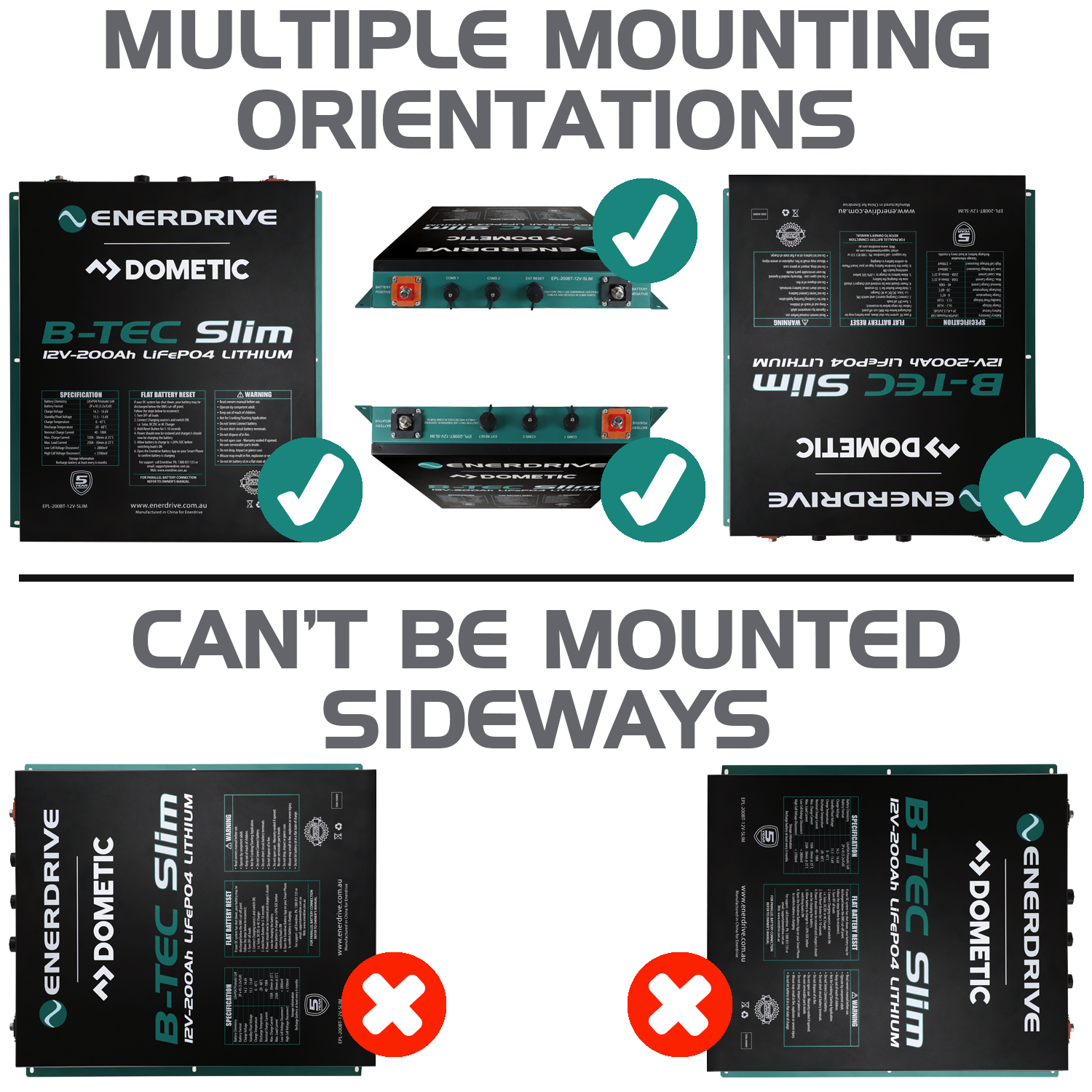

Can I install the B-TEC battery on its side or end?

No. Please note that the 12V 200Ah SLIM B-TEC Battery features a wider range of acceptable mounting orientations - please refer to the diagram below for guidance.
