Enerdrive B-TEC 24V 100Ah Lithium Battery & 30A Industrial Battery Charger Bundle

SKU: K-100-01 Learn More»

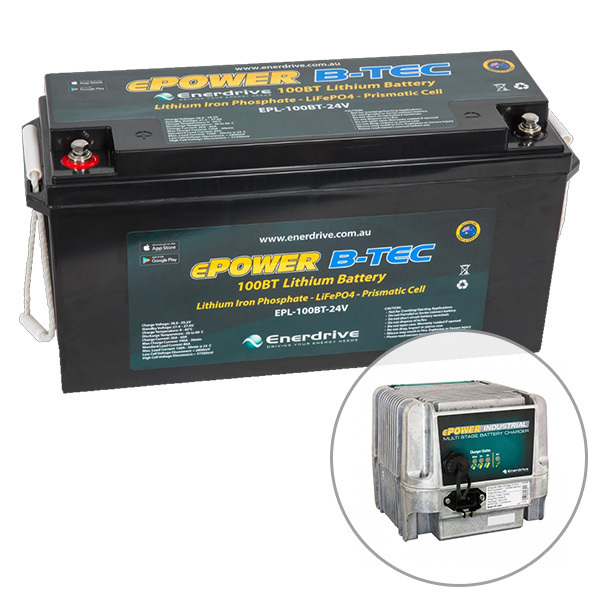

Enerdrive B-TEC 24V 100Ah Lithium Battery & 30A Industrial Battery Charger Bundle
Free Shipping
$3,299
$3,779

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$478

In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

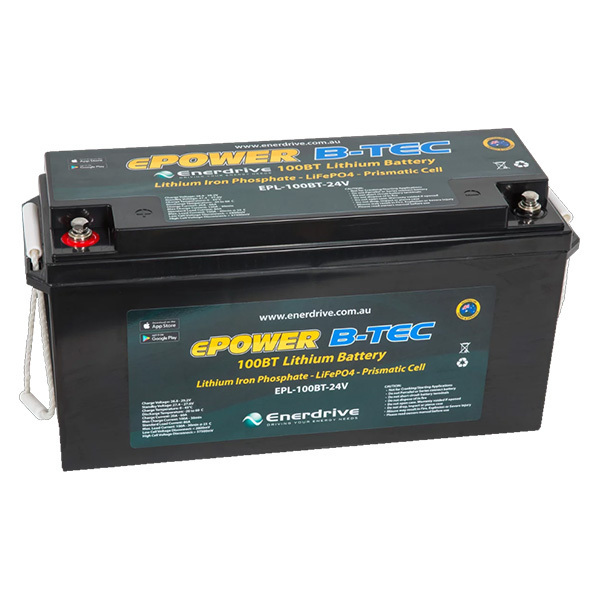

Enerdrive B-TEC 24V 100Ah Lithium Battery & 30A Industrial Battery Charger Bundle, 5 Year Warranty. Enerdrive are proud to introduce the new ePOWER B-TEC 100Ah Lithium Battery with Smart Phone Monitoring Technology. The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

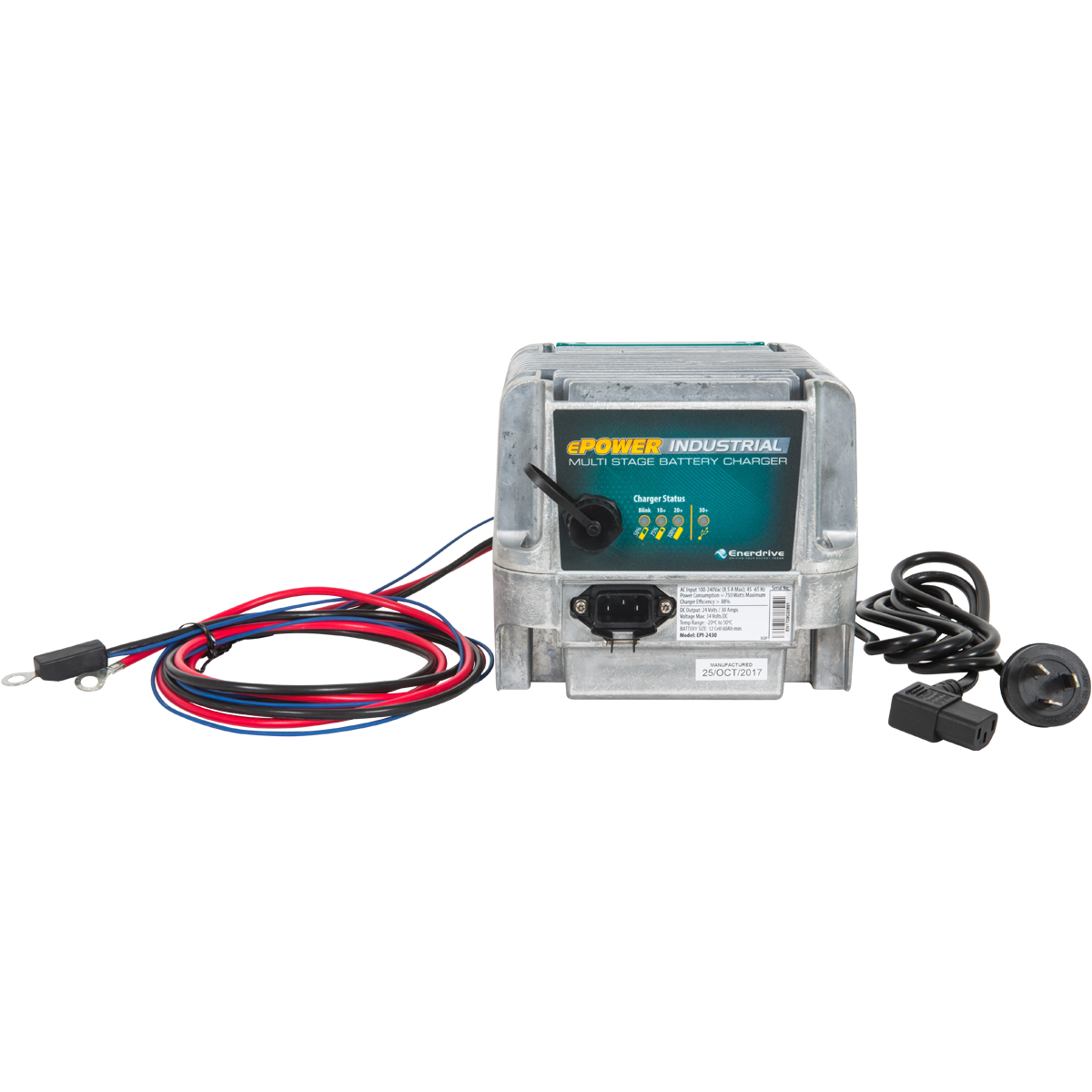

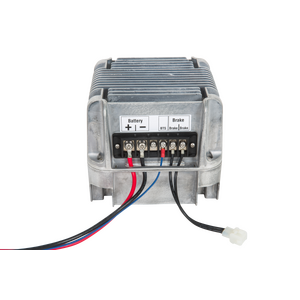

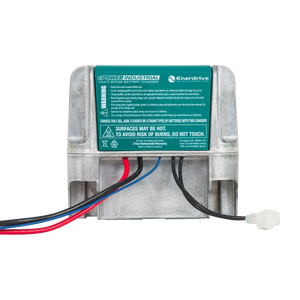

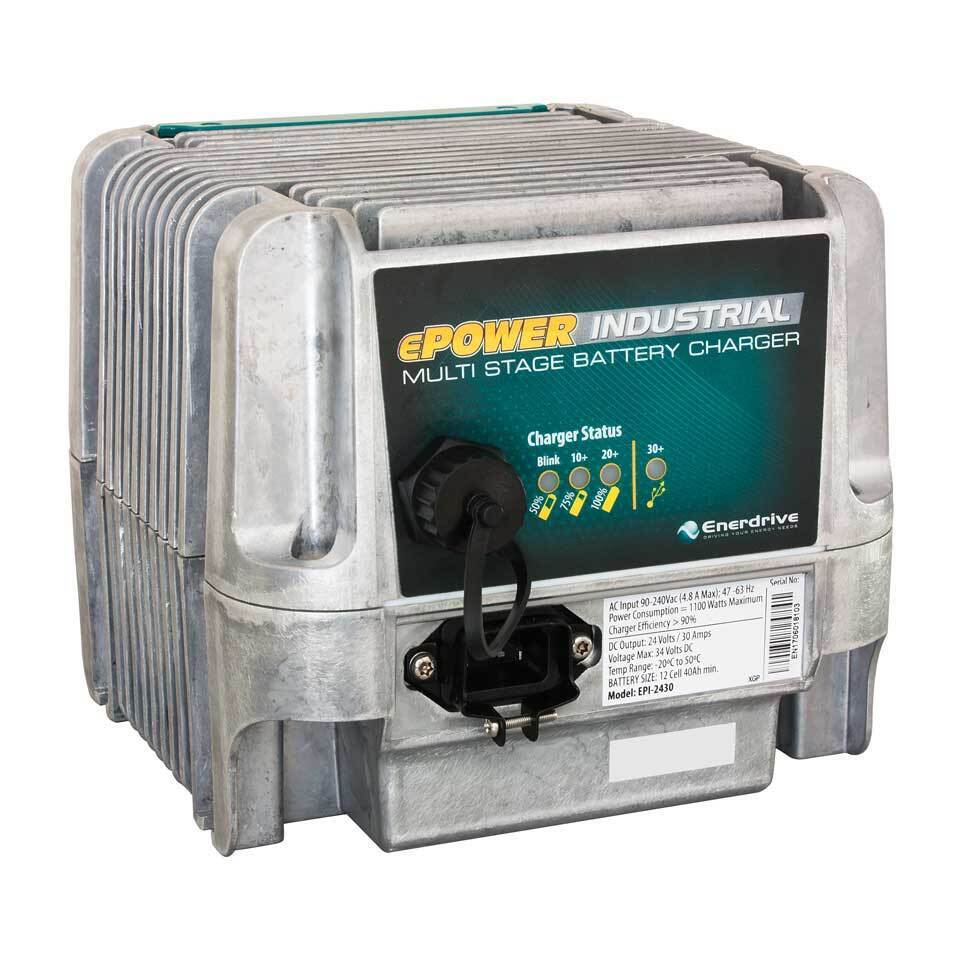

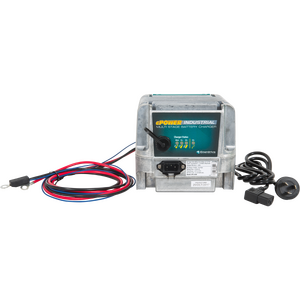

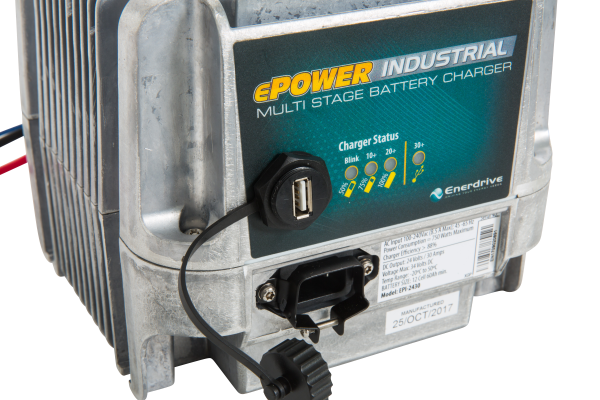

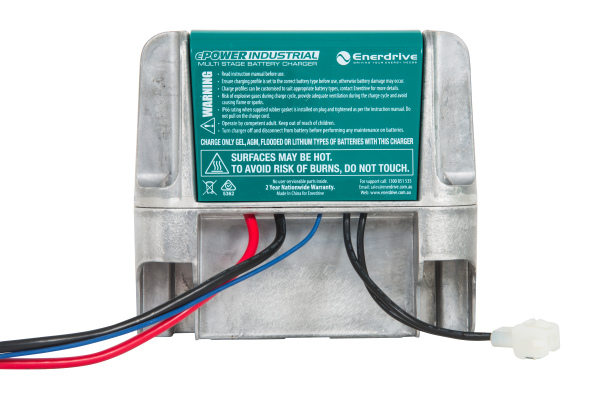

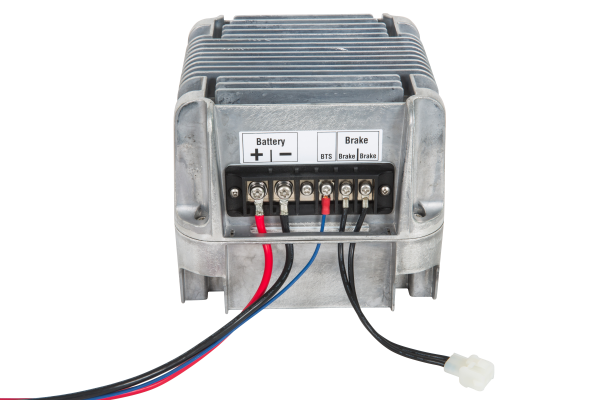

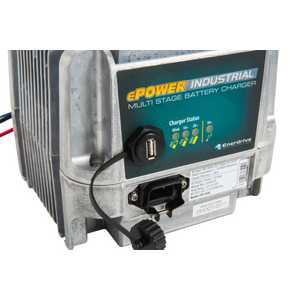

Enerdrive’s ePOWER Industrial Battery Charger is built to withstand vibration and exposure to dust or moisture typically found when used in typical on-board or industrial applications. Charge Algorithm updates and downloadable charger data logs are easily accessible via the use of a USB memory stick.

Bundle Includes:

  • EPL-100BT-24V - Enerdrive B-TEC 24V 100Ah Lithium Battery
  • EPI-2430 - Enerdrive ePOWER 24V 30A Industrial Battery Charger



Enerdrive Product Manual

 *Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.
NOTE: This model have changed Part Number, it used to be called K-100-24V-AC30-BUNDLE, and is now called K-100-01

Specifications

SKU K-100-01

Brand Enerdrive

GTIN 9342616020593

Warranty Period: 5 Years

Product Category Battery Bundle

Battery Voltage 24V

Amp Hours (Ah) 100

Battery Weight (kg) 25

Model EPL-100BT-24V (Battery) | EPI-2430 (Battery Charger)

Nominal Voltage 25.6V (Battery)

Nominal Capacity 100Ah (Battery)

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)

Battery Charge Temperature 0 ̴ 45°C (Battery)

Normal Charge Voltage CV/CC* 28.80 Ì´ 29.20V (Battery)

Standby (Float) Voltage 27.00 Ì´ 27.60V (Battery)

Maximum Charge Current 50A @ 25°C for 30mins (Battery) | MAX Power 850W, 8.5A @100V – 4.25A @230V (Battery Charger)

Recommended Charge Current for Maximum Life ≤ 33A (Battery)

Battery Discharge Temperature -20 ̴ 60°C (Battery)

Battery Output Voltage Range 22.00 Ì´ 29.20V (Battery)

Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Battery)

Pulse Discharge Current 450A for 1.0s (Battery)

Discharge Cut-off Voltage ≤ 22.40V (Battery)

Selectable Battery Type AGM, Flooded, GEL (12 Cell, 40Ah Min) (Battery Charger)

Charger Mode Output Voltage 38V (Battery Charger)

AC Input Frequency Range 50-60 Hz (Battery Charger)

Storage Range (temp) -40° to 70° C (Battery Charger)

Net Weight (kg) 29.6

Operating Range (temp) -30° to 50° C (Battery Charger)

Dimensions Battery: 485 x 170 x 245 mm | Industrial Charger: 207 x 180 x 160 mm (L x W x H)


Videos

Enerdrive B-TEC Lithium Batteries - Part 1 - Application



Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications



Enerdrive B-TEC Lithium Batteries - Part 3 - Installation



Enerdrive B-TEC Lithium Batteries - Part 4 - Settings



Enerdrive B-TEC Lithium Batteries - Part 5 - Operation



Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding



The Best Caravan Battery?



What Will My Camping Battery Run?



Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel



How To: Resetting A Flat Enerdrive BTEC or eLITE Battery



Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries



Lithium Batteries Australia - Are they Safe



Product Q&A

Ask Us a Question
.
  • Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?

    Hi there,

    You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.

    Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.

    The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.

    Double the storage equals double the time you can stay powered up and off the grid.

    Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.

    We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
