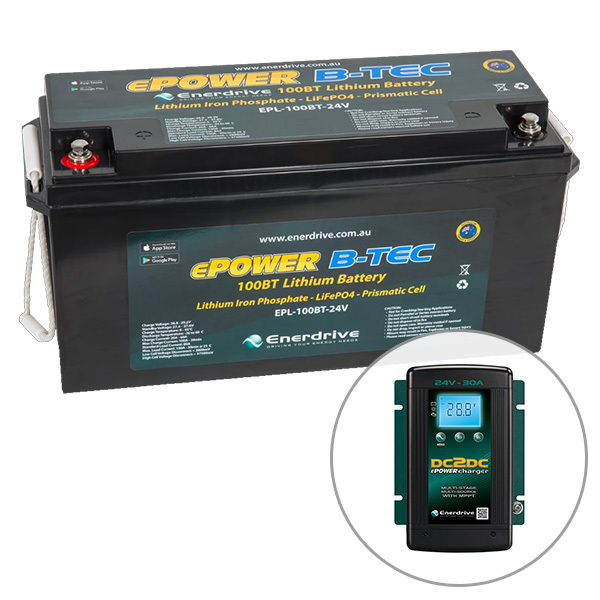

Enerdrive B-TEC 24V 100Ah Lithium Battery & 24V 30A DC2DC Charger Bundle
SKU: K-100-03 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC 24V 100Ah Lithium Battery & 24V 30A DC2DC Charger Bundle, 5 Year Warranty. Introducing the Enerdrive B-TEC 24V 100Ah Lithium Battery & 24V 30A DC2DC Charger Bundle, a powerhouse combination engineered to provide reliable and efficient power solutions for your diverse energy needs. This bundle comprises the innovative Enerdrive B-TEC 24V 100Ah Lithium Battery and the robust Enerdrive ePOWER 24V 30A DC to DC Battery Charger, offering unparalleled performance and convenience for your applications.
Bundle Includes:
- EPL-100BT-24V - Enerdrive B-TEC 24V 100Ah Lithium Battery
- EN3DC30-24 - Enerdrive ePOWER 24V 30A DC to DC Battery Charger

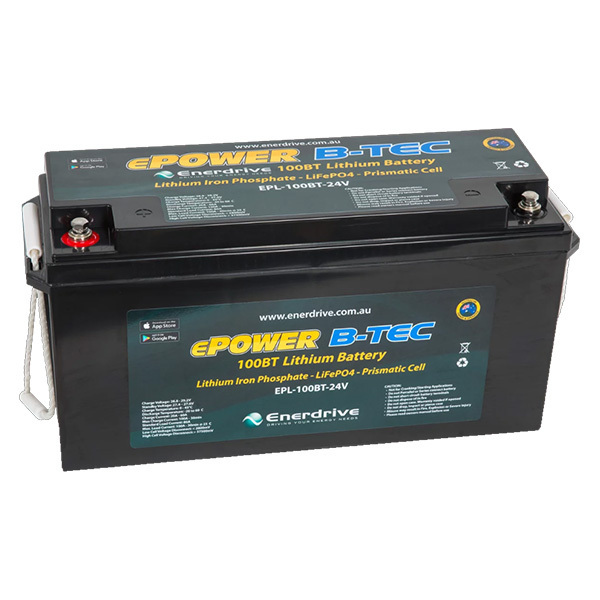

Enerdrive B-TEC 24V 100Ah Lithium Battery:
- Smartphone Monitoring Technology: Stay informed about your battery's performance with the integrated wireless Battery Monitoring Technology. Simply download the Enerdrive Battery Monitor App on your Android™ or Apple® device to monitor vital parameters such as capacity, voltage, current, state of charge, and more.
- Battery Management System: Equipped with an advanced internal Battery Management System (BMS), the B-TEC lithium battery ensures optimal operation by safeguarding against overcharge, over-discharge, over-temperature, and short circuits, thereby enhancing safety and longevity.
- Size and Weight Advantage: Compared to traditional AGM batteries, the B-TEC Lithium Battery offers significant size and weight savings while delivering 60% more usable power, making it an ideal choice for various applications including camper trailers, 4WDs, caravans, marine vessels, and more.
- Superior Performance: With over 5 years of research and development, Enerdrive has established itself as a leader in lithium battery technology, delivering superior performance and reliability for mobile, marine, and remote applications.
- Expandable Capacity: The B-TEC lithium battery can be paralleled with another battery for increased capacity, providing flexibility and scalability for your energy storage needs.

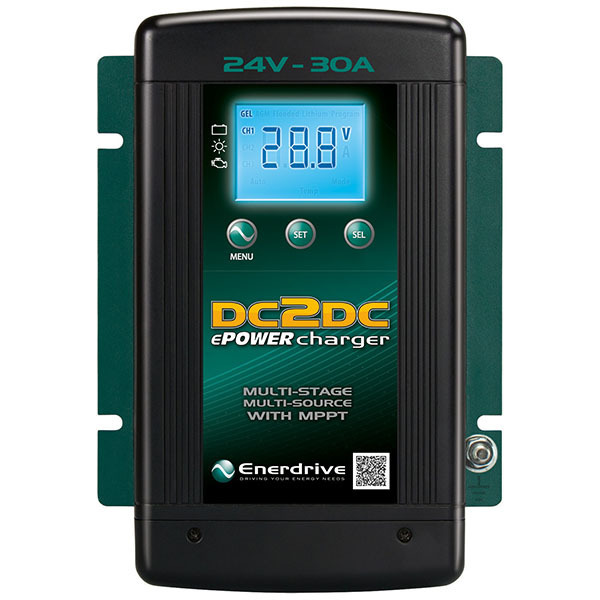

Enerdrive ePOWER 24V 30A DC to DC Battery Charger:
- Versatile Charging Options: The ePOWER DC2DC Battery Charger supports charging from both your vehicle's alternator while driving and solar panels while stationary, ensuring continuous and efficient charging for your battery bank.
- Advanced Features: With two independent DC inputs, a dedicated Maximum Power Point Tracking (MPPT) solar regulator, and fully programmable settings, this charger offers flexibility and control over your charging setup.
- Multistage Charging: Utilizing multistage smart charging technology, the charger delivers precise and efficient charging tailored to your battery's requirements, maximizing its lifespan and performance.
- Temperature Management: Equipped with thermo-controlled fan cooling and a temperature sensor, the charger ensures accurate and safe battery charging even in challenging environmental conditions.
Whether you're embarking on off-grid adventures or powering remote communication sites, the Enerdrive B-TEC 24V 100Ah Lithium Battery & 24V 30A DC2DC Charger Bundle provides the reliability, efficiency, and convenience you need to power your journey with confidence. Trust in Enerdrive's expertise and innovation to meet your energy needs wherever you go
*Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.
NOTE: This model have changed Part Number, it used to be called K-100-24V-DC30-BUNDLE, and is now called K-100-03
Specifications
SKU K-100-03
Brand Enerdrive
GTIN 9342616020616
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 24V
Amp Hours (Ah) 100
Battery Weight (kg) 25
Model EPL-100BT-24V (Battery) EN3DC30+ (Battery Charger)
Product Type 24V 30A DC2DC Battery Charger (Battery Charger)
Nominal Voltage 25.6V (Battery)
Nominal Capacity 100Ah (Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Normal Charge Voltage CV/CC* 28.80 ̴ 29.20V (Battery)
Standby (Float) Voltage 27.00 ̴ 27.60V (Battery)
Maximum Charge Current 50A @ 25°C for 30mins (Battery)
Recommended Charge Current for Maximum Life ≤ 33A (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Battery Output Voltage Range 22.00 ̴ 29.20V (Battery)
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Discharge Cut-off Voltage ≤ 22.40V (Battery)
Charger Efficiency 95% (Battery Charger)
Net Weight (kg) 26.85
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Equalize 31.0V (Battery Charger)
Charger Mode Output Voltage 27.6V – 31.0V (Battery Charger)
DC Output Single (Battery Charger)
Charging Control 2 stage / 3 stage selectable (Default 3 Stage) (Battery Charger)
Float 26.0V – 27.6V (Battery Charger)
Dimensions Battery: 485 x 170 x 245 mm | DC to DC Charger: 242 x 172 x 74 mm (L x W x H)
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Introducing The Enerdrive Battery Charger Range
Lithium Batteries Australia - Are they Safe
Product Q&A
-
Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?
Hi there,
You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.
Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.
The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.
Double the storage equals double the time you can stay powered up and off the grid.
Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.
We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
