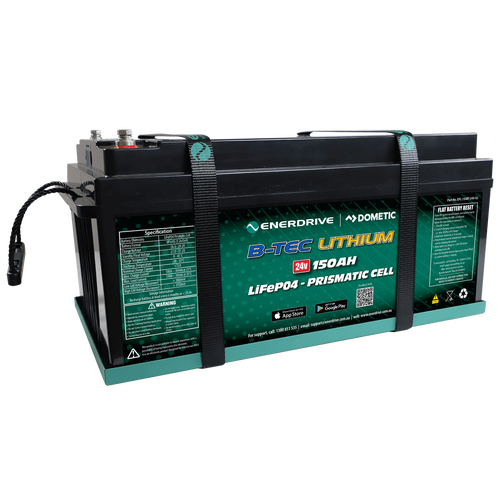

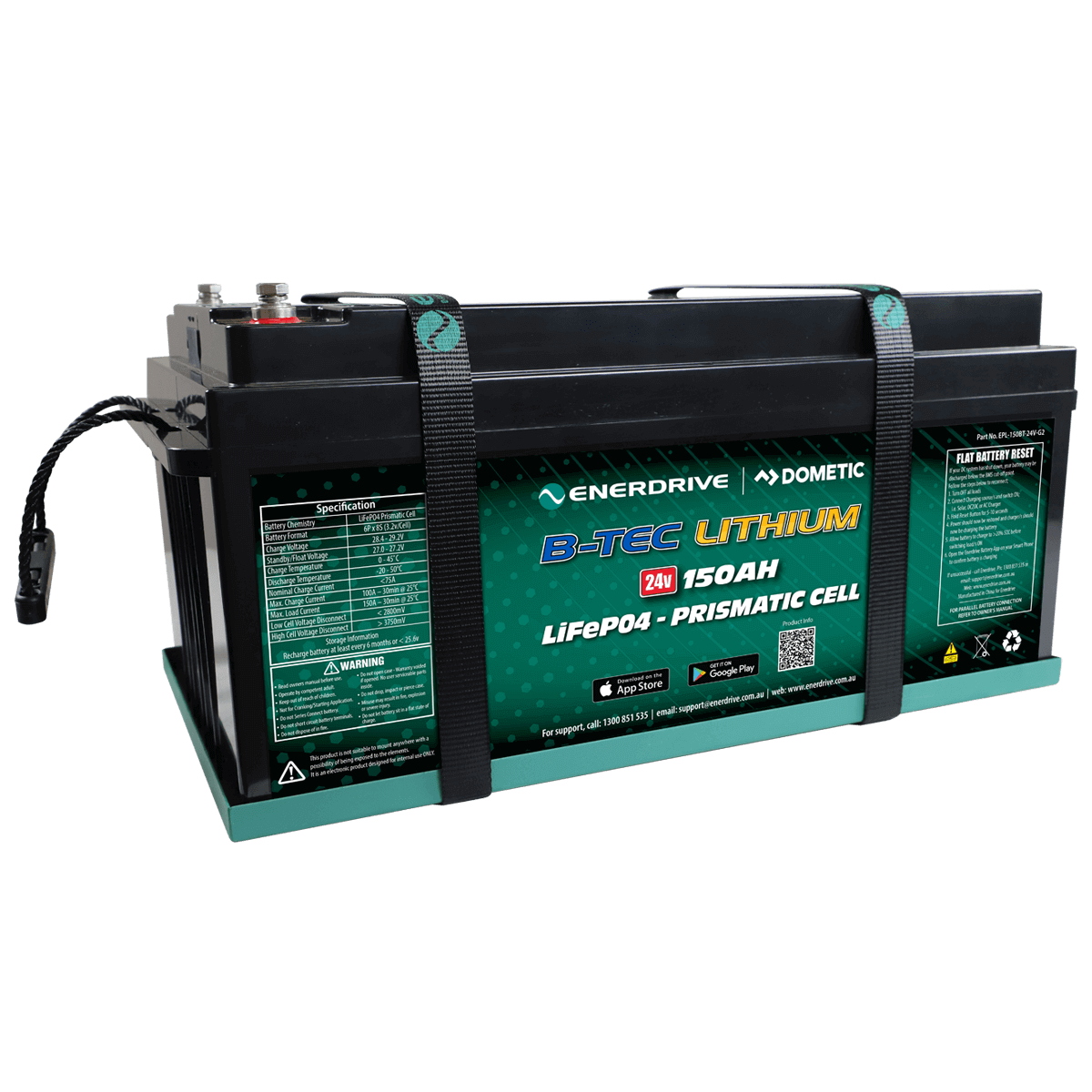

Enerdrive B-TEC 24V 150Ah Lithium Battery
SKU: EPL-150BT-24V-G2 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC 24V 150Ah Lithium Battery, 5 Years Warranty. Available in 12v 100Ah, 125Ah, 200Ah and 300Ah capacities and 24v 150Ah & 36v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

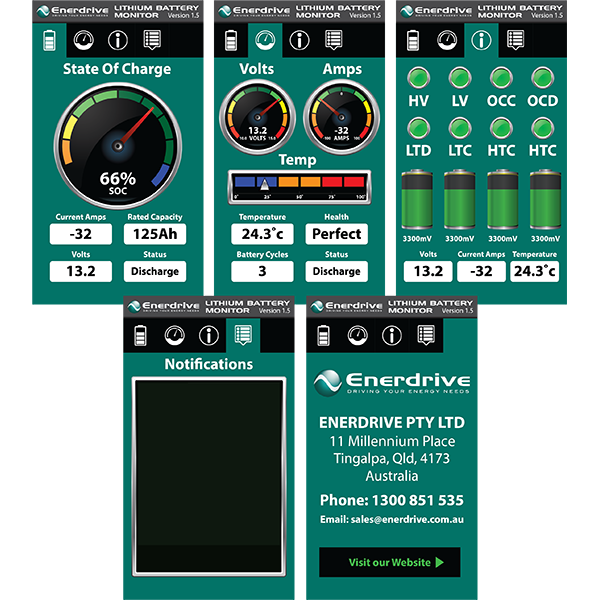

Smart Phone Monitoring System; The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information; Battery Capacity, Battery Voltage, Battery Current (Amps), Battery State of Charge (SOC), Battery State of Health (SOH), Battery Status, Individual Cell Voltage, Battery Temperature, Battery Cycles, Battery Alarms, Battery Event Information.
Battery Management System: The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
With over 8 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 4000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note; The ePOWER B-TEC battery is capable to be paralleled to a second ePOWER B-TEC battery of the same size. For maximum performance and lifespan of your ePOWER B-TEC battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The 150Ah battery is able to accept a maximum inverter capacity of 3500W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
If you are requiring a battery system larger than ePOWER B-TEC battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
Specifications
SKU EPL-150BT-24V-G2
Brand Enerdrive
GTIN 9342616019702
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 24V
Amp Hours (Ah) 150
Nominal Voltage 25.6V
Nominal Capacity 150Ah
Cycle Life (DOD – 80% under controlled conditions) >2000 cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 28.80 ̴ 29.20V
Standby (Float) Voltage 27.00 ̴ 27.60V
Maximum Charge Current 100A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 30~75A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 22.00 ̴ 29.20V
Maximum Discharge Current 150A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 22.40V
Net Weight (kg) 38.2 Kg
Dimensions 521 x 280 x 238 mm (L x W x H)
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Lithium Batteries Australia - Are they Safe
Product Q&A
-
Can I series connect B-TEC batteries to achieve higher voltage?
No. Enerdrive oers higher voltage Lithium solutions - contact us for details.
-
Can I use an Inverter with my B-TEC battery?
Yes. Refer to Section 4 of the manual for more detail.
-
Can I install the B-TEC battery in a wet area?
No. Due to the construction of the B-TEC cases the batteries must be installed in a dry environment to protect against moisture ingress.
-
Can I parallel B-TEC batteries?
The short answer is yes. The long answer is - make sure the link cables are of the same size or greater than your load/charging requirements and no more than 4 batteries in parallel.
With low to medium current draw installations (the vast majority of applications) you may never see an issue and your storage capacity will be greatly increased - I.E. 2 x 200 Amp = 400 Amp capacity. When installing, fully charge the batteries separately - then let sit for 30 minutes before connecting together. When connecting in parallel - take the positive from Battery 1, and the negative from Battery 2 to your system as per the diagram below.
The Smart Phone App will only show the information from one battery at a time - not both. This is another advantage of a separate Battery Monitor - it will show the total system environment.
*Note: Slight variance of State of Charge or Amps may occur between the batteries in parallel however these should not vary by more than 5%. It is recommend that annually the batteries be disconnected and individually charged allowing them to sit at a fully charged state for 12hrs each before connecting back together.
-
Can I install the B-TEC battery on its side or end?
No. Please note that the 12V 200Ah SLIM B-TEC Battery features a wider range of acceptable mounting orientations - please refer to the diagram below for guidance.
