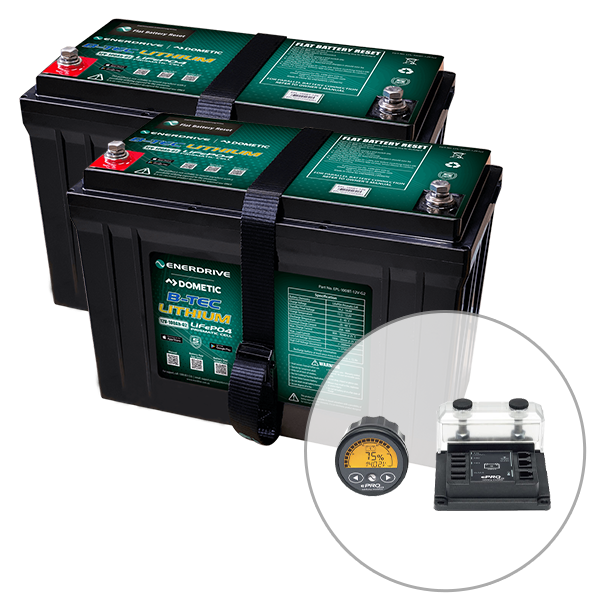

Enerdrive B-TEC 2 x 100Ah Lithium Battery & ePRO+ Monitor Bundle
SKU: K-200-26 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
- EPL-100BT-12V-G2 x 2 - Enerdrive B-TEC 100Ah Lithium Battery
- EN55050 - Enerdrive ePRO PLUS Battery Monitor

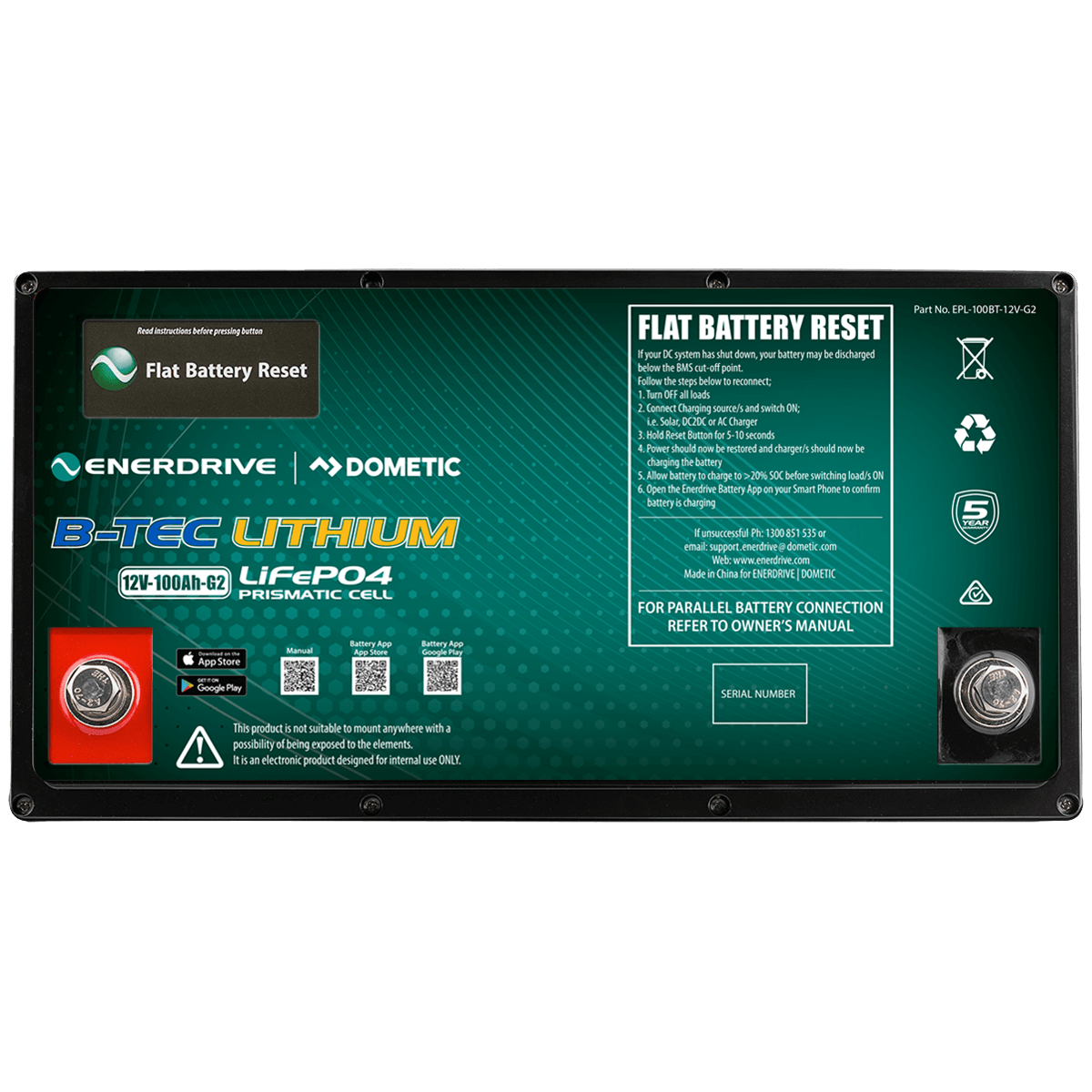

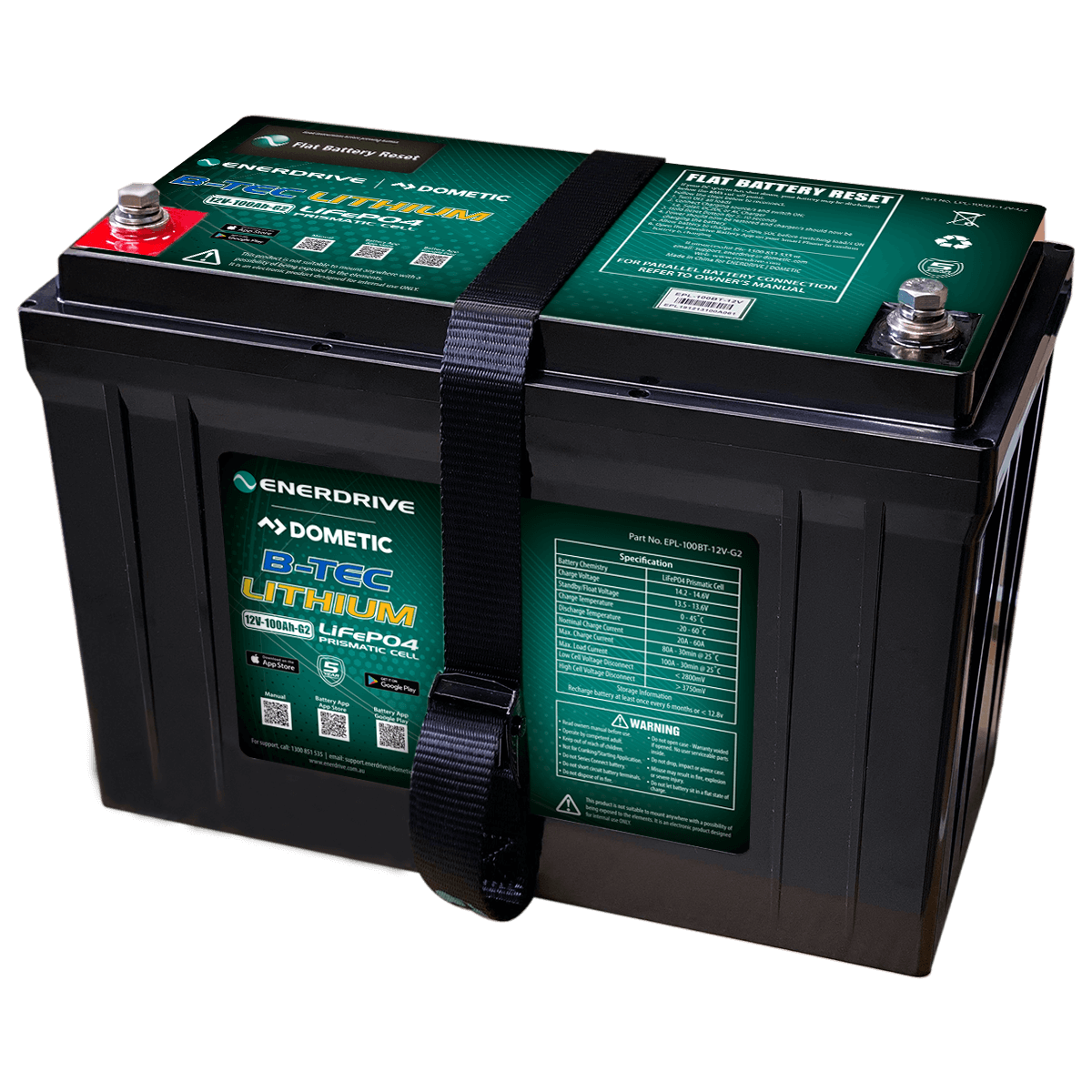

The new Enerdrive B-Tec 100Ah has replaced the Enerdrive 12V 100Ah eLITE Lithium Battery. The B-TEC ltihium batteries are known for their lightweight design, longer cycle life and high energry density, great for any adventure!

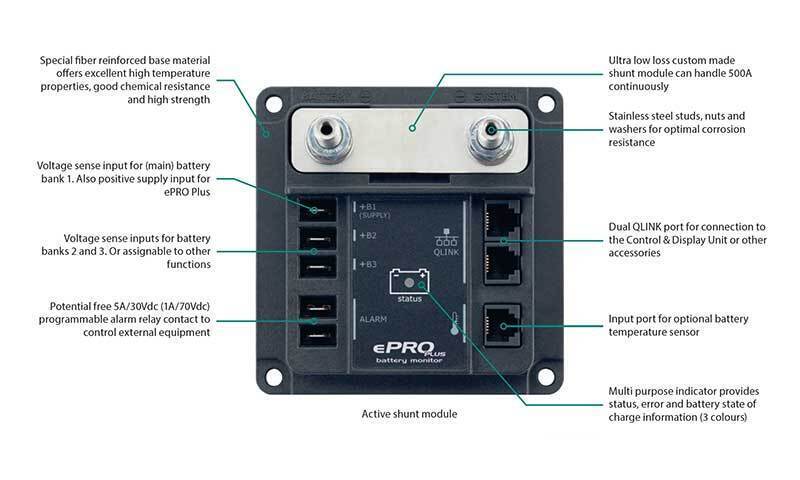

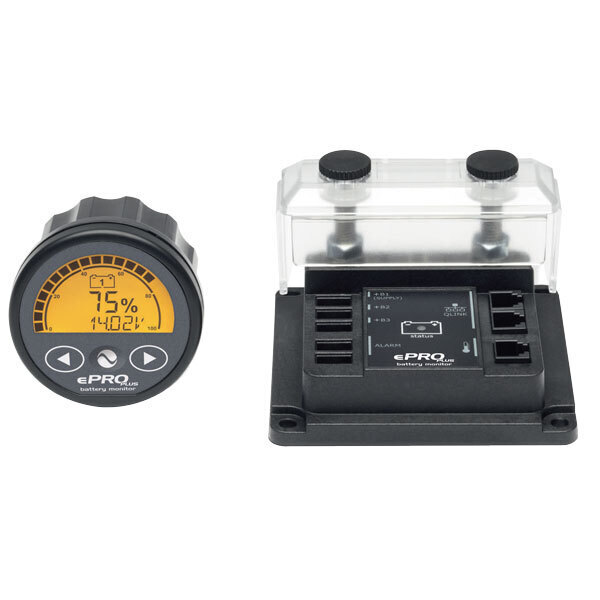

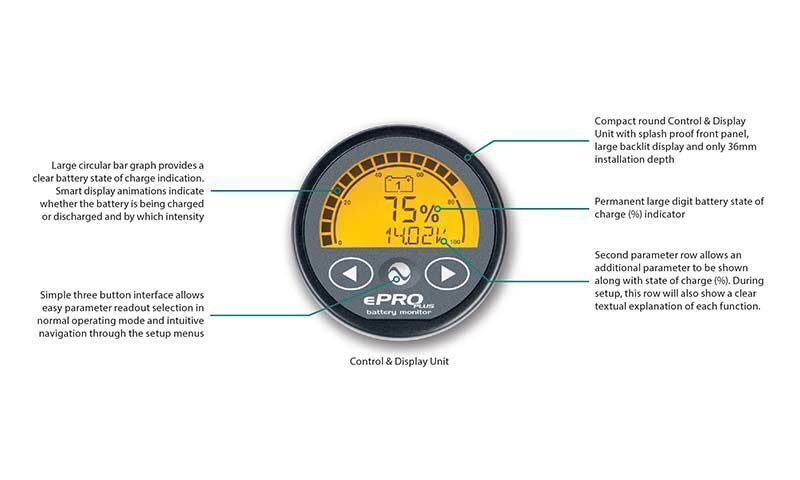

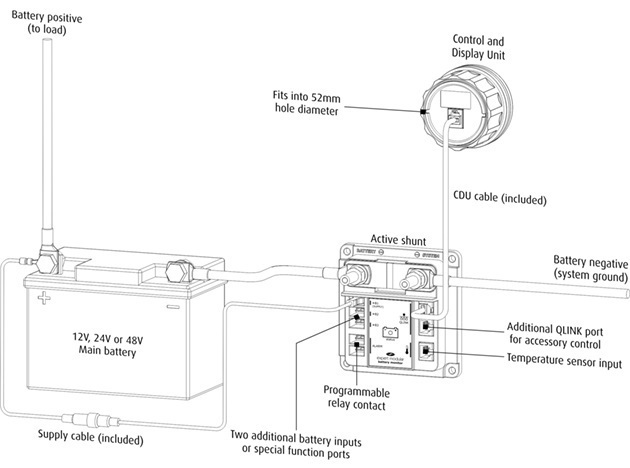

The ePRO PLUS represents the cutting-edge in battery monitoring technology. It incorporates an intelligent shunt and a remote control display unit. The shunt is specifically designed with a Grid Optimized footprint, ensuring seamless integration with Enerdrive's DC Modular products.
- Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C)
- Supports up to three battery banks (12V, 24V and 48V)
- Very simple ‘Plug and Play’ installation
- Perfect integration with Enerdrive DC Modular products
When you opt for this bundle you gain the capability to meticulously oversee the performance of your battery bank, allowing precise charging and discharging operations. Real-time data is at your fingertips for constant monitoring.
Battery Information:
Battery Monitor Information:
NOTE: This model have changed Part Number, this is now known as K-100-26 - B-TEC 2 x 100Ah, it used to be known as K-100-16 eLITE 2 x 100Ah.
Specifications
SKU K-200-26
Brand Enerdrive
GTIN 9342616027929
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 318
Battery Width (mm) 165
Battery Height (mm) 232
Battery Weight (kg) 12.6
Nominal Voltage 12.8V (per Battery)
Nominal Capacity 100Ah (Per Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Per Battery)
Battery Charge Temperature 0 ̴ 45°C (Per Battery)
Normal Charge Voltage CV/CC* 14.40 Ì´ 14.60V (Per Battery)
Standby (Float) Voltage 13.50 Ì´ 13.60V (Per Battery)
Maximum Charge Current 60A @ 25°C for 30mins (Battery)
Recommended Charge Current for Maximum Life 20~60A
Battery Discharge Temperature -20 ̴ 60°C (Per Battery)
Battery Output Voltage Range 11.00 Ì´ 14.60V (Per Battery)
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins (Per Battery)
Pulse Discharge Current 450A for 1.0s (Per Battery)
Discharge Cut-off Voltage ≤ 11.20V (Per Battery)
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
NOTE For any installation that requires additional wiring, we recommend you engage a licensed auto electrician.
