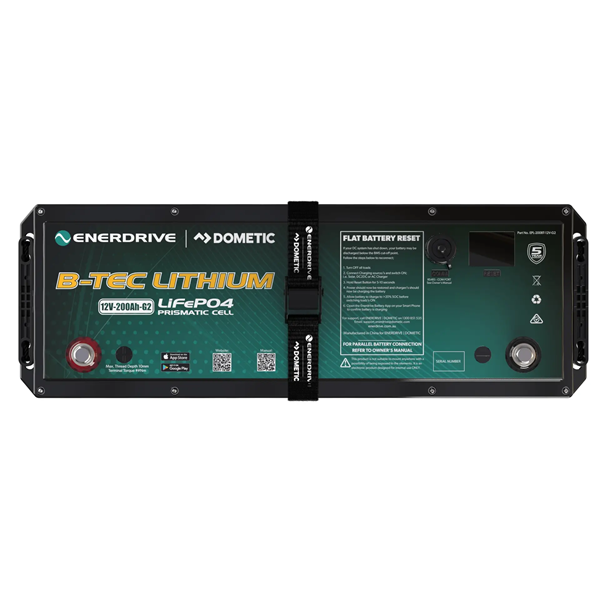

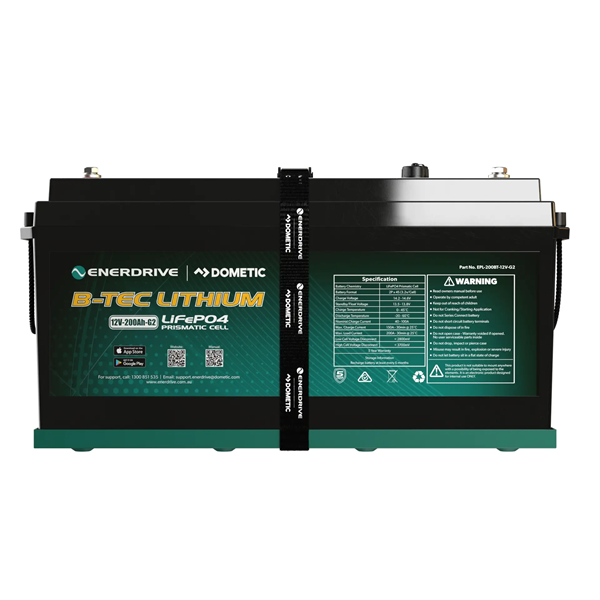

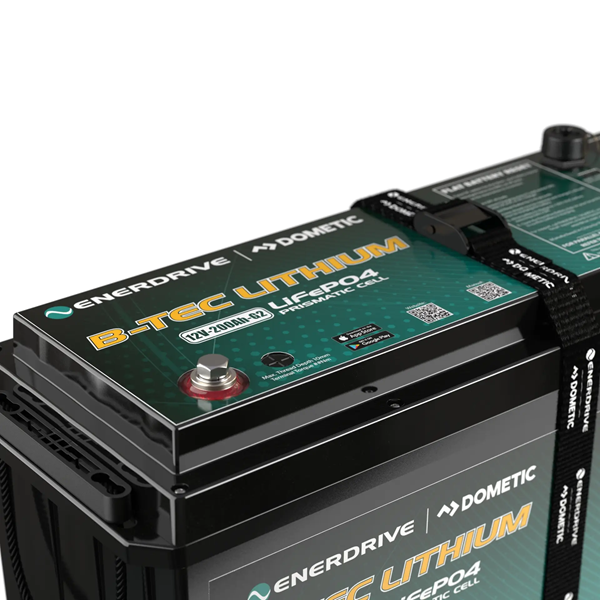

Enerdrive B-TEC 2 x 200Ah Lithium Battery Bundle

Specifications

SKU K-400-15

Brand Enerdrive

GTIN 9342616028698

Warranty Period: 5 Years

Product Category Battery Bundle

Battery Voltage 12V

Amp Hours (Ah) 400

Battery Length (mm) 505

Battery Width (mm) 172.5

Battery Height (mm) 265

Battery Weight (kg) 25

Model EPL-200BT-12V

Nominal Voltage 12.8V

Nominal Capacity 2 x 200Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)

Battery Charge Temperature 0 ̴ 45°C (Battery)

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)

Maximum Charge Current 150A @ 25°C for 30mins (Battery)

Recommended Charge Current for Maximum Life 40~100A

Battery Discharge Temperature -20 ̴ 60°C (Battery)

Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)

Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)

Pulse Discharge Current 450A for 1.0s (Battery)

Discharge Cut-off Voltage ≤ 11.20V (Battery)

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Battery Manual Reset Button Yes

Discharge Over Current 220A for 30s – 450A for 1s

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

Videos

Enerdrive B-TEC Lithium Batteries - Part 1 - Application

Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications

Enerdrive B-TEC Lithium Batteries - Part 3 - Installation

Enerdrive B-TEC Lithium Batteries - Part 4 - Settings

Enerdrive B-TEC Lithium Batteries - Part 5 - Operation

Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding

The Best Caravan Battery?

What Will My Camping Battery Run?

Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel

Introducing The Enerdrive Battery Charger Range

How To: Resetting A Flat Enerdrive BTEC or eLITE Battery

Product Features: The Enerdrive 200Ah Lithium Battery

Product Q&A

• Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?

  Hi there,

  You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.

  Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.

  The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.

  Double the storage equals double the time you can stay powered up and off the grid.

  Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.

  We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.

• With charge capabilities of 0°-45° does the btec battery have built in protection to stay within these perameters? Or does the Enerdrive dcdc40 charger have these protections built in to safeguard the battery?

  Hi There,

  The BMS built in to the battery has over temperature protection.

  It would be up to the user to make sure the battery is installed in an area where it should not be subject to temepratures under 0C and over 45C when being charged.

• HiIn your specs you mention the 200 amp 12v lithium battery to be 265mm high.Does this include the cradle base height?Thanks

  Hi There,

  The measurements for the battery are as follows:

  Without Tray & Strap -  505mm x 173mm x 265mm

  With Tray & Strap - 505mm x 176mm x 276mm

• Can this battery be charged with a Redarc BCDC1240 ?

  Hi There,

  Yes, you can use the Redarc BCDC1240D to charge this battery.

• How many cells are in the Enerdrive 200Ah Btec Battery?

  There are 32 (8x 4) Prismatic Cells in the 200Ah Btech Battery.

• What size generator should I use for charging a battery?

  The below generators are the minimum recommend sizes based on an AVR generator:

  ● 800VA 2KVA

  ● 1200VA 2.5KVA

  ● 1600VA 3KVA

  ● 3000VA 5KVA

  ● 5000VA 8KVA

  If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.

• Can these chargers take solar input?

  No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

• How can I remotely monitor and control my devices?

  You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
