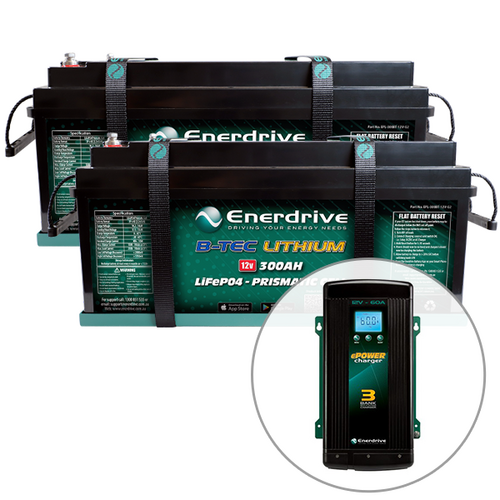

Enerdrive B-TEC 2 x 300Ah Lithium Battery & 60A AC Charger Bundle
SKU: K-600-1 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC 2 x 300Ah Lithium Battery & Charger Bundle, 5 Year Warranty. The Enerdrive 2 x 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.
The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.
Bundle Includes:

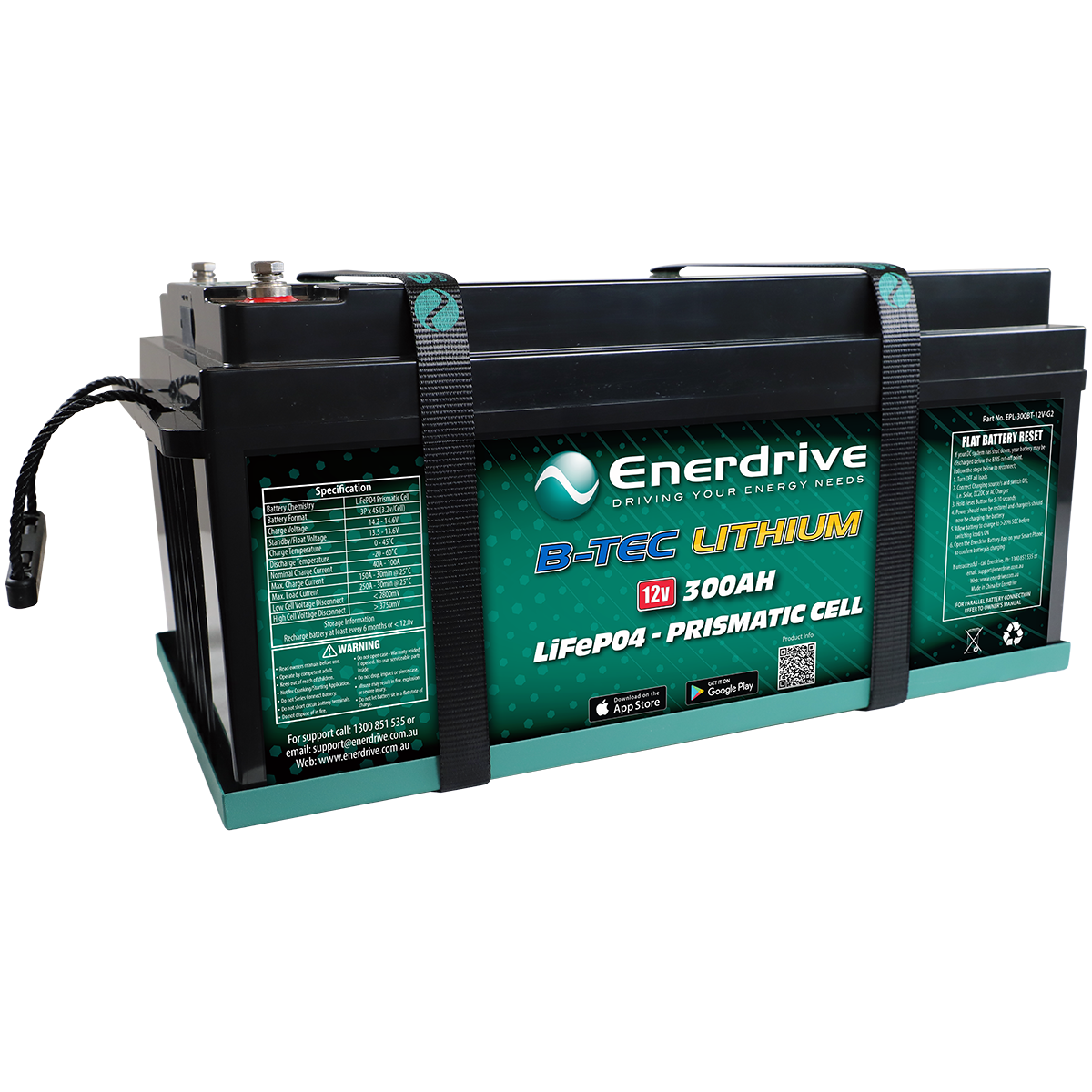

- 2 x EPL-300BT-12V-G2 - Enerdrive B-TEC 2 x 300Ah Lithium Battery

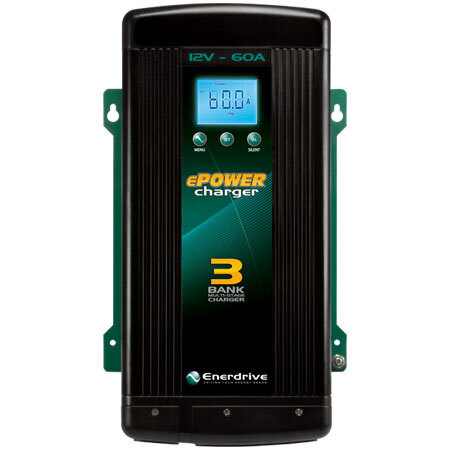

- EN31260 - Enerdrive 60A AC Battery Charger
Optional Chargers:
- EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
Here's how these components work together:
- The 40A DC2DC charger takes charge of replenishing the lithium battery during travel or when solar panels are accessible, ensuring an efficient battery charging process.
- The AC charger comes into play when you're linked to an AC power source, such as a campsite with electrical hookups or a marina with shore power. It provides a convenient method for recharging the battery when AC power becomes available.
The combination of both DC and AC charging options offers versatility in recharging your battery, catering to various scenarios. The DC charger is apt for charging on the move, while the AC charger proves valuable when you're stationary and connected to the grid.
This setup offers flexibility in recharging your battery, considering both your mobility and access to AC power sources. It's important to consult the manufacturer's recommendations and user manuals for each component to ensure proper installation and operation in your specific application.
| Bundles | K-600-05 | K-600-06 |
| 2 x EPL-300BT-12V-G2 | * | * |
| EN31260 | * | * |
| EN3DC40+ | * |
Battery Information:
DC Charger Information:
AC Charger Information:
Specifications
SKU K-600-1
Brand Enerdrive
GTIN 9342616029206
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 600
Battery Length (mm) 505
Battery Width (mm) 172.5
Battery Height (mm) 265
Battery Weight (kg) 25
DC Charger Output Current Rating (Amps) 40
AC Charger Output Current Rating (Amps) 60
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V
Standby (Float) Voltage 13.50 Ì´ 13.80V
Maximum Charge Current 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 40~100A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 Ì´ 14.60V
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 220A for 30s – 450A for 1s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Videos
Pro Series to B-TEC - The Next Step for Enerdrive
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Connecting Your Enerdrive Lithium Battery to a Simarine Monitor
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Product Q&A
-
When putting Battery in its holding place, can i turn it on its side to slide it and then stand it upright
Hi There,
The Enerdrive Lithium Batteries are required to be stood upright. Enerdrive do not recommend placing them on their side at all, sorry.
