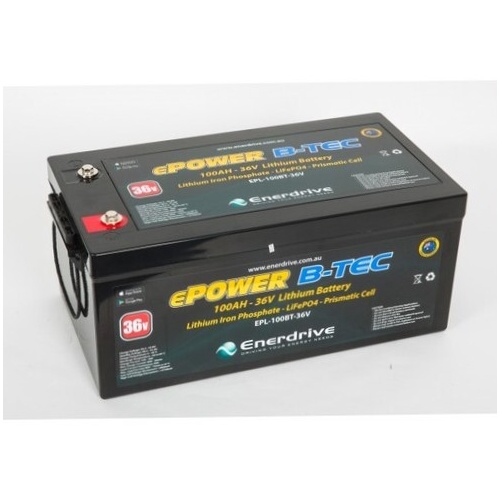

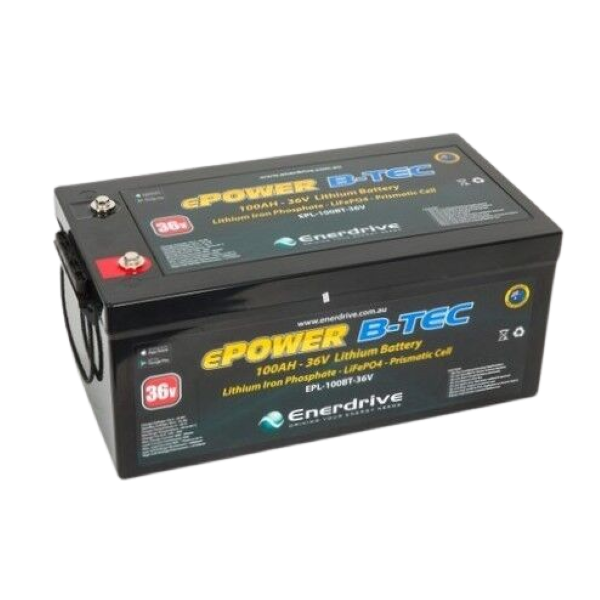

Enerdrive B-TEC 36V 100Ah Lithium Battery
SKU: EPL-100BT-36V Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC 36V 100Ah Lithium Battery, 5 Years Warranty. Enerdrive are proud to introduce the new ePOWER B-TEC 100Ah Lithium Battery with Smart Phone Monitoring Technology.
The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
Smart Phone Monitoring System
The Enerdrive ePOWER B-TEC battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
| Battery Capacity | Battery Voltage | Battery Current (Amps) |
| Battery State of Charge (SOC) | Battery State of Health (SOH) | Battery Status |
| Individual Cell Voltage | Battery Temperature | Battery Cycles |
| Battery Alarms | Battery Event Information |
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;
- 100Ah Lithium = 160Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The ePOWER B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The ePOWER B-TEC battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
With over 5 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 1200 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note: This ePOWER B-TEC lithium battery is capable to be paralleled to a second ePOWER B-TEC lithium battery. For maximum performance and lifespan of your lithium battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
*Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.
Specifications
SKU EPL-100BT-36V
Brand Enerdrive
GTIN 9342616019672
Warranty Period: 5 Years
Product Category Batteries
Battery Voltage 36V
Amp Hours (Ah) 100
Battery Length (mm) 519
Battery Width (mm) 273
Battery Height (mm) 222
Battery Weight (kg) 37.7
Model EPL-100BT-36V
Nominal Voltage 38.4V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 43.20 Ì´ 43.80V
Standby (Float) Voltage 40.5 Ì´ 41.40V
Maximum Charge Current 50A @ 25°C for 30mins
Recommended Charge Current for Maximum Life ≤ 33A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 33.00 Ì´ 48.80V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 33.60V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥38.4V
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Lithium Batteries Australia - Are they Safe
Product Q&A
-
Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?
Hi there,
You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.
Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.
The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.
Double the storage equals double the time you can stay powered up and off the grid.
Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.
We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
-
Can I series connect B-TEC batteries to achieve higher voltage?
No. Enerdrive oers higher voltage Lithium solutions - contact us for details.
-
Can I use an Inverter with my B-TEC battery?
Yes. Refer to Section 4 of the manual for more detail.
-
Can I install the B-TEC battery in a wet area?
No. Due to the construction of the B-TEC cases the batteries must be installed in a dry environment to protect against moisture ingress.
-
Can I parallel B-TEC batteries?
The short answer is yes. The long answer is - make sure the link cables are of the same size or greater than your load/charging requirements and no more than 4 batteries in parallel.
With low to medium current draw installations (the vast majority of applications) you may never see an issue and your storage capacity will be greatly increased - I.E. 2 x 200 Amp = 400 Amp capacity. When installing, fully charge the batteries separately - then let sit for 30 minutes before connecting together. When connecting in parallel - take the positive from Battery 1, and the negative from Battery 2 to your system as per the diagram below.
The Smart Phone App will only show the information from one battery at a time - not both. This is another advantage of a separate Battery Monitor - it will show the total system environment.
*Note: Slight variance of State of Charge or Amps may occur between the batteries in parallel however these should not vary by more than 5%. It is recommend that annually the batteries be disconnected and individually charged allowing them to sit at a fully charged state for 12hrs each before connecting back together.
-
Can I install the B-TEC battery on its side or end?
No. Please note that the 12V 200Ah SLIM B-TEC Battery features a wider range of acceptable mounting orientations - please refer to the diagram below for guidance.
