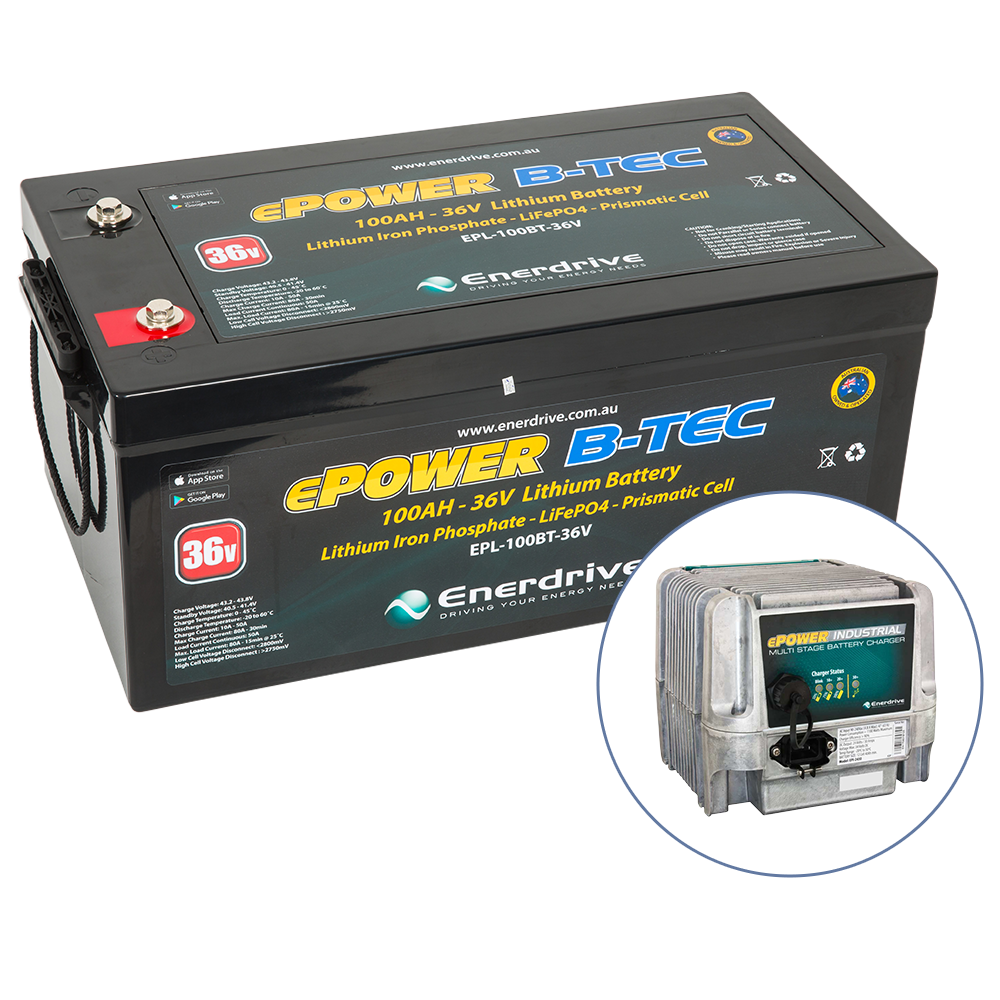

Enerdrive B-TEC 36V 100Ah Lithium Battery & 36V 20A Industrial Charger Bundle
SKU: K-100-04 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive B-TEC 36V 100Ah Lithium Battery & 36V 20A Industrial Charger Bundle, 5 Years Warranty. Introducing the Enerdrive B-TEC 36V 100Ah Lithium Battery & 36V 20A Industrial Charger Bundle, a high-performance power solution meticulously crafted for marine applications, specifically tailored to power 36V trolling motors for fishing boats. This bundle combines the cutting-edge Enerdrive B-TEC 36V 100Ah Lithium Battery with the rugged Enerdrive ePOWER 36V 20 Amp Industrial Battery Charger, offering unmatched reliability and efficiency for your marine adventures.
Bundle Includes:
- EPL-100BT-36V - Enerdrive B-TEC 36V 100Ah Lithium Battery
- EPI-3620 - Enerdrive ePOWER 36V 20 Amp Industrial Battery Charger

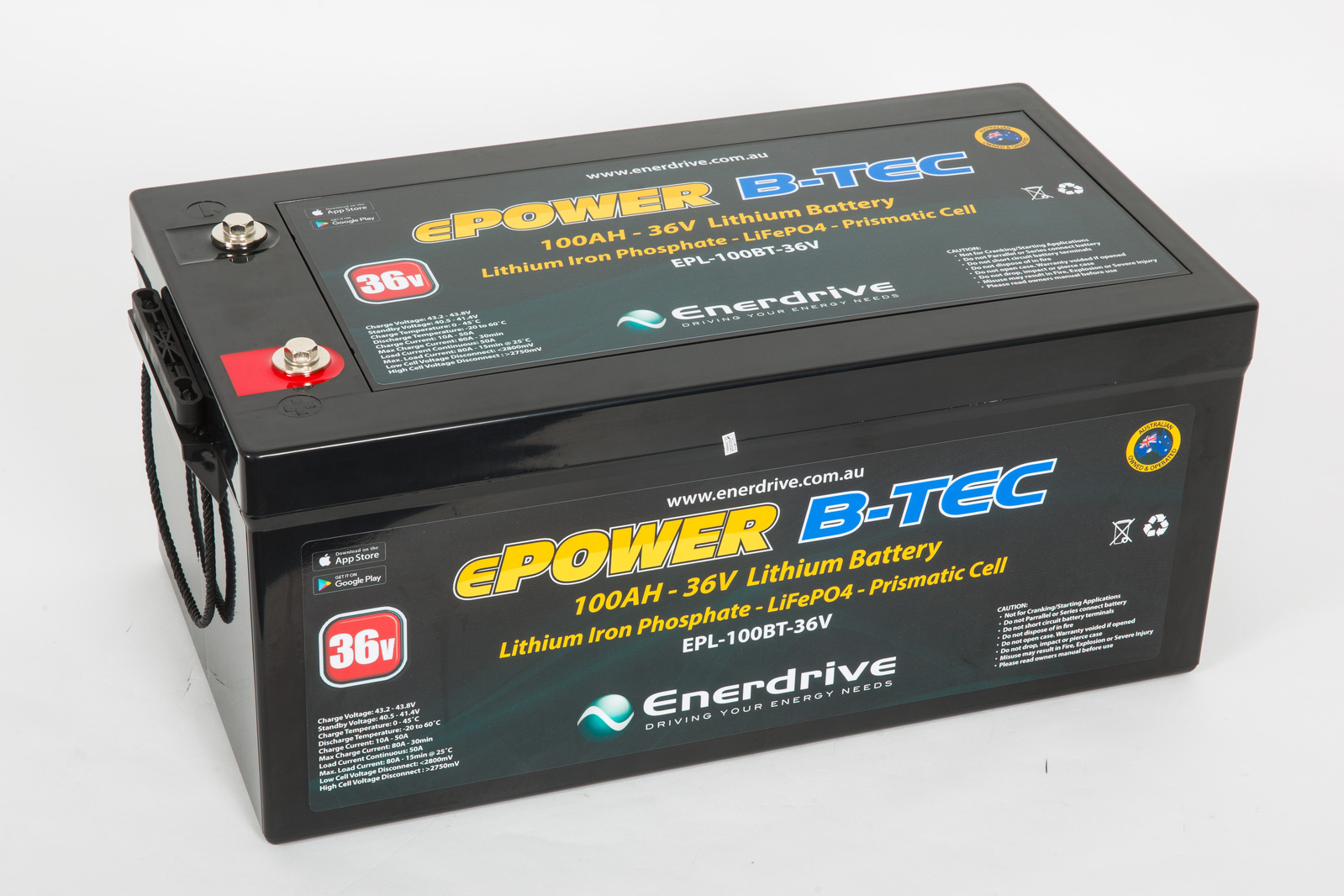

Enerdrive B-TEC 36V 100Ah Lithium Battery:
Smartphone Monitoring Technology: Stay connected with your battery's performance using the integrated wireless Battery Monitoring Technology. Access vital information such as capacity, voltage, state of charge, temperature, and more through the Enerdrive Battery Monitor App available for Android™ or Apple® devices.
Advanced Battery Management: With an internal Battery Management System (BMS), the B-TEC lithium battery ensures optimal operation by safeguarding against overcharge, over-discharge, over-temperature, and short circuits, providing peace of mind during your marine excursions.
Size and Weight Advantage: Enjoy the benefits of lithium technology with significant size and weight savings compared to traditional AGM batteries. The B-TEC Lithium Battery delivers 60% more usable power while being nearly 50% lighter and 30% smaller, making it an ideal choice for marine applications.
Marine-Grade Construction: Designed to withstand the rigors of marine environments, the B-TEC battery is built to last, ensuring reliable performance even in challenging conditions encountered at sea.

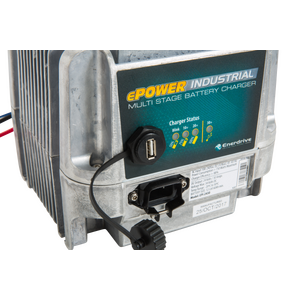

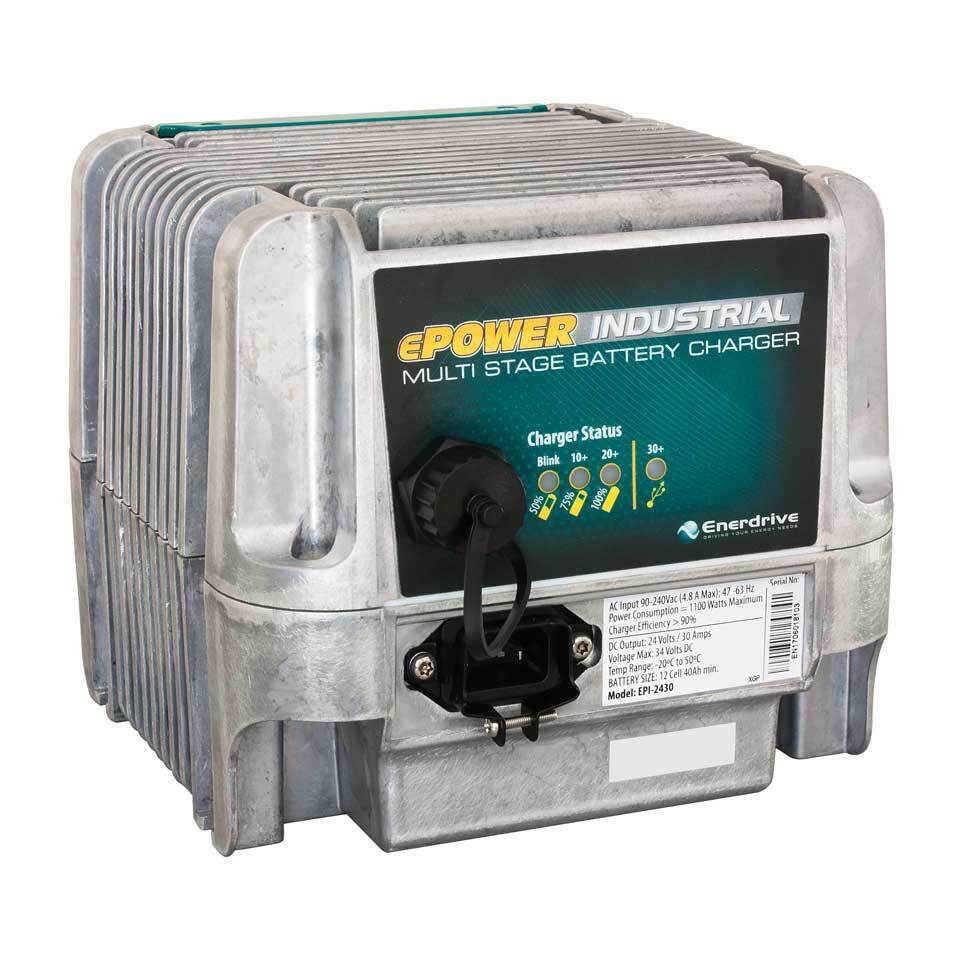

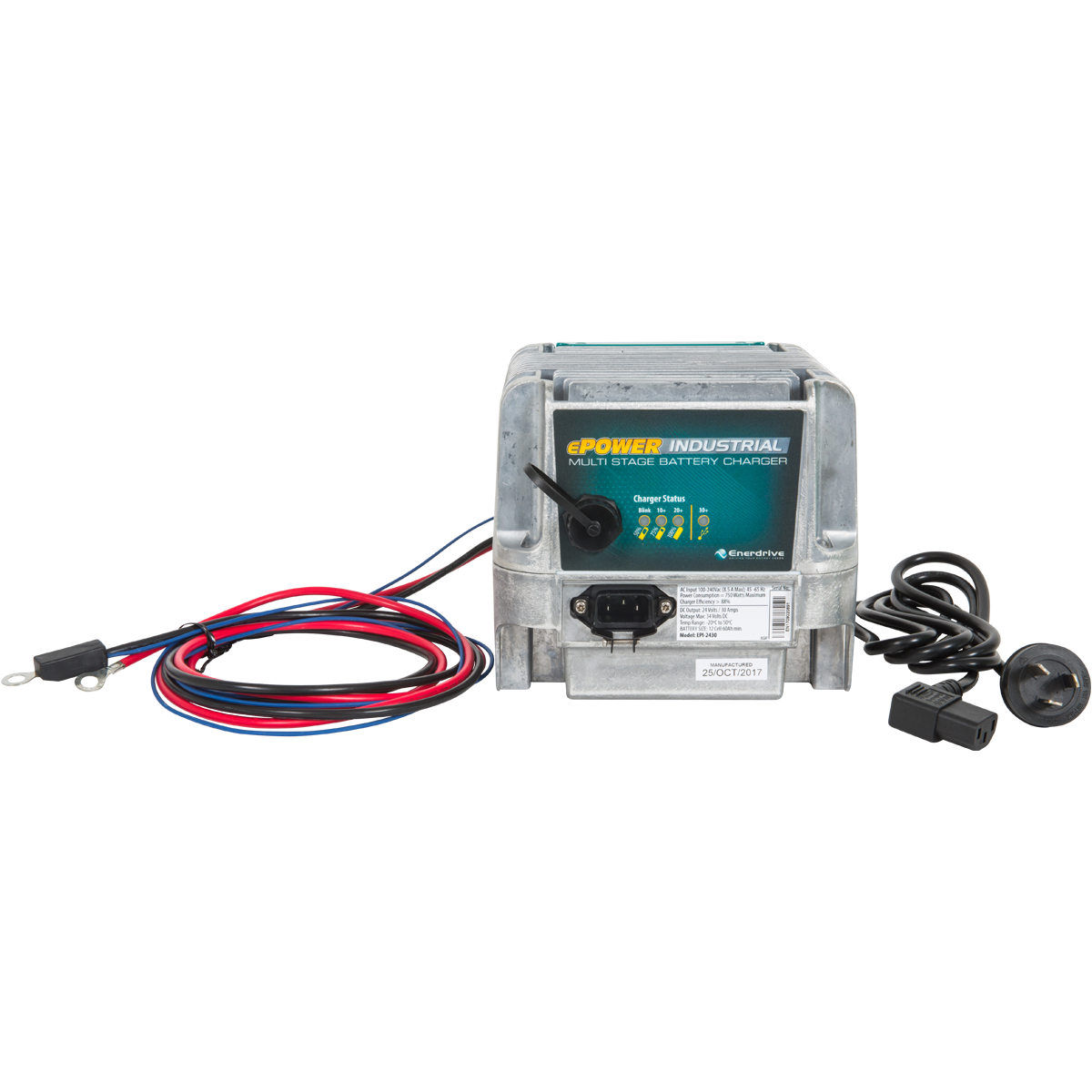

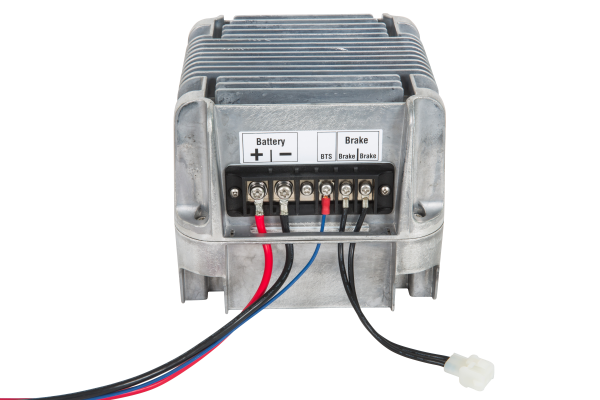

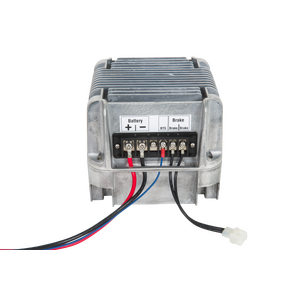

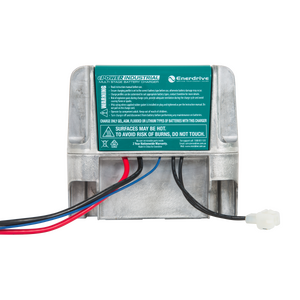

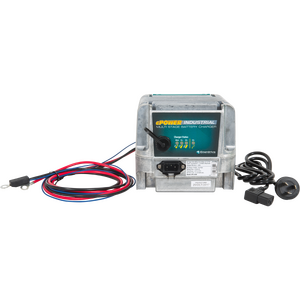

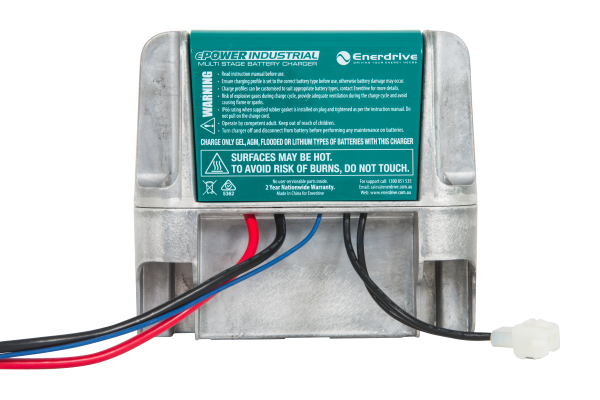

Enerdrive ePOWER 36V 20 Amp Industrial Battery Charger:
Extreme Durability: Built to endure the harsh conditions of marine environments, the ePOWER Industrial Battery Charger features a fully sealed die-cast aluminum enclosure, protecting it from moisture, dust, and vibration, ensuring uninterrupted operation during your marine adventures.

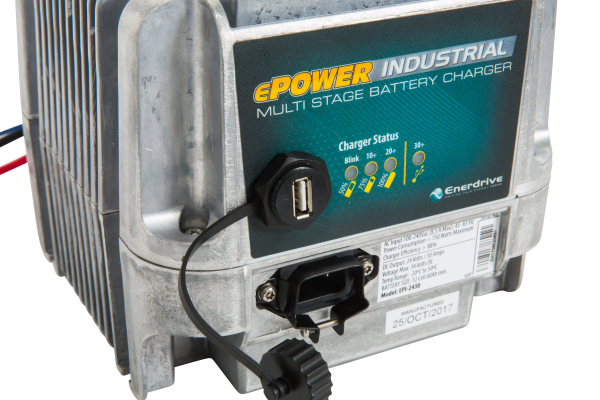

Programmable Charging: Utilize the USB host port for downloading charger data logs and uploading charge algorithms using a standard USB flash drive. This feature allows for precise customization of charging profiles to suit various battery chemistries and manufacturers.
Battery Charging Flexibility: With over 25 pre-programmed algorithms covering the majority of batteries on the market and the ability to create custom profiles, the ePOWER Industrial Charger ensures optimal charging for different battery types, maximizing battery life and performance.
Marine-Focused Design: Engineered specifically for marine applications, the ePOWER Industrial Charger provides reliable and efficient charging for marine batteries, ensuring your trolling motor and onboard electronics remain powered throughout your fishing trips.
Experience unparalleled performance and reliability with the Enerdrive B-TEC 36V 100Ah Lithium Battery & 36V 20A Industrial Charger Bundle, designed to elevate your marine adventures with dependable power solutions. Trust in Enerdrive's expertise and commitment to quality to power your fishing boat's trolling motor with confidence and efficiency.
Battery Information:
Charger Information:
*Note: As stipulated by the manufacturer Enerdrive, failure to charge the Enerdrive Lithium Battery range with an Enerdrive or Redarc Lithium Profile battery charger will void Enerdrive manufacturer warranty.
NOTE: This model have changed Part Number, it used to be called K-100-36V-AC20-BUNDLE, and is now called K-100-04
Specifications
SKU K-100-04
Brand Enerdrive
GTIN 9342616020623
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 36V
Amp Hours (Ah) 100
Battery Length (mm) 519
Battery Width (mm) 273
Battery Height (mm) 222
Battery Weight (kg) 37.7
Nominal Voltage 38.4V
Nominal Capacity 100Ah
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 43.20 Ì´ 43.80V
Standby (Float) Voltage 40.5 Ì´ 41.40V
Maximum Charge Current 50A @ 25°C for 30mins
Recommended Charge Current for Maximum Life ≤ 33A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 33.00 Ì´ 48.80V
Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤ 33.60V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥38.4V
Discharge Over Current 110A for 30s – 450A for 1s
Protection Reset Time 5s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Videos
Enerdrive B-TEC Lithium Batteries - Part 1 - Application
Enerdrive B-TEC Lithium Batteries - Part 2 - Specifications
Enerdrive B-TEC Lithium Batteries - Part 3 - Installation
Enerdrive B-TEC Lithium Batteries - Part 4 - Settings
Enerdrive B-TEC Lithium Batteries - Part 5 - Operation
Enerdrive B-TEC Lithium Batteries - Part 6 - Fault Finding
The Best Caravan Battery?
What Will My Camping Battery Run?
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Lithium Batteries Australia - Are they Safe
Product Q&A
-
Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?
Hi there,
You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.
Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.
The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.
Double the storage equals double the time you can stay powered up and off the grid.
Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.
We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
