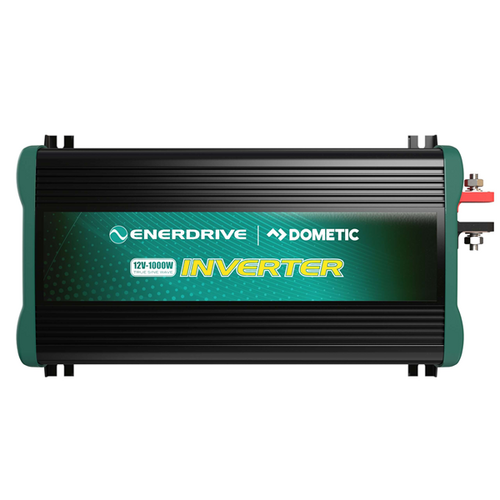

Enerdrive 1000W Pure Sine Wave Inverter

Specifications

SKU EN1110S

Brand Enerdrive

GTIN 9342616000175

Warranty Period: 5 Years

Product Category Power Inverters

Wattage (W) 1000

AC Output 1000W, 4.3A

Net Weight (kg) 2.9

Socket Type 1 AC outlet

Operating Altitude Up to 3000 meters above sea level

Under Voltage Alarm 11.2 VDC

No Load Battery Draw < 1.2 ADC

Optional Accessories Battery Cable Connection Kits

Output wave form True Sinewave

Product Dimensions (mm) LxWxH 325 x 177 x 90mm

Output Voltage and Frequency 230 Vac / 50 Hz

Peak power 2000W

Input Voltage 12.5 VDC

Operating temperature range 0°C to 40°C

Included 6 Meter Remote On / Off Switch Included with both 1000W and 2000W Inverter Models

Humidity 5-90% noncondensing

NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.

Videos

Using The Enerdrive 1000W Inverter & ePOWER 12V 60A Battery Charger To Power An Off-Grid Home

Product Q&A

• Can I run an inverter from AGM or Gel batteries?

  The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.

  Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.

  For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.

  You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).

  A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.

  Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.

• Does the Enerdrive 1000W come with cables to connect to my battery?

  The Enerdrive 1000W inverter (EN1110S) does not come with cables for battery connection. We have a pre fused cable ready for battery connection in the list of accessories (SKU: EN1210C - Enerdrive Cable Kit to Suit 1000watt Inverter 35mm2 x 1.2m). This cable has 8mm lugs for connection to Enerdrive Lithium battery range.

  If using your own cable, be sure to check the operations manual for correct cable and fuse sizing.

• What does peak power represent? I am looking to buy an inverter and prefer 1KVA but need to understand who long can it run 2 x power. Should I get a 2000w instead?

  Hi Wayne,

  Peak power represents the max power the inverter can produce for a short period of time (generally seconds, vs minutes). It is used to start compressors, or other appliances that have a start up current.

  If you required 2000W continuously, a 2000W inverter would be the way to go.
