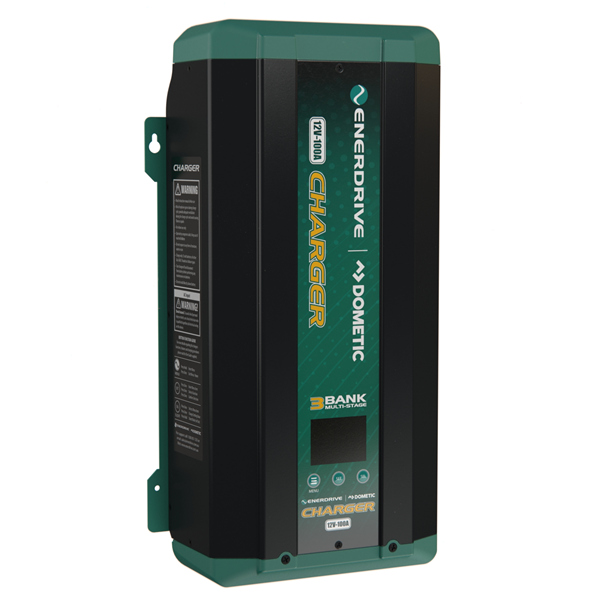

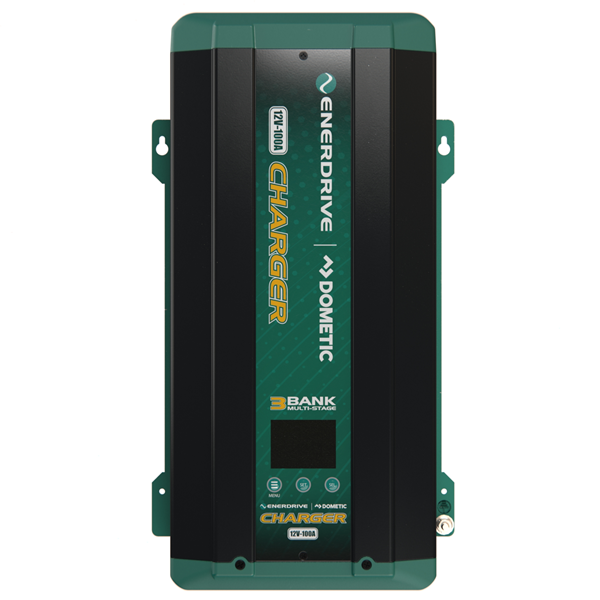

Enerdrive 12V 100A AC Battery Charger
SKU: EN312100 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 12V 100A AC Battery Charger, 5 Year Warranty. Enerdrive ePOWER 12V 100A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
PRO TIP: Common accessory to go with this Enerdrive 100A AC to DC charger are the 120Amp breakers. It's available in the Accessory List above to add as optional extras.
100A Battery Charger Features:
- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 100amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 100A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

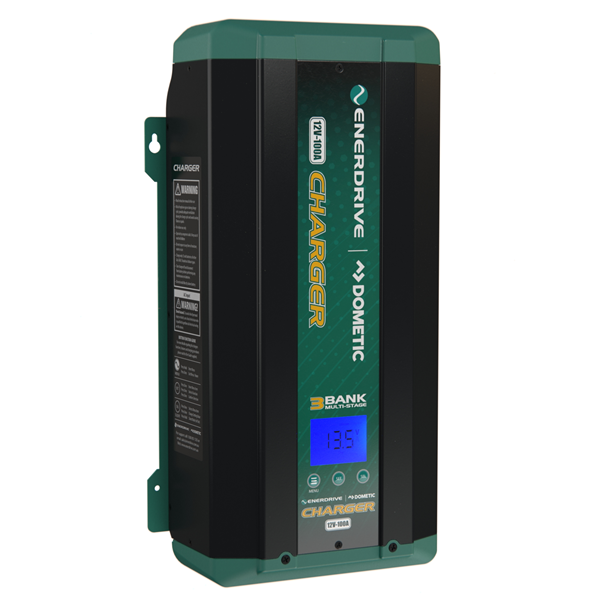

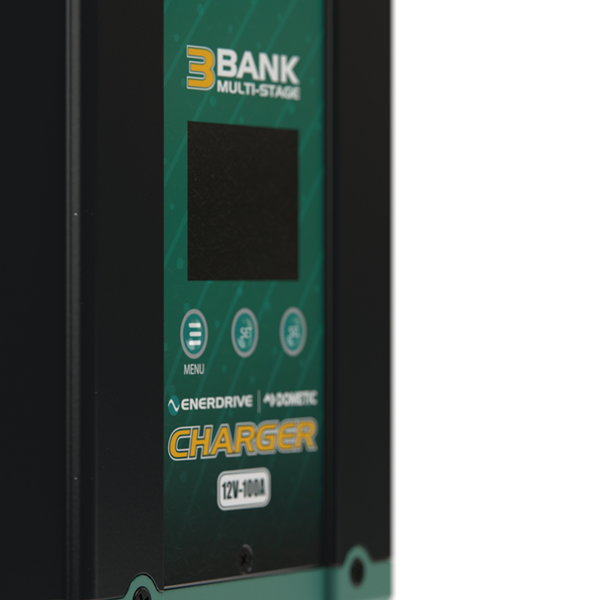

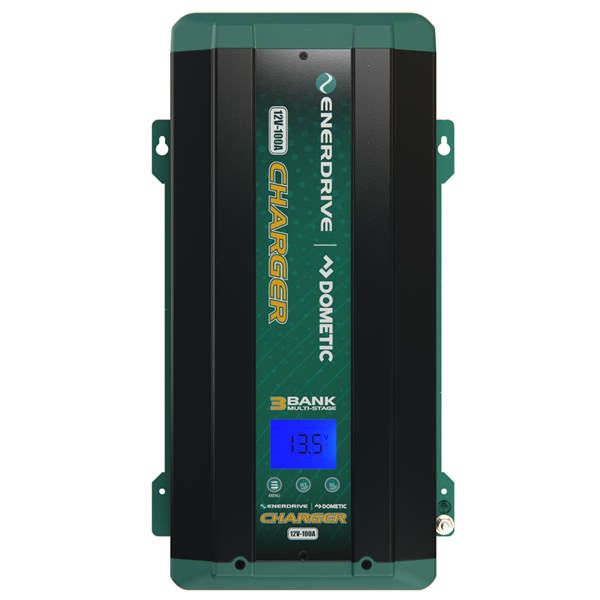

- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 7.5 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging. Our multistage smart 100A battery charger delivers four primary charge stages:-
- Stage 1 – Bulk or Boost Charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery capacity is recovered as fast as possible.
- Stage 2 – Absorption Charge; With the charger voltage held steady the remaining 20% is replaced allowing the current to drop as the battery approaches its full charge.
- Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged while supporting any additional loads connected to the battery, such as DC lighting and refrigerators. This stage allows for the charger to be used as a DC power supply.
- Stage 4 – Maintenance; This stage is a regular timed “return to bulk” stage. After 7 days of constant operation in “float” the Enerdrive 100A Battery Charger will switch the charger from float to bulk to agitate the batteries electrolyte helping to provide an extended service life.
Specifications
SKU EN312100
Brand Enerdrive
GTIN 9342616028988
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 100
Model EN312100
Product Type 12v 100Amp Battery Charger
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Mode Output Voltage 14.2 – 15.5 V
Temperature Setting Hot, Normal, Cold (no sensor connected)
Over Temperature Protection Yes, unit de-rated and shutdown
AC Input Frequency Range 47 – 63 Hz
Power Factor Correction Yes
Reverse Polarity Yes, (with user replaceable fuse/s)
Over Charge Yes, unit shutdown
Output Short Circuit Protected, charger shutdown
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied)
AC Input Connection IEC with Supplied 1.2M Power Lead

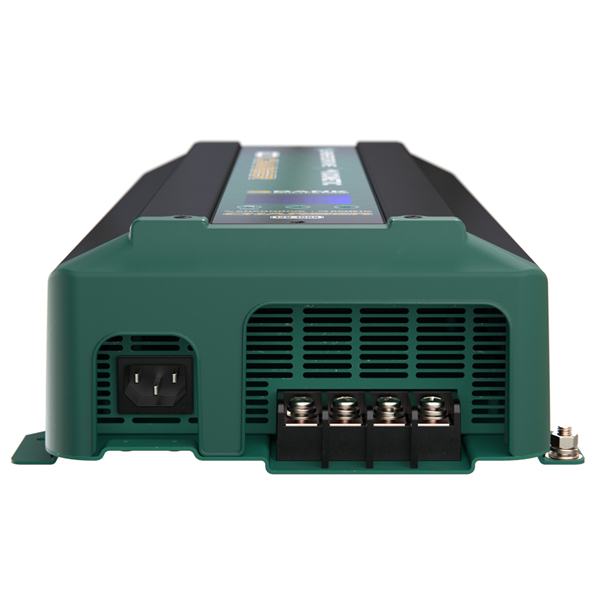

DC Output Connection Heavy Duty Terminal (3 banks) – Hex Nuts 8mm Thread
DC Output Ground Single Heavy Duty Common Ground Stud
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.
Net Weight (kg) 6.4
Charger Voltage 12V
Charging Control Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Chargin
Dimensions 425 x236 x 102.7 mm (L x W x H)
Humidity 5-95%, relative humidity non-condensing
Operating Range (temp) -20° to 60° C
AC Input Voltage 100 to 240 VAC
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes.
Output System Voltage 12V
Float 13.4 – 13.8 V
Standby Current < 5 mA
Equalize 15.5 V
Ingress Protection IP32 (Basic drip proof in vertical orientation)
AC Input Operating Range 207-265 VAC (7.6 A Max)90-125 VAC (15.9 A Max)
Power consumption (DC 12V) 1750W (Full Load)
Cooling Forced air ventilation (thermo controlled fan)
Charger Efficiency > 82%
Storage Range (temp) -40° to 70° C
Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM
DC Output Three (1 fully independent, 2 common with diode isolation)
