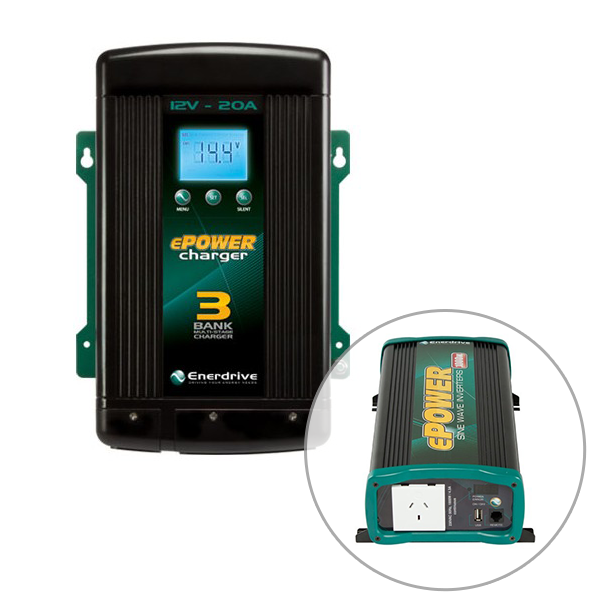

Enerdrive 12V 20A AC Battery Charger & 1000W Pure Sine Wave Inverter Bundle
SKU: K-AC20-1000W Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive 12V 20A AC Battery Charger & 1000W Pure Sine Wave Inverter Bundle, 5 Year Warranty.
Pack Includes:
- Enerdrive 12V 20A Battery Charger, EN31220
- Enerdrive, ePOWER 1000W Pure sine wave power inverter, EN1110S
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

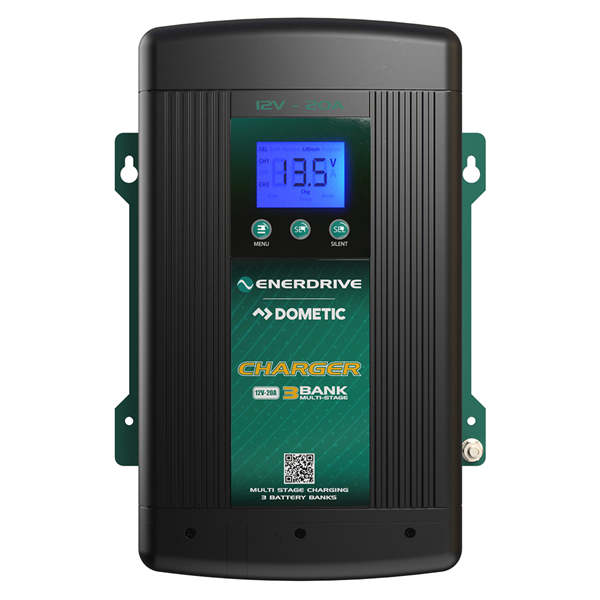

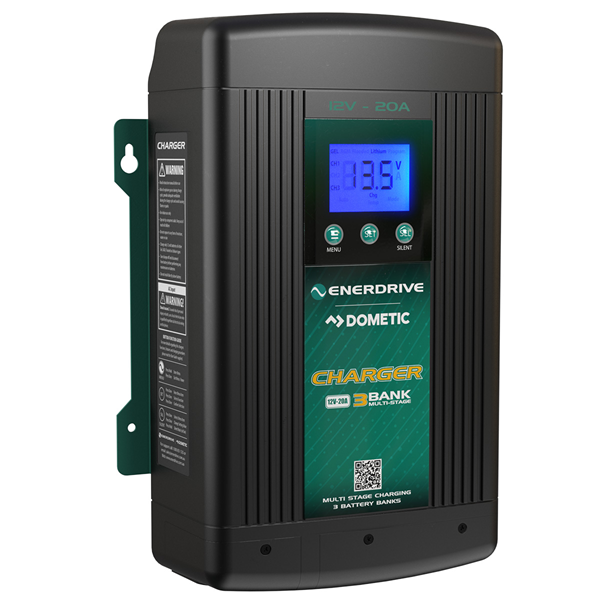

20A Battery Charger Features:
- Multistage Charging: Fully automatic multistage 20A battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 20A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support
- PRO TIP: Common accessories to go with this Enerdrive 20A AC to DC is the 30Amp breaker. It is available in the Accessory List above to add as optional extras.

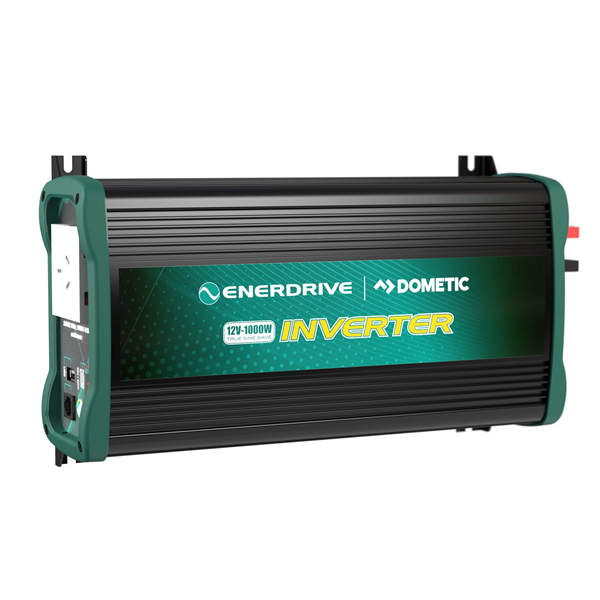

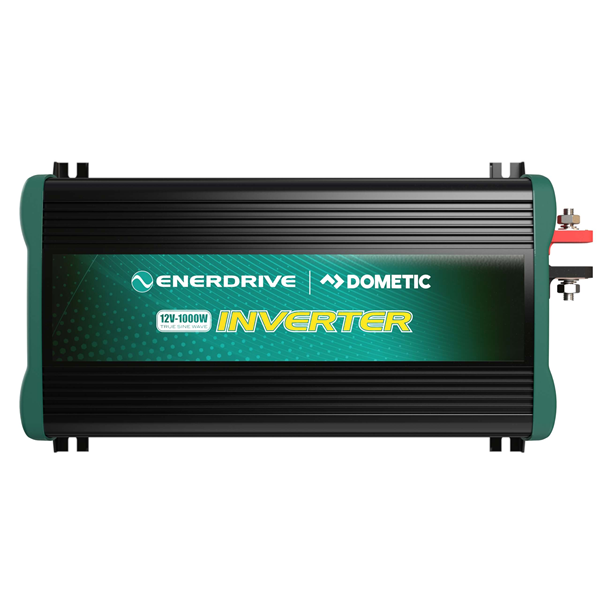

Enerdrive, ePOWER 1000W Pure sine wave power inverter
Enerdrive ePOWER 1000W Pure Sine Wave Inverter state of the art, easy to use design, this 1000W inverter will offer you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle.
The Enerdrive ePOWER 1000W Inverter can run many AC powered appliances when you need AC power anywhere. The 5V USB power can charge many USB powered devices.
Features:

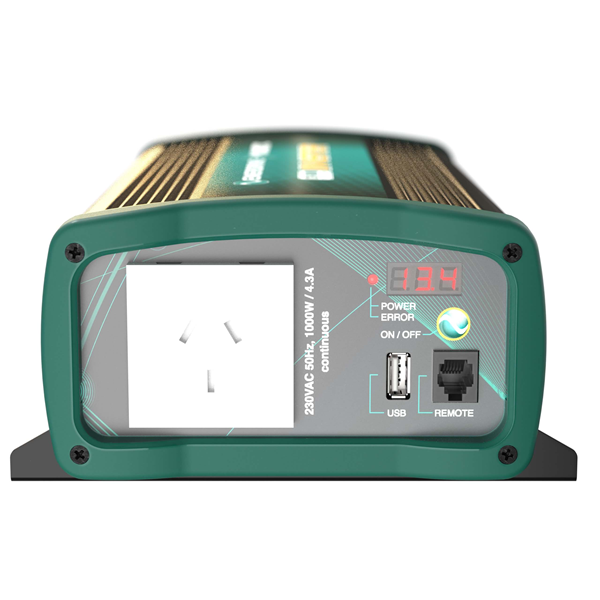

- Australian GPO Outlets
- True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
- Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
- Automatic shutdown protects overload, over temperature and low/high battery conditions
- High surge capacity for products that require more power to start (2 x constant)
- High efficiency conversion of battery available power to AC power
- Mounting brackets for permanent installation

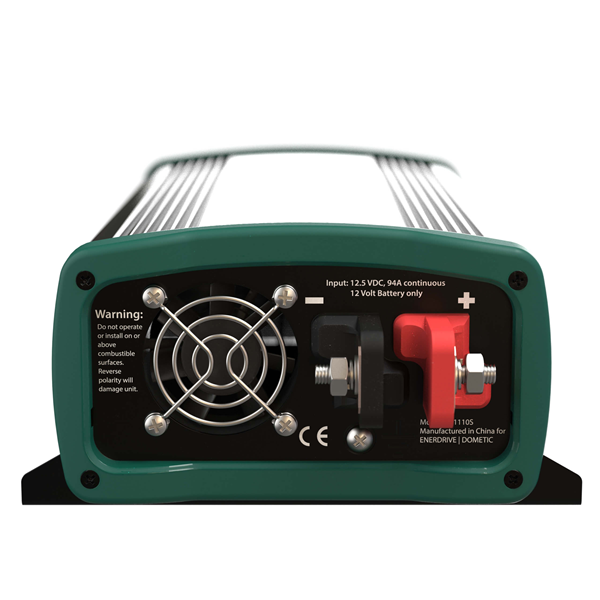

- Heavy duty DC battery stud connectors
- Includes 5V USB port
- 5 Year warranty
Specifications
SKU K-AC20-1000W
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 20
Wattage (W) 1000
Under Voltage Alarm 11.2 VDC (Power Inverter)
Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM (Battery Charger) | Battery Cable Connection Kits (Power Inverter)
Charger Mode Output Voltage 14.2 – 15.5 V (Battery Charger)
Equalize 16.0 V (Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)
Temperature Setting Hot, Normal, Cold (no sensor connected) (Battery Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (Battery Charger)
AC Input Frequency Range 47 – 63 Hz (Battery Charger)
Power Factor Correction Yes (Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (Battery Charger)
Over Charge Yes, unit shutdown (Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (Battery Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (Battery Charger)

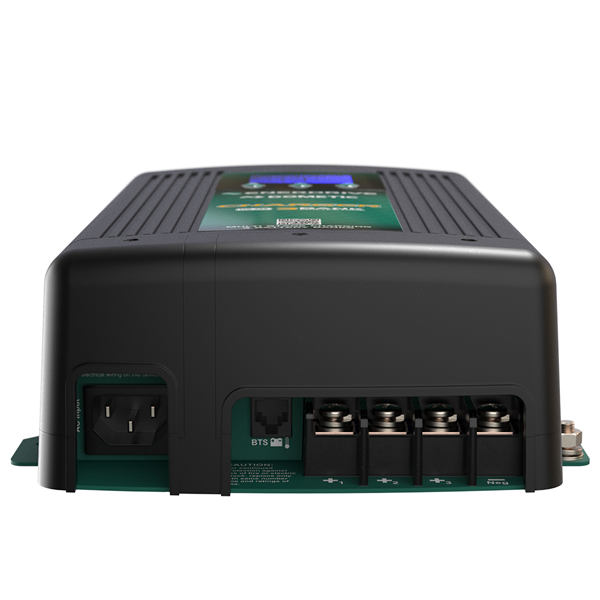

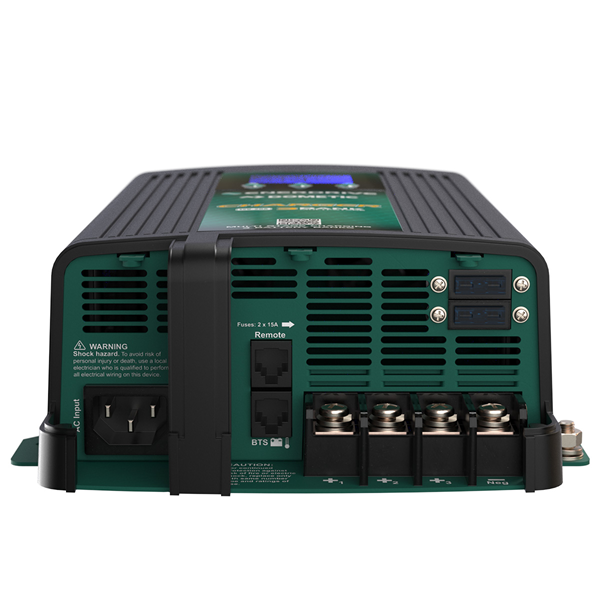

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (Battery Charger)
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (Battery Charger)
Net Weight (kg) 5.3
Charger Voltage 12V
Float 13.4 – 13.8 V (Battery Charger)
NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.
Dimensions 295 x 206x 86 mm (L x W x H) (Battery Charger) | 325 x 177 x 90mm (Power Inverter)
Humidity 5-95%, relative humidity non-condensing (Battery Charger) | 5-90% noncondensing (Power Inverter)
Included 6 Meter Remote On / Off Switch Included with both 1000W and 2000W Inverter Models (Power Inverter)
Operating temperature range 0°C to 40°C (Power Inverter)
Input Voltage 12.5 VDC (Power Inverter)
Operating Range (temp) -20° to 60° C (Battery Charger)
AC Input Voltage 90 to 265 VAC (Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (Battery Charger)
Output System Voltage 12V (Battery Charger)
DC Output Three (1 fully independent, 2 common with diode isolation) (Battery Charger)
Standby Current < 2 mA (Battery Charger)
Charging Control Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Charging
Ingress Protection IP32 (Basic drip proof in vertical orientation) (Battery Charger)
Peak power 2000W (Power Inverter)
AC Input Operating Range 207-265 Vac (2.0 A Max)90-125 Vac (3.8 A Max) (Battery Charger)
Power consumption (DC 12V) 350W (Full Load) (Battery Charger)
Cooling Forced air ventilation (thermo controlled fan) (Battery Charger)
Charger Efficiency > 82% (Battery Charger)
Storage Range (temp) -40° to 70° C (Battery Charger)
