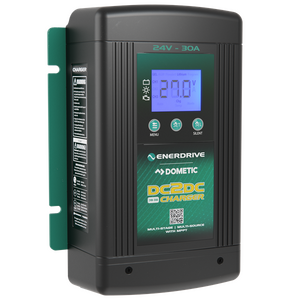

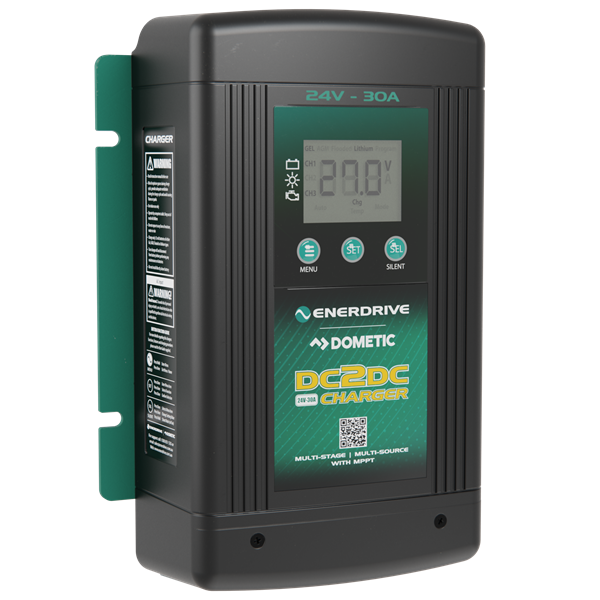

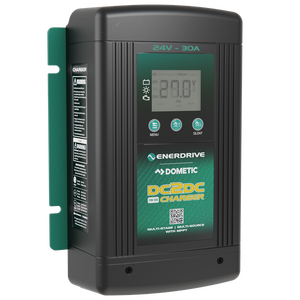

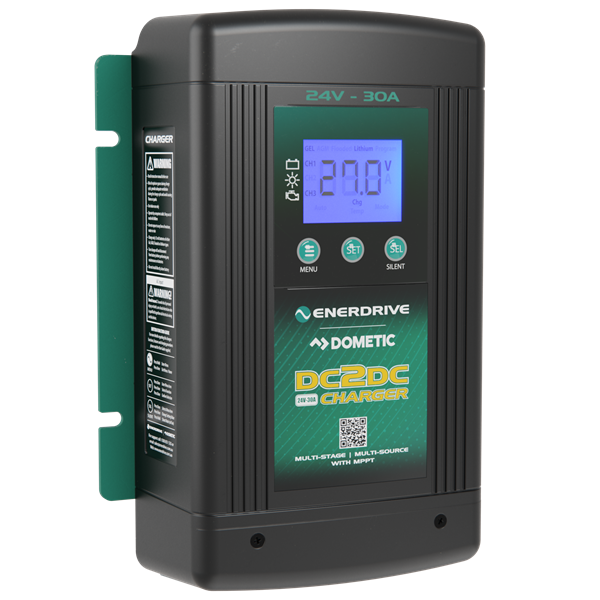

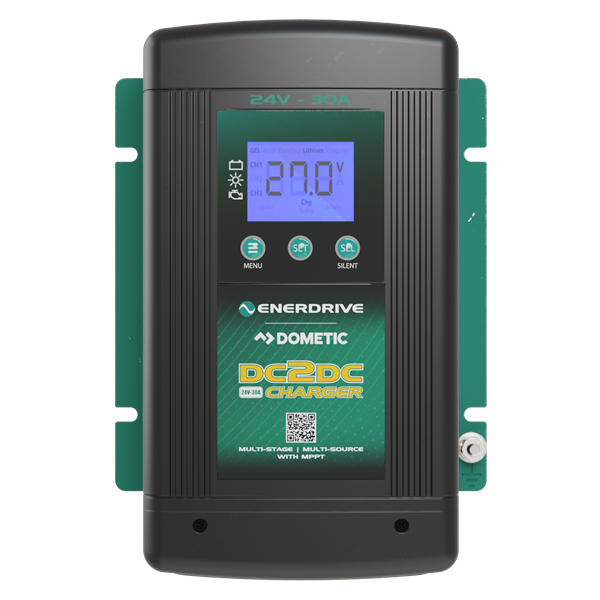

Enerdrive ePOWER 24V 30A DC to DC Battery Charger
SKU: EN3DC30-24 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Learn More»
Product Description
Enerdrive ePOWER 24V 30A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.
The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.
24V 30A DC2DC Battery Charger Features
- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output

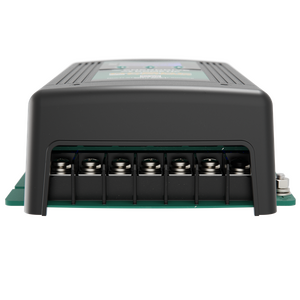

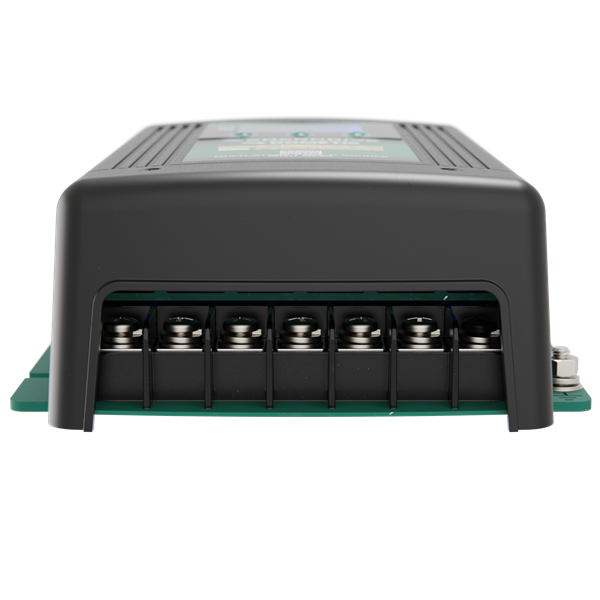

- DC M6 screw terminals that will allow for large battery cable connection between all sources
- A dedicated Maximum Power Point (MPPT) solar regulator
- The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
- 30A output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included in charger for more accurate battery charging
Wiring Diagram 1
Wiring Diagram 2
Specifications
SKU EN3DC30-24
Brand Enerdrive
GTIN 9342616000533
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 30
Model EN3DC30-24
Product Type 24V 30A DC2DC Battery Charger
Net Weight (kg) 1.85
Equalize 31.0V
Charging Control 2 stage / 3 stage selectable (Default 3 Stage)
DC Output Single
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard)
Charger Mode Output Voltage 27.6V – 31.0V
Float 26.0V – 27.6V
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Efficiency 95%
Output System Voltage 24V
Dimensions 74 x 172 x 242 mm (L x W x H)
Charger Voltage 24V
Videos
Introducing The Enerdrive Battery Charger Range
Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries
Product Q&A
-
Can you parallel up 2 x ePower 12to24V DC to DC chargers to get a total 60A charge at 24VDC? Or will the chargers fight each other and back off too much?
Hi Tamlin,
Unfortunately the DC DC chargers are unable to be paralleled sorry.
