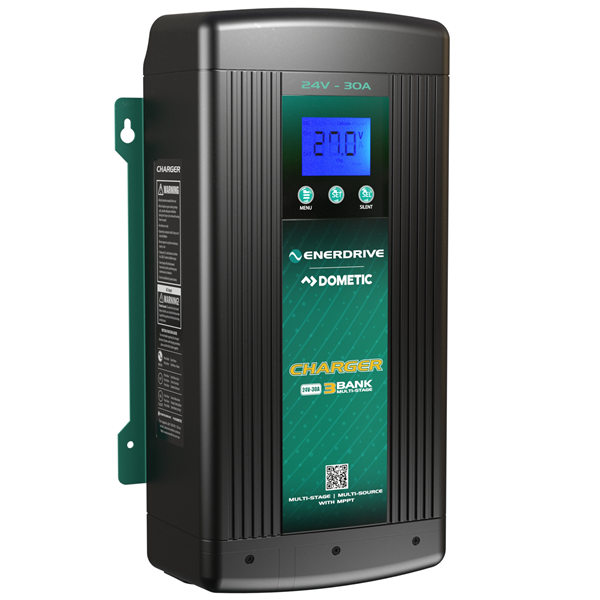

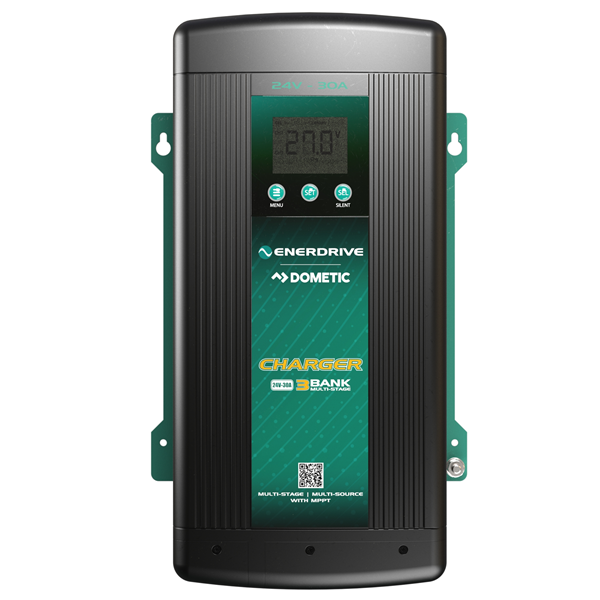

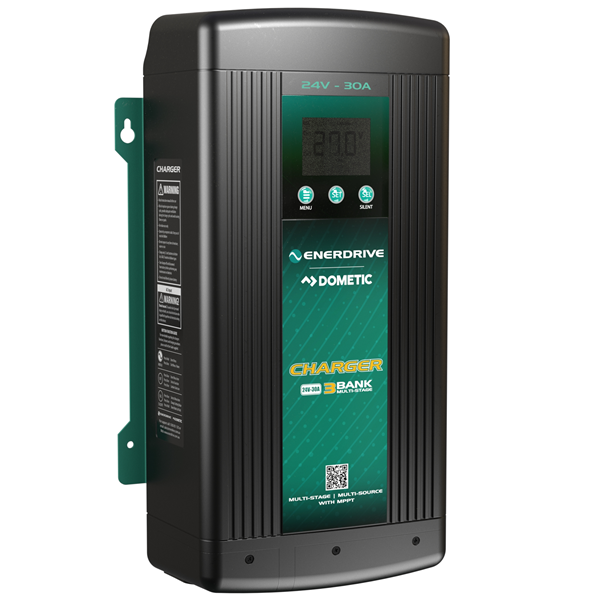

Enerdrive 24v 30amp Battery Charger—Three Output
SKU: EN32430 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Product Description
The Enerdrive 24v 30amp Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

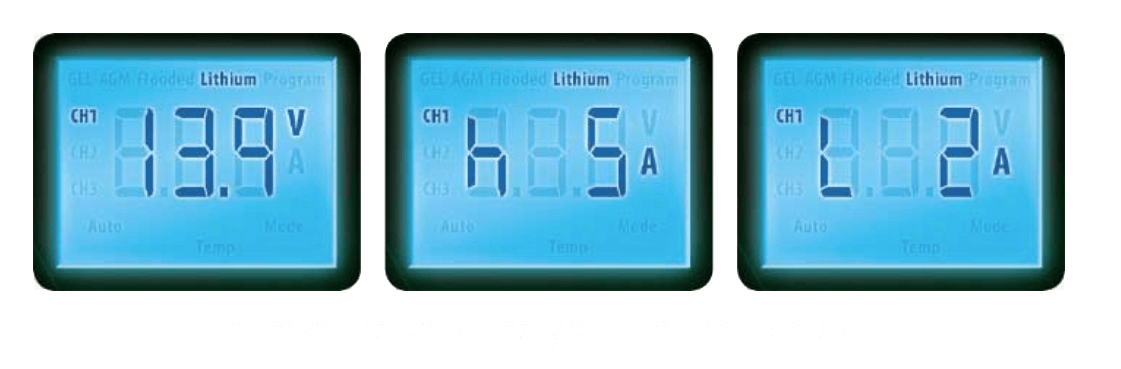

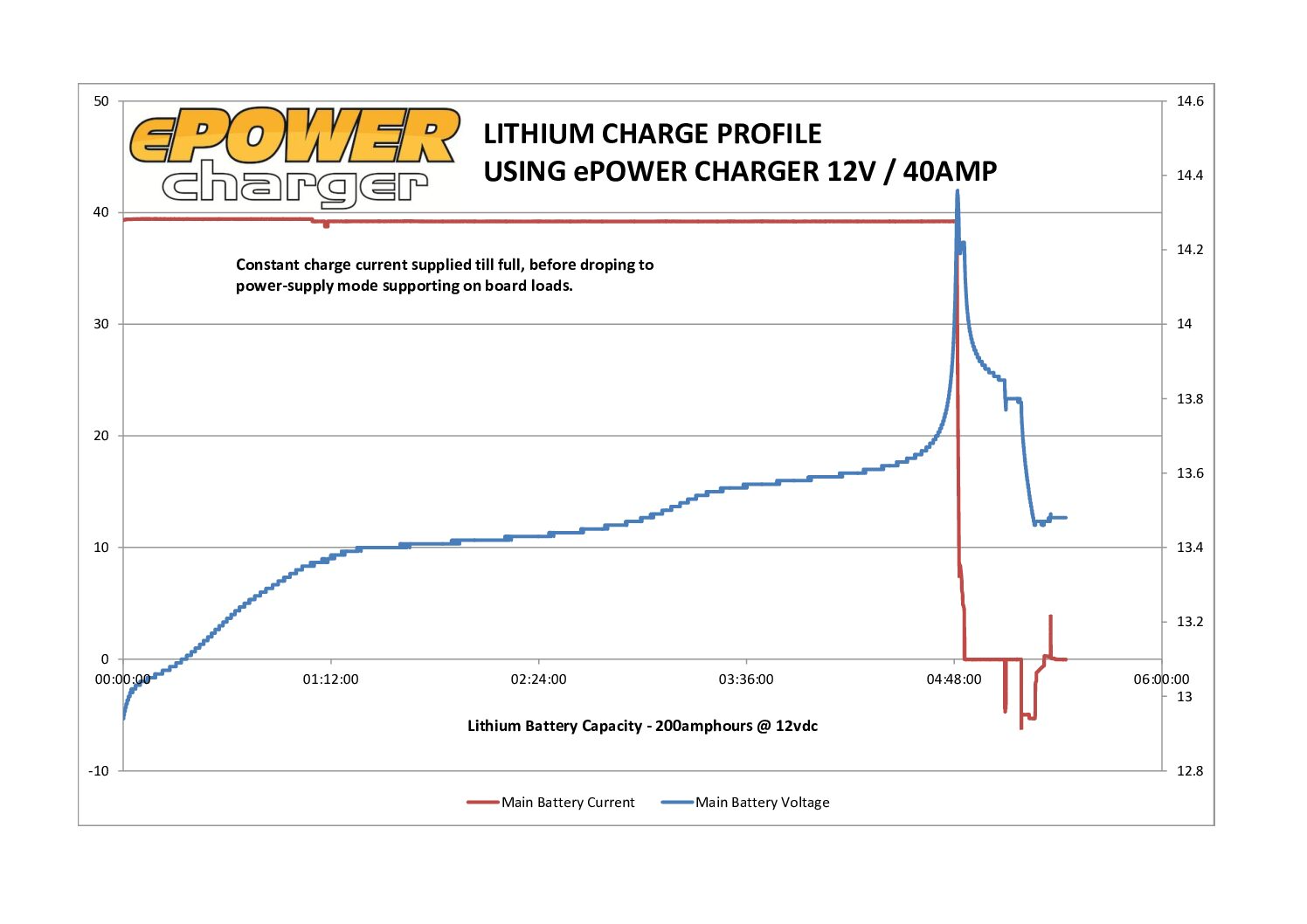

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
30A Battery Charger Features:
- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.

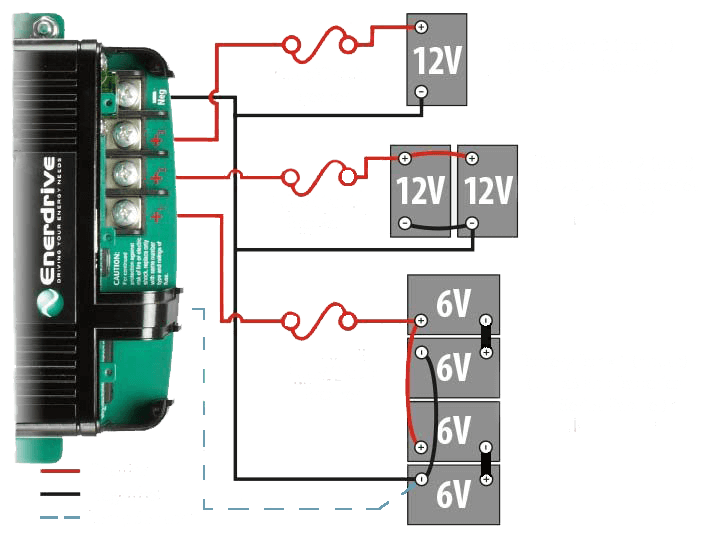

- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 30A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.

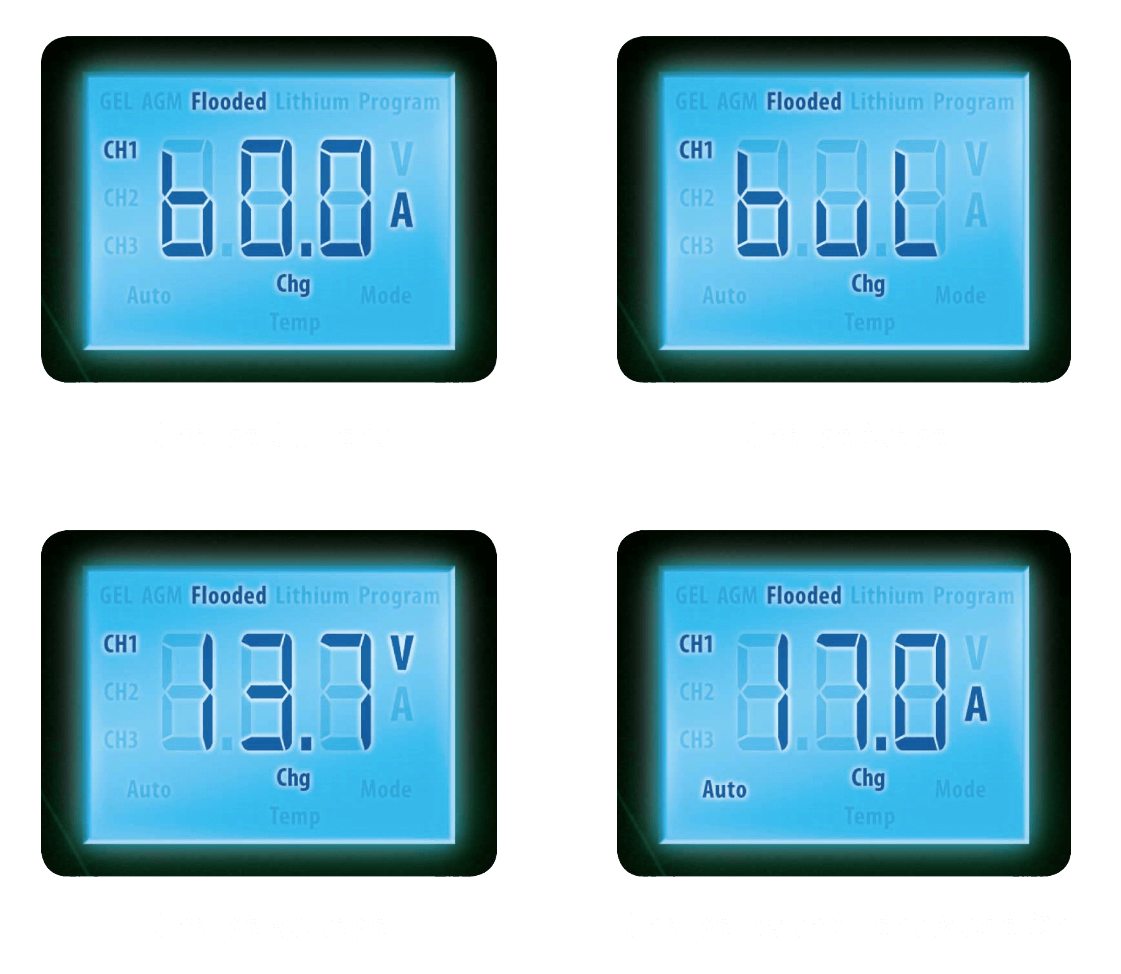

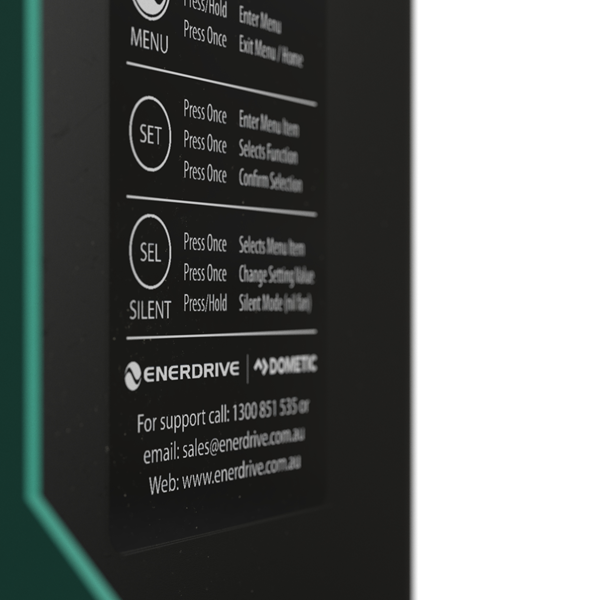

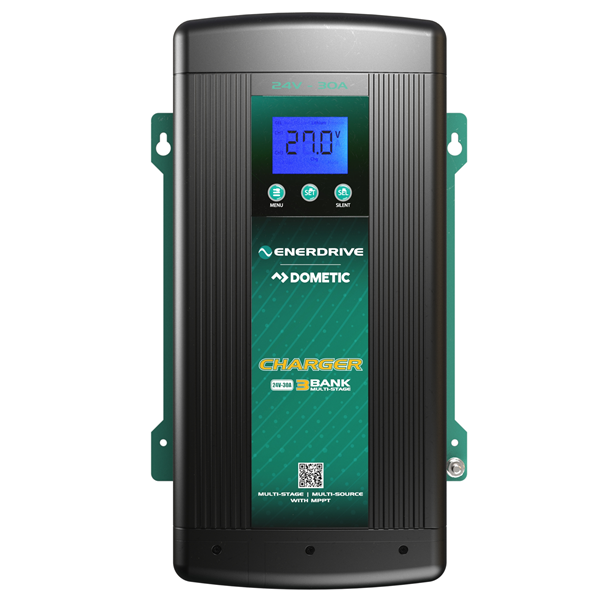

- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 7.5 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support.
Specifications
SKU EN32430
Brand Enerdrive
GTIN 9342616000281
Warranty Period: 5 Years
Product Category Battery Chargers
Output Current Rating (Amps) 30
Model EN31260
Product Type 24V 30A Battery Charger
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program
Charger Mode Output Voltage 28.4 – 31.0V
Temperature Setting Hot, Normal, Cold (no sensor connected)
Over Temperature Protection Yes, unit de-rated and shutdown
AC Input Frequency Range 47 – 63 Hz
Power Factor Correction Yes
Reverse Polarity Yes, (with user replaceable fuse/s)
Over Charge Yes, unit shutdown
Output Short Circuit Yes, (with user replaceable fuse/s)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied)
AC Input Connection IEC with Supplied 1.2M Power Lead

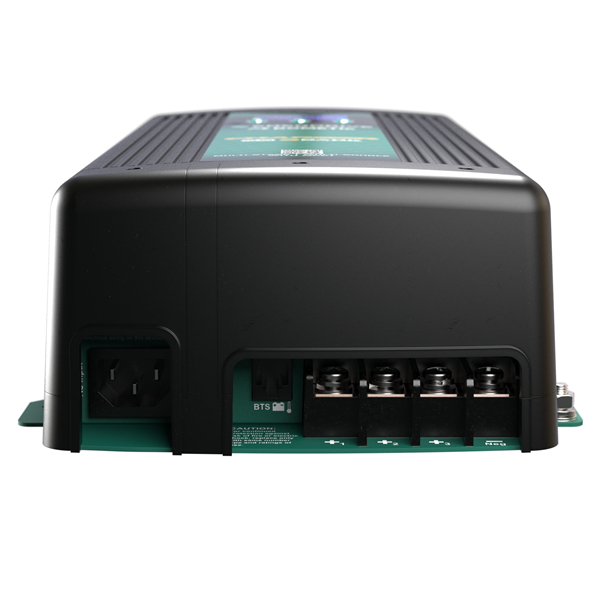

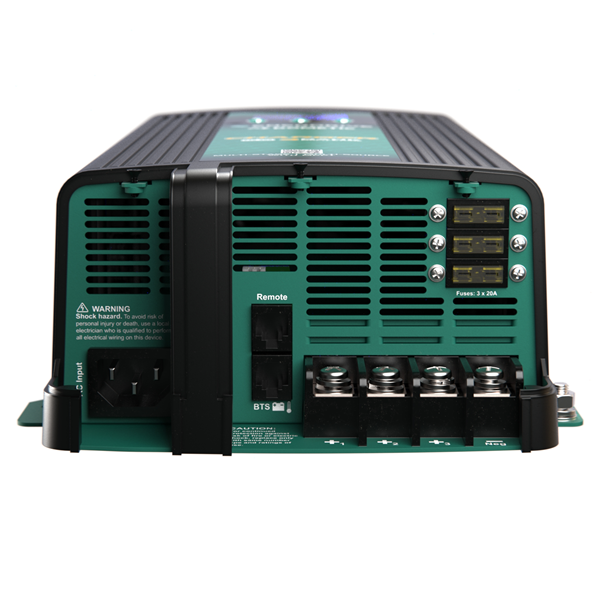

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread
DC Output Ground Single Heavy Duty Common Ground Stud
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.
Net Weight (kg) 4
Charger Voltage 24V
Charging Control Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Chargin
Dimensions 356 x 206 x 99 mm (L x W x H)
Humidity 5-95%, relative humidity non-condensing
Operating Range (temp) -20° to 60° C
AC Input Voltage 90 to 265 VAC
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes.
Output System Voltage 24V
Float 26.8 – 27.6V
Standby Current < 2 mA
Equalize 32.0V
Ingress Protection IP32 (Basic drip proof in vertical orientation)
AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max)
Power consumption (DC 12V) 1050W (Full Load)
Cooling Forced air ventilation (thermo controlled fan)
Charger Efficiency > 82%
Storage Range (temp) -40° to 70° C
Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM
DC Output Three (1 fully independent, 2 common with diode isolation)
