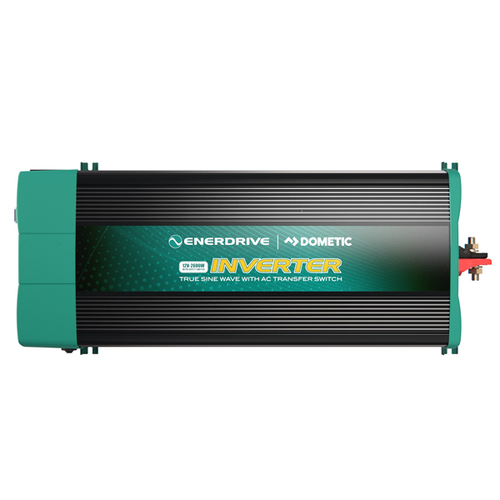

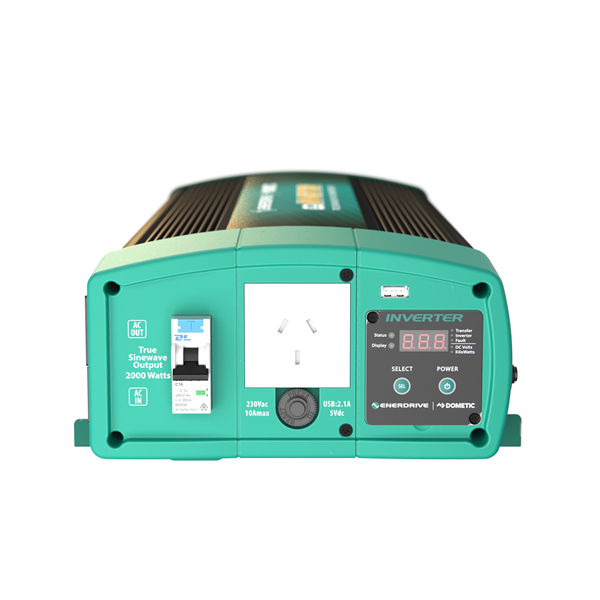

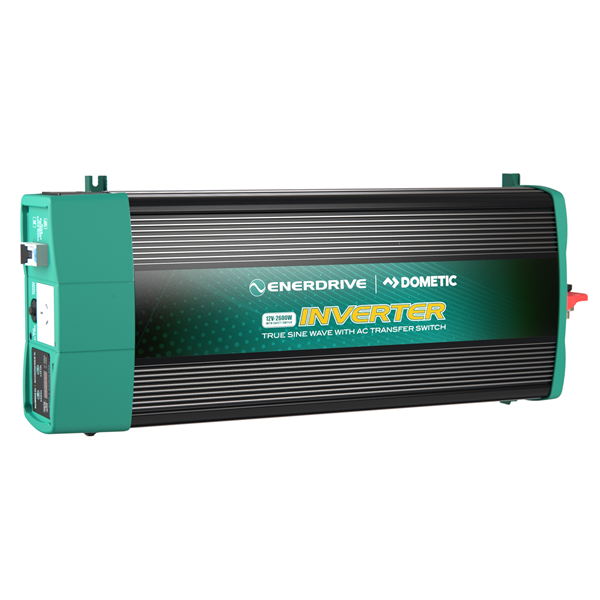

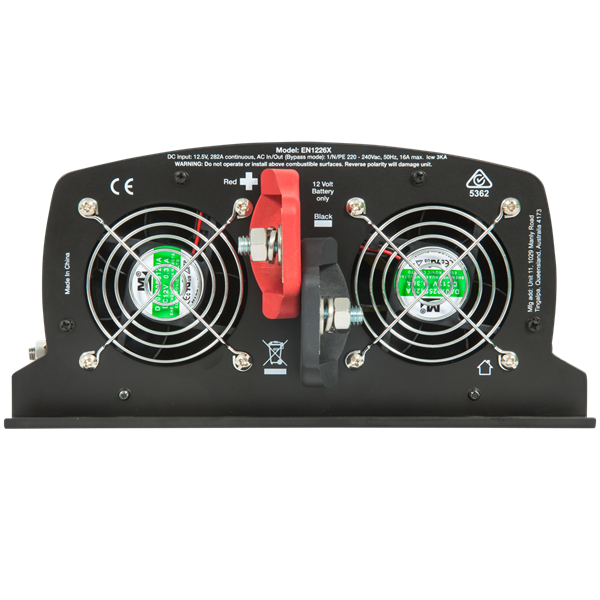

Enerdrive 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch

Specifications

SKU EN1226S-X

Brand Enerdrive

GTIN 9342616000335

Warranty Period: 5 Years

Product Category Power Inverters

Model EN1126X

Wattage (W) 2600

No Load Battery Draw < 1.5 ADC

Net Weight (kg) 7

Under Voltage Alarm Recovery 11.3 / 12.3 VDC

Over Voltage Shutdown 15.5 VDC

Under Voltage Shutdown Recovery 12.0 / 12.6 VDC

Under Voltage Shutdown 10.5 / 11.8 VDC

USB Socket Output 5V, 750 mA

Operating Altitude Up to 3000 meters above sea level

Under Voltage Alarm 11.0 / 12.1 VDC

Product Dimensions (mm) LxWxH 230 x 560 x 115 mm

Storage Range (temp) -20°C to 60°C

Output wave form True Sinewave

AC Output 2600W, 11.3A

Output Voltage and Frequency 230 Vac / 50 Hz

Input Voltage 10.5 – 15.5 VDC

Operating temperature range 0°C to 40°C

Humidity 5-90% noncondensing

NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.

Videos

Enerdrive Inverters (Transfer Models) - Part 1 - Application

Enerdrive Inverters (Transfer Models) - Part 2 - Specifications

Enerdrive Inverters (Transfer Models) - Part 3 - How to Install

Enerdrive Inverters (Transfer Models) - Part 4 - How to Program Settings

Enerdrive Inverters (Transfer Models) - Part 5 - How to Operate

Enerdrive Inverters (Transfer Models) - Part 6 - Fault Finding

Product Q&A

• Can I run an inverter from AGM or Gel batteries?

  The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.

  Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.

  For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.

  You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).

  A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.

  Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.

• 1.. How far from the batteries does it need to be installed?2.. Can I have more photographs of the unit from different angles please?

  HI There,

  It is not recommended to install the inverter any further than 1.5m away from the battery.

  You can find more photos here: https://enerdrive.com.au/product/epower-2600w-12v-true-sine-wave-inverter-with-ac-transfer-safety-switch/

• What is the new PS Mode?

  Hi there,

  The PS6 (new default setting) allows the Inverter to remain OFF when connected to Mains Power but still allow Mains power to pass through to Circuits/Power points on the Output side of the Inverter. At any time the inverter can be turned ON or OFF via the Power Button.

  The reason for the New PS Mode:

  In the past, units would be set to PS1 mode (default) which would automatically turn the Inverter ON when AC was introduced to the Input and while plugged in, it could not be turned OFF. If the user was unaware that Mains power was unplugged or a power outage or just forgot about it when they unplugged the system, then the Inverter would stay on putting unnecessary load on the battery.

  Program PS6, AC Transfer Switch is active with the inverter switched ON or OFF.

  If the inverter is switched off, with AC input present, the inverter will pass the AC through to the inverter output side. If the AC input is removed, the inverter will stay in the off position.

  If the inverter is switched on, with AC input present, the inverter will pass the AC through to the inverter output side. If the AC input is removed, the inverter will stay in the on position supplying the inverter output side from the battery input.

• In the Enerdrive product manual it recommends cable size of 120mm2 but the recommended optional wiring kit is only 95mm2. Why is this?

  Hi There,

  We reached out to Enerdrive regarding this as thery manufacture both the inverter, and the recommeneded cable kit.

  They have advised that the spec in the manual will be updated soon.

  The 95mm2 is ok for the 2600W inverter

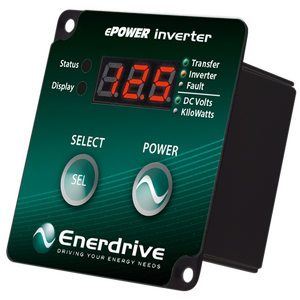

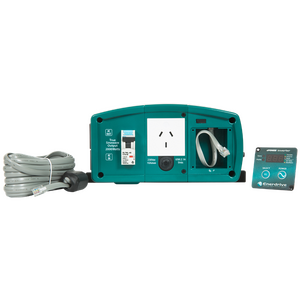

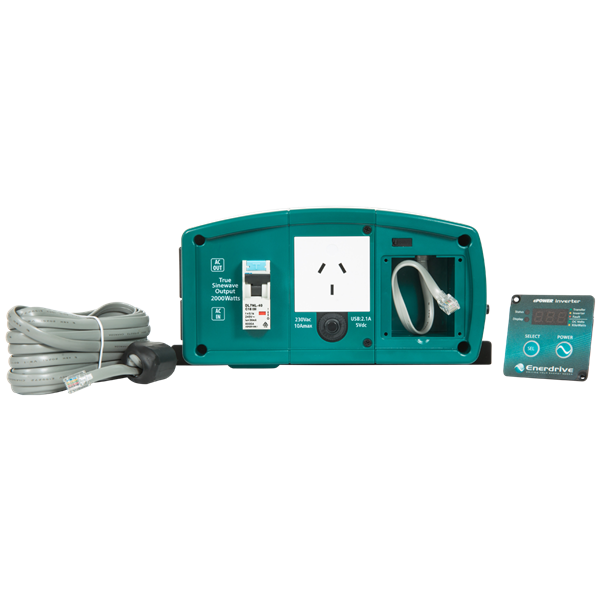

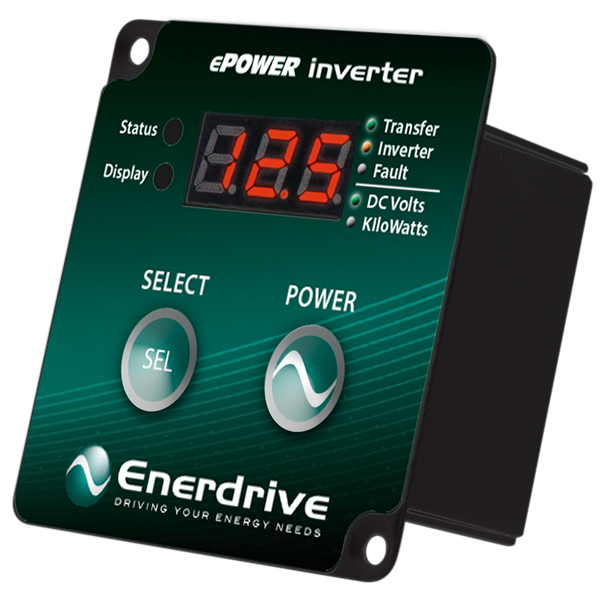

• Is the panel on the front of the inverter removeable?

  Yes, it can be removed to be mounted separately.

• What does the AC transfer switch do?

  The AC transfer switch will recognise when you are

  plugged into mains power and automatically changeover from your batteries.
