Enerdrive 2600W 12V Pure Sine Wave Inverter and RCD & AC Transfer Switch with DC Cable Pack
SKU: EN1226S-X-KIT Learn More»
Product Description

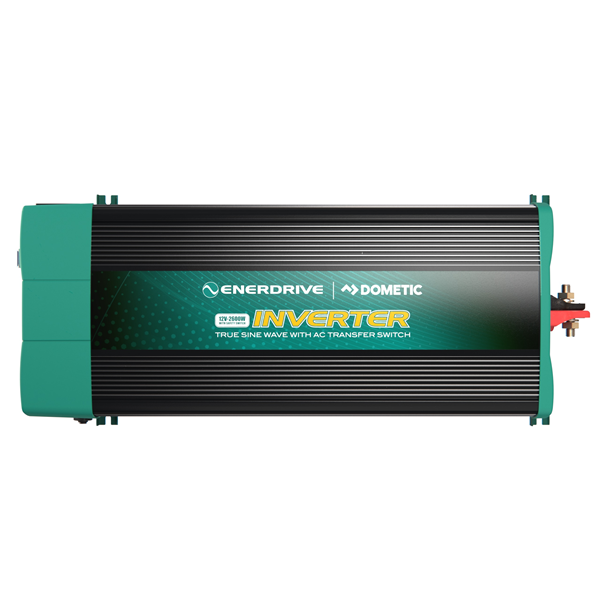

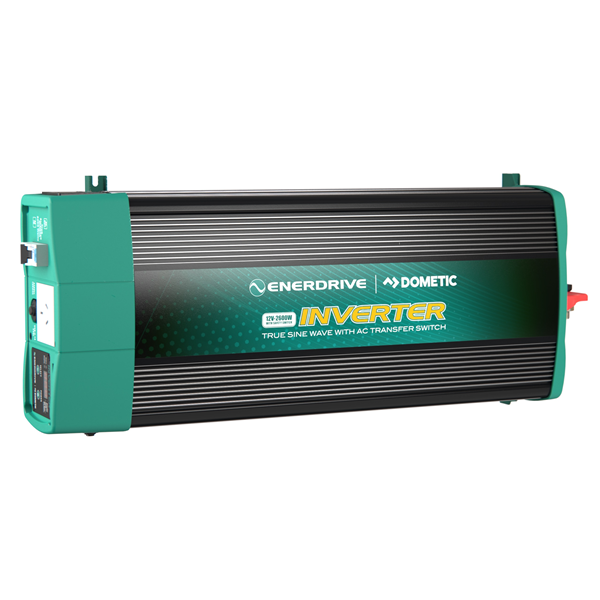

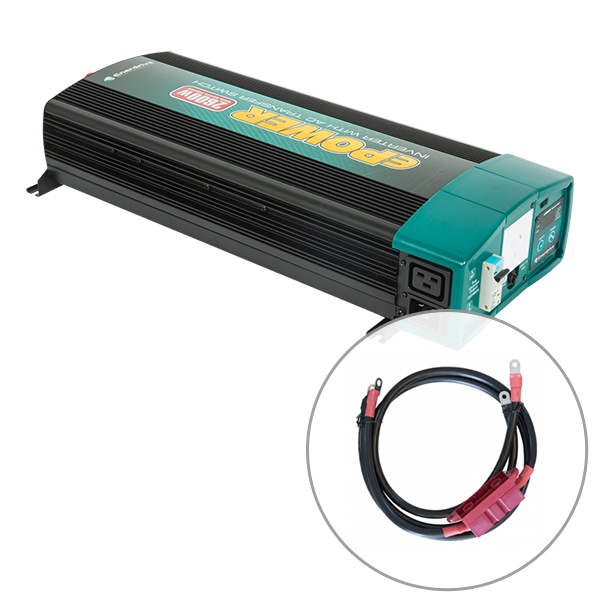

Enerdrive 2600W 12V Pure Sine Wave Inverter and RCD & AC Transfer Switch with DC Cable Pack
Included:
- Enerdrive 2600W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
- Enerdrive Cable Kit to Suit 2600watt Inverter 95mm2 x 1.2m
State of the art, easy to use inverter will offer you reliable service for providing AC power for your home, boat, 4WD, truck or Caravan.
The ePOWER 2600W Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board. This inverter is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation.
Features
- Seamless 16A AC Internal Transfer Switch

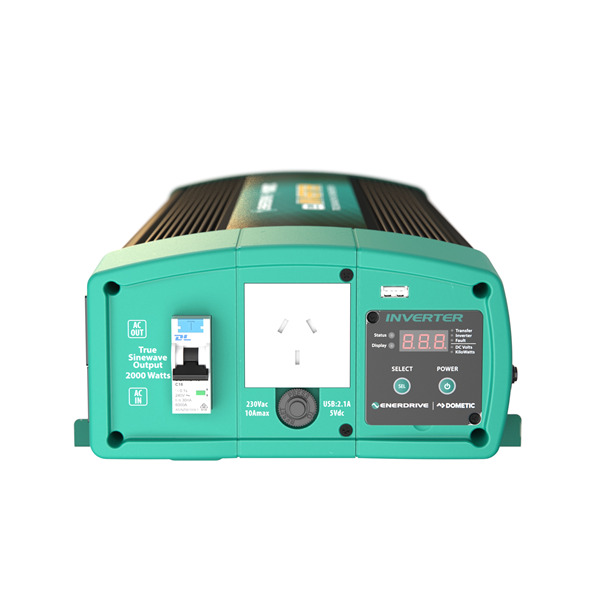

- AC RCD/Safety Switch with test button

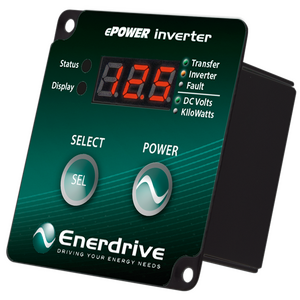

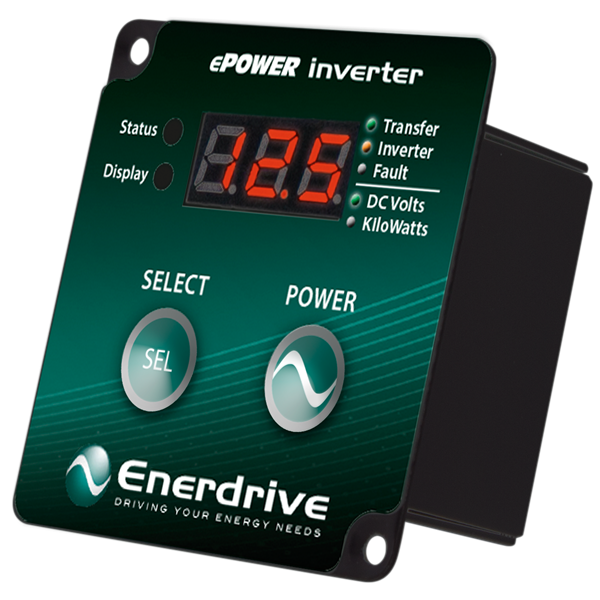

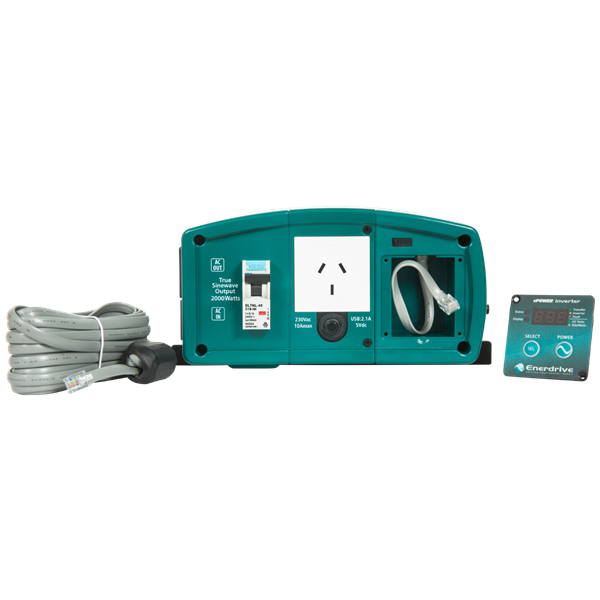

- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- PS6 Mode
- AC Transfer Cable
- 5 Year warranty

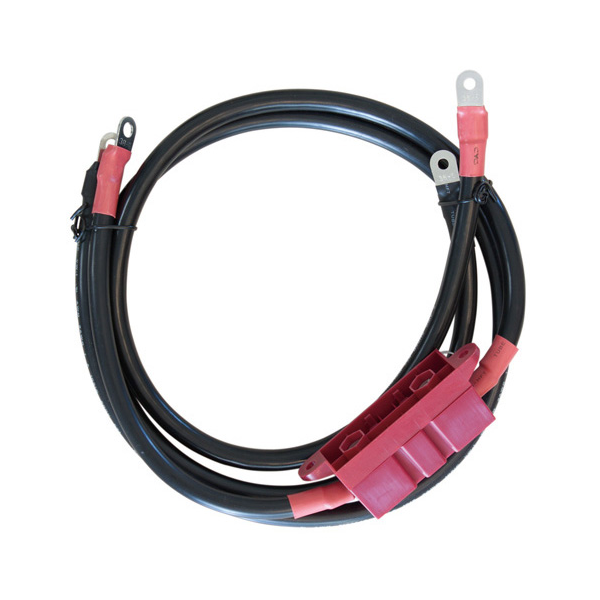

Enerdrive Cable Kit to Suit 2600watt Inverter 95mm2 x 1.2m
Features:
- Suits 2600watt inverter
- 95mm2 x 1.2m
Specifications
SKU EN1226S-X-KIT
Brand Enerdrive
GTIN 9342616019085
Warranty Period: 5 Years
Product Category Power Inverters
Model EN1126X
Wattage (W) 2600
No Load Battery Draw < 1.5 ADC
Net Weight (kg) 7
Under Voltage Alarm Recovery 11.3 / 12.3 VDC
Over Voltage Shutdown 15.5 VDC
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC
Under Voltage Shutdown 10.5 / 11.8 VDC
USB Socket Output 5V, 750 mA
Operating Altitude Up to 3000 meters above sea level
Under Voltage Alarm 11.0 / 12.1 VDC
Product Dimensions (mm) LxWxH 230 x 560 x 115 mm
Storage Range (temp) -20°C to 60°C
Output wave form True Sinewave
AC Output 2600W, 11.3A
Output Voltage and Frequency 230 Vac / 50 Hz
Input Voltage 10.5 – 15.5 VDC
Operating temperature range 0°C to 40°C
Humidity 5-90% noncondensing
NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab.
Videos
Enerdrive Inverters (Transfer Models) - Part 1 - Application
Enerdrive Inverters (Transfer Models) - Part 2 - Specifications
Enerdrive Inverters (Transfer Models) - Part 3 - How to Install
Enerdrive Inverters (Transfer Models) - Part 4 - How to Program Settings
Enerdrive Inverters (Transfer Models) - Part 5 - How to Operate
Enerdrive Inverters (Transfer Models) - Part 6 - Fault Finding
Product Q&A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.
For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).
A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
-
Is the panel on the front of the inverter removeable?
Yes, it can be removed to be mounted separately.
-
What does the AC transfer switch do?
The AC transfer switch will recognise when you are plugged into mains power and automatically changeover from your batteries.
