Enerdrive 760W Solar and 40A DC to DC Charger Pack

SKU: K-SOLAR-760W-DC40 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

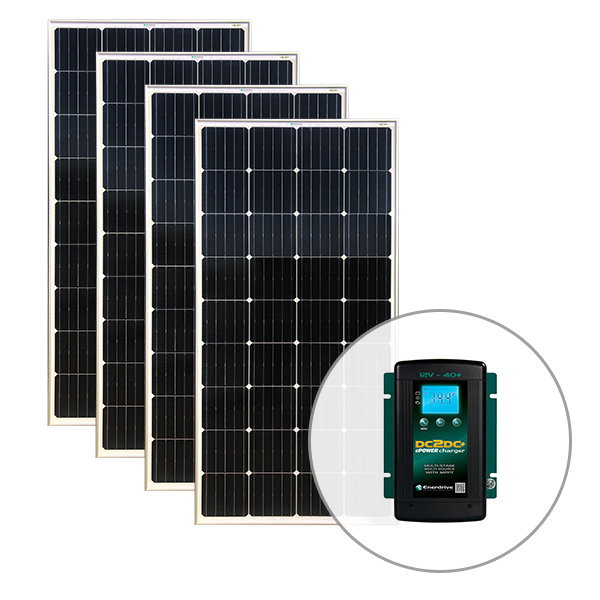

Enerdrive 760W Solar and 40A DC to DC Charger Pack, 5 Year Warranty.

Bundle Includes:

EN3DC40+ - Enerdrive 40A DC to DC Battery Charger
4 x SP-EN190W - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

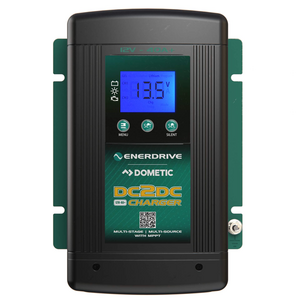

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features

Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
40A output up to 40+°C with thermo controlled fan cooling
Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included in charger for more accurate battery charging

PRO TIP: Common accessories to go with this DC to DC charger are the 60Amp & 70Amp breakers. These are available in the Accessory List above to add as optional extras.

For In Vehicle & Marine Wiring Diagram, click below:

For Towed Vehicle Wiring Diagram, click below:

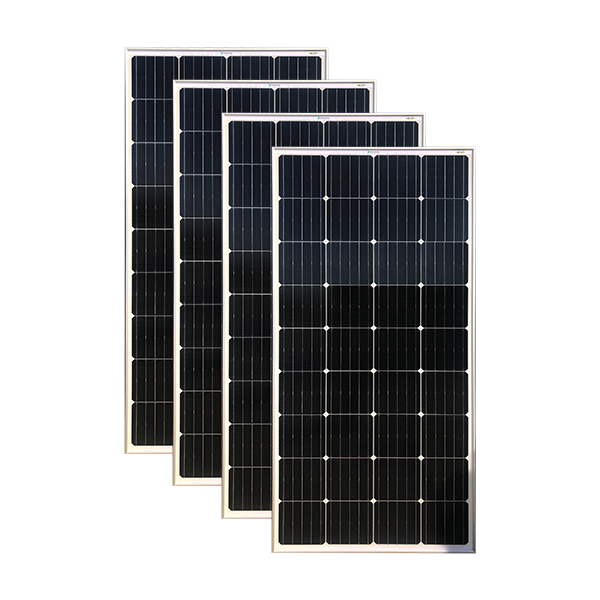

4 x Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

Suited to 12v installations (or 24v by series connections of panels)
A fly lead cable is provided for easy connection of the 10 & 20w panels
The larger panels have MC4 compatible solar cable connectors included

Go to: Product Details

Go to: Videos

Specifications

SKU K-SOLAR-760W-DC40

Brand Enerdrive

Warranty Period: 5 Years

Product Category Solar Bundles

Solar Panel Type Fixed Solar Panels

Solar Panel Cell Type Monocrystalline

Watts (W) 760

Output Current Rating (Amps) 40

Model EN3DC40+ (Battery Charger) | SP-EN190W (Solar Panel)

Product Type 12v 40Amp DC2DC Battery Charger + 190W Mono Crystalline Fixed Solar Panel (x4)

Output System Voltage 12V

Float 13.0V - 13.8V (Battery Charger)

Charging Control Three Stages (Battery Charger)

Charger Efficiency 95% (Battery Charger)

Charger Mode Output Voltage 13.8V - 15.5V (Battery Charger)

Equalize 15.5V (Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (Battery Charger)

Output Short Circuit 9.98 (Solar Panel)

Net Weight (kg) 48.6

Dimensions 242 x 172 x 74mm (Battery Charger) | 1500 x 680 x 35mm (One Solar Panel) (L x W x H)

DC Output Single (Battery Charger)

Go to: Specifications

Go to: Q & A

Videos

Enerdrive ePOWER 12V 40A DC to DC Battery Charger Product Review

Caravan Battery Charger Review, Enerdrive EN3DC40+ DC to DC Battery Charger

Enerdrive Discusses Why Battery Cable Size Matters!

Introducing The Enerdrive Battery Charger Range

EN3DC40+ Enerdrive Battery Charger Run Through

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Do you need to use solar regulator on panels when hooking up to dc to dc charger

Hi There,

As the Enerdrive DC DC charger has a built in solar regulator there is no requirement for an additional regulator for the panels.
HiCan the solar charger handle, the 720watts of solar panels. Thanks Chris

Hi There

Yes, the charger will take 720w of solar.

Kind Regards
