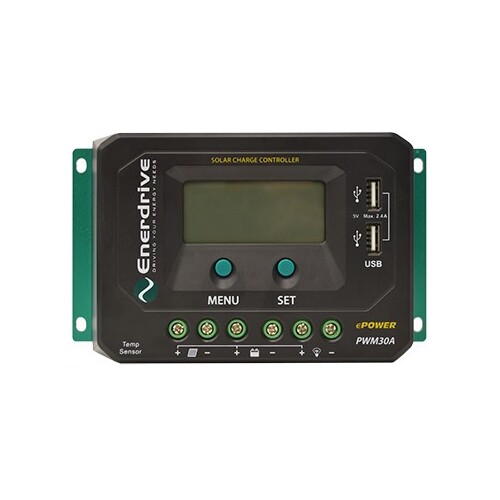

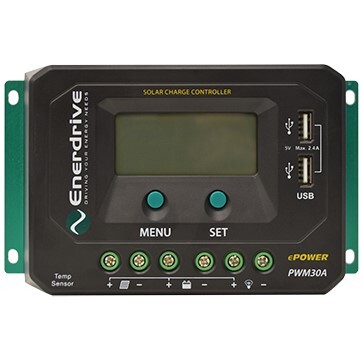

Enerdrive ePOWER PWM 30A Solar Charge Controller
SKU: EN43030 Learn More»
CALCULATE SHIPPING:
Accessories
Learn More»
Product Description
Enerdrive ePOWER PWM 30A Solar Charge Controller, 5 Year Warranty. For maintenance free protection of your batteries and solar panels the controllers regulated output will prevent batteries overcharging.
Load Disconnect (LD) feature will protect batteries from being over discharged.
Enerdrive PWM 30A Solar Charge Controller benefits include:
- Protects battery from overcharge and discharge
- 12/24V auto detect
- Handles up to 30 Amps of Array Current
- Handles up to 450 Watts of solar power
- Maintenance free protection of your solar panel and batteries
- Maintains battery voltage
- Maintain 12/24V batteries in a fully charged state
Features:
- Informative backlight LCD display indicates solar charge input, charge/load output Volatage/Amps
- Selectable battery type Sealed, Flooded & Gel
- 2 x USB Outputs 2.4A
- Full output operation up to 55oC
- Temperature compensation
- High precision on voltage set point
- Wall mountable
Specifications
SKU EN43030
Brand Enerdrive
GTIN 9342616000342
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 30
Product Type Solar Charge Controller
Nominal Voltage 12/24VDC
Enclosure Class IP30
Input Voltage 9V-32V
Battery Types Sealed (Default) / Gel / Flooded
Dimensions 181 x 101 x 60mm
Charge Voltage Float - Gel/AGM (25 degrees)** 13.8V (Sealed / Gel / Flooded)
Operating Range (temp) -25ËšC+55ËšC | -20ËšC+70ËšC (LCD)
Open Circuit Voltage Voc(V) 12V - 25VOC / 24V - 50VOC
Humidity 95% N.C.
Charge Voltage Absorption (25 degrees)** Sealed: 14.4V / Gel:14.2V / Flooded 14.6V
Output 5VDC/2.4A (USB, Total)
Amps 30
Product Q&A
-
Is this solar pump charger suitable for lithium batteries?
Hi There,
The Enerdrive ePOWER PWM 30A Solar Charge Controller is not suitable for lithium bateries.
It is designed to charge: Sealed, Flooded & Gel batteries
-
I just bought an Enerdrive EPOWER EN43030-30A PWM. I've read the instructions but can't work it out as it's not really putting charge in to my batteries. Is there a tutorial or anything I could watch. Haven't found anything on YouTube or google. Any hel
Hi There
You can always give Enerdrive a call directly on 1300 851 535, and they should be able to talk you through it.
Kind Regards
Customer Reviews
Excellent unit Review by Peter LilleyOur unit was damaged by wielding without disconnecting it. Replacement was easy to fit(Posted on 14 December 2022)
