Enerdrive eSYSTEM-C 40A AC / DC, ePRO+ & 2000W Inverter (RCD/AC Transfer)
SKU: eSYSTEM-C Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

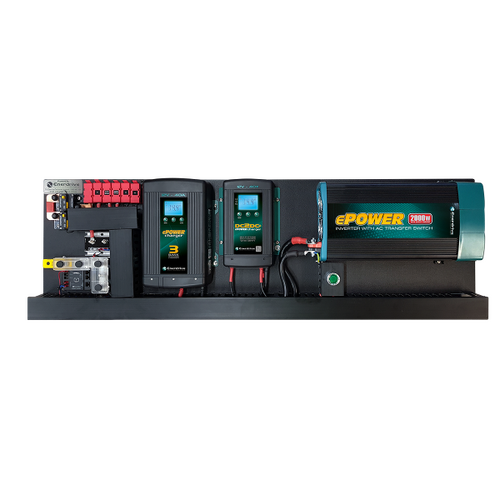

Enerdrive eSYSTEM-C 40A AC / DC with ePRO+ & 2000W Inverter (RCD/AC Transfer), 5 Year Warranty. Introducing Enerdrive's Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.
Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Includes:
- Enerdrive eSYSTEM-C 40A AC / DC, ePRO+ & 2000W Inverter (RCD/AC Transfer)
Battery Options:

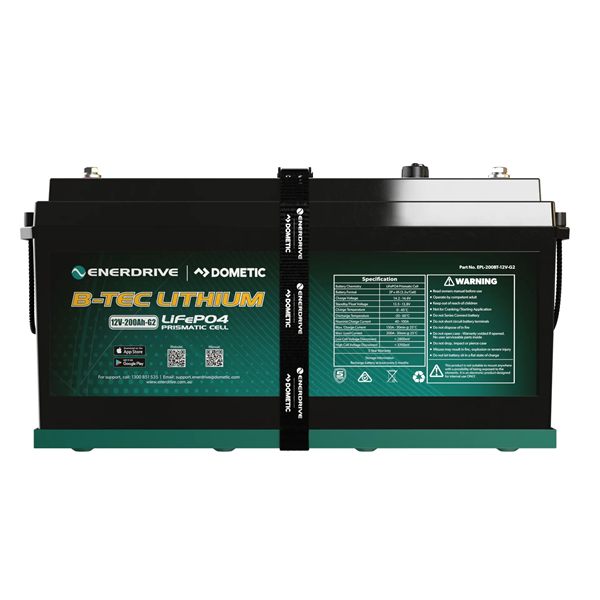

- 1 or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2

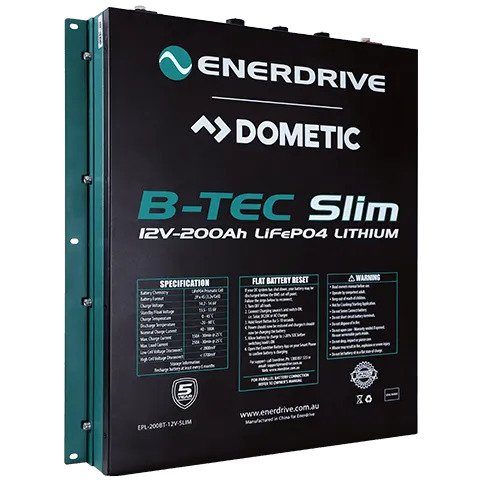

- 1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM

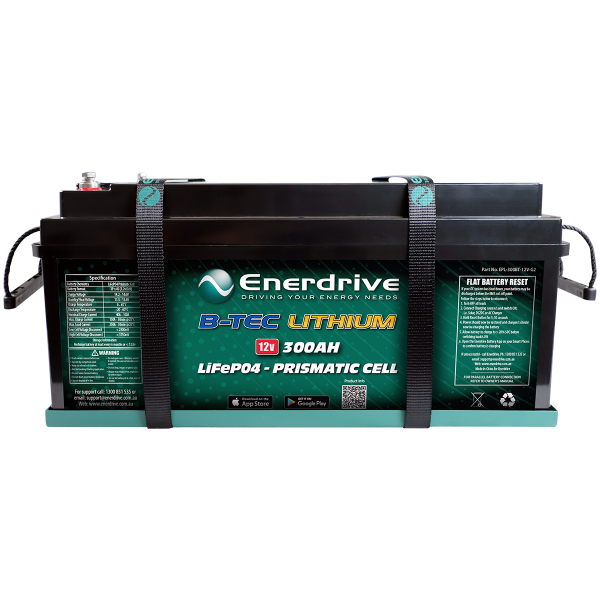

- 1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

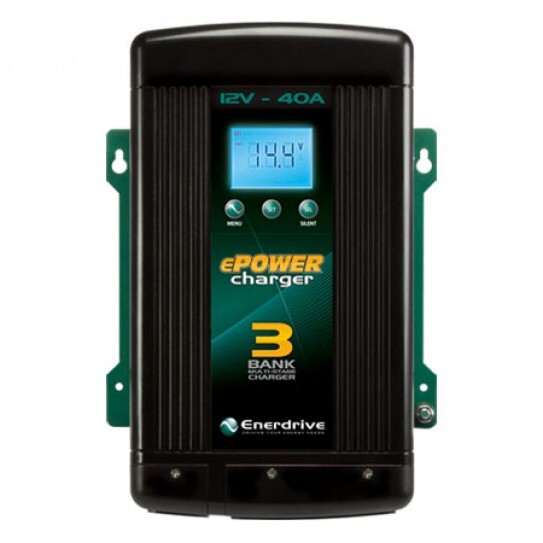

| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp Charger | ✓ | ✓ | ||||||||||||||||||||||||

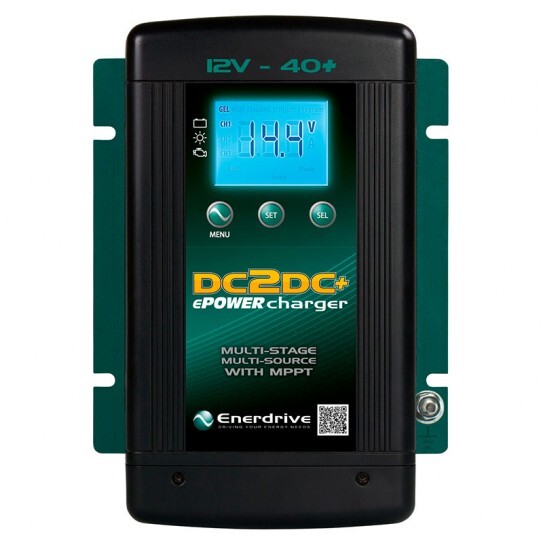

| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||
| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||

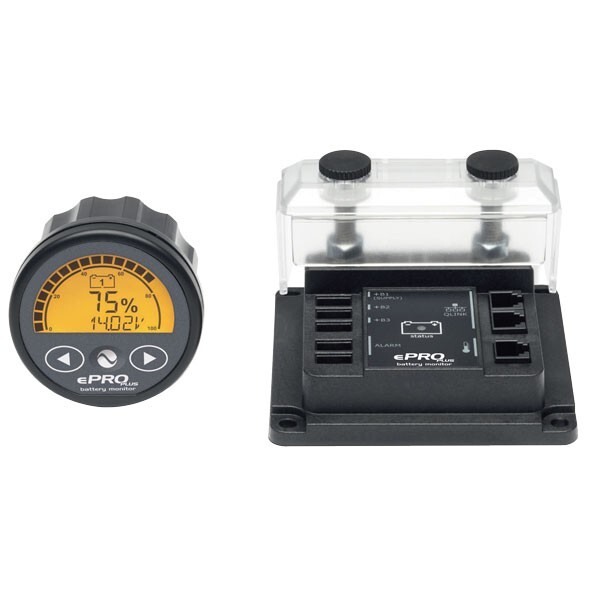

| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||

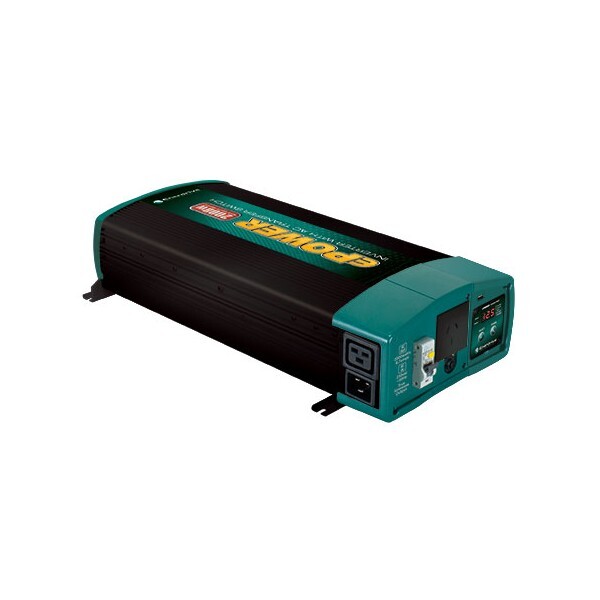

| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU eSYSTEM-C
Brand Enerdrive
GTIN 9342616031513
Warranty Period: 5 Years
Product Category Power Systems
Model EN3DC40+ (DC Battery Charger)
Model EN31240 (AC Battery Charger)
Model EN55050 (Battery Monitor)
Model EN1120S-X (Inverter)
Wattage (W) 2000
Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger)
Charger Mode Output Voltage 14.2 - 15.5 V (AC Battery Charger)
Under Voltage Shutdown Recovery 12.0 / 12.6 VDC (Inverter)
Equalize 15.5V (DC Battery Charger)
Equalize 16.0 V (AC Battery Charger)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
Temperature Setting Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Under Voltage Alarm Recovery 11.3 / 12.3 VDC (Inverter)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
AC Input Frequency Range 47 - 63 Hz (AC Battery Charger)
Power Factor Correction Yes (AC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
Over Charge Yes, unit shutdown (AC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) - Pan Heads 6mm Thread (AC Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)
Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations.
Net Weight (kg) 23
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Dimensions 1185 x 380 x 130 mm (L x W x D)
Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger)
Humidity 5-90% noncondensing (Inverter)
Input Voltage 12.5 VDC (Inverter)
Operating Range (temp) -20° to 60° C (AC Battery Charger)
Operating Range (temp) 0°C to 40°C (Inverter)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
Float 13.0V - 13.8V (DC Battery Charger)
Float 13.4 - 13.8 V (AC Battery Charger)
Standby Current < 2 mA (AC Battery Charger)
Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging
Over Voltage Shutdown 15.5 VDC (Inverter)
AC Input Operating Range 207-265 Vac (3.8 A Max) 90 - 125 Vac (7.7 A Max) (AC Battery Charger)
Power consumption (DC 12V) 700W (Full Load) (AC Battery Charger)
Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Charger Efficiency 95% (DC Battery Charger)
Charger Efficiency > 82% (AC Battery Charger)
Storage Range (temp) -40° to 70° C (AC Battery Charger)
Under Voltage Alarm 11.0 / 12.1 VDC (Inverter)
USB Socket Output 5V, 750 mA (Inverter)
Under Voltage Shutdown 10.5 / 11.8 VDC (Inverter)
DC Output Single (DC Battery Charger)
DC Output Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Videos
Enerdrive eSYSTEMS Explained - Complete Power System Solutions
"OFF GRID POWER" IN A CARAVAN - WE EXPLAIN IT!! How?? Why?? How much?? & YOU CAN WIN A FRIDGE!!!
Enerdrive Discusses Why Battery Cable Size Matters!
Introducing The Enerdrive Battery Charger Range
Product Q&A
-
can the board be set up in opposite direction by that i mean inverter on left hand side
Hi Michael,
Unforutnately Enerdrive only produce them in the one layout sorry.
