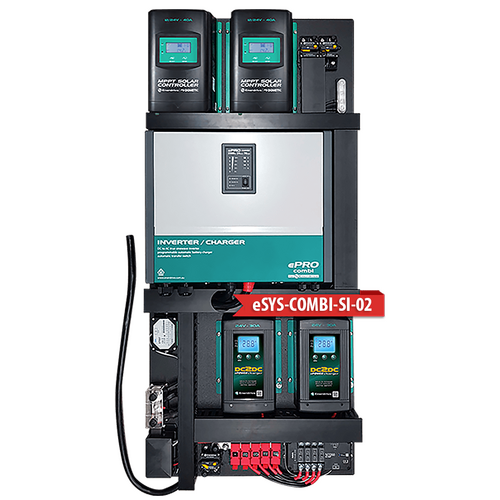

Enerdrive eSYSTEM-COMBI 40A DC with 2 x Dual MPPT 12/24V 40A, 3000W/120A Combi & ePRO+ Monitor

SKU: ESYSTEM-COMBI Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Enerdrive eSYSTEM-COMBI 40A DC with Dual MPPT 12/24V 40A, Inverter & Monitor, 5 Year Warranty. Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Bundle Includes:

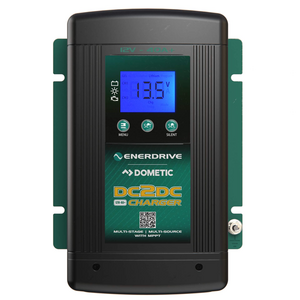

Enerdrive DC2DC Battery Charger - 12V 40A, EN3DC40

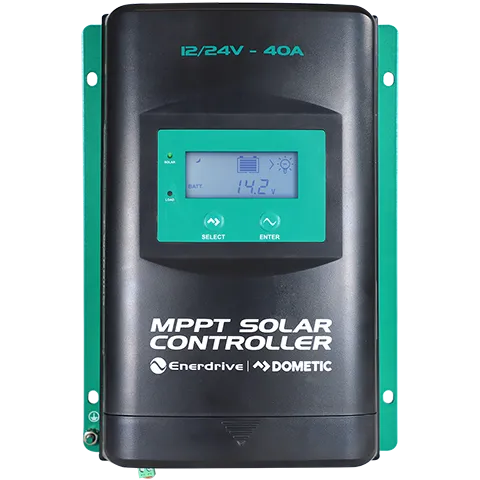

Enerdrive MPPT 12/24V 40A Solar Controller with Display, EN43540

Inverter Charger Option:

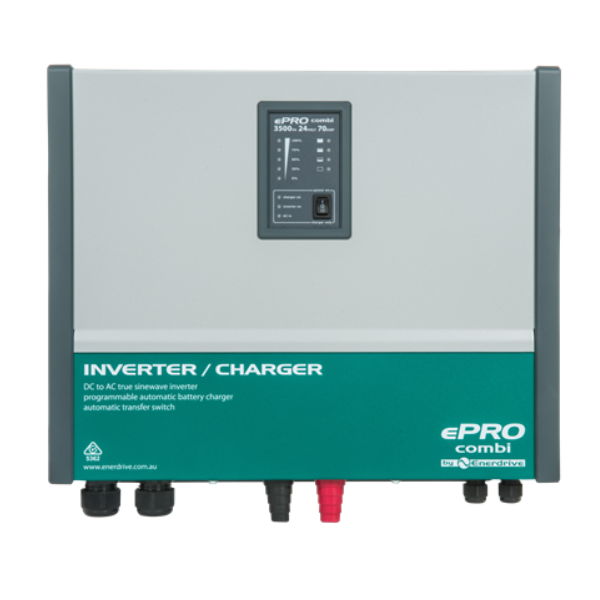

Enerdrive ePRO Combi 3000W Inverter Charger, EPC-3000-12-KIT
Enerdrive ePRO Inverter / Charger 3500W, EPC-3500-24-KIT

Optional Battery Monitor:

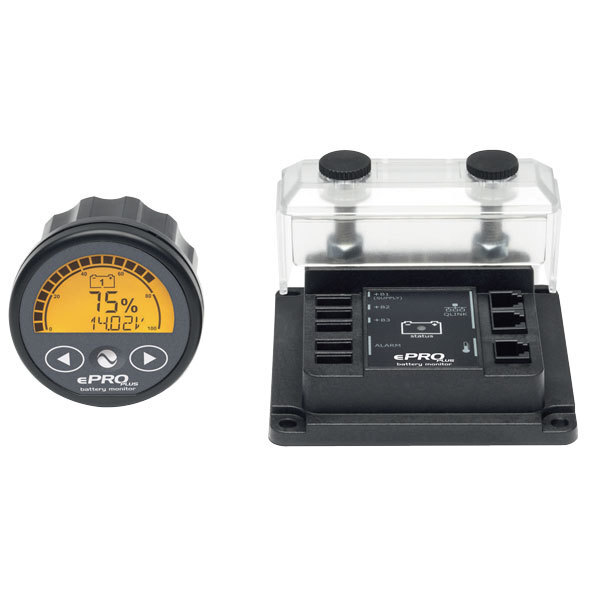

ePRO Plus Battery Monitor, EN55050
Simarine Battery Monitor, SI-SC303

Click the left and right buttons to view the eSYSTEM Range

(✓) Indicates standard Fitment, (#) Indicates optional fitment

Properties	eSYS-C	eSYS-D	eSYS-E	eSYS-F	eSYS-G	eSYS-H	eSYS-I	eSYS-J	eSYS-K	eSYS-L	eSYS-M	eSYS-N-EP-01	eSYS-N-SI-01	eSYS-O	eSYS-R-EP-01	eSYS-R-SI-01	eSYS-R-EP-02	eSYS-R-SI-02	eSYS-R-EP-03	eSYS-R-SI-03	eSYS-COMBI-EP-01	eSYS-COMBI-SI-01	eSYS-COMBI-EP-02	eSYS-COMBI-SI-02	eSYS-ICA-EP-02	eSYS-ICA-SI-02
AC 40Amp Charger	✓	✓	✓	✓	✓				✓	✓	✓				✓	✓
AC 60Amp Charger						✓	✓	✓									✓	✓
AC 100Amp Charger																			✓	✓
DC2DC 40Amp Charger	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓#	✓#			✓	✓
DC2DC 30Amp 24V Charger																							✓✓	✓✓
Morningstar Tristar 45A Solar Controller						✓	✓	✓	✓	✓
Enerdrive MPPT 40A Solar Controller												✓✓	✓✓	✓✓	✓	✓	✓✓	✓✓	✓✓	✓✓	✓✓	✓✓	✓✓	✓✓	✓✓	✓✓
ePRO+ 500A Battery Monitor	✓		✓			✓		✓		✓	✓	✓			✓		✓		✓		✓		✓		✓
Simarine Pico LCD WIFI Monitoring Screen		✓		✓	✓		✓		✓				✓	✓		✓		✓		✓		✓		✓		✓
Simarine SC303 300A Main Battery Shunt		✓		✓	✓		✓		✓				✓	✓		✓		✓		✓		✓		✓		✓
Simarine SCQ25T Quad Shunt Tank Module		✓		✓	✓				✓
Simarine SCQ50 Quad Shunt Tank Module							✓							✓		✓		✓		✓						✓
Simarine ST107 Tank Monitoring Module													✓			✓		✓		✓		✓		✓		✓
Inverter Breaker 200A (Pre Wired Inverter Supply)								✓	✓	✓				#
Battery Restart Switch	✓	✓	✓	✓	✓				✓	✓
24hr Critical Load Distribution Fuse Block		✓	✓	✓	✓		✓		✓	✓				✓
Main Load Distribution Fuse Block		✓	✓			✓	✓
2000W AC Transfer Inverter	✓			✓											✓	✓
2600W AC Transfer Inverter																	✓	✓	✓	✓
Dimensions	1185W x 380H x 130Dmm	600W x 490H x 100Dmm	600W x 490H x 100Dmm	1185W x 380H x 130Dmm	790W x 380H x 100Dmm	1195W x 380H x 111Dmm	1195W x 380H x 111Dmm	920W x 380H x 111Dmm	490W x 600 H x 111D mm	490W x 600 H x 111D mm	600W x 350H x 111D mm	1190W x 380H x 111D mm	1190W x 380H x 111D mm	600H x 520W x 111Dmm	535W x 1195H x 111D mm	535W x 1195H x 111D mm	535W x 1195H x 111D mm	535W x 1195H x 111D mm	535W x 1195H x 111D mm	535W x 1195H x 111D mm	535W x 1195H x 147D mm	535W x 1195H x 147D mm	535W x 1195H x 147D mm	535W x 1195H x 147D mm	535W x 1195H x 120D mm	535W x 1195H x 120D mm
