Enerdrive eSYSTEM-I 60A AC / 40A DC with TriStar 45A Solar Reg & Simarine Monitor
SKU: eSYSTEM-I Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

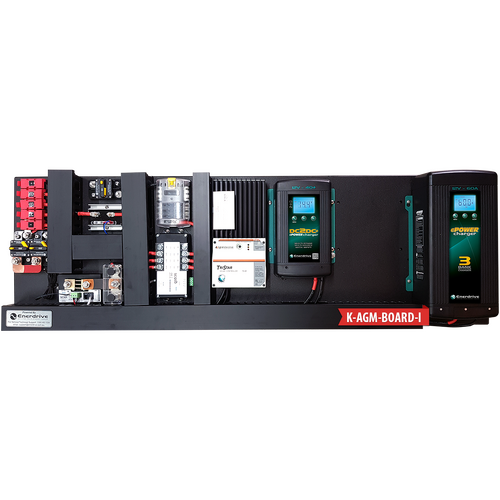

Enerdrive eSYSTEM-I 60A AC / 40A DC with TriStar 45A Solar Reg & Simarine Monitor, 5 Year Warranty. Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Includes:
- Enerdrive eSYSTEM-I 60A AC / 40A DC, with TriStar 45A Solar Reg & Simarine Monitor
Battery Options:

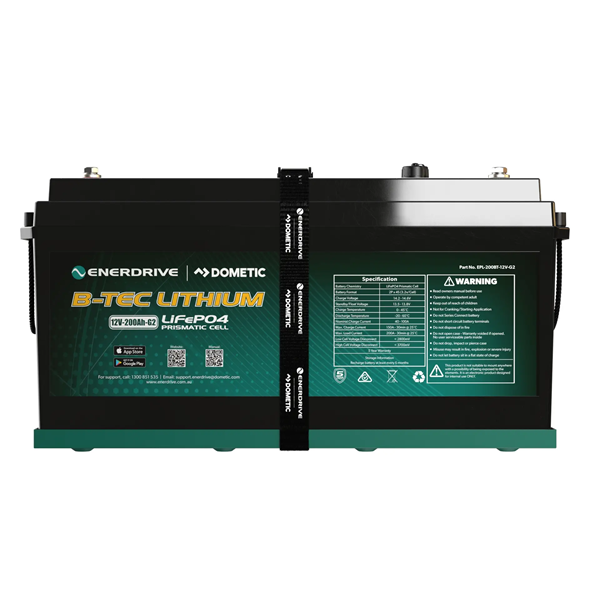

- 1 or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2

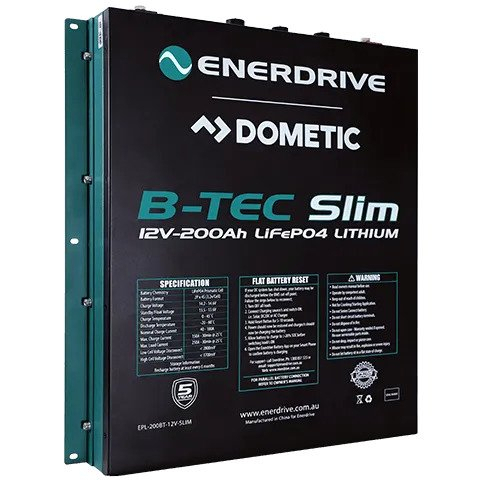

- 1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM

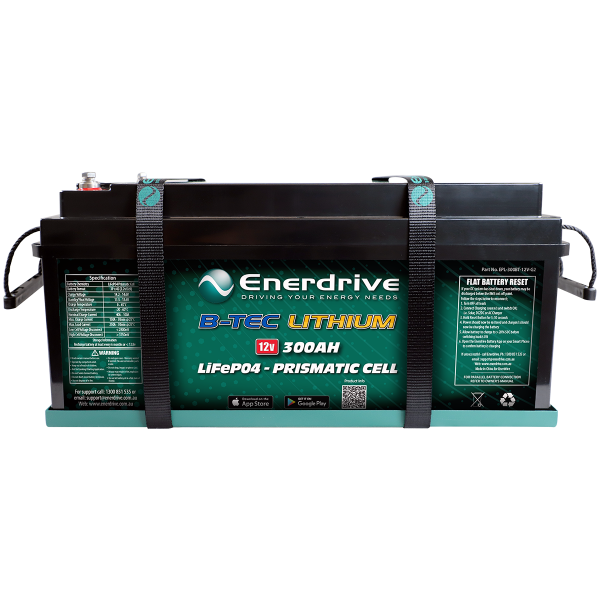

- 1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp Charger | ✓ | ✓ | ||||||||||||||||||||||||
| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||
| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||
| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||

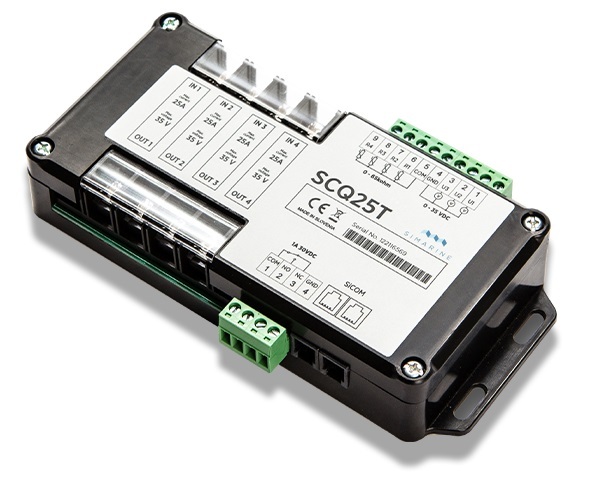

| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||

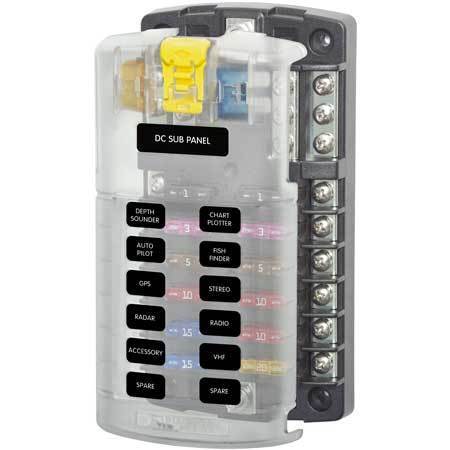

| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU eSYSTEM-I
Brand Enerdrive
GTIN 9342616028230
Warranty Period: 5 Years
Product Category Power Systems

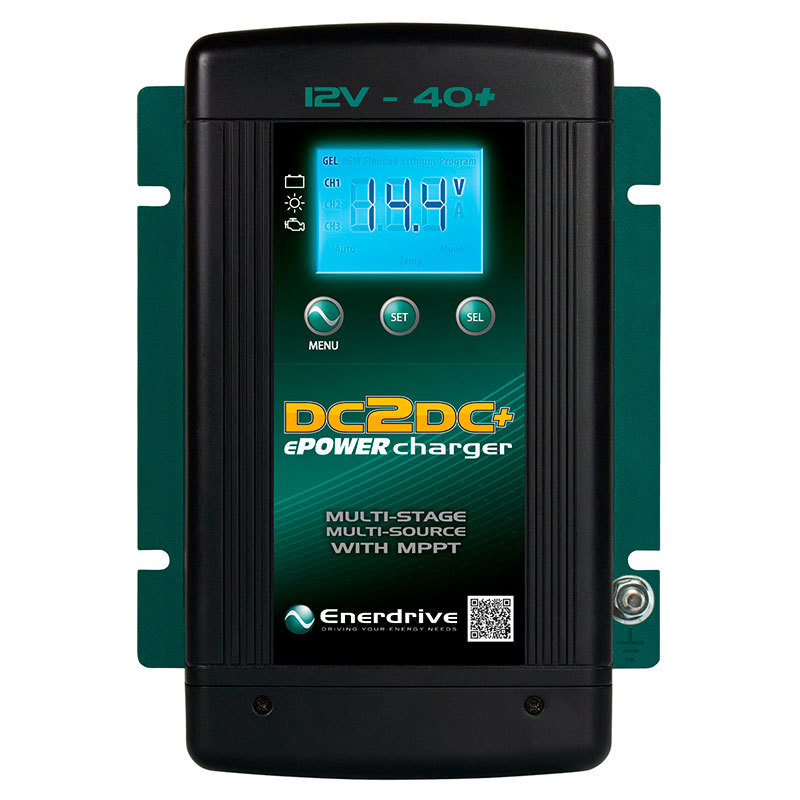

Model EN3DC40+ (DC Battery Charger)

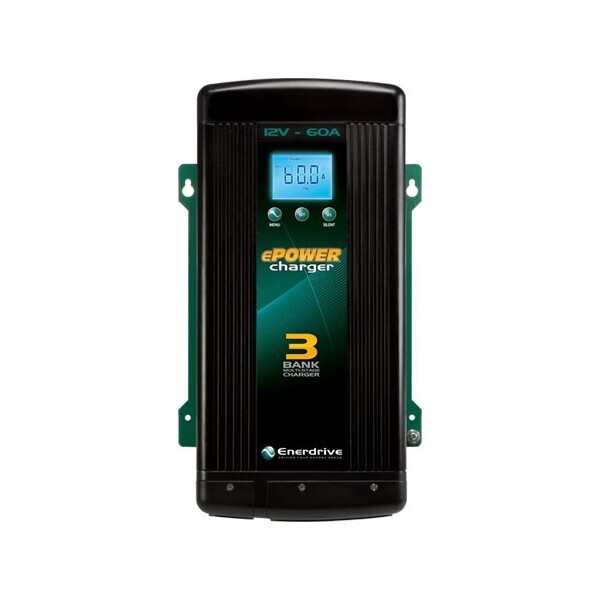

Model EN31260 (AC Battery Charger)

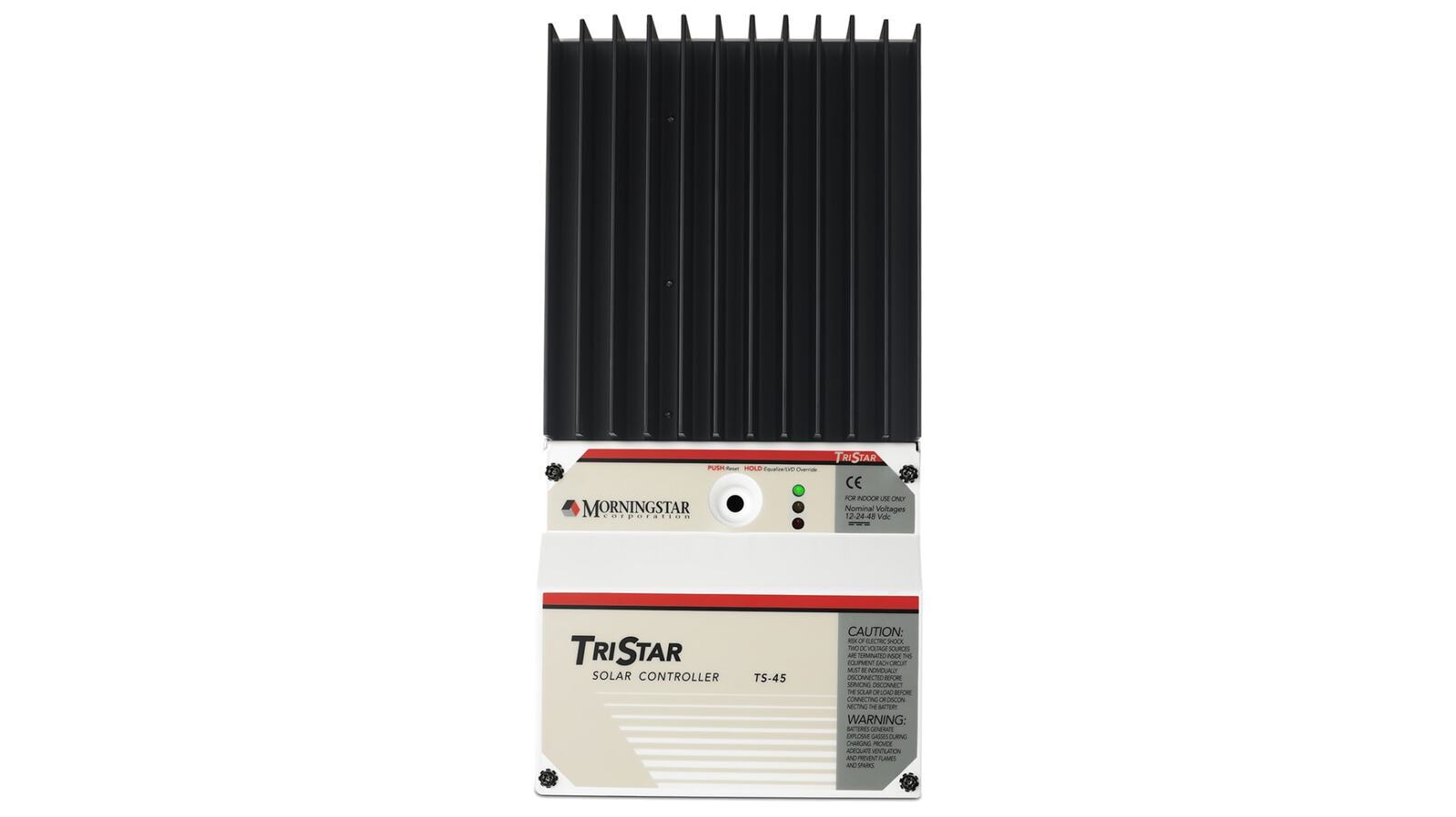

Model SR-TS-45 (Solar Charge Controller)

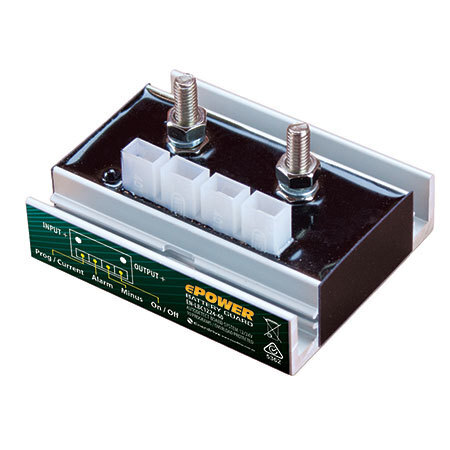

Model EN-LBC1224-40 (Low Cut)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger)
Charger Mode Output Voltage 14.2 - 15.5 V (AC Battery Charger)
Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger)
Temperature Setting Hot, Normal, Cold (no sensor connected) (AC Battery Charger)
Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)
AC Input Frequency Range 47 - 63 Hz (AC Battery Charger)
Power Factor Correction Yes (AC Battery Charger)
Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)
Over Charge Yes, unit shutdown (AC Battery Charger)
Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)
Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)
AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)
DC Output Connection Heavy Duty Terminal (3 banks) - Pan Heads 6mm Thread (AC Battery Charger)
DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)
Net Weight (kg) 16.5
Equalize 15.5V (DC Battery Charger)
Equalize 16.0 V (AC Battery Charger)
DC Output Single (DC Battery Charger)
DC Output Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
Storage Range (temp) -40° to 70° C (AC Battery Charger)
Charger Efficiency 95% (DC Battery Charger)
Charger Efficiency > 82% (AC Battery Charger)
Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)
Power consumption (DC 12V) 1050W (Full Load) (AC Battery Charger)
AC Input Operating Range 207-265 Vac (5.9 A Max) 90 - 125 Vac (11.3 A Max) (AC Battery Charger)
Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)
Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging
Standby Current < 2 mA (AC Battery Charger)
Float 13.0V - 13.8V (DC Battery Charger)
Float 13.4 - 13.8 V (AC Battery Charger)
LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
Operating Range (temp) -20° to 60° C (AC Battery Charger)
Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger)
Dimensions 1195mm x 380mm (L x W)
Videos

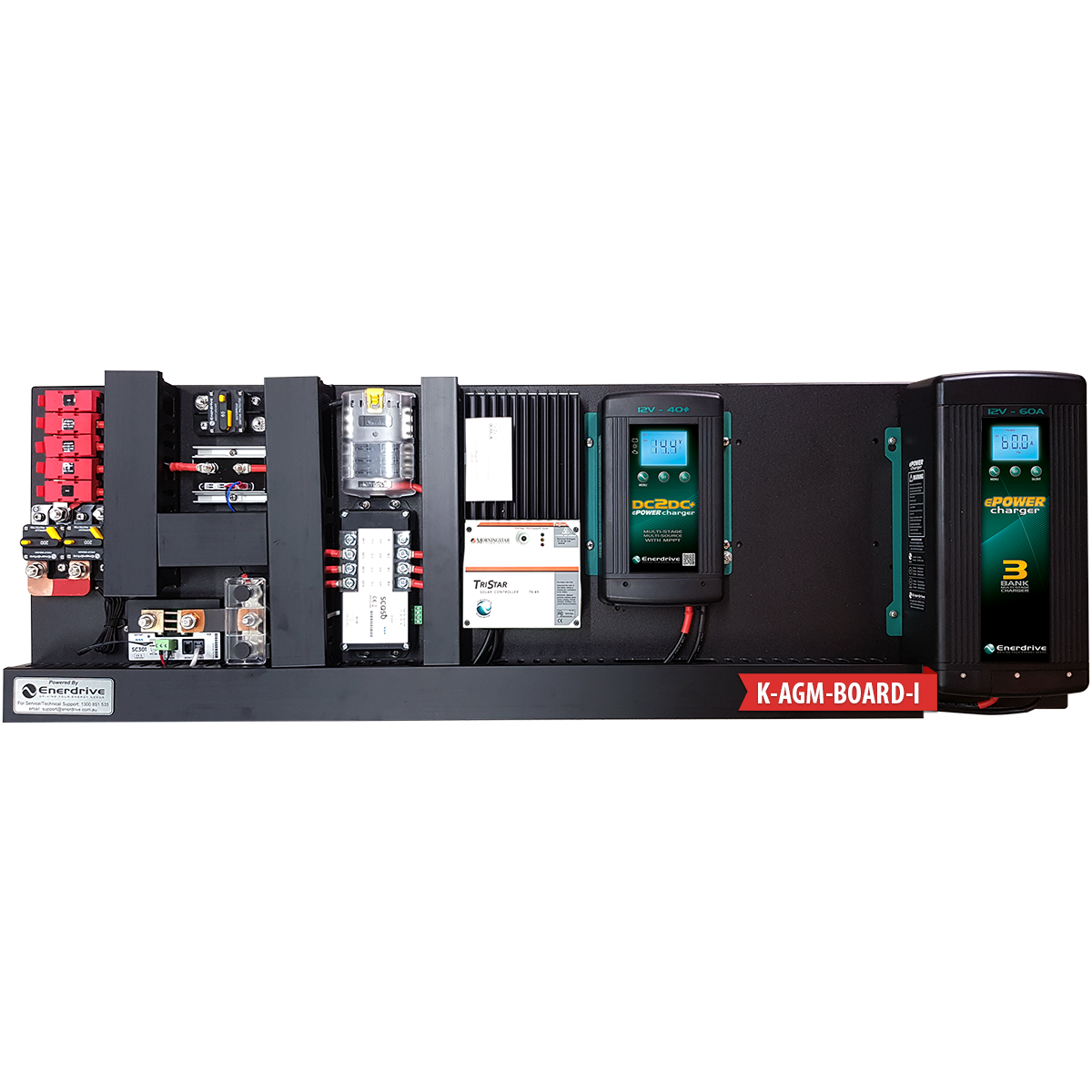

Introduction to the Enerdrive K-AGM-Board-I Power System
