Enerdrive eSYSTEM-L 40A AC / DC, ePRO+ & 45A MPPT
SKU: eSYSTEM-L Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

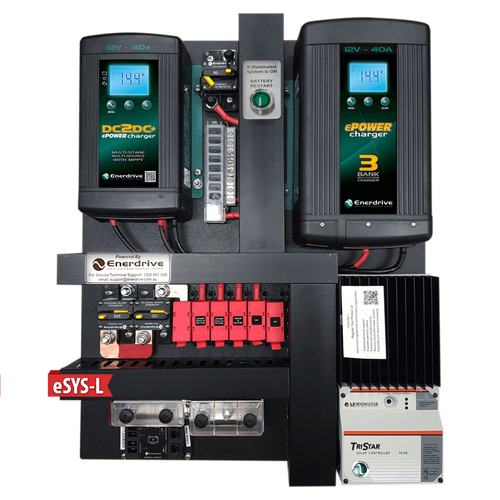

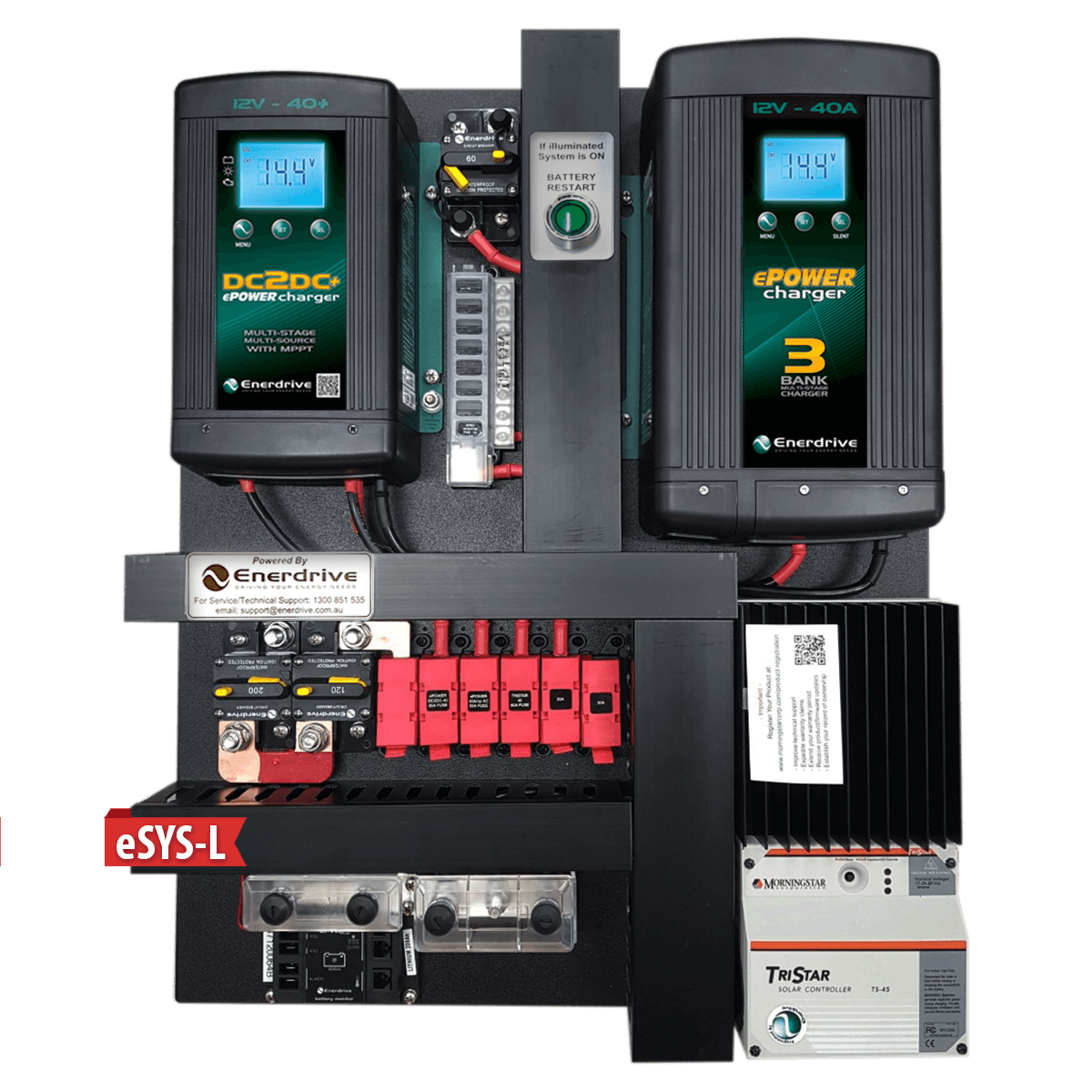

Enerdrive eSYSTEM-L 40A AC / DC with ePRO+ & 45A MPPT, 5 Year Warranty. Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Includes:
- Enerdrive eSYSTEM-L 40A AC / DC, ePRO+ & 45A MPPT
Battery Options:

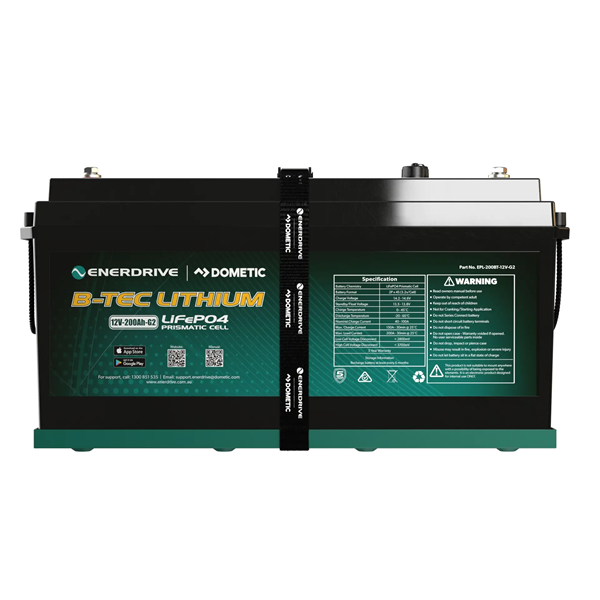

- 1 or 2 x Enerdrive ePOWER B-TEC 200Ah Lithium Battery, EPL-200BT-12V-G2

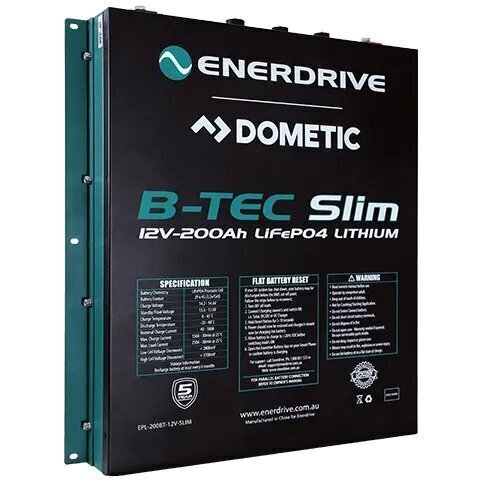

- 1 x Enerdrive B-TEC 200Ah Slim Metal Case Lithium Battery, EPL-200BT-12V-SLIM

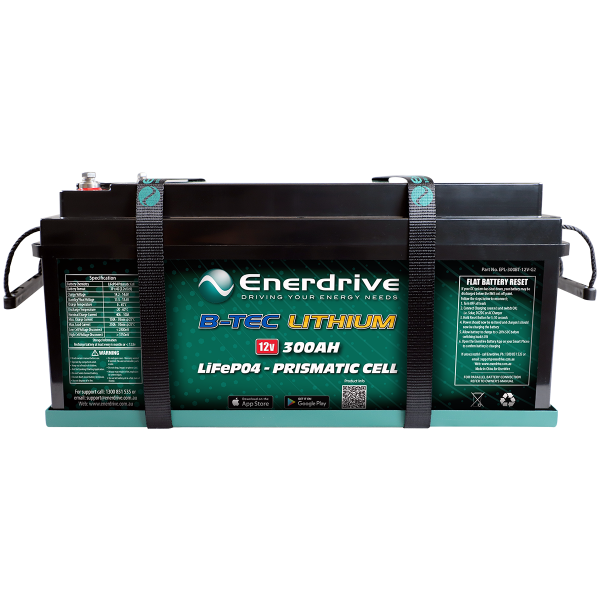

- 1 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

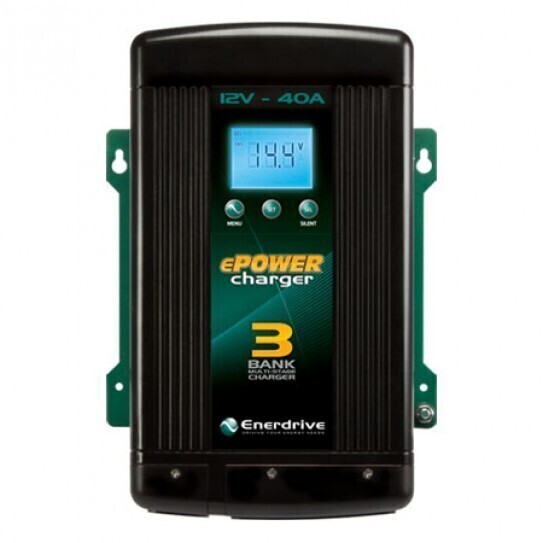

| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp Charger | ✓ | ✓ | ||||||||||||||||||||||||
| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||

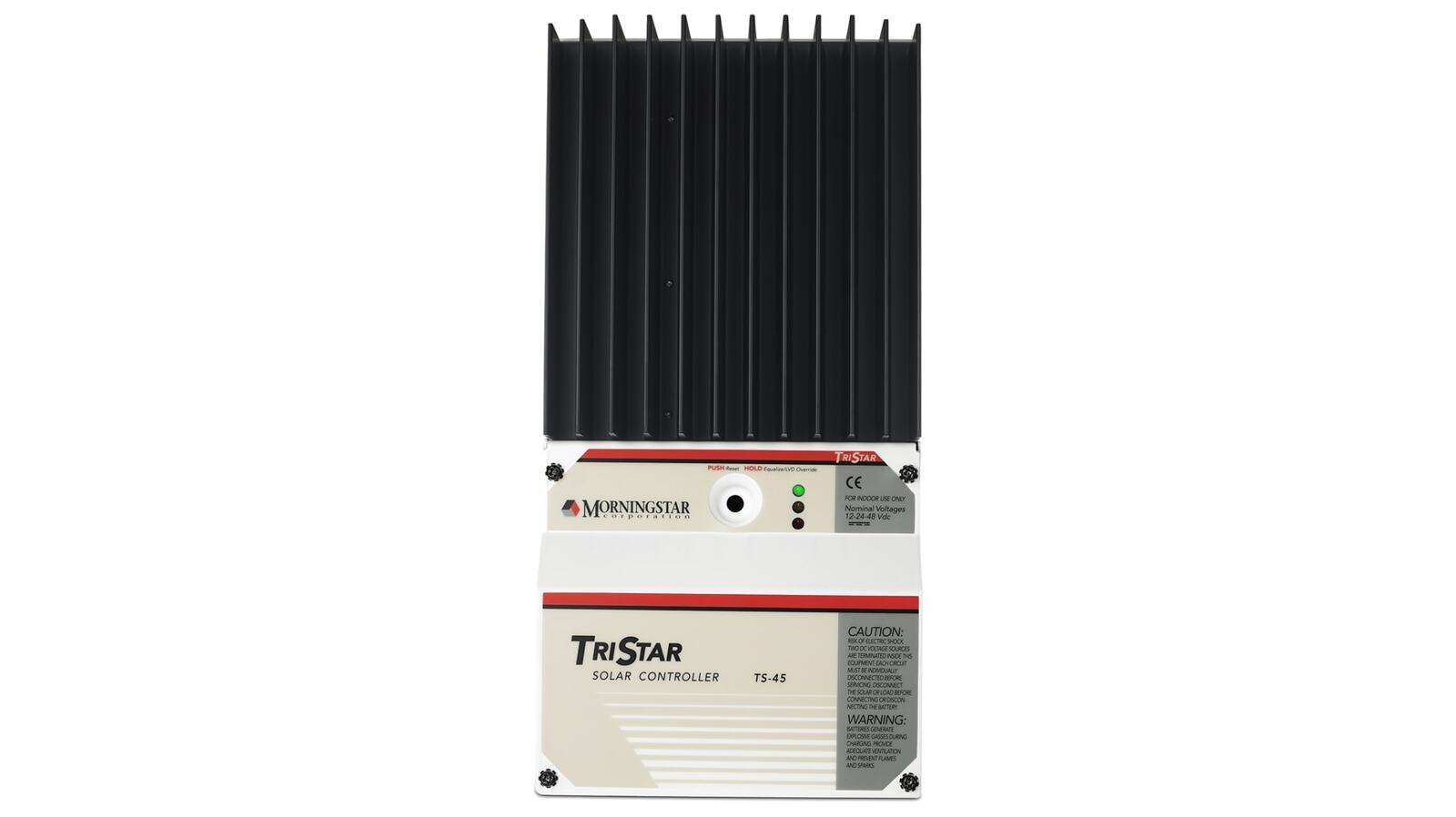

| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||

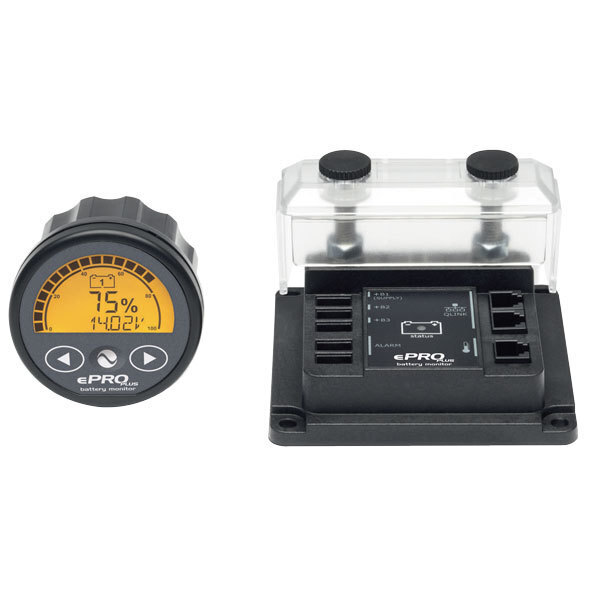

| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU eSYSTEM-L
Brand Enerdrive
GTIN 9342616000731
Warranty Period: 5 Years
Product Category Power Systems
Model EN3DC40+ (DC Battery Charger) | EN31240 (AC Battery Charger) | SR-TS-45-ED (Battery Monitor) | EN55050 (Battery Monitor) | Model: EPL-200BT-12V-G2 (Ba
Nominal Voltage 12.8V (Battery)
Nominal Capacity 200Ah (Battery) | 300Ah (Battery)
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0-45°C (Battery)
Normal Charge Voltage CV/CC* 14.40 ̴ 14.60V (Battery)
Standby (Float) Voltage 13.50 ̴ 13.80V (Battery)
Maximum Charge Current 150A @ 25°C for 30mins (Battery) | 190A @ 25°C for 30mins (Battery)
Recommended Charge Current for Maximum Life ≤ 60A-120A (Battery) | 80-120A (Battery)
Battery Discharge Temperature -20-60°C (Battery)
Battery Output Voltage Range 11.00 ̴ 14.60V (Battery)
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Discharge Cut-off Voltage ≤ 11.20V (Battery)

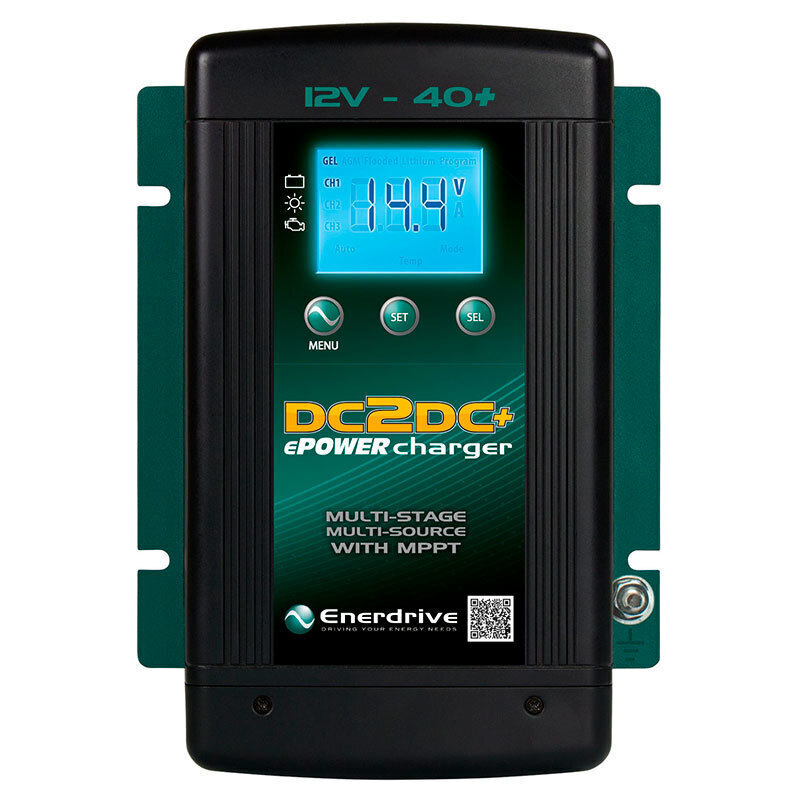

Amps - DC Battery Charger 40A
Amps - AC Battery Charger 40A
Load Current Rating 45A (Battery Monitor)
Dimensions (L x W x H) 74mm x 242mm x 172mm (DC Battery Charger) | 295mm x 206mm x 86mm (AC Battery Charger) | 260mm x 127mm x 71mm (Battery Monitor) | 260mm x 127mm x 71mm
Float 13.50 - 13.80V (Battery)
Total Charge Current Max 150A @ 25°C for 30mins (Battery)
Voltage 12V (DC Battery Charger) | 12V (AC Battery Charger) | 12V (Battery)
Output System Voltage 12-48V (Battery Monitor)
Operating temperature range –40°C to +60°C (Battery Monitor)
Weight (kg) 1.85 (DC Battery Charger) | 2.6 (AC Battery Charger) | 1.6 (Battery Monitor) | 1 (Battery Monitor) | 25 (Battery) | 30 (Battery) | Approx 38.2 (Batter
Amps 45 (Battery Monitor)
