Enerdrive eSYSTEM-O 40A DC with Dual MPPT 12/24V 40A & Simarine
SKU: ESYSTEM-O Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive eSYSTEM-O 40A DC with Dual MPPT 12/24V 40A & Monitor. 5 Years Warranty. Introducing Enerdrives eSYSTEM DIY Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.
These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.
Includes:

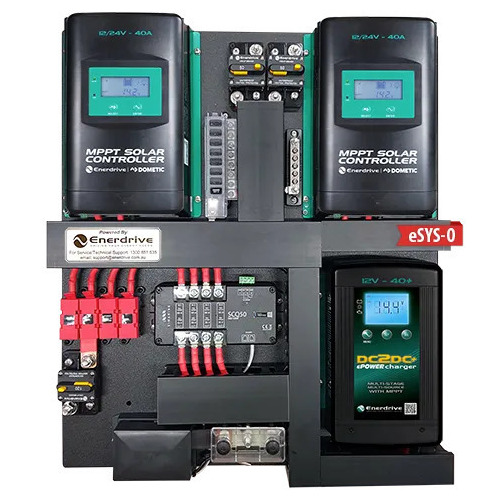

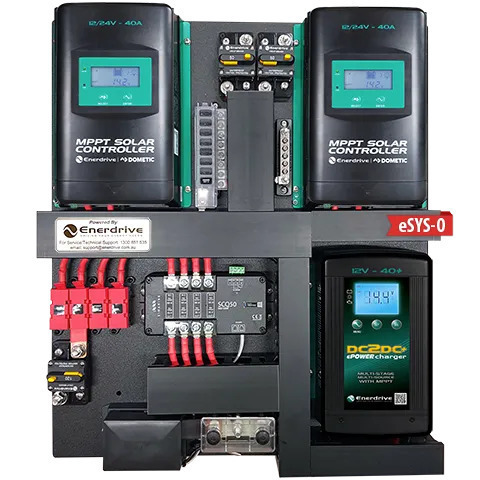

- Enerdrive eSYSTEM-O 40A DC with Dual MPPT 12/24V 40A & Monitor
Optional Battery:
- No Battery

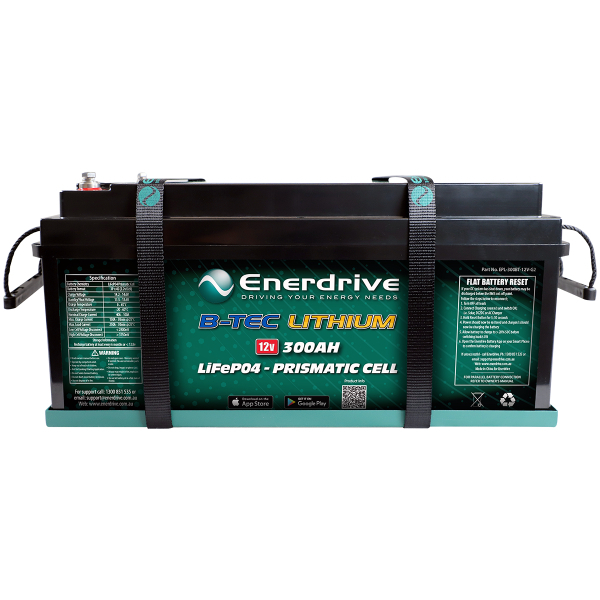

- 1 x ePower B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
- 2 x ePower B-TEC 300Ah Lithium Battery, EPL-300BT-12V-G2
Optional Battery Charger:
- No Battery Charger

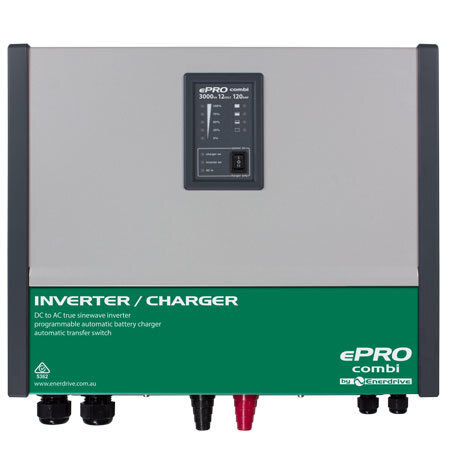

- 1 x Enerdrive ePRO Inverter / Charger 3000W EPC-3000-12-KIT
.png)
Click the left and right buttons to view the eSYSTEM Range
(✓) Indicates standard Fitment, (#) Indicates optional fitment
| Properties | eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | eSYS-K | eSYS-L | eSYS-M | eSYS-N-EP-01 | eSYS-N-SI-01 | eSYS-O | eSYS-R-EP-01 | eSYS-R-SI-01 | eSYS-R-EP-02 | eSYS-R-SI-02 | eSYS-R-EP-03 | eSYS-R-SI-03 | eSYS-COMBI-EP-01 | eSYS-COMBI-SI-01 | eSYS-COMBI-EP-02 | eSYS-COMBI-SI-02 | eSYS-ICA-EP-02 | eSYS-ICA-SI-02 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||
| AC 60Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||
| AC 100Amp Charger | ✓ | ✓ | ||||||||||||||||||||||||
| DC2DC 40Amp Charger | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓# | ✓# | ✓ | ✓ | ||
| DC2DC 30Amp 24V Charger | ✓✓ | ✓✓ | ||||||||||||||||||||||||
| Morningstar Tristar 45A Solar Controller | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||

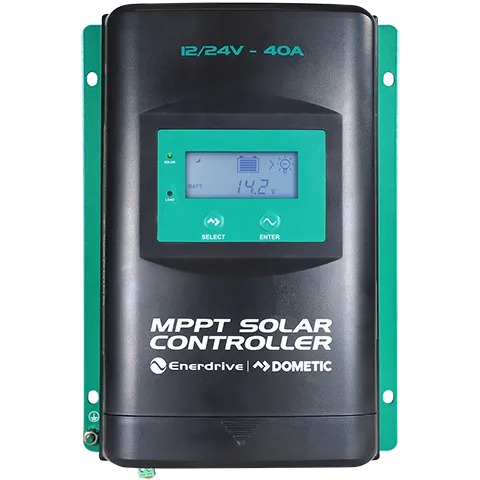

| Enerdrive MPPT 40A Solar Controller | ✓✓ | ✓✓ | ✓✓ | ✓ | ✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | ✓✓ | |||||||||||
| ePRO+ 500A Battery Monitor | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||

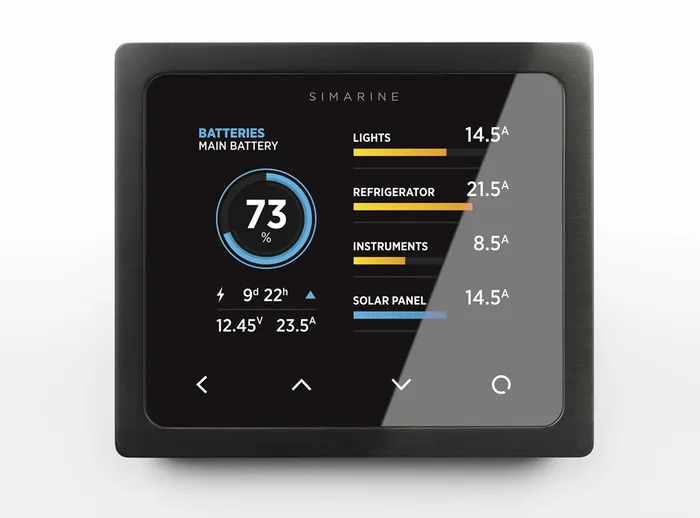

| Simarine Pico LCD WIFI Monitoring Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SC303 300A Main Battery Shunt | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||
| Simarine SCQ25T Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Simarine SCQ50 Quad Shunt Tank Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||
| Simarine ST107 Tank Monitoring Module | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| Inverter Breaker 200A (Pre Wired Inverter Supply) | ✓ | ✓ | ✓ | # | ||||||||||||||||||||||
| Battery Restart Switch | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||
| 24hr Critical Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||
| Main Load Distribution Fuse Block | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2000W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| 2600W AC Transfer Inverter | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||
| Dimensions | 1185W x 380H x 130Dmm | 600W x 490H x 100Dmm | 600W x 490H x 100Dmm | 1185W x 380H x 130Dmm | 790W x 380H x 100Dmm | 1195W x 380H x 111Dmm | 1195W x 380H x 111Dmm | 920W x 380H x 111Dmm | 490W x 600 H x 111D mm | 490W x 600 H x 111D mm | 600W x 350H x 111D mm | 1190W x 380H x 111D mm | 1190W x 380H x 111D mm | 600H x 520W x 111Dmm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 111D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 147D mm | 535W x 1195H x 120D mm | 535W x 1195H x 120D mm |
Specifications
SKU ESYSTEM-O
Brand Enerdrive
GTIN 9342616002117
Warranty Period: 5 Years
Product Category Power Systems
Model EPL-300BT-12V-G2 (Battery) | EPC-3000-12-KIT (Inverter Charger)
Nominal Voltage 12.8V (Battery)
Nominal Capacity 300Ah (Battery)
Wattage (W) 3000
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles (Battery)
Battery Charge Temperature 0 ̴ 45°C (Battery)
Normal Charge Voltage CV/CC* 14.20 Ì´ 14.60V (Battery)
Standby (Float) Voltage 13.50 Ì´ 13.80V (Battery)
Maximum Charge Current 190A @ 25°C for 30mins (Battery)
Battery Discharge Temperature -20 ̴ 60°C (Battery)
Battery Output Voltage Range 11.00 Ì´ 14.60V (Battery)
Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins (Battery)
Pulse Discharge Current 450A for 1.0s (Battery)
Discharge Cut-off Voltage ≤11.20V (Battery)
Short Circuit Protection Auto release after 5s (Battery)
Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)
Power Consumption 700W (Full Load) (AC Battery Charger)
AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)
Peak power 5000W (Inverter Charger)
Recommended Charge Current 80~120A (Battery)
Dimensions (L x W x H) 521mm x 280mm x 238mm (Battery) | 370 x 431 x 132 mm (Inverter Charger)
Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)
Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)
Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)
AC Input Operating Range 207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)
Voltage 12V (Inverter)
Float 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)
AC Input Voltage 90 to 265 VAC (AC Battery Charger)
Operating Range (temp) -32°C to 82°C (Breaker 200Amp)
Input Voltage 12.5 VDC (Inverter) | 12V (± 3% tolerance) (Inverter Charger)
Weight (kg) Approx 38.2 (Battery) | 18.5 Kg (Inverter Charger)
Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger) | 5-90% noncondensing (Inverter)
Operating Voltage 6 - 35V (Battery Monitor)
Amps 40A (Solar Charge Controller)
DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)
