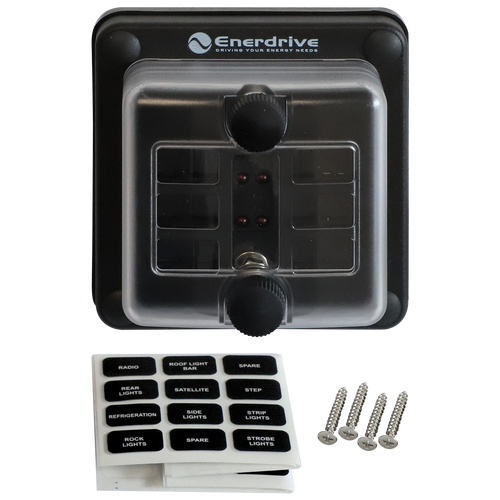

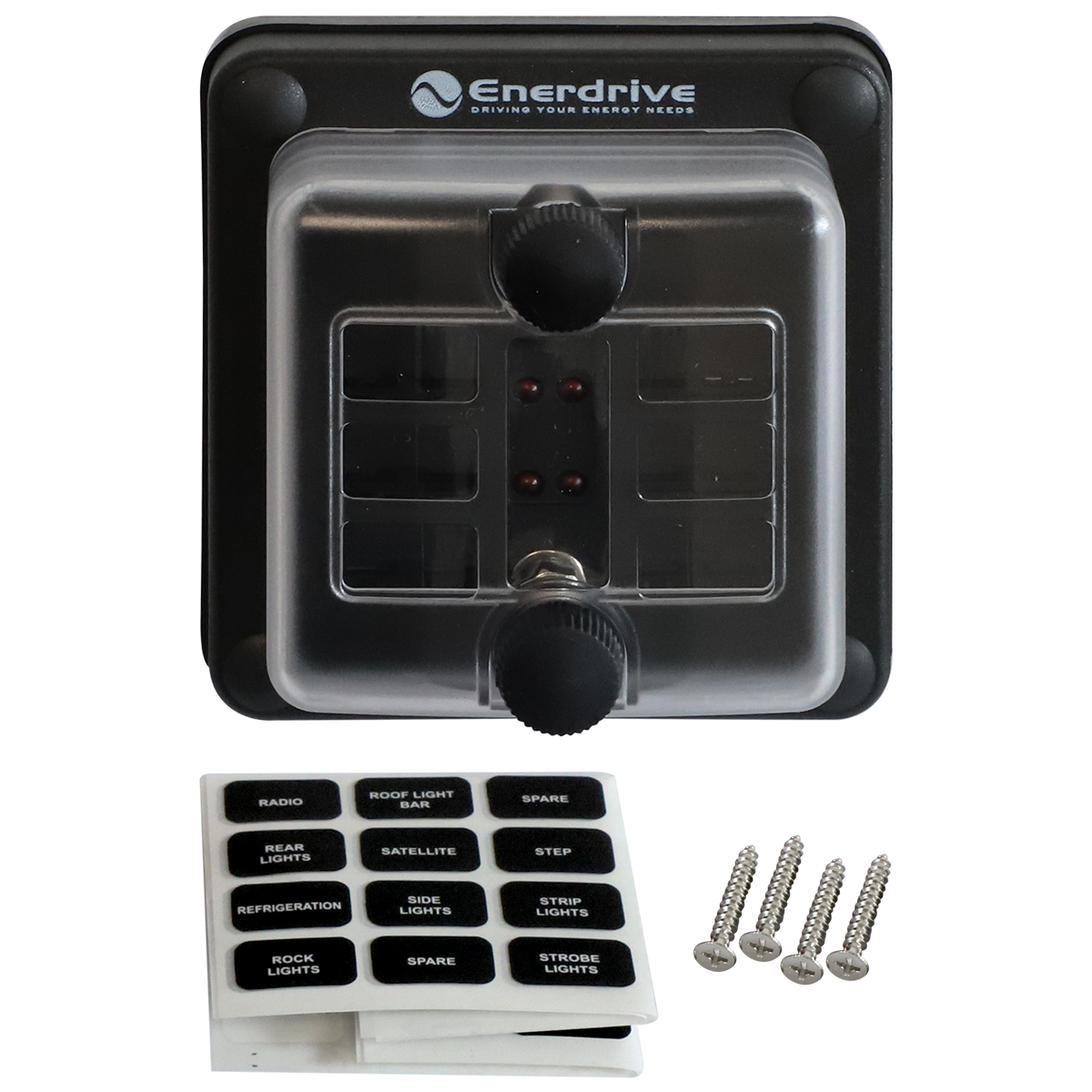

Enerdrive Fuse Block Panel Mount 1 In 6 Out with LEDs
SKU: EA-FB-01 Learn More»
Product Description
Enerdrive Fuse Block Panel Mount 1 In 6 Out with LEDs, 5 Years Warranty.
Features:
- Panel Mount 1 in - 6 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max - 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.

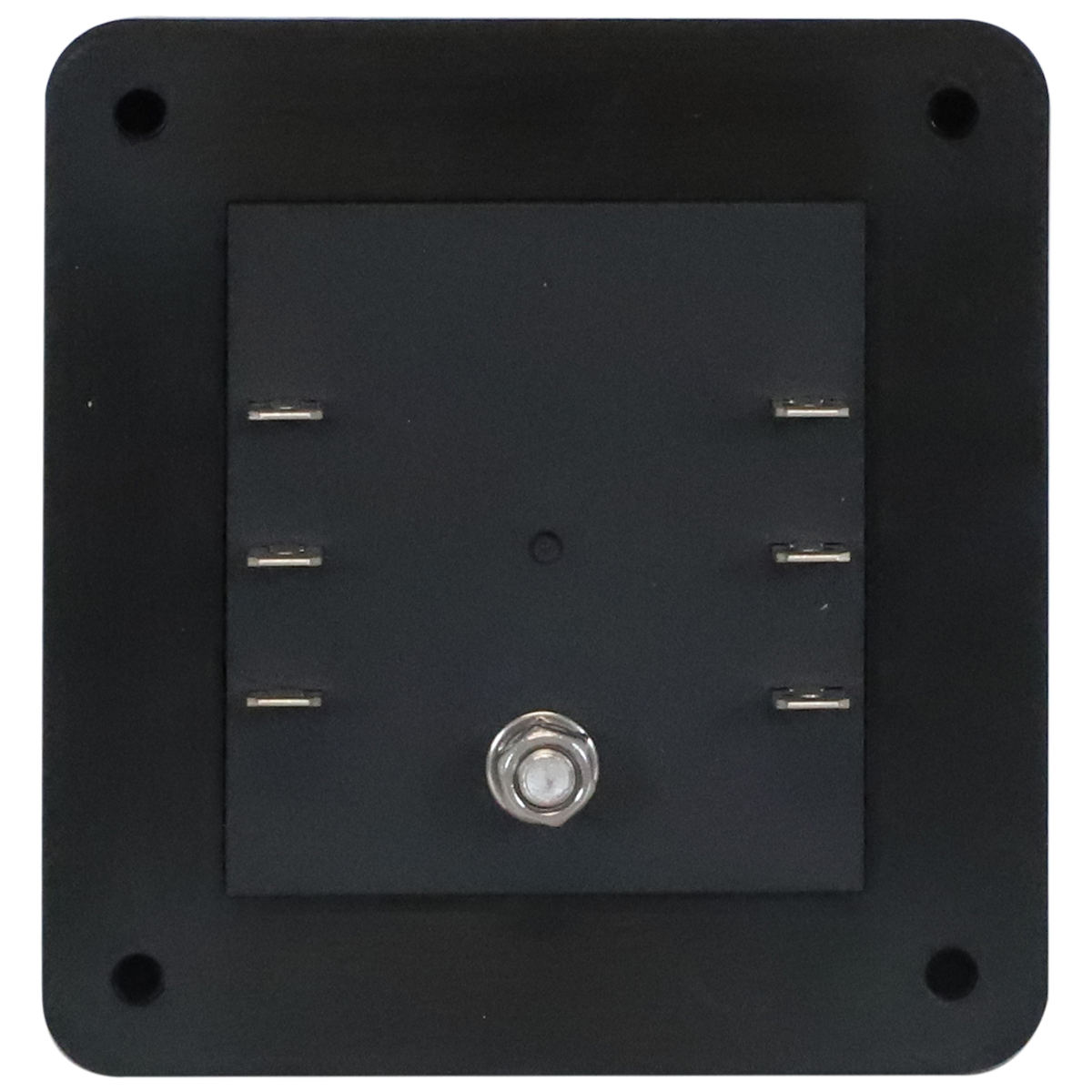

- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
- Includes two label sets.

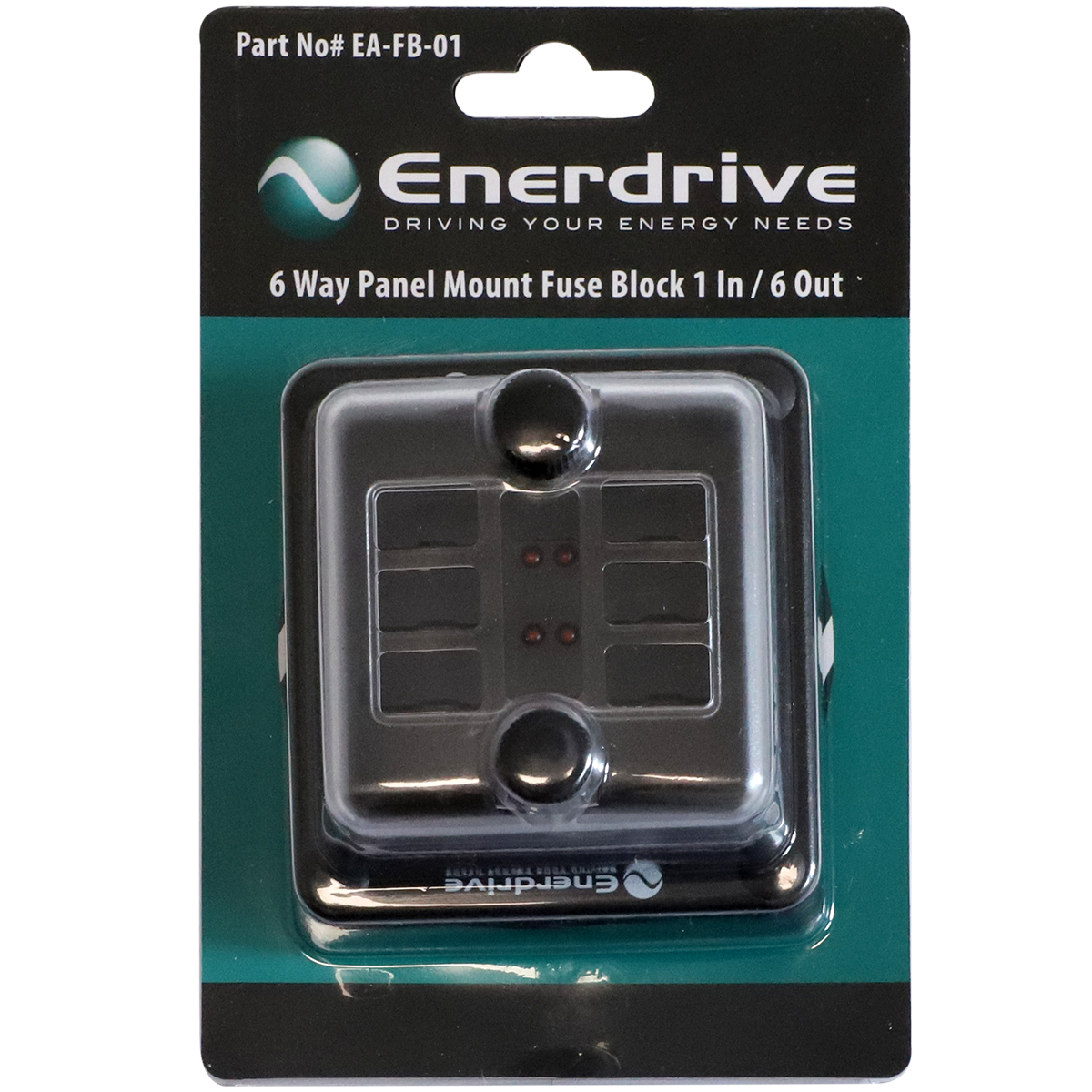

- Retail Packaging
Specifications
SKU EA-FB-01
Brand Enerdrive
GTIN 9342616027943
Warranty Period: 5 Years
Product Category Fuses and Breakers

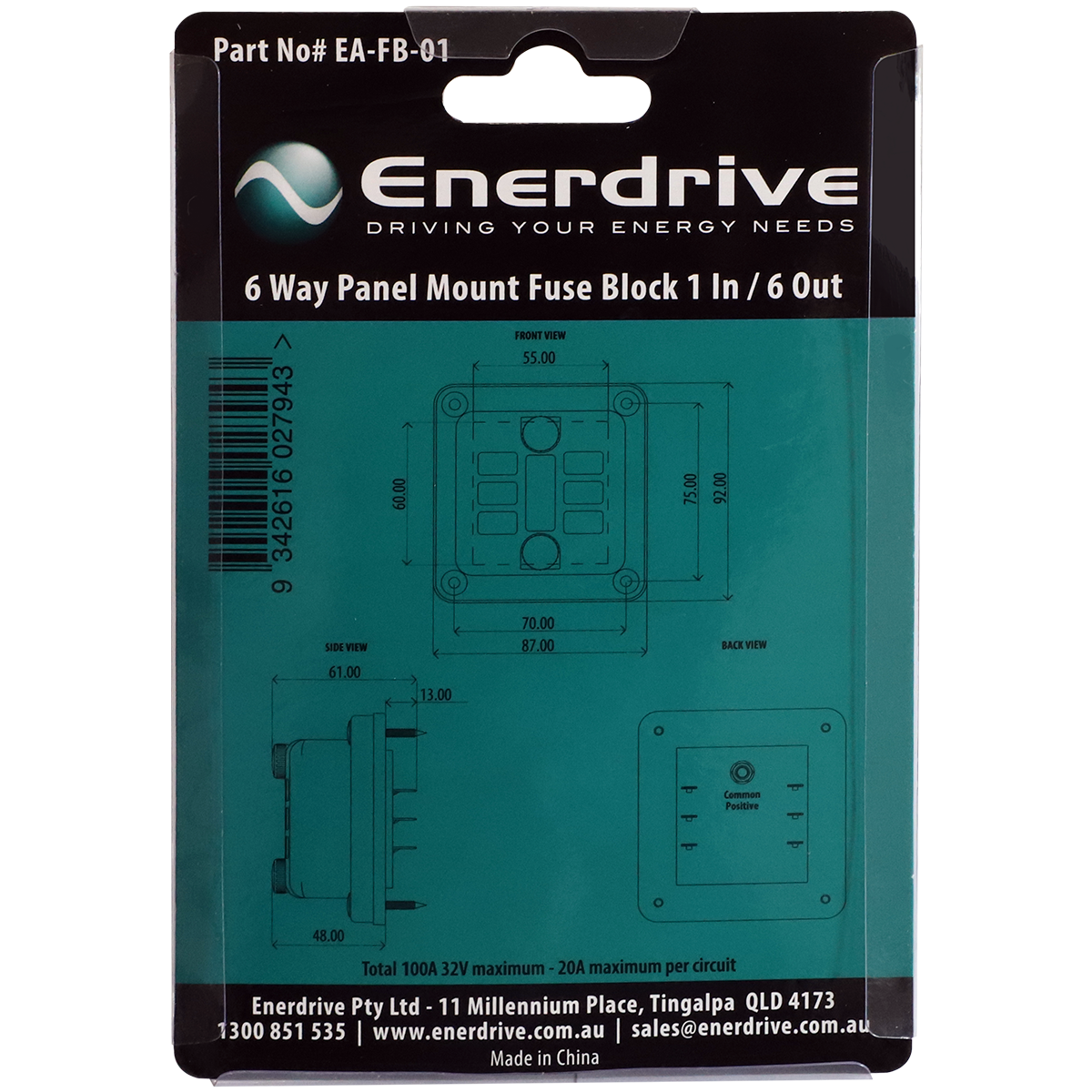

Dimensions 92mm x 87mm x 61mm
Weight 0.17kg
Recommended Torque 24 in-lb (2.71 N.m)
Mounting 8″ Screw [M4]
Circuits 6
Maximum Amperage per circuit 20A
Maximum Amperage per block 100A
Maximum Voltage 32V DC
Positive Input #8-32 with Flat/Spring Washers
Positive Bus Output Spade Terminals
