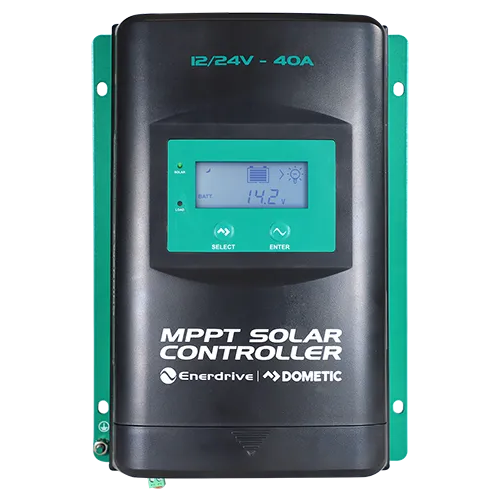

Enerdrive MPPT 12/24V 40A Solar Controller with Display

SKU: EN43540 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

"Good product"

Richard

Early days yet as only installed yesterday but it is doing what I expected. As the rest of the setup is Enerdrive and the price is good, went for thie 40 amp controller off four 115 W panels.

(Posted on 15 September 2022)

"Happy camper with the Enerdrive40amp MPPT controll"

Gary Robertson

Couldn’t be happier with the addition of the 40amp MPPT controller. This is another quality product from Enerdrive added into my Enerdrive power system.

(Posted on 11 July 2022)

Go to: Product Details

Go to: Specifications

Product Description

Enerdrive MPPT 12/24V 40A Solar Controller with Display, 5 Year Warranty. The Enerdrive MPPT Solar Controllers adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of batteries and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, over discharge, PV & battery reverse polarity. This controller can be widely used for RV, Marine, remote offgrid monitoring and many other applications.

IP33 Ingress protection and isolated RS485 design further improves the controller’s reliability and meet the different application requirements.

Enerdrive MPPT Solar Controller Features:

CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3)
LCD display
Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
Maximum DC/DC transfer efficiency is as high as 98.6%.
Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
Accurate recognition and tracking of multi-peaks maximum power point
Wide MPP operating voltage range
Support lead-acid and lithium batteries
Real-time energy statistics function
Power reduction automatically over temperature value
Multiple load work modes
Comprehensive electronic protection
IP33 Ingress protection
Comms port included for future applications

Go to: Product Details

Go to: Videos

Specifications

SKU EN43540

Brand Enerdrive

GTIN 9342616029107

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 40

Product Type Solar Charge Controller

Nominal Voltage 12/24V

Amps 40

Enclosure Class IP33

Go to: Specifications

Go to: Q & A

Videos

Enerdrive's New MPPT Solar Controller Range

How to Program an Enerdrive MPPT Solar Controller

Enerdrive's NEW MPPT Solar Controller Range

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Is the maximum amount of wattage from the PV array 720w @ 12v and 1440w @ 24v? Cheers

Hi There,

Yes that is correct as per the user manual.

Regards,
what is the maximum wattage from solar panels for this controller?

Hi There

The controller will take a maximum of 720w of solar.

Kind Regards
