Enerdrive Ultimate Campervan Bundle
SKU: MYG-ABP01 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Enerdrive Ultimate Campervan Bundle, 5 Year Warranty. Introducing the ultimate power solution for your campervan. This bundle is designed to meet all of your power needs while exploring the great outdoors. Comprising of the best Enerdrive components so they work seamlessly together to deliver reliable, efficient power for your campervan, RV, or off-grid setup.

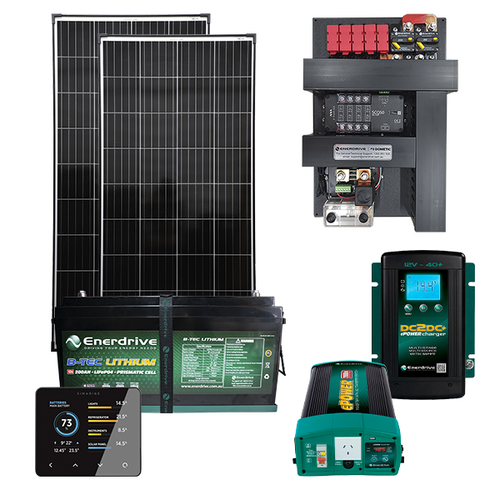

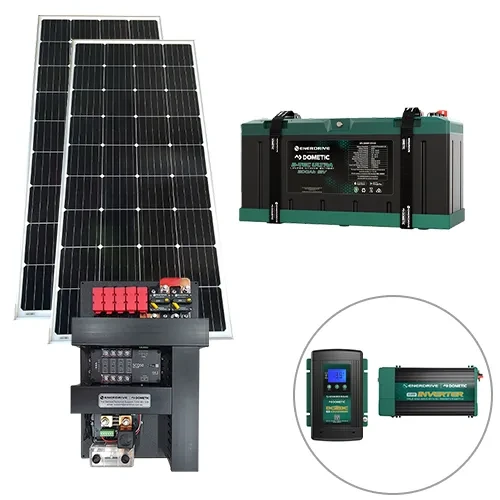

Bundle Includes:
- EPL-200BT-12V-G2 - Enerdrive B-TEC 200Ah Lithium Battery Only
- EN3DC40+ - Enerdrive 40A DC2DC Battery Charger
- EPDM-03 - Enerdrive Power Distribution Module with Simarine
- EN1120S-X - Enerdrive ePOWER 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch
- 2 x SP-EN190W-B - Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

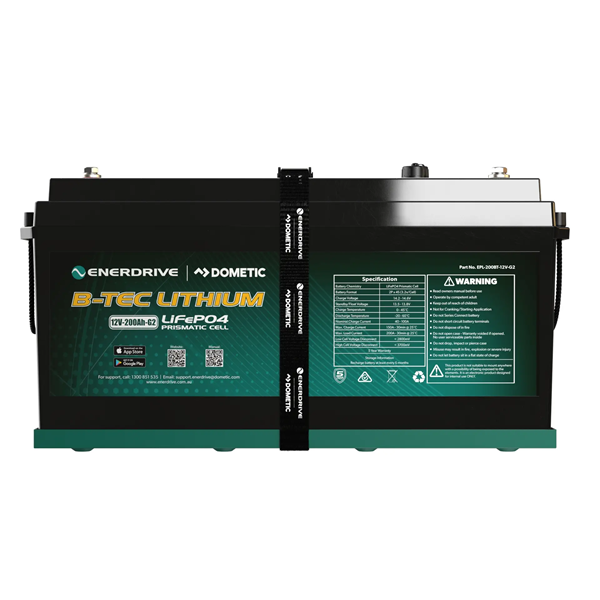

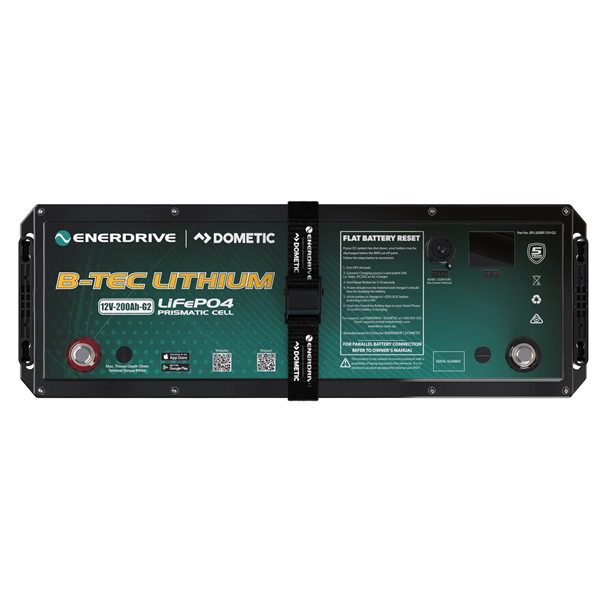

200Ah B-TEC: The Enerdrive B-TEC battery is the foundation of your system, offering 200Ah capacity to provide a stable and reliable energy source to run your appliances and devices. It ensures your devices and appliances have the power they need.

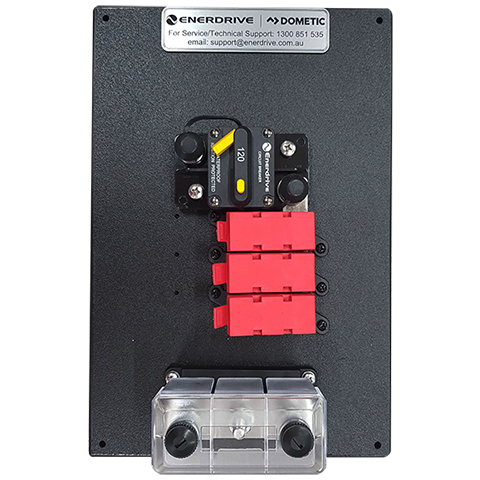

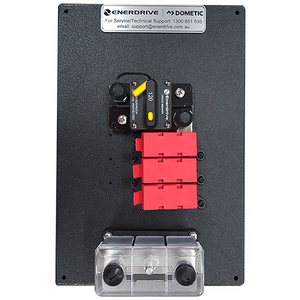

The Enerdrive Power Distribution Module is a DIY-friendly solution for managing all of your electrical loads in a single, central location.

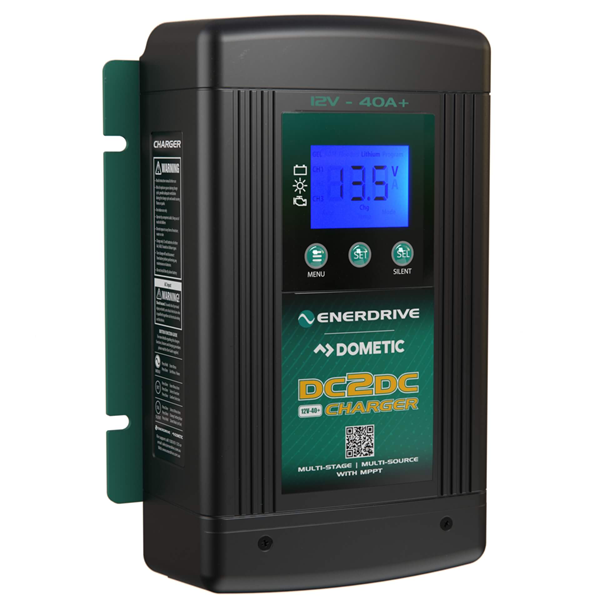

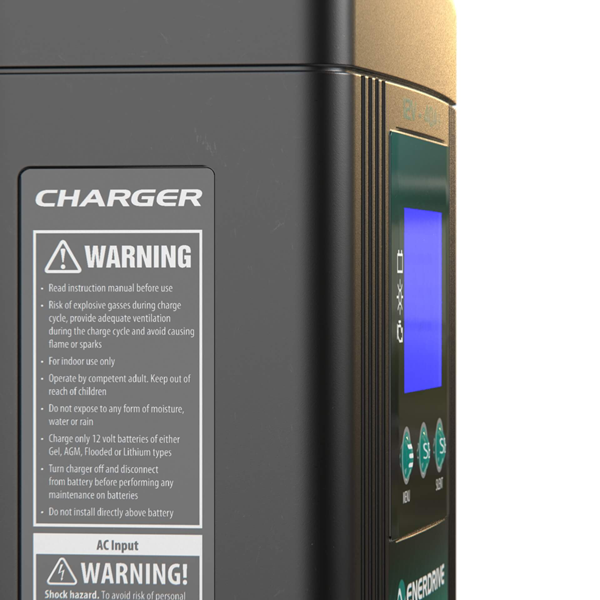

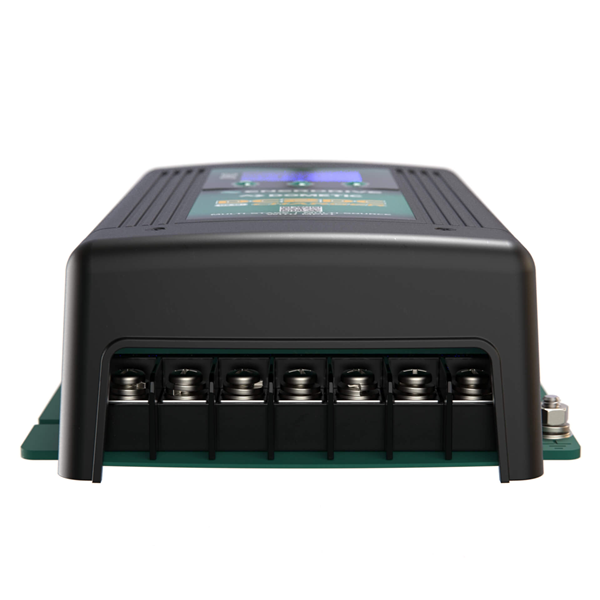

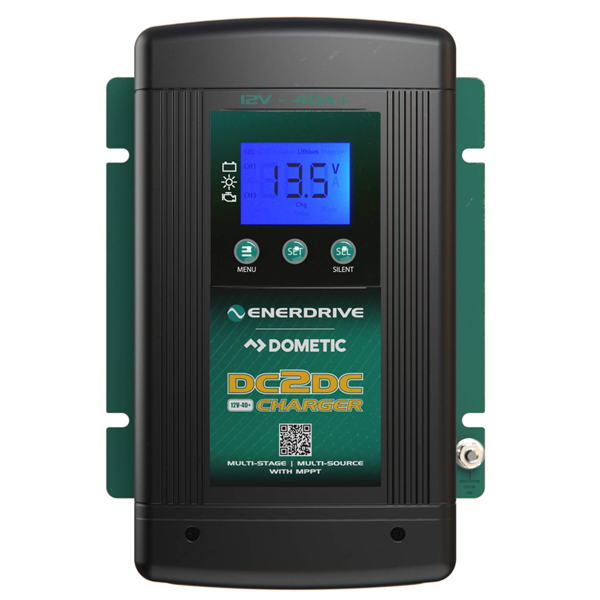

40A DC2DC Charger: The Enerdrive DC2DC charger is the main component in maintaining your batteries health. It can deliver a maximum current of 40A to charge your batteries from a DC power source, including your vehicle's alternator and solar panels.

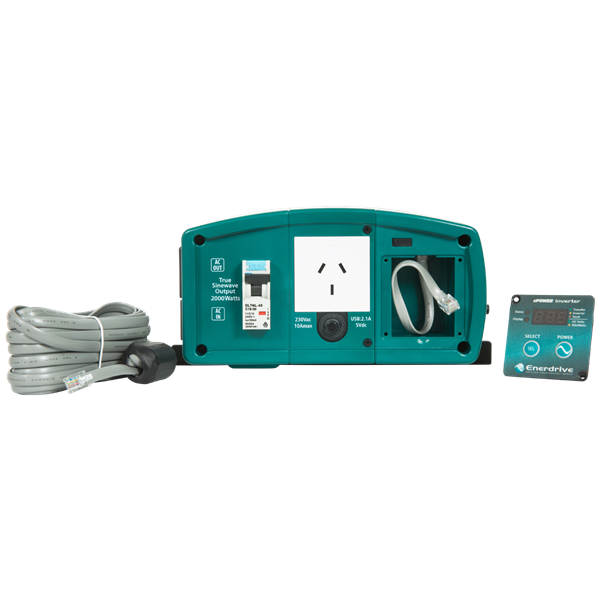

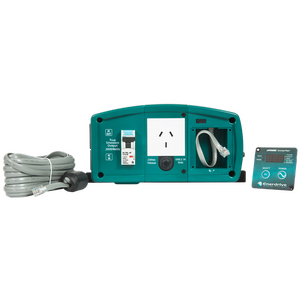

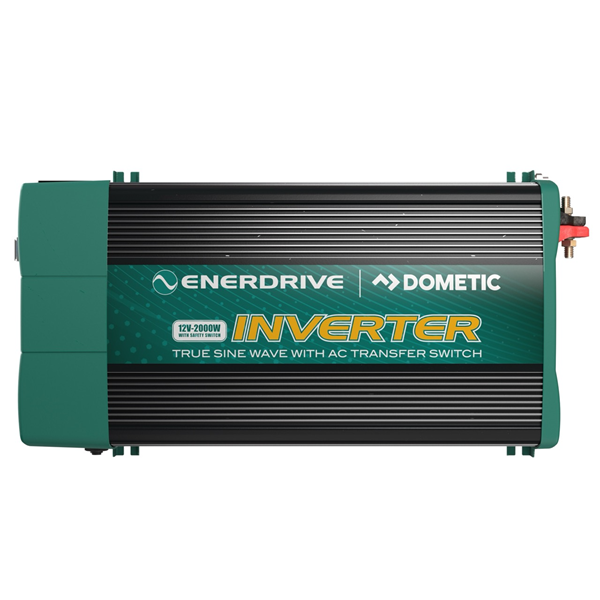

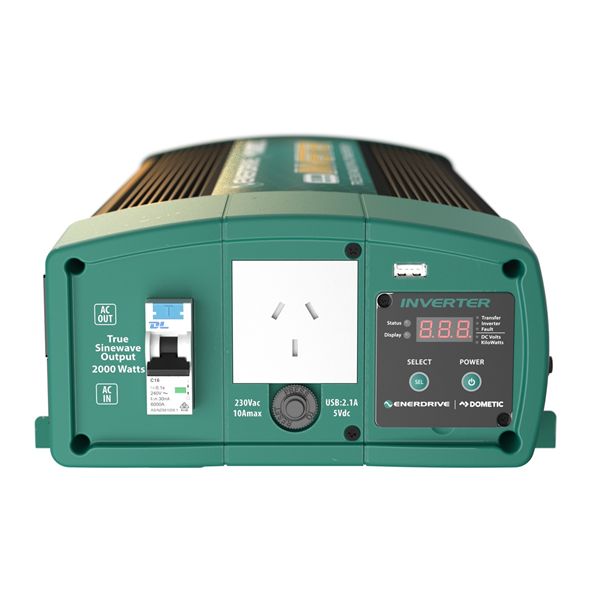

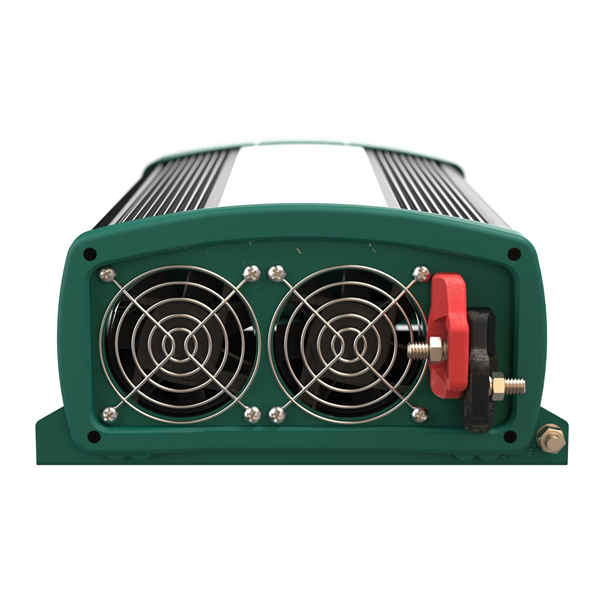

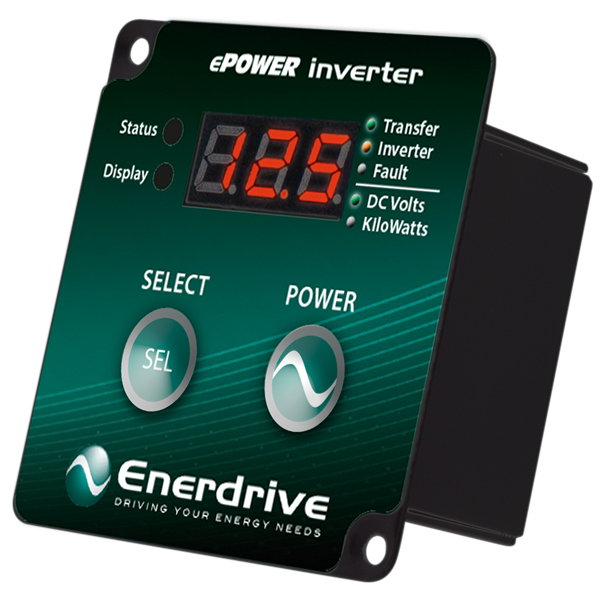

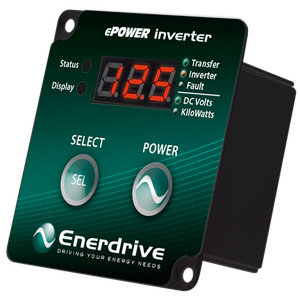

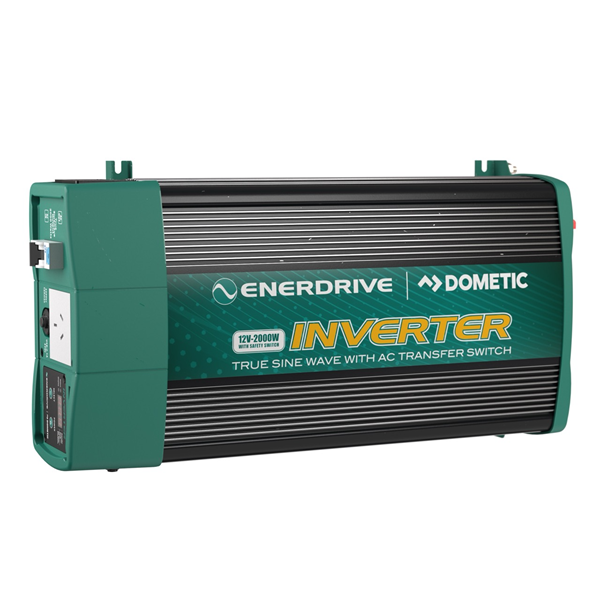

Enerdrive 2000W 12V Pure Sine Wave Inverter with RCD & AC Transfer Switch: The Enerdrive ePOWER 2000W Inverter can run many AC powered appliances. The pure sine wave output guarantees clean, stable power, making it suitable for sensitive electronics, ensuring they operate without interference or damage.

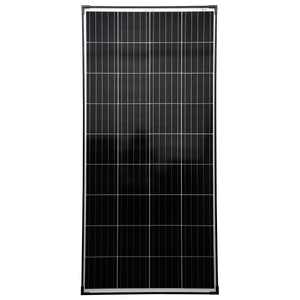

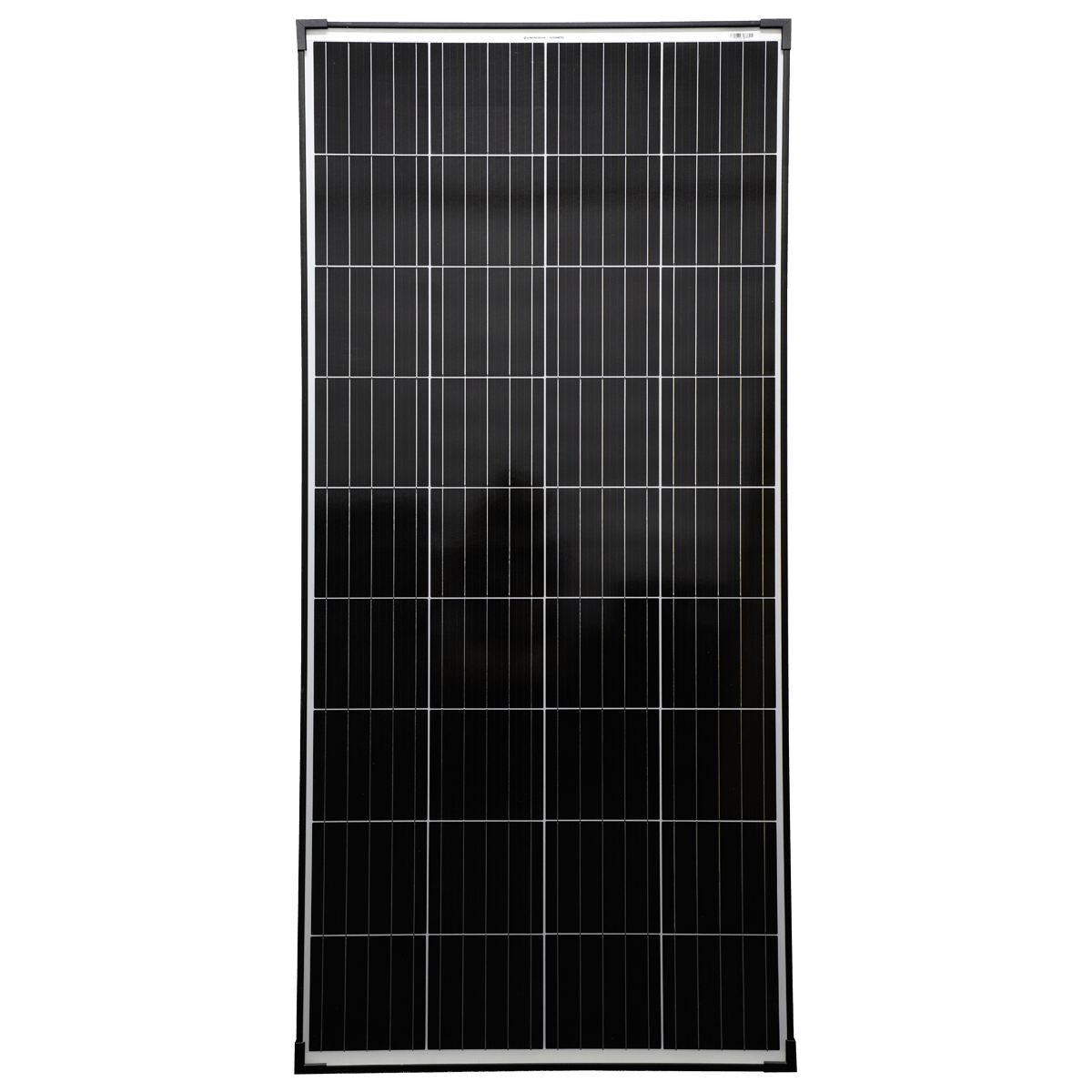

2 x Enerdrive 190W Mono Crystalline Fixed Solar Panels: Provides a reliable and sustainable source of energy for recharging your B-TEC 200Ah Lithium Battery. As a clean and renewable power solution, solar energy significantly enhances the autonomy of your system.
Together, these components provide a reliable, stable and powerful system, allowing you to explore further and stay connected, all while enjoying the comforts of modern apliances. Enjoy your camping trips with condifence knowing that this system has you covered.
Battery Information:
DC Charger Information:
Pure Sine Wave Inverter Information:
Solar Panel Information:
Specifications
SKU MYG-ABP01
Brand Enerdrive
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 505
Battery Width (mm) 172.5
Battery Height (mm) 265
Battery Weight (kg) 25
Nominal Voltage 12 V
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Battery Charge Temperature 0 ̴ 45°C
Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V
Standby (Float) Voltage 13.50 ̴ 13.80V
Maximum Charge Current 150A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 40~100A
Battery Discharge Temperature -20 ̴ 60°C
Battery Output Voltage Range 11.00 ̴ 14.60V
Maximum Discharge Current 200A @ 25°C ± 5°C for 30mins
Pulse Discharge Current 450A for 1.0s
Discharge Cut-off Voltage ≤11.20V
Over-Charge Protection Per Cell 3.90V ± 0.03V
Over-Charge Release Per Cell 3.60V ± 0.05V
Over-Charge Release Method Discharge below release voltage
Over-discharge Protection Per Cell 2.80V ± 0.05V
Over-discharge Release Per Cell 3.20V ± 0.05V
Over-discharge Release Method Apply Charge/Voltage ≥12.8V
Battery Manual Reset Button Yes
Discharge Over Current 220A for 30s – 450A for 1s
Protection Reset Time Approx 10s Auto Release
Over Current Release Method Disconnect Load
Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C
Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C
Short Circuit Protection Auto release after 5s
Case Construction Hi Impact ABS Plastic
Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Videos
The Best Caravan Battery?
What Will My Camping Battery Run?
The Latest Caravan Battery by Enerdrive: The B-TEC 200Ah 12V Generation 2 Battery
Expanding Your Enerdrive B-TEC Capacity: Enerdrive Batteries in Parallel
How To: Resetting A Flat Enerdrive BTEC or eLITE Battery
Product Features: The Enerdrive 200Ah Lithium Battery
Enerdrive DC2DC 40A Battery Charger Honest Review
Camper Trailer Battery Charger Review: Enerdrive 40A DC to DC Charger
Customer Review: Using The Enerdrive DC To DC Charger To Run A Portable Fridge
Enerdrive DC to DC Charger Review: EN3DC40+
Enerdrive Discusses Why Battery Cable Size Matters!
Introducing The Enerdrive Battery Charger Range
EN3DC40+ Enerdrive Battery Charger Run Through
Enerdrive eTIPS - How to Program Your Enerdrive 12V 40+ DC2DC Charger
How to Program Your 12V 40+ DC2DC Charger For A Lithium Battery
Product Q&A
-
How many cells are in the Enerdrive 200Ah Btec Battery?
There are 32 (8x 4) Prismatic Cells in the 200Ah Btech Battery.
-
What size generator should I use for charging a battery?
The below generators are the minimum recommend sizes based on an AVR generator:
- ● 800VA 2KVA
- ● 1200VA 2.5KVA
- ● 1600VA 3KVA
- ● 3000VA 5KVA
- ● 5000VA 8KVA
If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
How can I remotely monitor and control my devices?
You need a GX device to get remote monitoring. We recommend the Cerbo GX and an RJ45 UTP cable to connect it to the inverter. You can hardwire an ethernet connection to the unit, or connect it to a Wifi signal.
