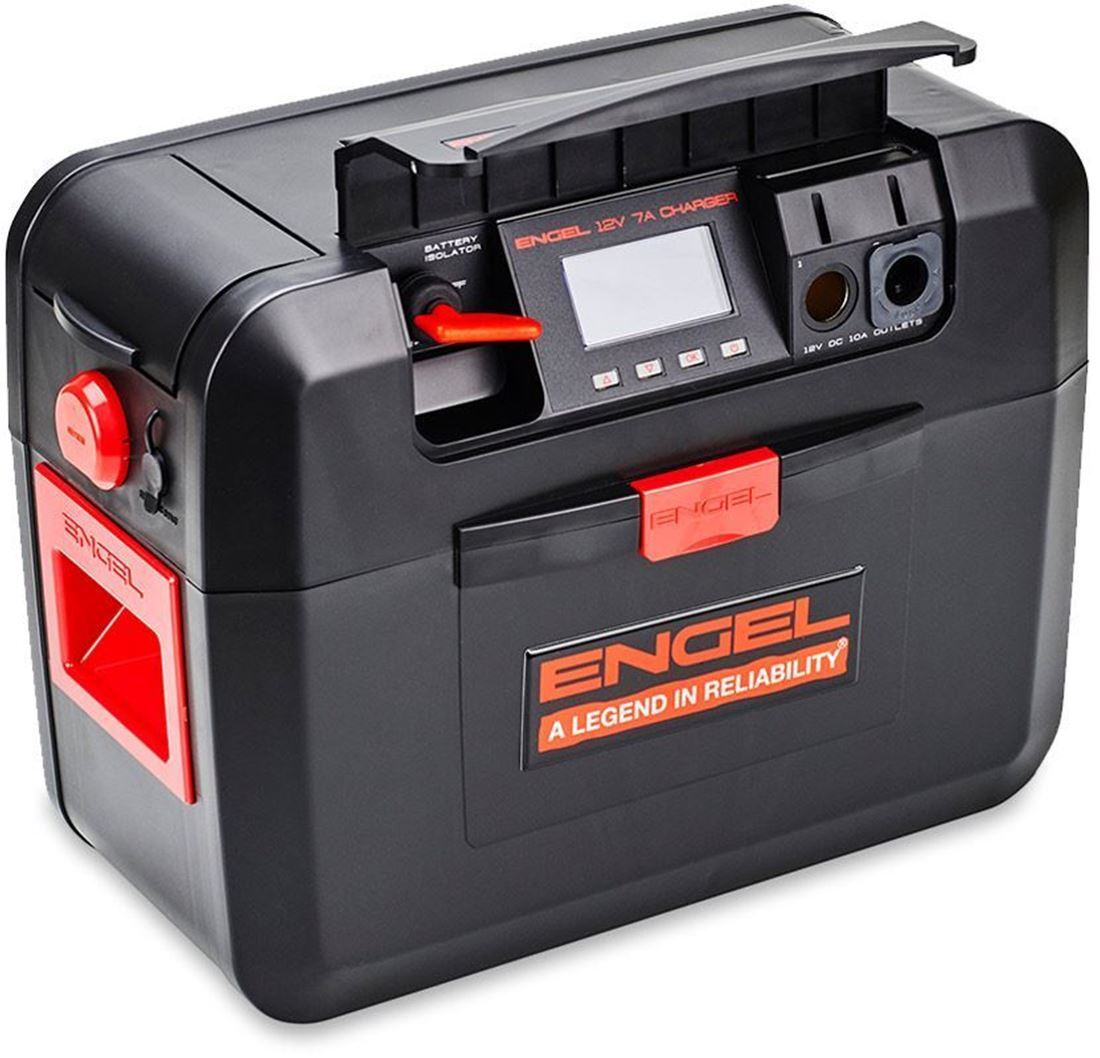

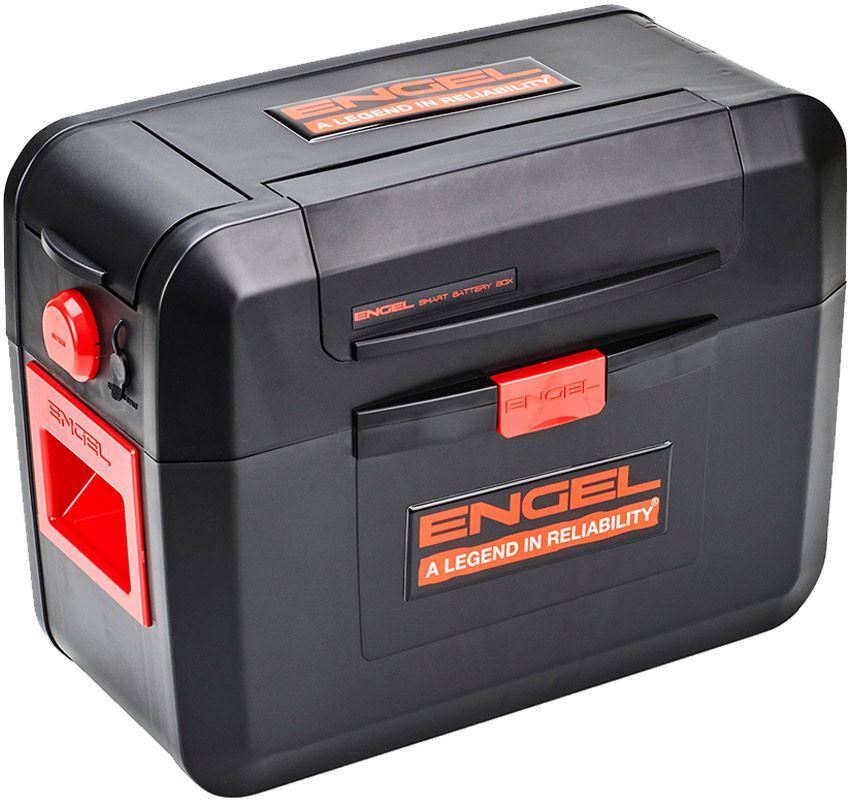

Engel Smart Battery Box

Specifications

SKU BATTBOXS2

Brand Engel

GTIN 9334660016028

Warranty Period: 1 Year

Product Category Battery Boxes

Model Series 2

Product Type Battery Box with capacity for up to 130Amp Hour Batteries. Supports Lead Acid, Gel, Calcium, AGM & LiFeP04 batteries. (Battery not included)

Voltage Input: 12V & 24V DC

Voltage 240V AC Via Adaptor

Net Weight (kg) 4.62

Internal Dimensions 180mm wide x 330mm long x 238mm high

External Dimensions 180mm wide x 330mm long x 238mm high

Videos

Engel Smart Battery Box

Testing the Engel Smart Battery Box

Product Q&A

• Can I use the Engel Smart Battery Box to jump start a car with a flat battery?

  Yes you can as long as the battery installed in the Engel Smart Battery Box is a cold cranking battery.



• Can I jump start the car using a deep cycle battery?

  Yes you can however you need to connect the battery to the vehicle’s starting battery for an hour to charge the starting battery. The deep cycle battery will need to be fully charged or near to.

• My cigarette socket won't provide power anymore, what is wrong?

  Check the 10A fuse under the lid. If the fuse is okay, turn the main isolator switch on and off a few times. Otherwise the battery may be flat.

• What is net watts?

  Is the amount of power either going into or drawn from the battery. If the Engel Smart Battery Box is charging and powering a device at the same time the net watts will display the difference in power. For example if there is +90W going into the battery and the Engel Smart Battery Box is powering a -60W lamp then net watts is +30W.

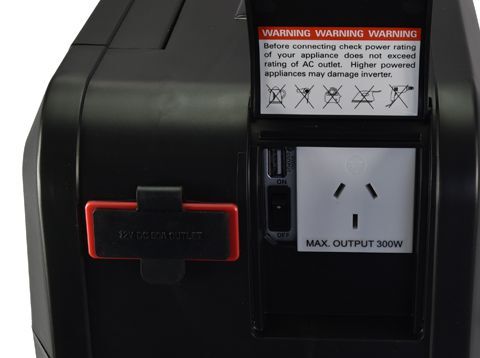

• When I connect my laptop AC adaptor to the AC outlet an alarm sounds with two beeps, why is that?

  For some laptop adaptors the in-rush current can trigger the alarm and the internal inverter will protect itself. The issue can be overcome by turning the Engel Smart Battery Box AC outlet on first (so green LED is lit), then turning on the laptop and finally connecting the laptop adaptor to the laptop and Engel Smart Battery Box AC outlet.

• My 240V outlet keeps blowing the 30A fuse, why is that?

  The device you have plugged into the 240V outlet is unsuitable (could be too powerful) and has damaged the internal inverter.

• Can I install the Engel Smart Battery Box into my vehicle as part of a dual battery installation?

  Yes you can however, you will need a dual battery wiring kit installed into your vehicle. We recommend you get this kit installed by a qualified auto electrician. You can connect the dual battery wiring loom to the Engel Smart Battery Box either via the external terminals or the Anderson socket. Please remember the main isolator switch must be in the “on” position. The Engel Smart Battery Box cannot be mounted into the vehicle’s engine bay.

• Can I charge the battery using solar panels?

  Yes you can as long as the main isolator switch is in the “on” position. This type of charging is not controlled by the on-board microprocessor since the charge current will flow direct to the battery via the main isolator switch. If an external voltage regulator is not used there is a risk of overcharging and damaging the battery.

• Why is the time remaining value often different to the actual time taken?

  The predicted time remaining value is an estimate only. The time prediction is affected by many variables such as temperature, battery age and battery type and it is impossible for it to be completely accurate but it is a useful guide.

• Is it possible for the Engel Smart Battery Box to power a device if it is turned off at the control panel?

  Yes, it is, since the various output socket are connected direct to the battery via the main isolator switch and not via the smart charger. However it will not be possible to determine the battery voltage or the time remaining if this is done.

• Can I run two fridges from the battery box? One by 38 litre & one 60 litre.

  Hi John, this Engel Battery Box can house batteries up to around 130Amp Hour in size.

  In relation to RV 12 volt fridges, obviously it depends on the make and model in regards to exact power draw, but from our range of Caravan / Camping fridges, the average current draw (on DEC power) is around 0.5 to 2.5 Amp hours / hour, depending on ambient temperature and fridge-freezer temperature settings. Using that approximate information, you can calculate how long your battery (depending on its capacity) will run your fridges before having to re-charge.

  Many thanks

• Can I charge the battery and power a device at the same time?

  Yes, the Engel Smart Battery Box is designed to do this.

• Why doesn't my Engel Smart Battery Box go into charge cycle?

  AC adaptor could be blown and needs replacing.

• My caravan fridge needs to be powered during driving times while the gas option cannnot be used. The caravan battery is draining down during driving times whilst powering he fridge. This leaves a partially drained battery on arrival at off grid sites. Can

  Hi There,

  Generally three way fridges are powered from the alternator when the vehicle is moving. This is the most efficient way to power a three way fridge when the vehicle is in motion.

  We would not recommend using a battery/battery box for a three way fridge.

• To jump start a car, do I connect the jumper leads to the car, then to the side of the Engel box, leave an hour and then start the car, still with the leads connected?Just want to clarify the process before purchasing.

  Hi There,

  If you have a deep cycle battery in the box you will need to connect it to the vehicles battery and leave it for an hour. You want the deep cycle battery to be as close to full as possible.

  After an hour you would try to start the vehicle.

• Can I plug two fridges in at once ?

  Hi there,

  That would depend on the connections the fridges use.

  The box has an Engel outlet, cigar socket, and 240V mains style connection

• Can I connect my solar panel to the battery box via the anderson plug port on the box, which would be utilizing the in built battery management system or do I still need to fit a separate external voltage regulator. ?Thanks

  Hi There,
  This is from the user manual regarding solar charging.

  You can charge the battery via the external terminals using a solar panel array. To
  do this the isolator switch must be in the ‘on’ position. The smart charge PCB will be
  bypassed with this configuration so there will be no control over battery voltage. It is
  important to use an external voltage regulator (not supplied) when using solar panels.
  The main data screen will show “external cycle” after a few minutes of charging. In this
  case the time left figure is not displayed and the normal charging stages are bypassed.
