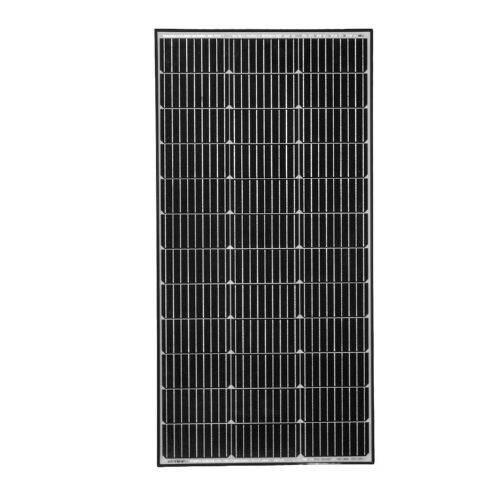

Exotronic 110W Fixed Monocrystalline Solar Panel
SKU: Exo-SP-F3-110 Learn More»
CALCULATE SHIPPING:
Accessories
Product Description
Exotronic 110W Fixed Monocrystalline Solar Panel, 5 Year Warranty.
Maximize Solar Efficiency with the Exotronic 110W M6 Mono-PERC Solar Panel

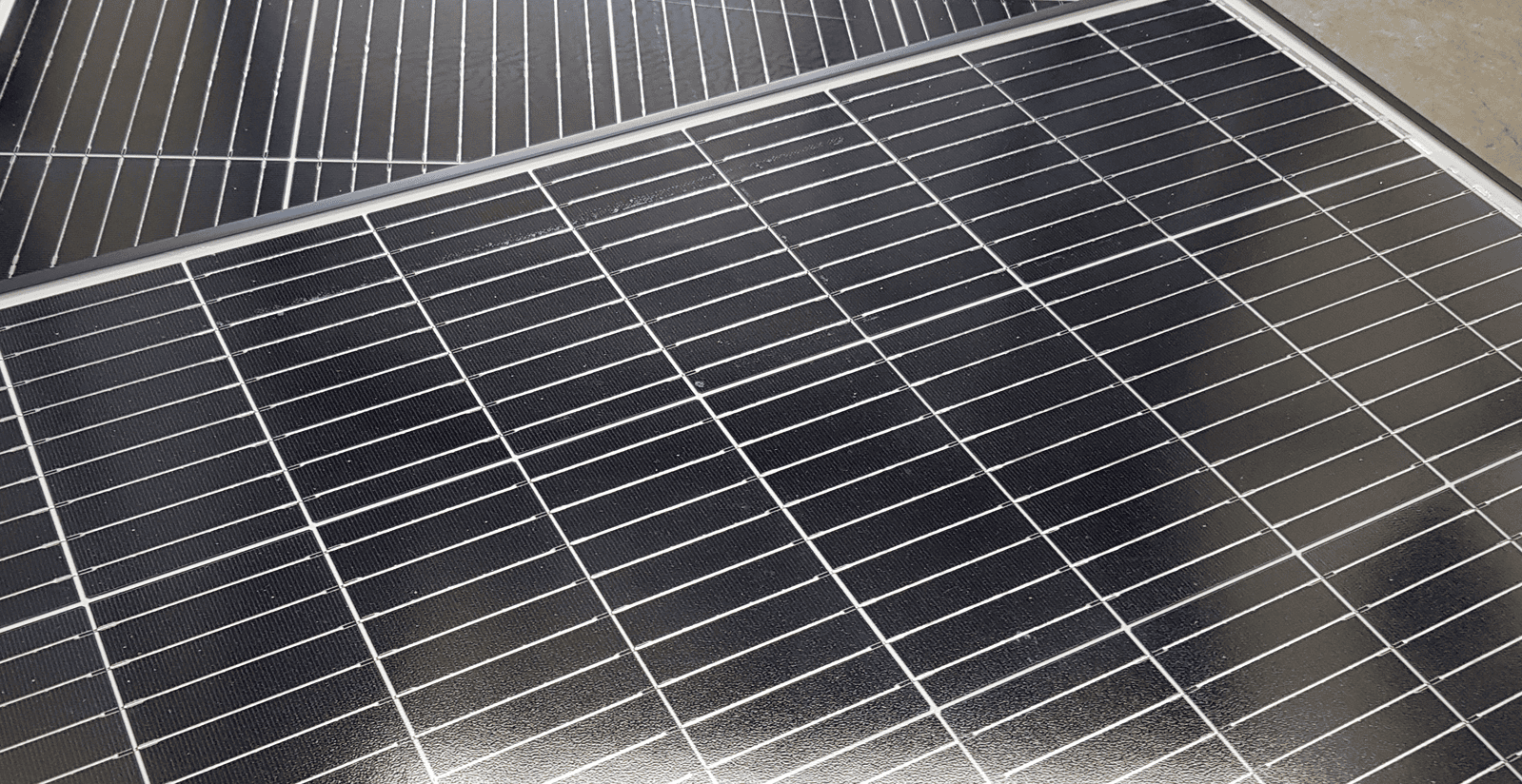

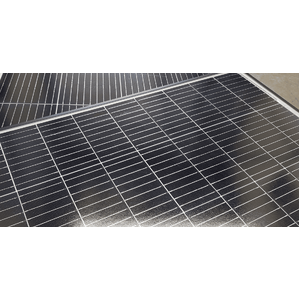

Leverage the power of advanced solar technology with M6 Mono-PERC solar panels, offering an efficiency rate of 23% and equipped with cut cells. Incorporating a modern 9+ wire bus-bar low-loss design, these panels deliver high efficiency and a positive power tolerance, demonstrating a competitive edge over traditional counterparts.
PERC Cells: Power and Efficiency Redefined
The inclusion of Passivated Emitter and Rear Cells (PERC) technology enhances the overall performance of these panels. In contrast to standard monocrystalline silicone designs, PERC cells exhibit improved low light performance by effectively utilizing the light that would otherwise pass through the cell, converting it back into electricity.

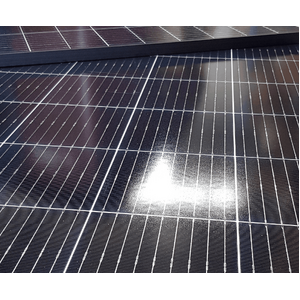

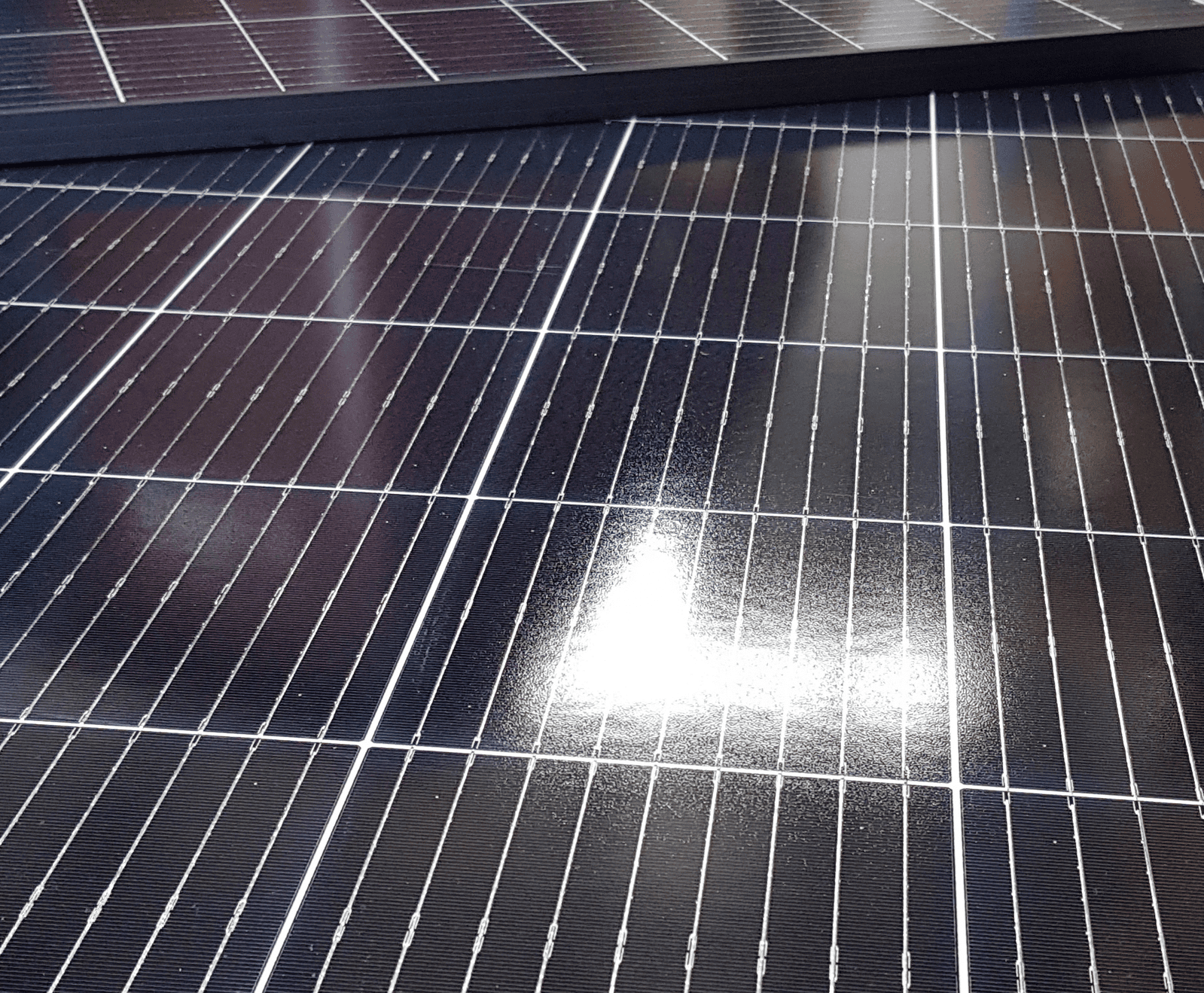

Optimized Power Output with 9+ Wire Busbar Design
The cutting-edge 9+wire busbar design is pivotal in enhancing the performance of our solar panels. It effectively mitigates the resistance of the module and evenly distributes current across the entire surface of the cells. This sophisticated design significantly minimizes power losses within the module and curtails uneven cell heating and hot spots.
Exotronic Range: Synchronized Voltages for Enhanced Compatibility
The Exotronic range of panels has been meticulously designed to harmonize voltages across all sizes, enabling all modules to be wired in parallel. This harmonization facilitates optimal compatibility and ease of installation.
Robust Construction Paired with Sophisticated Aesthetics
The panels feature a durable anodised aluminium frame, fortified by a black protective coating and a streamlined 25mm profile. This refined design reduces the module's weight without compromising its structural integrity, effectively protecting the module from vibrational and torsional stresses. The use of tempered, high transmissivity, low-iron glass ensures superior low light performance and high resistance to impact.
Engineered for Resilience under Adverse Conditions
- Resistance to salt mist and ammonia
- Wind load resistance - up to 2400 Pascal
- Snow load resistance - up to 5400 Pascal

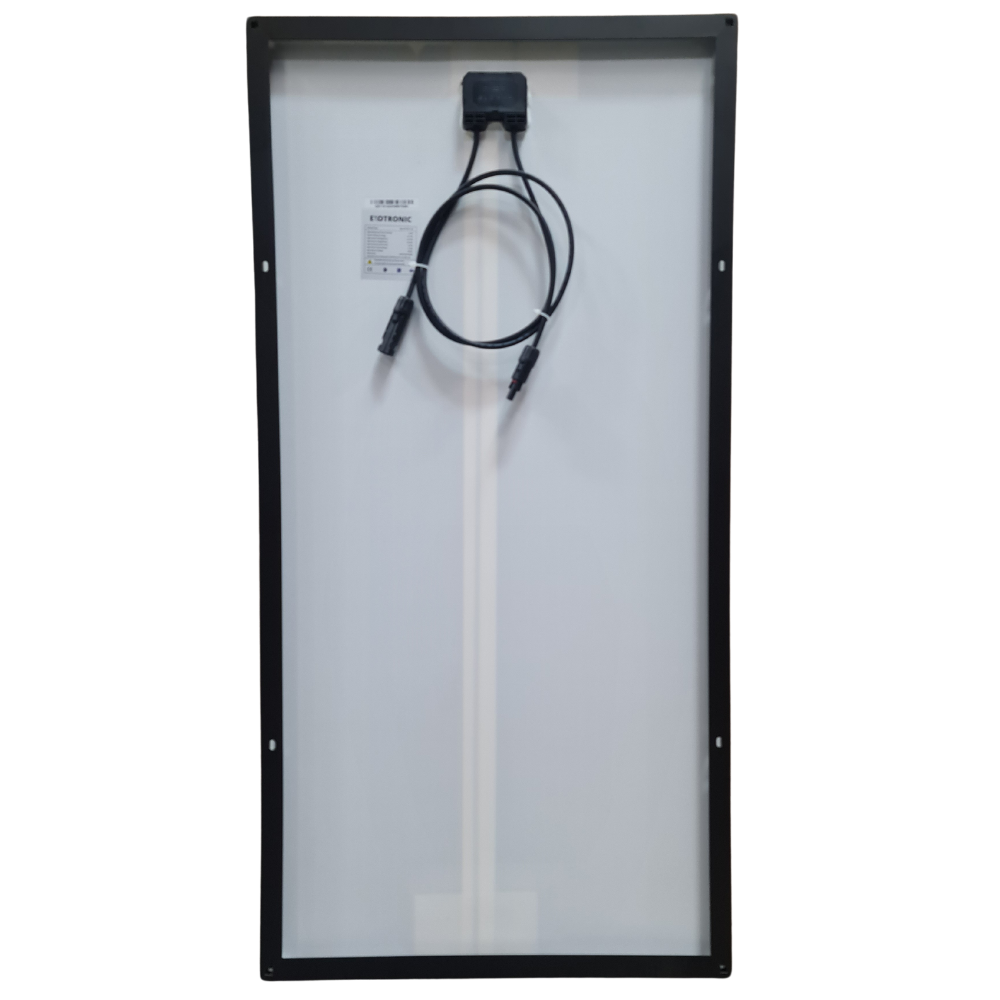

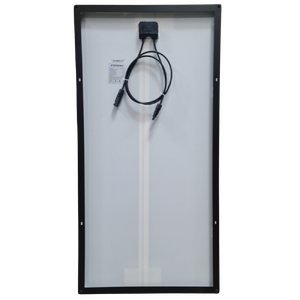

Each solar panel is equipped with an 800mm lead from the junction box, inclusive of MC4 connectors, for effortless installation.
Specifications
SKU Exo-SP-F3-110
Brand Exotronic
Warranty Period: 5 Years
Product Category Solar Panels
Solar Panel Type Fixed Solar Panels
Solar Panel Cell Type Monocrystalline
Watts (W) 110
Dimensions 1050 x 525 x 25mm
Short Circuit Current Isc(A) 5.87
Weight (kg) 6.05
Max Power Voltage Vm(V) 20.4
Max Power Current Im(A) 5.4
Open Circuit Voltage Voc(V) 24.3
Operating temperature range -40ËšC to +85ËšC
Connector MC4 Compatible
Product Q&A
Customer Reviews
Prefect for what I needed Review by Wayne BeazleyThis product suited my needs perfectly(Posted on 4 January 2023)
Ideal for tight mounting Review by JaredThis panel suited perfectly on my utes box canopy roof.(Posted on 23 November 2022)
Quality and good value Review by Laurie KellyExcellent construction and value in this price range. I tested operation with Victron MPPT and got 86W out of each panel quite good for the conditions. Panel is divided into multiple parallel connections so any shade has a smaller effect. I was dubious about buying unseen but would buy these again instead of the low cost unreliable units mostly available. Pleasantly surprised.(Posted on 21 October 2021)
Quality and good value Review by Laurie KellyExcellent construction and value in this price range. I tested operation with Victron MPPT and got 86W out of each panel quite good for the conditions. Panel is divided into multiple parallel connections so any shade has a smaller effect. I was dubious about buying unseen but would buy these again instead of the low cost unreliable units mostly available. Pleasantly surprised.(Posted on 21 October 2021)
