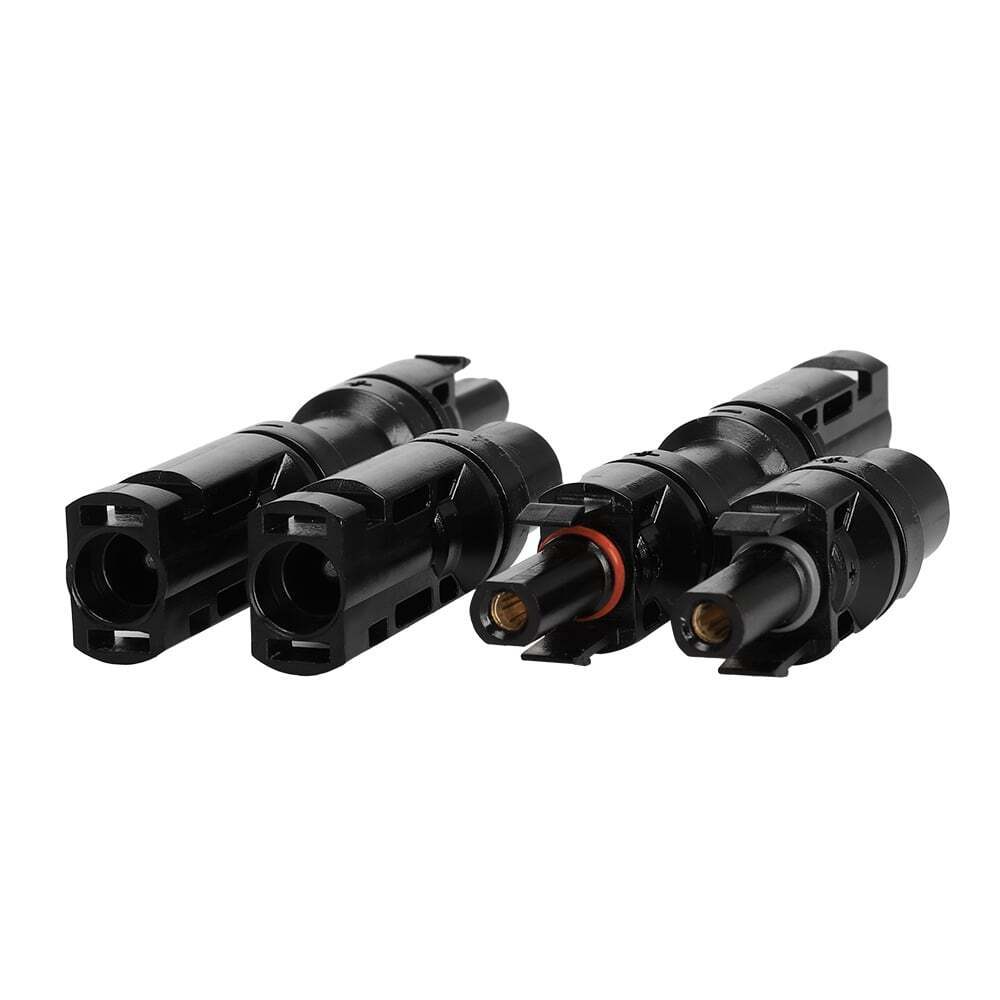

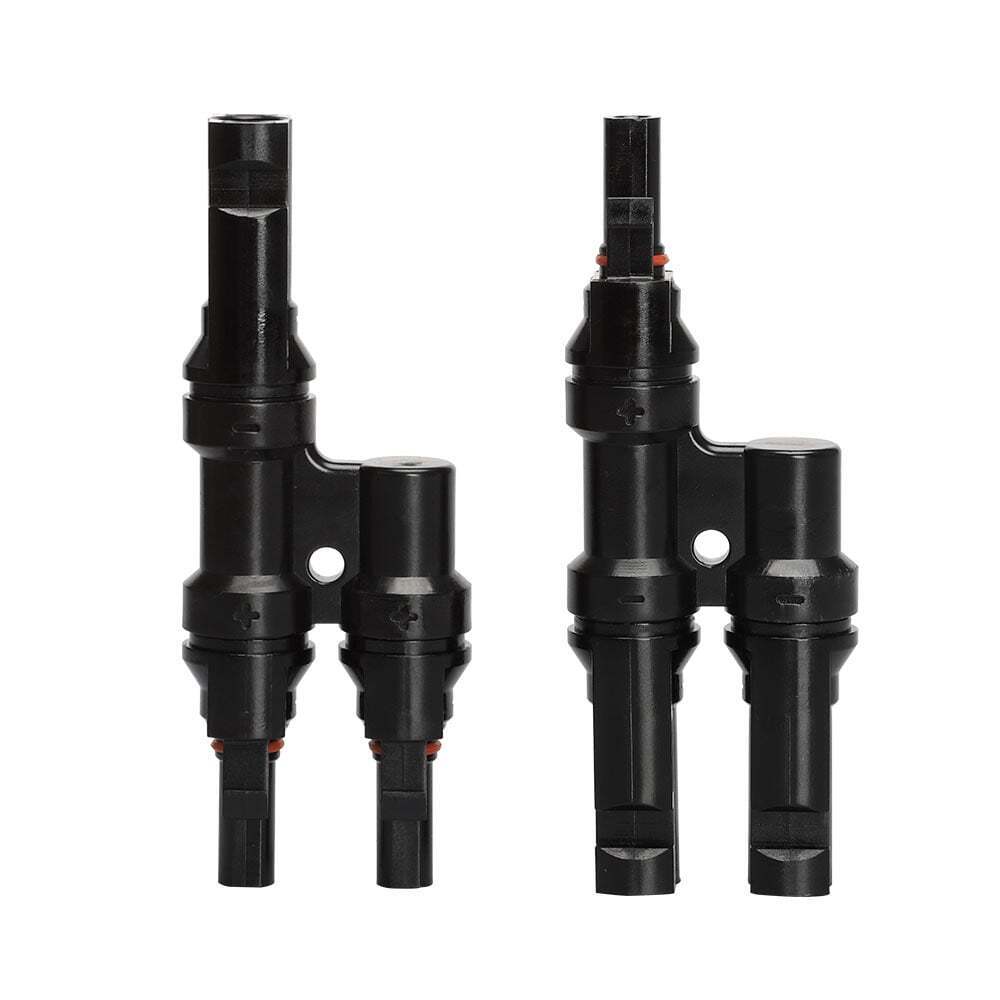

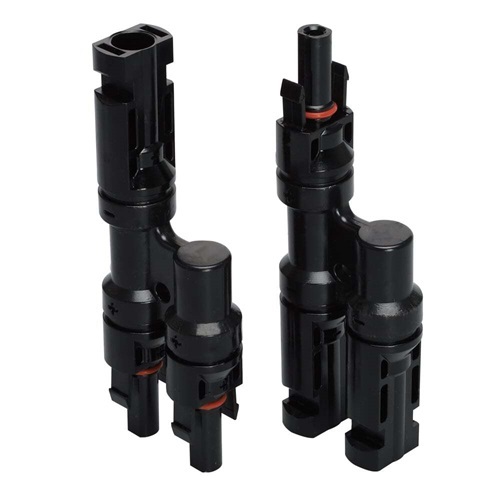

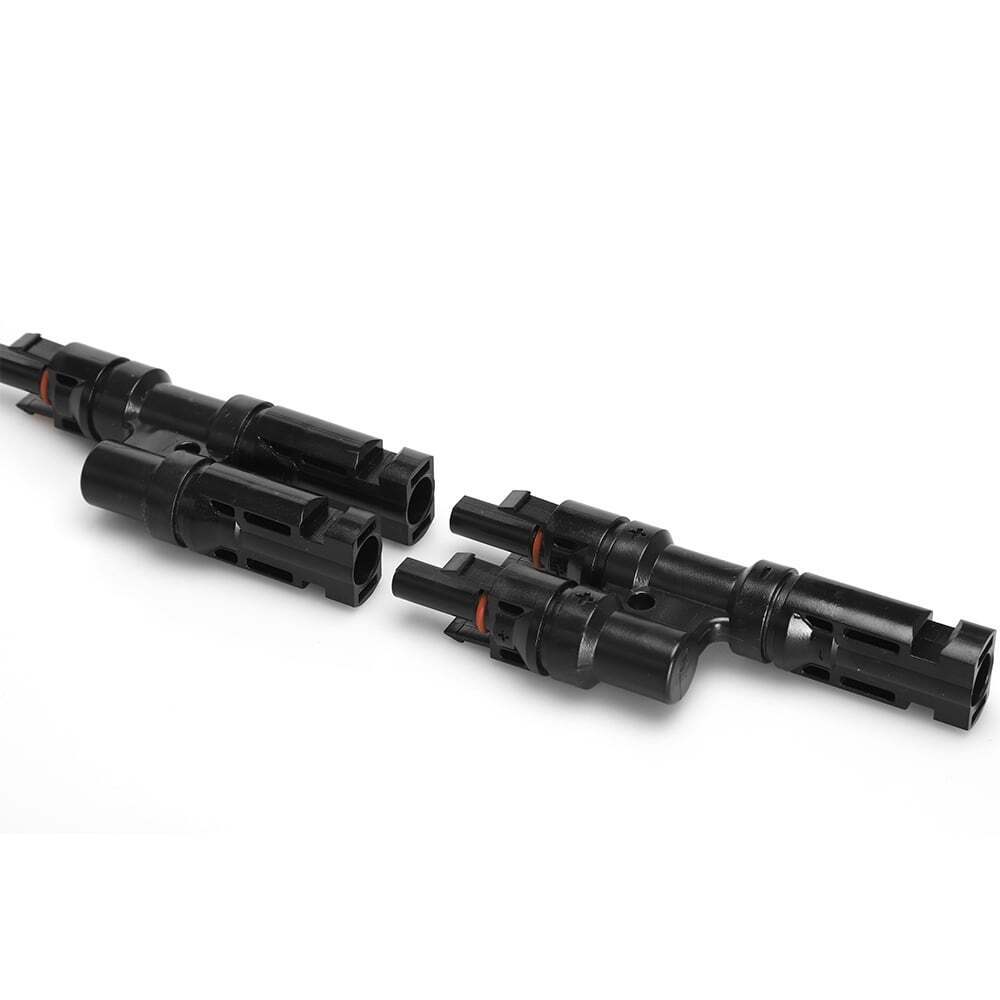

Exotronic 2 to 1 'h' Branch MC4 Compatible Solar Connector Pair

Product Description

Exotronic 2 to 1 'h' Branch MC4 Compatible Solar Connector Pair, 1 Year Warranty. Introducing the Exotronic 'h' Branch MC4 Solar Connector Pair, a pinnacle of innovation designed to streamline the connectivity and efficiency of your solar panel array. Engineered with precision and durability in mind, this connector pair is an essential component for anyone looking to optimize their solar energy system.

Key Features:

• Robust Contact Material: Each connector is crafted from high-quality copper and plated with tin, ensuring not only superior conductivity but also resistance to corrosion and environmental wear. This choice of materials guarantees a long-lasting and reliable connection for your solar panels.
• High Current Capacity: With a suitable current rating of 30A, the Exotronic 'h' Branch MC4 Solar Connector Pair is capable of handling the demanding power needs of modern solar panels, ensuring efficient energy transfer without compromise.
• Versatile Voltage Compatibility: Rated for 1000V according to TUV standards and 600V for UL, these connectors offer flexibility and safety in a wide range of solar installations, from off-grid setups to more extensive industrial arrays.
• Exceptional Durability: Tested at a voltage of 6KV (TUV 50Hz, 1min), and with a contact resistance of less than 0.5mΩ, these connectors are built to withstand rigorous conditions and maintain optimal performance through extreme temperature ranges from -40℃ to +85℃.
• Advanced Protection: Rated at IP 67, the Exotronic 'h' Branch MC4 Solar Connector Pair is fully protected against dust ingress and the effects of temporary water immersion, ensuring your connections stay secure and functional in all weather conditions.
• Safety and Compliance: Adhering to the highest safety standards, these connectors are classified under UL94-V0 for flame resistance and fall into Safety Class II, providing peace of mind through enhanced protection against electrical shocks and fires.

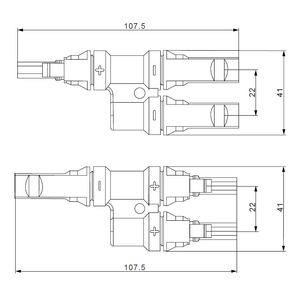

• Precision Engineered Pin Dimensions: With a pin size of Φ4mm, these connectors ensure a snug and secure fit, minimizing energy loss and maximizing the efficiency of your solar energy system.
• High-Quality Insulation Material: Utilizing PPO as the insulation material, these connectors not only offer excellent thermal and electrical insulation but also boast durability and resistance to UV, ensuring your solar setup remains operational for years to come.

The Exotronic 2 to 1 'h' Branch MC4 Solar Connector Pair is not just a component; it's a commitment to quality, efficiency, and safety in your solar energy projects. Whether you're setting up a new solar array or upgrading an existing system, these connectors provide the reliability and performance you need to harness the power of the sun effectively.
