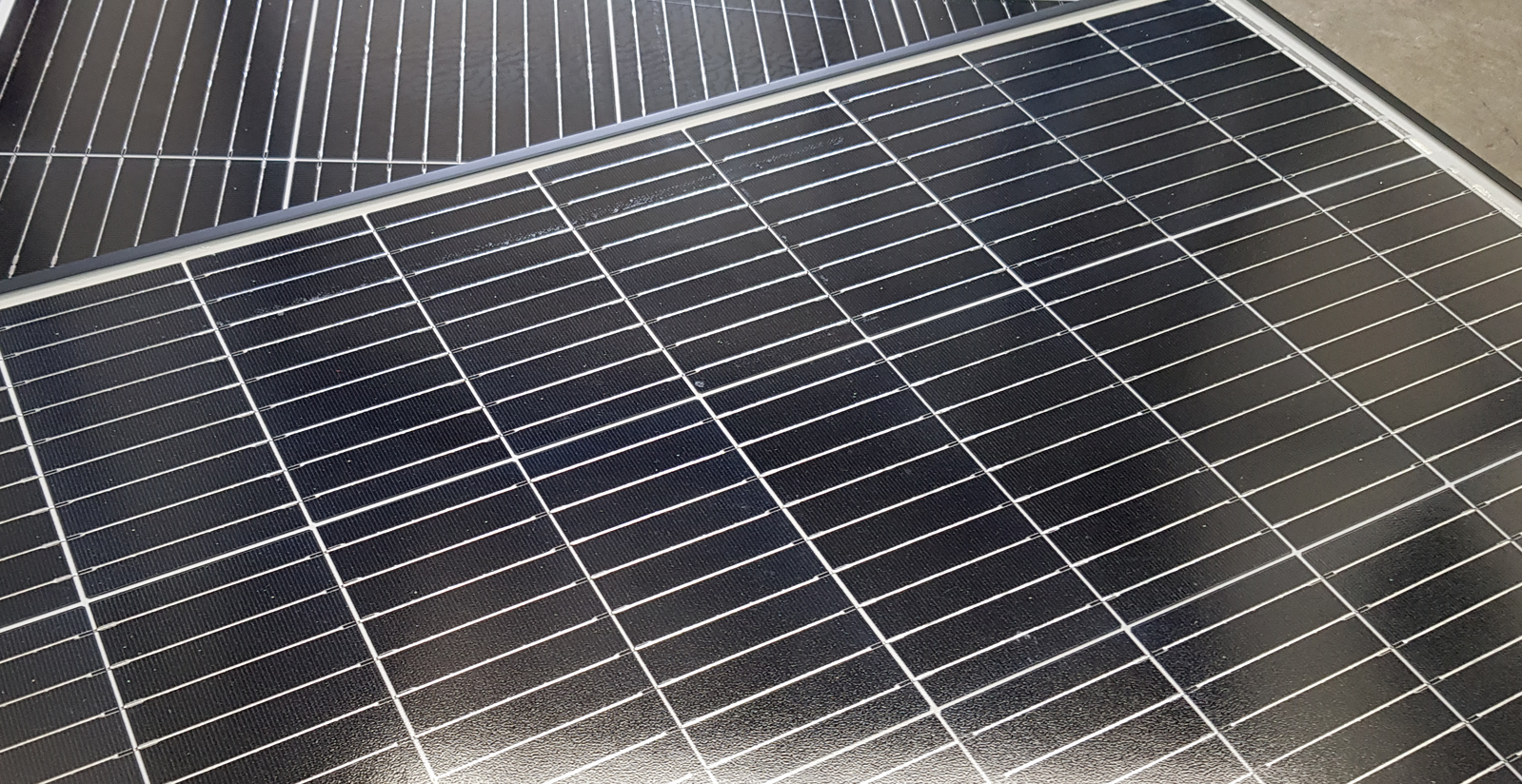

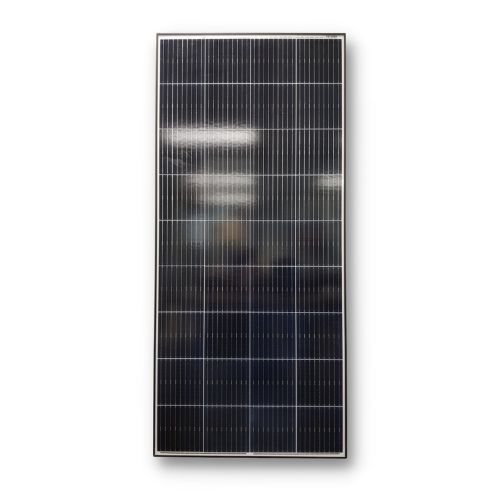

Exotronic 225W Fixed Monocrystalline Solar Panel

Adjustable Black Aluminium Solar Panel Bracket, Pack of 4, 1 Year Warranty. The ideal solution for securely fastening your glass-fixed solar panels. Constructed from robust yet lightweight aluminium, these brackets ensure a secure fit for your solar energy setup.

The solar panel brackets come complete with all necessary hardware for a seamless installation, including 4 stainless bolts, washers and nuts and 16 black tech screws.

The installation process for the solar panel mounting brackets is as follows:

1. Position the brackets to your solar panel.
2. Mark and pre-drill holes OR attach brackets using the bolts, if using bolts, skip step 3.
3. Attach brackets to the solar panel with the tech screws
4. Position the panel on the roof or other substrate and mark the locations for the holes.
5. Pre-drill the marked locations.
6. Clean both the bracket and substrate using iso-propyl alcohol until thoroughly clean and dry.
7. Apply an appropriate adhesive to completely cover the underside of the bracket.
8. Securely screw the bracket in place.
9. Optionally cover the base of the bracket and tops of screws with additional adhesive for a secure solar panel installation.

Cable Entry Cover - 1 Gland White with 2 Cable Grommet Lightweight ABS.

• IP66 waterproof when adhered with silicone
• ideal for marine and RV; roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• low profile.

Includes both 1 and 2 rubber insert grommet so it can accomodate a single cable or two cables such as 4 or 6mm2 PV1-F.

Cable-Entry-Cover-2-Gland-White-Lightweight-ABS.

• IP66 waterproof
• ideal for marine and RV
• roof or wall mounting
• for all cable types 6mm to 12mm in diameter
• strong UV stable
• Hides entry holes and protects against leaks
• Low profile

MC4 Compatible Solar Connector Pair, 1 Year Warranty

Features:

• Waterproof and dustproof IP67
• Withstand voltage: DC1000V
• Contact material: tinned copper
• Insulation Material - PPO
• Contact Material - Copper Alloy, Tin plated
• Temperaturer Range - –40°C ...+105°C
• Degree Protection Mated - IP67
• Unmated - IP2X
• Flame Class - UL94-V0
• Locking System - Snap-in
• Contact Resistance of Plug Connectors - 0.5mΩ
• Safety Class - II
• Test Voltage - 6kV(50HZ,1min)
• Salt Mist Spray Test, Degree of Severity - 5 IEC 60068-2-52
• Rated Current - 17A(1.5mm²),
• 22A (2,5 mm²; 14AWG),
• 30A (4 mm², 6 mm²; 12AWG, 10AWG)
• Connector System - Ø 4 mm
• Rated Voltage - 1000V DC(IEC)

Solar Cable PV1-F 6mm2 twin, thin sheath, 1 Year Warranty.These cables are developed according to PV1-F requirements and designed to meet the rigours of the outdoor application environment and provide long term durability and flexibility, combined with ease of installation.

• Outside diameter of each core 6mm
• Inner insulation: XLPE (Black, Red)
• Sheath insulation: XLPE (Crosslinked Polyethylene)
• Nominal voltage: U0 / U: 0,6 / 1 kV AC / max. 1.5 kV DC
• Test voltage according to EN 50395-6: 6,5 kV AC / 15 kV DC (5 min.)
• Rated current: 55 A (4.0 mm²), 70 A (6.0 mm²)
• Insulation resistance of the complete cable: ≥ 1000 MΩkm in accordance to EN 50395-8.2
• Ambient temperature:  –40°C ...+90°C
• Bending radius: Dynamic: >4 × OD

Constructed using fine stranded tinned copper conductors insulated with a temperatureresistant, halogen-free cross-linked copolymer compound and protected by an outer sheath of flame-retardant, abrasion and UV-resistant, halogen-free cross-linked co-polymer.

• Rated voltage AC 1000V, DC 1500V (max)
• Temperature range Ambient –40°C ...+90°C
• Approvals EN 50618 H1Z2Z2-K IEC 62930
• Minimum bending radius Flexing: 5 x cable diameter
• Fixed: 4 x cable diameter
• Marking Meter marked
