Fastway E2 Roundbar Sway Control WD Hitch 8000lb with Black Jack Trailer Jack Combo
SKU: 800LBS-COMBO Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Fastway e2 Roundbar Sway Control WD Hitch 8000lb with Black Jack Trailer Jack Combo, 1 Year Warranty.
Pack Includes:
- Fastway E2 Round Bar Hitch 8,000lb - PR94-00-0800
- Black Jack Electric Trailer Jack with Clamp & Harness Kit - BJTJ-1001

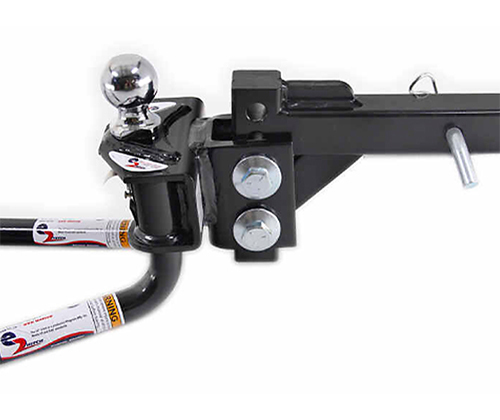

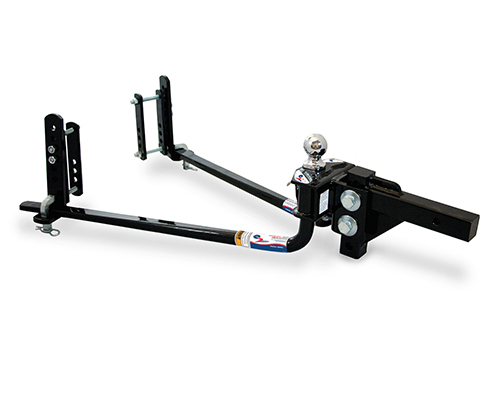

Fastway E2 Roundbar Hitch 8,000lb
With the Fastway e2 hitch there’s nothing extra to buy and install. Nothing extra to store. Nothing extra to remove before you can back into your campsite, or make a u-turn. For a faster, easier and safer towing experience, get a Fastway e2 hitch today!
BUILT-IN SWAY CONTROL
The Fastway e2™ hitches have the convenience of Integrated Sway Control™ built into the hitch; so you have sway control engaged whenever you are hitched up and towing. The e2™ utilizes unique sway control brackets instead of old ‘add-on’ sway bars or cam type attachments that are added to chain style hitches. Integrated sway control offers many benefits including no backing or turning restrictions, and simple and easy to understand adjustments. Built with sway control in mind, the e2™ hitch is better than a chain style hitch with add-on sway control devices.

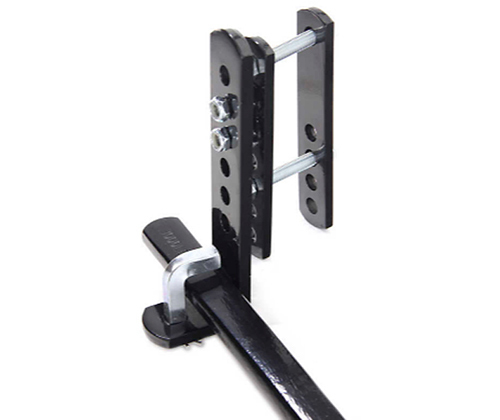

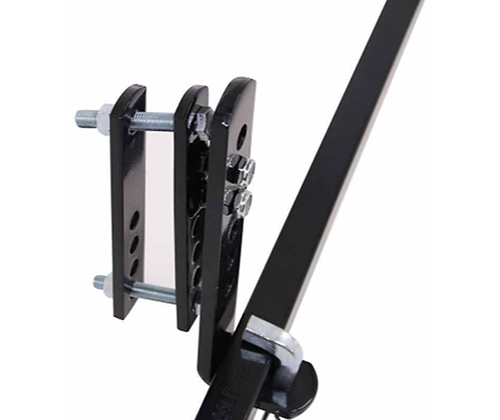

SWAY CONTROL BRACKETS
The unique rigid sway control brackets provide the convenience of integrated Sway Control™ through two points of linear steel on steel friction. Instead of the spring arm swinging back and forth freely at the bottom of a chain, e2’s spring arms rest on top of a bare metal bracket. This improvement alone significantly reduces driver fatigue and stress while towing, not to mention making it easier to use than chain style hitches on the market.

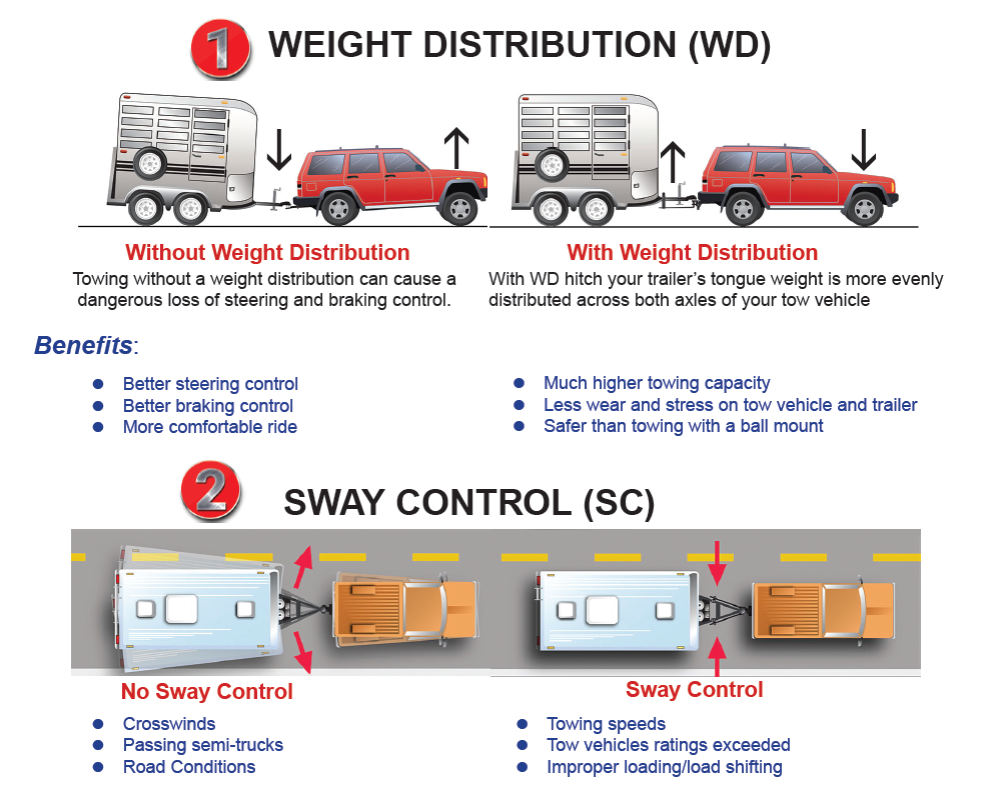

WEIGHT DISTRIBUTION
Without proper weight distribution drivers can experience highway hop, loss of steering control, and sagging of the tow vehicle.
The e2 hitch changes the way the tow vehicle and trailer couple together. It creates a bridge between them, helping them work together like one unit instead of two, and distributing the weight more evenly to the axles of both vehicles. When set up properly, the steering wheels will stay more firmly planted on the ground.

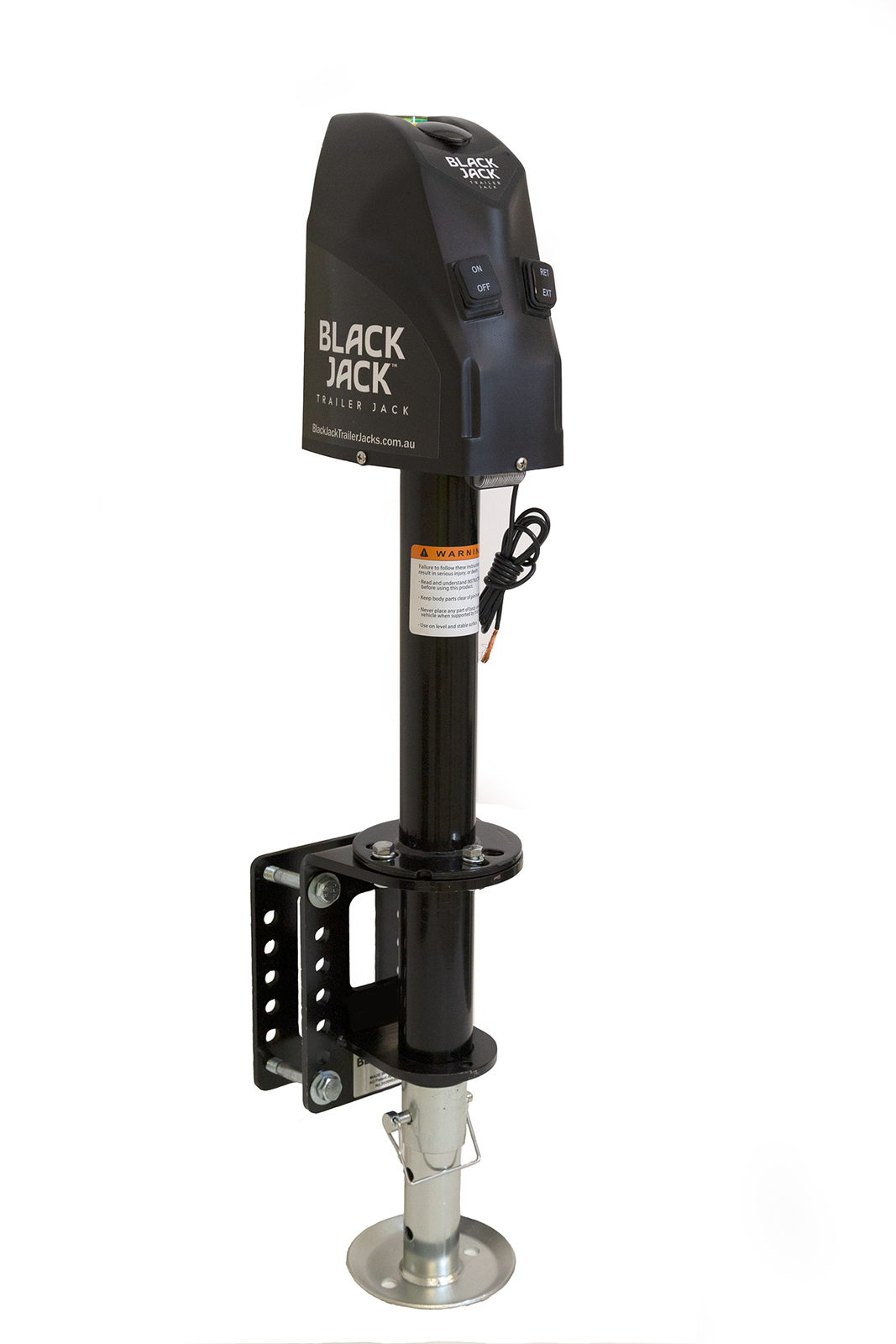

Black Jack Electric Trailer Jack with Clamp & Harness Kit.

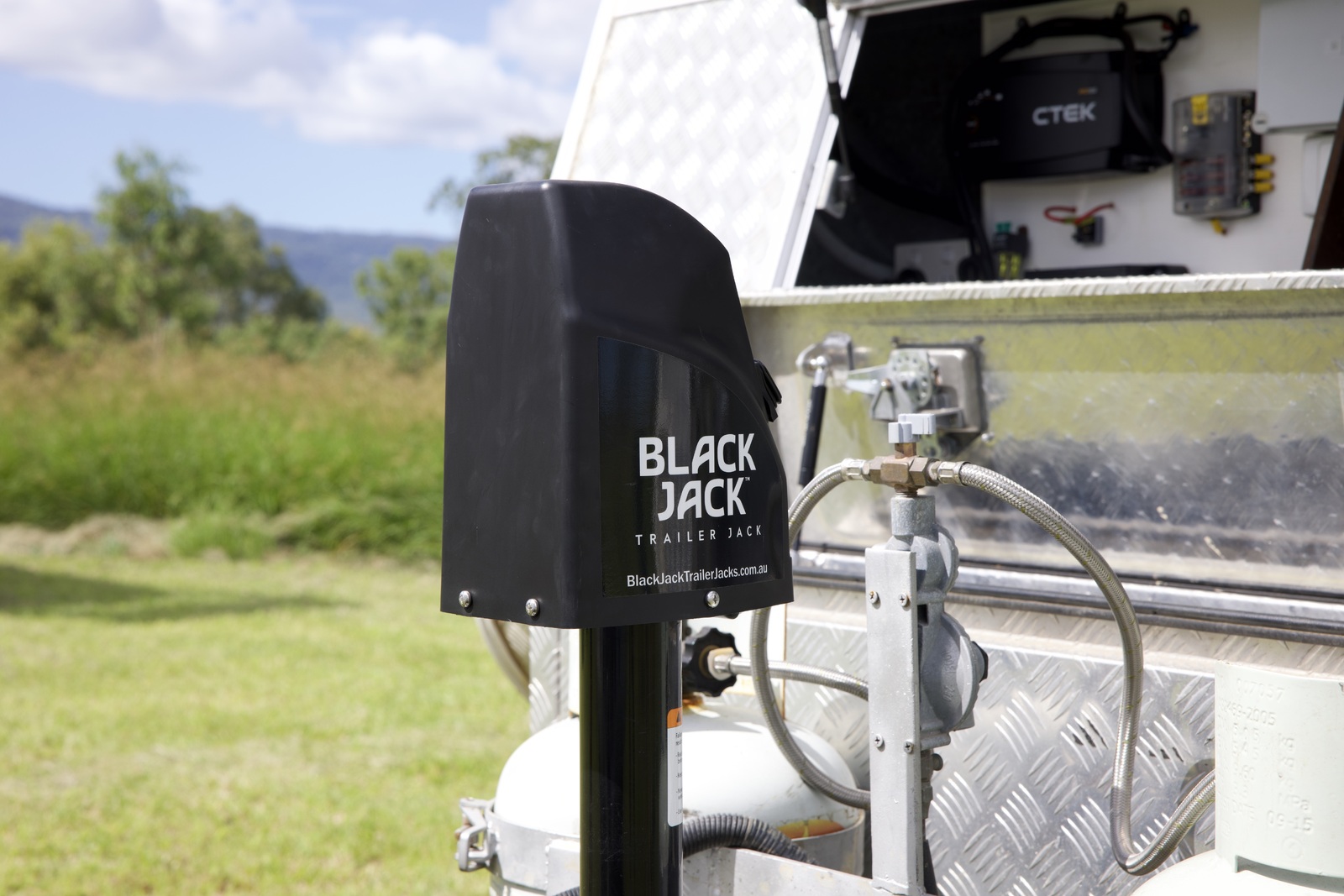

The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. Easy DIY installation and insanely simple RAISE\LOWER switch operation.
Hugely popular in the USA, the Black Jack™ now comes complete with the all-weather cover, and the Black Jack Clamp™ allowing uses the ability to easily bolted to the Caravan or Trailer A-Frame. For easier and faster deployment or retraction the Black Jack™ includes the Black Jack™ Folding Foot providing no more bending down to adjust the foot extension height position. Also included is the Black Jack™ Foot Pad giving improved stability on soft or unstable surfaces.
For easy installation, the Black Jack™ installation wiring harness is also included (with BJTJ- 1001)
Kit Includes;
- 1x Black Jack Electric Trailer Jack
- 1x Black Jack Clamp Patented
- 1x Black Jack Folding Foot
- 1x Black Jack Foot Pad
- 1x Black Jack All Weather Cover
- 1x Black Jack Harness
Features:
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ – 1001)Free all weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg

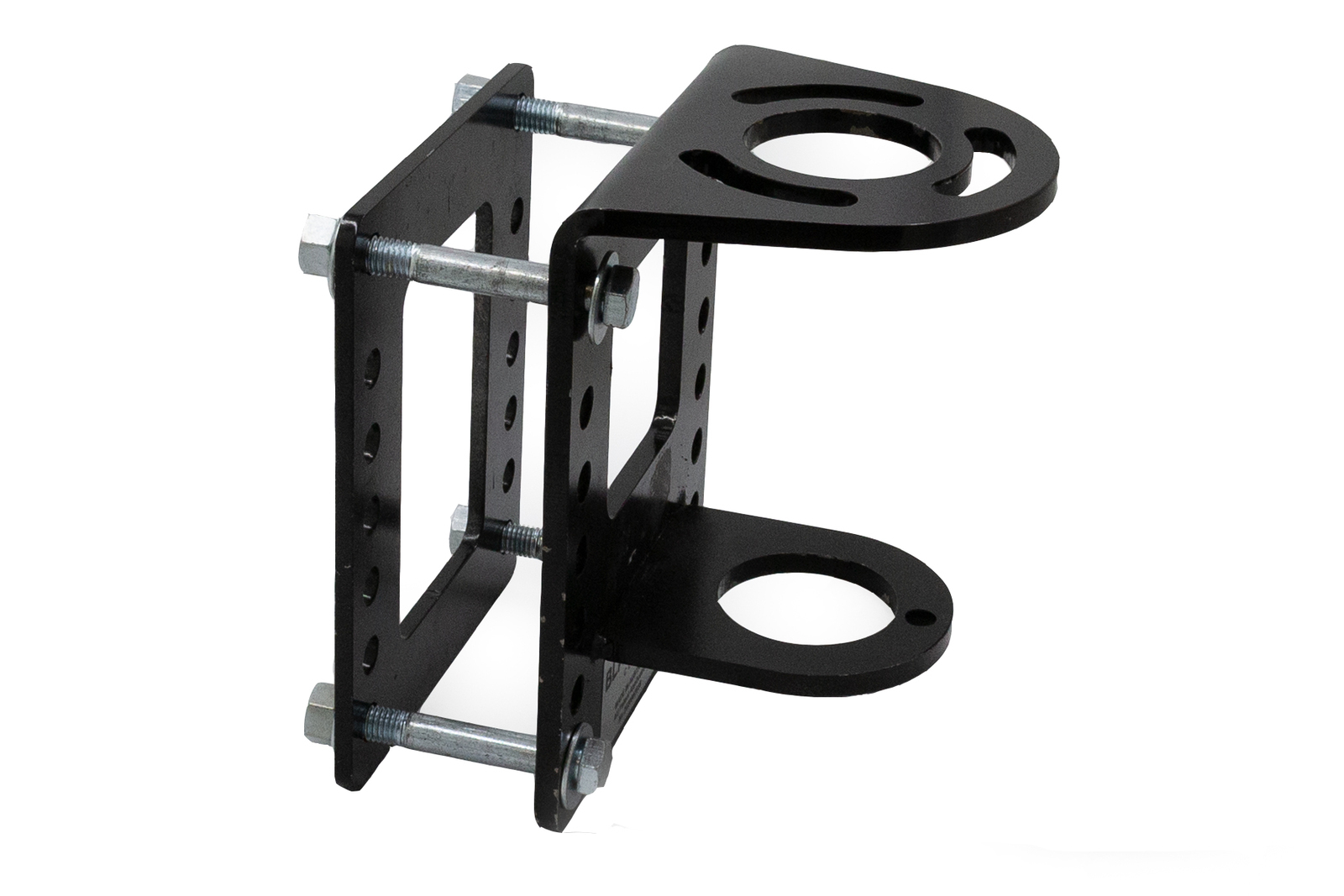

Also Included is the Black Jack™ CLAMP Featuring:
- 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
- Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
- Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
- Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
- Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
- Easy bolt installation. No additional modifications, welding or tools are required.
- Tough powder coated finish
- Australian Patent Pending (No. 2020902039)
- Registered Australian Design
- Made in Australia supporting Australian jobs

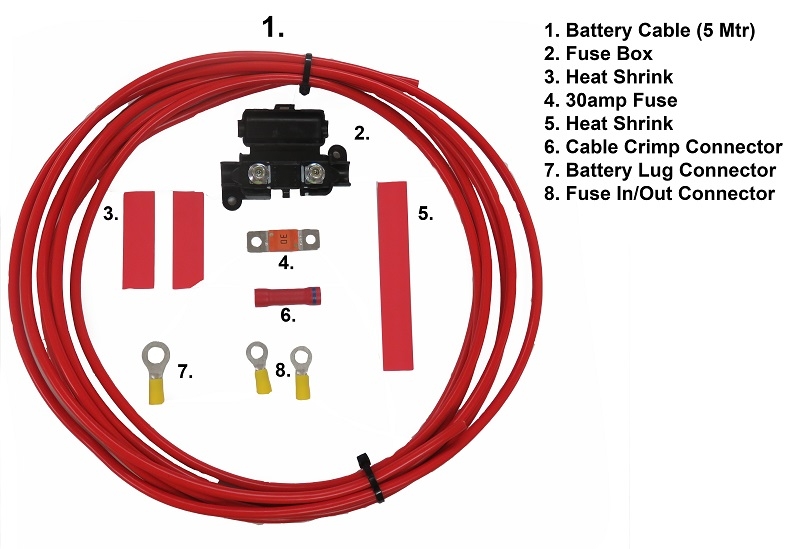

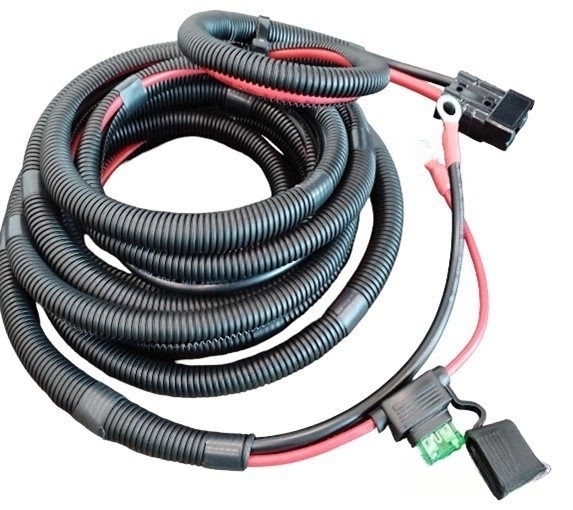

Black Jack DIY Harness Kit
Installation DIY Wiring Harness Kit
This is the full and complete installation kit to connect the Black Jack to the Caravan or trailer 12 volt battery. Includes 30 Amp in line fuse, connectors, grounding wire and 5 meters of battery cable. Makes the whole installation very easy and fun!
Specifications
SKU 800LBS-COMBO
Brand Fastway
Warranty Period: 1 Year
Product Category Weight Distribution Hitches
Tow Ball Weight Rating WD Hitch: 350kg (800lbs)
Videos
Operating Your Titan RV Electric Caravan Jack
Why You Need A Black Jack Electric Caravan Jack
How To Install Your Fastway e2 Round Bar Sway Control / Weight Distribution Hitch
Product Q&A
-
When do I use a trunnion / straight bar hitch and when would I rather opt for a round bar hitch?
It depends on the depth of the A-frame and where the coupling is situated. The trunnion hitch is designed for an underslung coupling and will provide more ground clearance. The round bar hitch is designed for coupling above the tow bar and provides more clearance from the A-frame.
-
How do I know what the maximum tow ball weight is?
The max tow ball weight is usually indicated on the product listing and it is calculated as 10% of the gross trailer mass (GTM). The use of a Weight Distribution Hitch does NOT increase the max tow ball capacity.
-
Can I still use a Weight Distribution Hitch if I have electric brakes on my caravan?
Yes, you can. However, it is important to note that the WDH will inhibit the manual override function of the electric brakes. You are still able to use a WDH, but you need to allow for harder braking.
-
Can these be used on any vehicle?
It is always best to check with the car manufacturer when determining whether you need a WDH. Some cars have automatic leveling systems or towbar constraints that don't allow the use of WDH.
-
Is the D035 coupling compatible with the Fastway Flash E Series Ball Mounts?
No, the D035 is not compatible with the Fastway Flash E Series Ball Mounts.
-
Are Weight Distribution Hitches the same as anti-sway devices?
No, weight distribution hitches (WDH's) are not anti-sway devices. Some WDH's do however reduce sway, but only those that specify that this is the case.
-
What is the purpose of a Weight Distribution Hitch?
Weight Distribution Hitches prevent the rear of a tow vehicle from sagging when the weight of the caravan or trailer is added to the tow ball. In this way the front of the tow vehicle and the rear of the caravan or trailer does not lift.
-
How do I know I need a weight distribution hitch?
You need to ensure the car and the caravan are completely level on all angles. Before you hitch up, measure the gap in the wheel arches of all wheels on both car and van. Hitch the van up, re-measure all points. If the difference is more than 20mm you will require a WDH.
-
How do I choose a Weight Distribution Hitch for my vehicle?
You need to take the following into consideration when selecting a WDH:
- How much weight your caravan puts on your tow ball
- How much room you have on the A-frame to mount the WDH
- The types of brakes your caravan or trailer has
- The height of your tow ball
Read the product information carefully for each WDH you are considering to ensure they meet all your requirements.
-
Do I need power to run my Black Jack?
Yes, you require 12V power to run your Black Jack. This can be achieved via an Andersen plug to your caravan battery or your vehicle battery through the tow connection point.
-
What is the lifting capacity of a Black Jack?
The Black Jack has a 1600kg lifting capacity, more than enough for all caravans in todays market
-
Do I require the Harness Kit?
You will only need the harness kit if you don't already have 12V power at your connection point, ie Andersen plug on tow vehicle and/or caravan battery.
-
How long is the cable that comes attached to the Black Jack?
1.3m
-
How high will the Black Jack go up?
The Black Jack has a stroke of 560mm, if you require more you can utilise the RedFoot Big Block to increase your stroke length.
-
Do I have to take off the Black Jack when travelling?
No, provided you have securely attached the Jack using the supplied clamp and the leg and foot plate is fully retracted.
