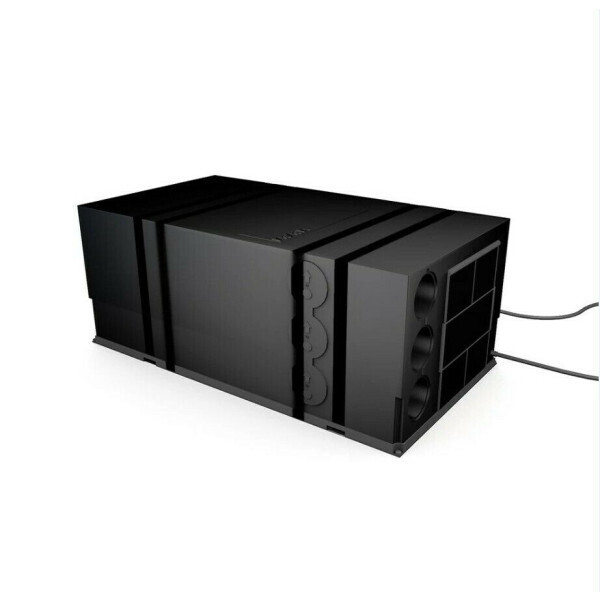

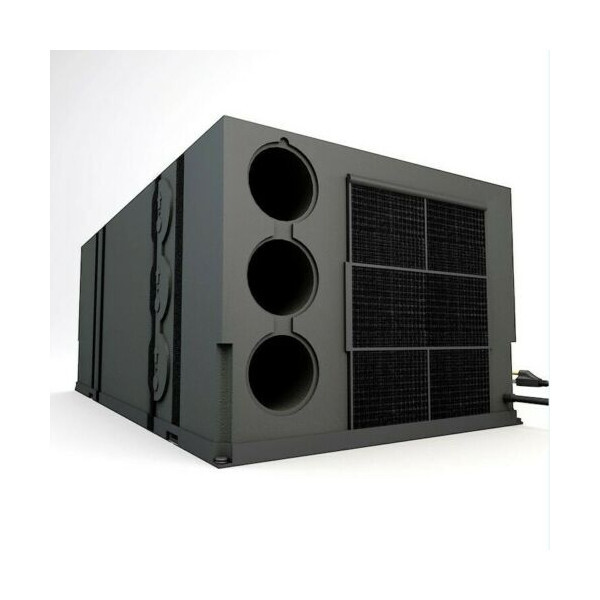

Finch Australia HB9000 Reverse Cycle Under Bunk Air Conditioner
SKU: HB9000-F Learn More»Product Description
Finch Australia HB9000 Reverse Cycle Under Bunk Air Conditioner, 1 Year Warranty. The HB9000 ducted air conditioner includes return grill and 3 air outlets. Finch HB900 has a large capacity, 2.2kw cooling and 1.8kw of heating capacity (approximately). Heat pump reverse cycle heating and cooling with electronic defrost to allow operations as low as 1 degree C. Great for Australia's climate.
Benefits:
- Three air outlets
- Return air grill
- Under bunk unit

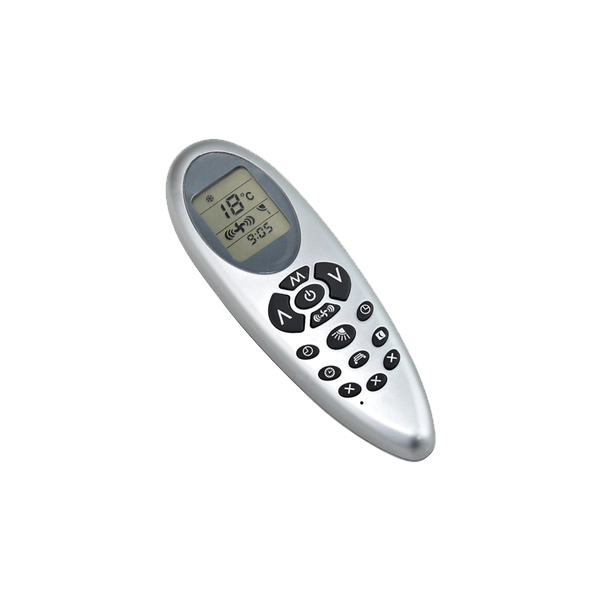

- Classic remote control

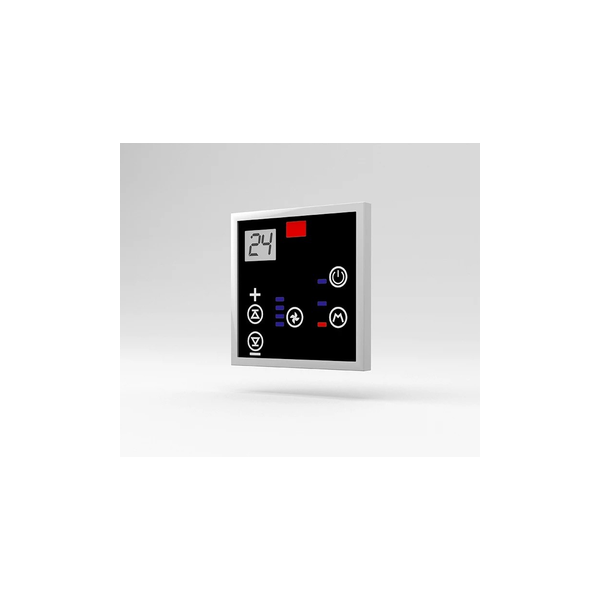

- Electronic climate control model with touch pad
* Does not include ducting. See accessories.
Fitting and Install instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.
Specifications
SKU HB9000-F
Brand Finch Australia
Warranty Period: 2 Years
Product Category RV Air Conditioners
Best for Vehicle Length (m) 6.5
Cooling Capacity (ISO5151) (kW) 2.2
Heating Capacity (W) 1.8 kW (Note: Heat pump reverse cycle heating & cooling with electronic defrost to allow operations as low as 1°C)
NOTE Ducting sold seperately
Dimensions (WxHxL mm) 398 x 296 (+30 mm) x 734
Operating temperature range -15 to +40 C
Remote control Yes with sleep, timer & dehumidifying function
Installation Fitting and Install instructions come with the unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.
Current Draw (Cooling/Heating) 4.2 A / 5.3 A
Number of Blower Speeds 3
Electrical Rating (single phase) 230 volts
Functions Timer function, sleep mode, electronic climate control with touch pad.
Net Weight (kg) 27.8
Videos
Air Conditioners for Recreational Vehicles
Product Q&A
-
It doesn't provide any specs on the current draw of this unit, only the heating / cooling watts output. What is the current draw for each please? Kind regards,Andrew
Hi Andrew,
Thank you for your inquiry.
We have the following current draw noted in our specs for the HB9000:
Current Draw (Cooling/Heating) 4.2 A / 5.3 A -
Can the intake and outlet be run through the side of the caravan instead of the floor? I have an offroad van and would not want to damage the AC unit when going through river crossings.
Hi Joshua,
Based on the design of the air conditioner, they do require ventilation through the floor of the van they are being installed in.
-
Hi I noted this unit uses 2.2kw cooling , wanting to know if my 2000w inverter would be able to run this unit off my litium batteries.Regards Nick y
Hi There, We would recommend a slightly larger output such as 2500watts. It would also depend on the discharge current of your batteries. Feel free to contact us on 1300 400 122
-
Could this be fitted in my yacht?? If not what would be the reasoning??
Hi There,
One of the major reasons this would not be suitable for a yacht is due to the requirement for an underfloor cut out.
This cut out is completed to allow the intake of cool air, and to expel hot air produced by the air conditioner.
-
Hi I have an underbunk air conditioner where is the filter how do you clean it Thank you
Hi There,
Please refer to page 11 of the following manual: https://www.mygenerator.com.au/assets/images/resource/pdf/HB9000_manual.pdf
-
What is the main difference between the model and the truma?
Hi There,
The Truma has a heat pump, vs the Finch model being a reverse cycle unit, the Truma model is also lighter weight and made from higher quality materials.
The Truma model also has a longer warranty, and larger service netowrk
-
How many BTU s ?Does the unit run
Hi There,
These air condtioners have the following cooling and heating specs:
Cooling: 2.2kW - 7500 BTU
Heating: 1.8kW - 6141 BTU
-
Hi can this unit be installed on a shelf . Drawing the air intake from the shelf below.
Hi There,
These units are required to be installed on the floor of the vehicle, with intake, and venting to be outside the vehicle.
-
Would this be suited to a jayco eagle and where would you recommend the air out vents be located
Hi There,
This air conditioner could be installed in your Jayco Eagle.
As for vent locations we are unable to provide a recommendation sorry.
-
Goodmorning, can you help with a recommended installer pls? We are in Ballarat.Vic but would be prepared to travel thanks
Hi There,
We do not have a list of preferred installers around the country.
We would recommend looking for a local caravn repair centre as generally they have the facilities to install air conditioners.
-
Does this unit come fitted with an Australian 240v power plug?
Hi There,
Yes the HB9000 will come with an Australian style power plug.
-
Hi, I have the HB9000 installed in my off road caravan. The inflow vent wasn’t sealed for dust and hot air vent didn’t have a rubber seal either as a result the HB9000 is filled with dust after driving on gravel roads in Queensland.Do both vents need
Hi There
For information regarding installation, please consult the product manual, or a caravan installer.
https://www.mygenerator.com.au/assets/images/resource/pdf/HB9000_manual.pdf
Kind Regards
-
Can this unit be fitted above the ceiling on a boat, that means it draws the air in from just below the ceiling and not close to the floor.?The unit will still be indoor in this locationCheers Brian
Hi There
We would not be able to recommend installing this air conditioner in a boat sorry.
Customer Reviews
Finch underbunk air conditioner Review by Jacqui loveWe are so far very happy - we have only just installed it - which my son did as he is a qualified auto electrician - it was very easy to install - we turned it on and it worked a treat - so are looking forward to our next trip - I have read the air con is expensive but it was cheaper then the competitor brand and seems about the same price as the usual caravan air conditioners(Posted on 24 November 2021)
Great Review by Mark GoreGreat quality, little expensive for what it is but overall am happy.(Posted on 23 April 2021)
Works well Review by GregWorks well is reasonably quiet when running but does seem to stay as cold as I would have thought but certainly keeps it a comfortable cool.(Posted on 14 February 2021)
Works really well Review by MelissaWe received the aircoditioner really quickly and no problem at all. We put it in the caravan without any problems. We had read different reviews saying that it would not heat up but we found it heated the caravan all night and was not noisy at all.(Posted on 20 June 2020)
