Ford Ranger T6 / Wildtrak / Raptor (2012-2022) Slimsport Roof Rack & 40in LED Lightbar - by Front Runner

SKU: KSFR003T_LIGH213 Learn More»
Ford Ranger T6 / Wildtrak / Raptor (2012-2022) Slimsport Roof Rack & 40in LED Lightbar - by Front Runner
Free Shipping
$1,369
$1,525

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$20

$235

$74

$269

$205

$54

$109

$49

$89

$13

$55

$506

Click '+' to show more accessories
1 Day Dispatch Express Shipping Price Match Guarantee Customer Reviews

Product Description

Ford Ranger T6 / Wildtrak / Raptor (2012-2022) Slimsport Roof Rack & 40in LED Lightbar - by Front Runner, Limited Lifetime Warranty

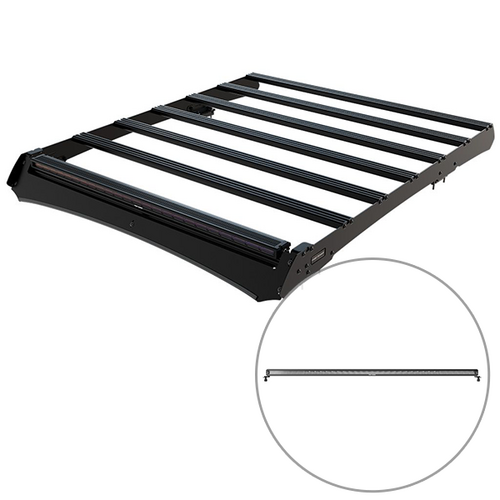

Pack Includes:

  • Ford Ranger T6 / Wildtrak / Raptor (2012-Current) Slimsport Roof Rack Kit / Lightbar ready - by Front Runner, KSFR003T
  • 40in LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount - by Front Runner, LIGH213

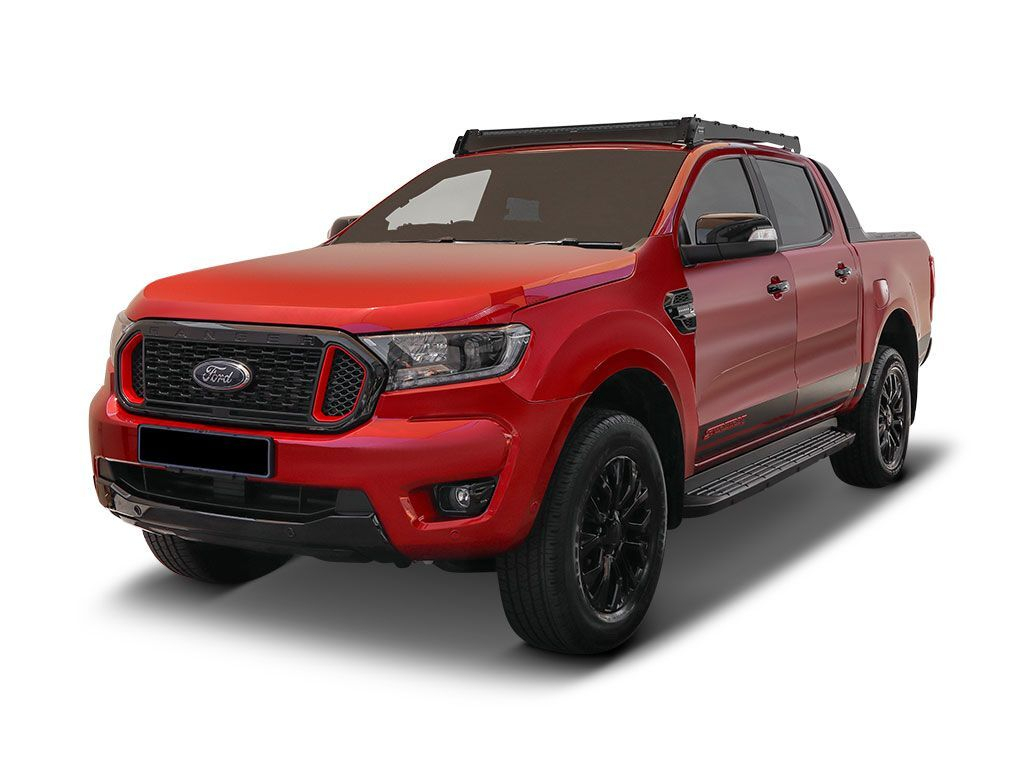

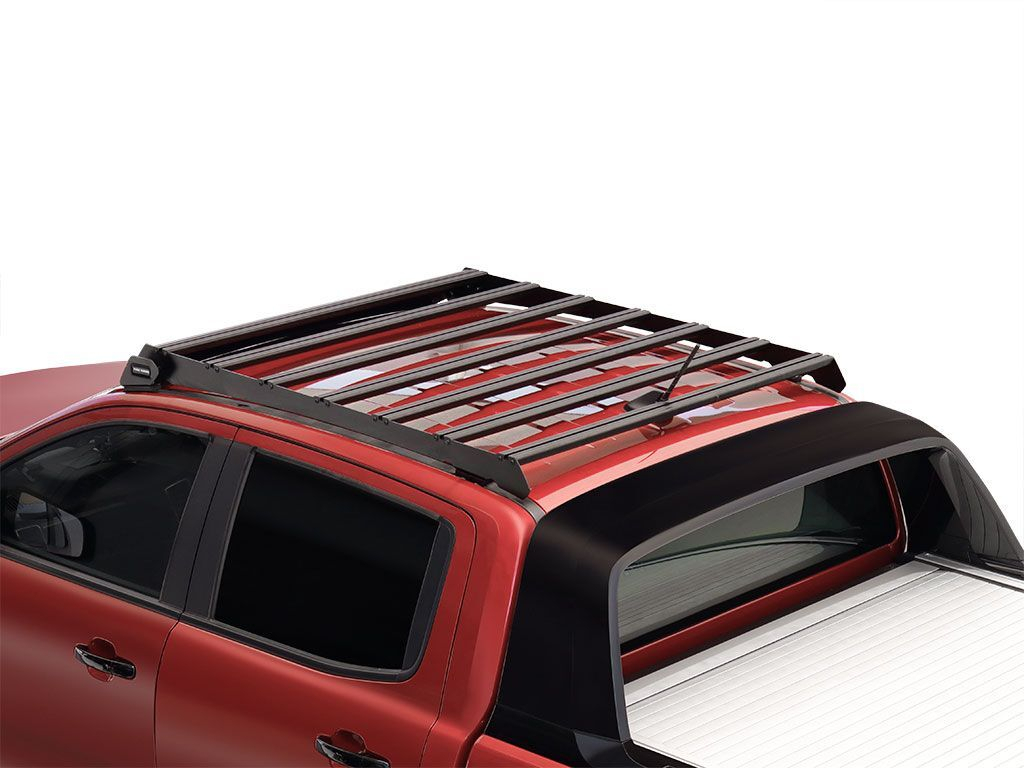

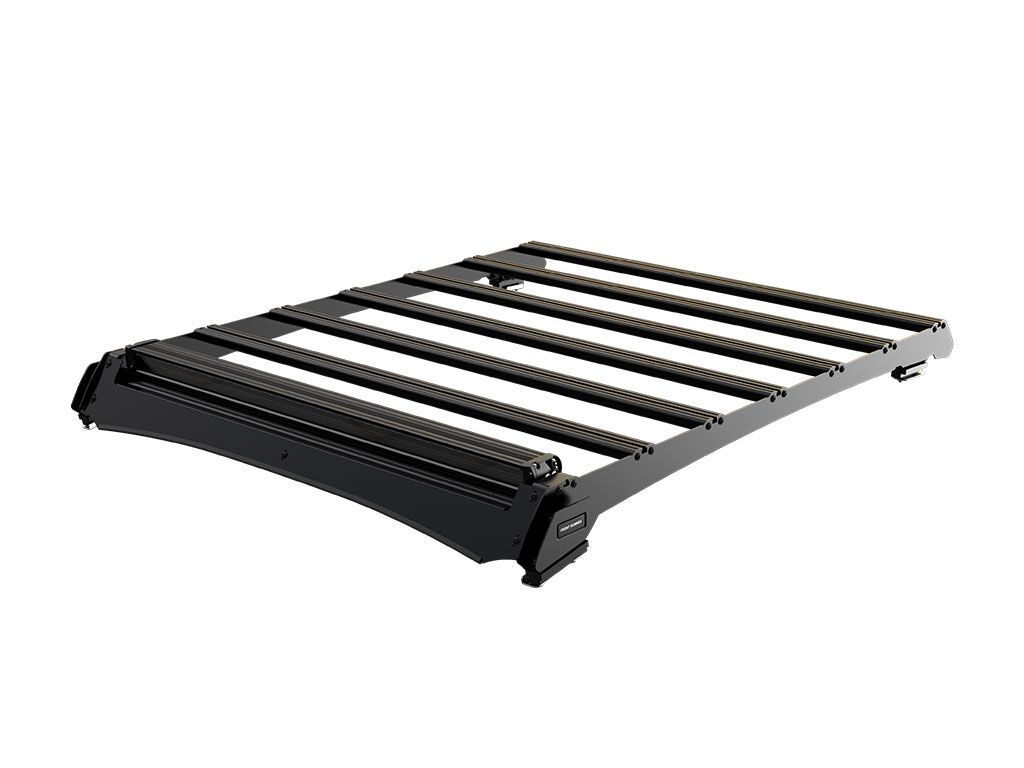

Ford Ranger T6 / Wildtrak / Raptor (2012-Current) Slimsport Roof Rack Kit / Lightbar ready - by Front Runner.

Your adventure gear has a low-profile, durable new home on the Ford Ranger (2012-Current) Slimsport Roof Rack Kit / Lightbar ready - by Front Runner. The kit comes ready to mount a light bar, so your journeys don’t have to stop at sunset. Our wide range of compatible accessories makes it easy to haul out to nature for your go-to activities.

Upgrade your Slimsport rack kit at any time by adding Front Runner RACK ACCESSORIES or explore them later when a new adventure calls.

Features:

  • Compatible with the Ford Ranger T6 SuperCrew (2012-Current), Ranger Wildtrak SuperCrew (2014-Current) and Ranger Raptor SuperCrew (2019-Current).
  • This low-profile flat deck Slimsport rack has a load-carrying area of 1272mm (50.07") x 1185mm (46.65")
  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories.
  • Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (RRAC190).
  • Easily add on the Rack Accessory Mounting Bracket (RRAC182) for most Front Runner side mount accessories (sold separately).
  • Included in the Ford Ranger (2012-Current) Slimsport is a 40" cutout to allow the use of the Front Runner 40” LED Slim Light Bar (LIGH213) (sold separately).
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack (RRAC213) is required for installation.
  • Note: Drilling required for installation. No drilling is required for Wildtrak models.
  • Note: Under Rack Tables are not compatible with the Slimsport rack kit range.

Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.


To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.



Installation Instruction for Ford Ranger T6/WildTrack/Raptor 2012 Slimsport Roof Rack Kit

Installation Guide

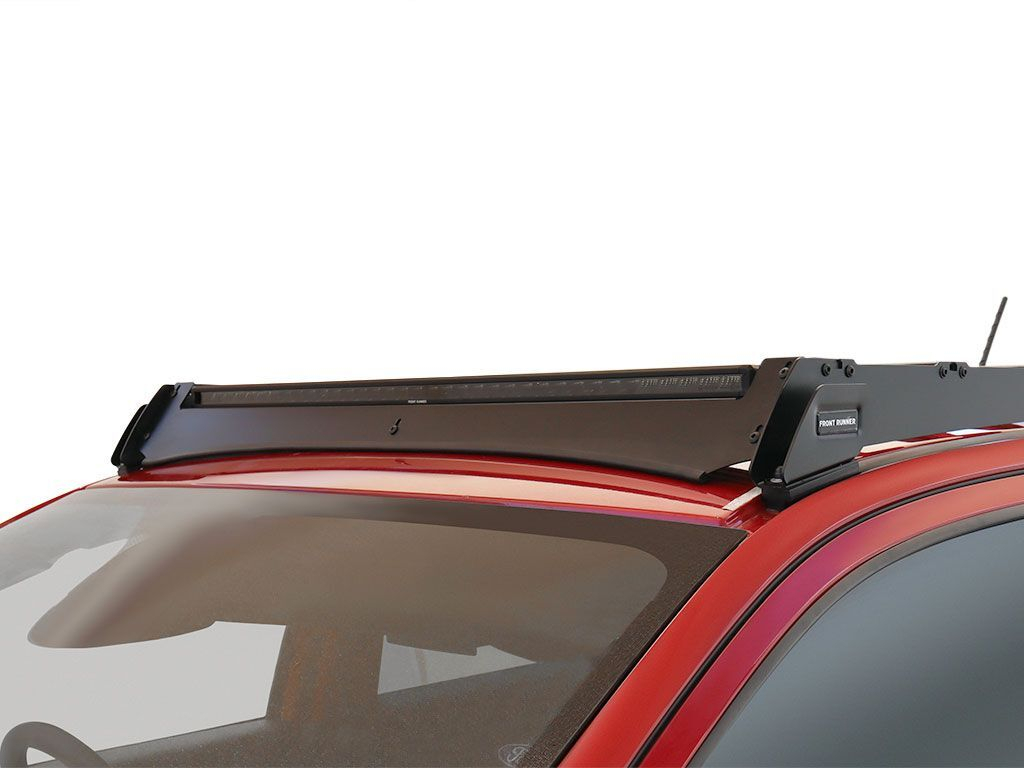

Installation Instruction for Ford Ranger T6 Slimsport Rack 40" Lightbar Wind Fairing

Installation Guide

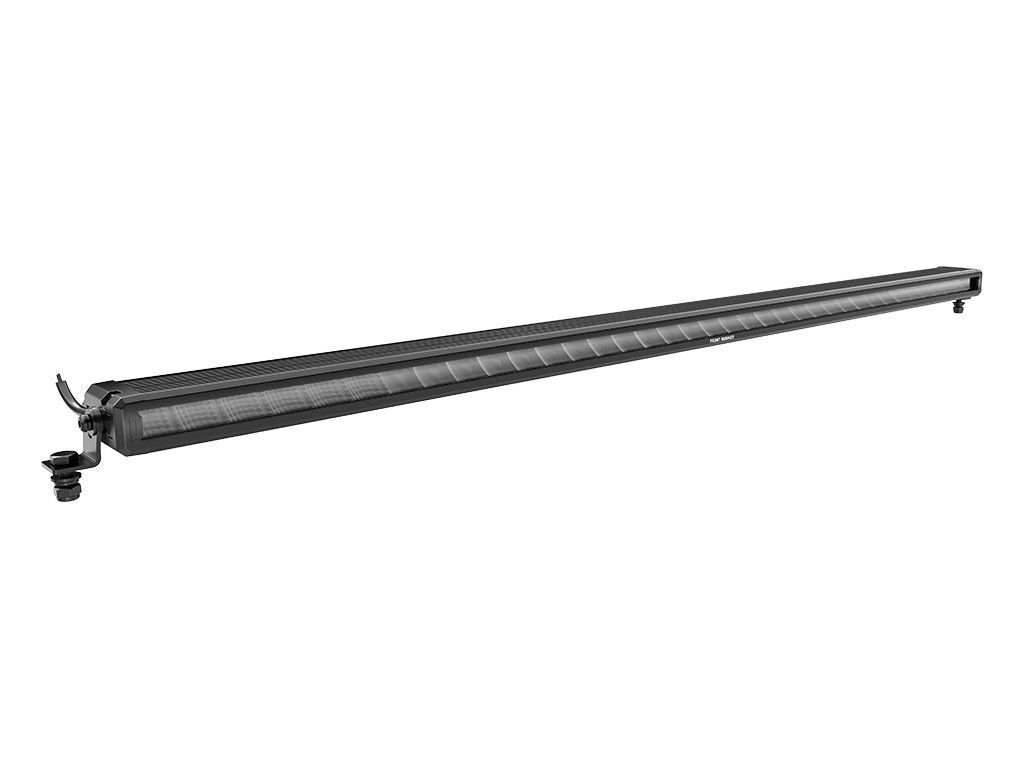

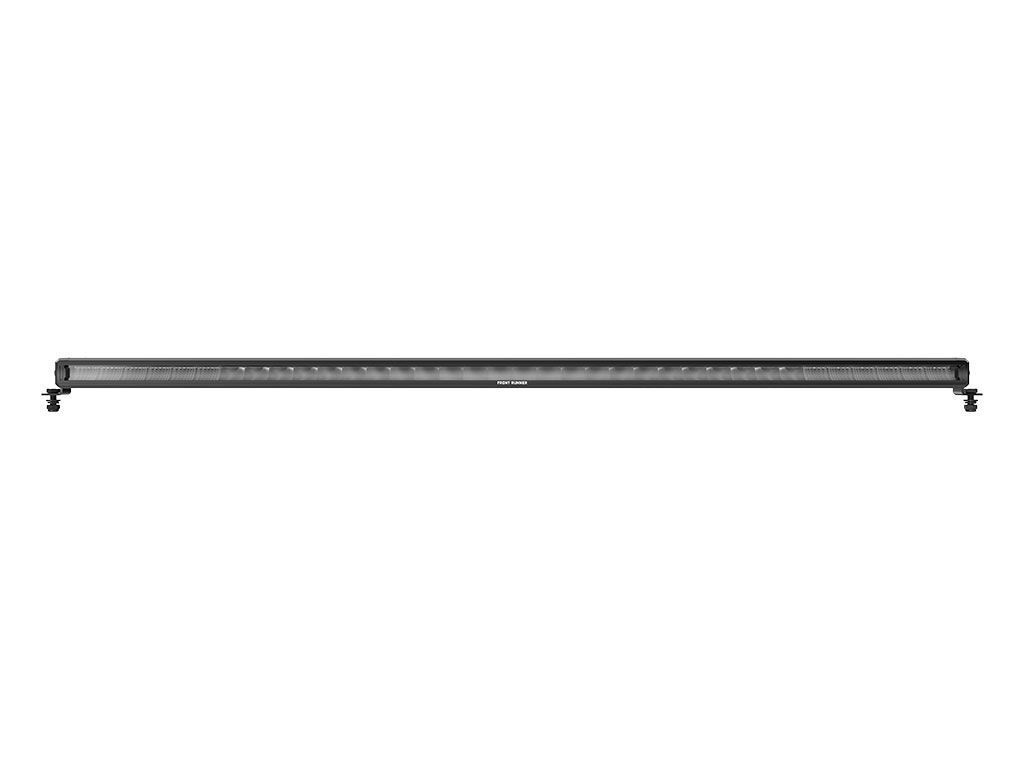

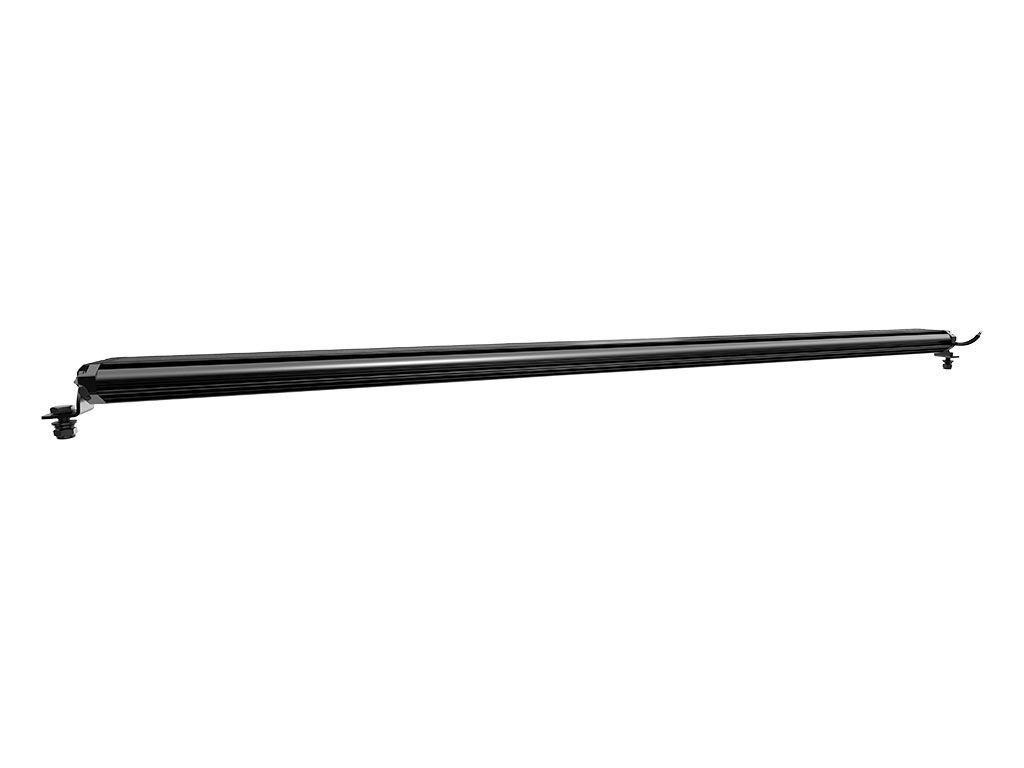

40in LED Slim Light Bar VX1000-CB SM / 12V/24V / Single Mount - by Front Runner.

Keep the adventure going long after the sun sets with this 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount. The near and far-field illumination with 36 high-performance LED’s will light your way up to 525m so you can always know what your adventure holds.

Features:

  • The 36 intense, high-performance LEDs, with OSRAM technology, reach a distance of 525m and deliver 6000 lumens.
  • The 5700 Kelvin, light intensity is distributed as a combo beam pattern- near and far-field illumination.
  • The intelligent reflector design diverts the light from the LEDs so that oncoming traffic is only indirectly exposed to the light.
  • To accommodate its wide range of uses, the searchlight is equipped with a durable polycarbonate lens.
  • The integrated driver and thermal management system, measures and regulates the temperature of the LED, eliminating the risk of overheating and aids in the longevity of its lifespan.
  • Full LED polarity protection automatically breaks the circuit in the event of excess voltage, which ensures a long lifespan.
  • Individual installation is possible due to the VX1000-CB SM's double ECE certification.
  • The 12V/24V LED lightbar is ECE-compliant and versatile in application and is not limited to automotive use only.
  • Secures to your Front Runner Roof Rack with supplied mounting kit.
  • Optional LED Light Bar Wire Harness AX 2LS or LED Light Bar Wire Harness AX 1LS are available and sold separately.

Consists of:

  • 1 x Lightbar
  • 1 x Bracket set
  • 1 x Bolt Kit

Specifications

SKU KSFR003T_LIGH213

Brand Front Runner

Warranty Period: Limited Lifetime

Product Category Roof Racks and Platforms

Dimensions Length: 1031mm

Dimensions 1084mm (with bracket) (Slim Light Bar)

Product Material Black epoxy powder - coated T6 aluminium

Product Material High strength steel

Weight (kg) 30.2500

Included 1x KSFR002 - Ford Ranger T6/Wildtrak (12-Cur)Ssport RR K

Included 1x RRAC191 - Ford Ranger Slimsport Rack 40" L Bar Wind Fairing

Included 1 x Lightbar

Included 1 x Bracket

Height (mm) 35
