Houghton Belaire HB3400 Reverse Cycle Roof Top Air Conditioner

SKU: HB3400 Learn More»

CALCULATE SHIPPING:

Quantity

Postcode

Suburb

Customer Reviews

"Positive"

Michael Thomas

Good performance.

(Posted on 16 May 2021)

Go to: Product Details

Go to: Specifications

Product Description

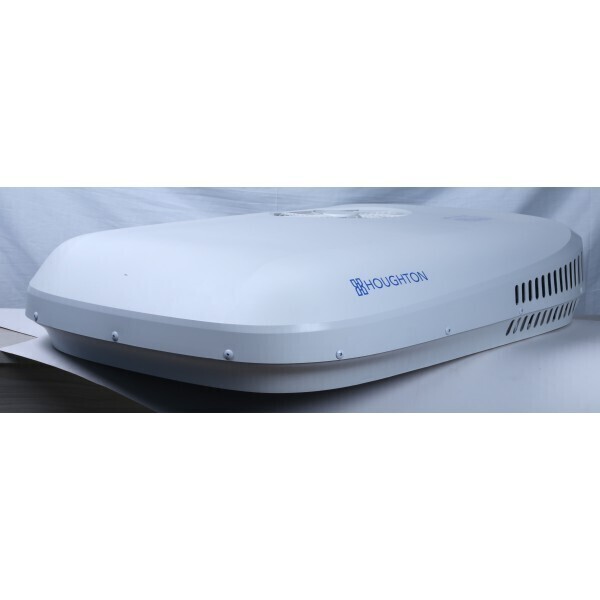

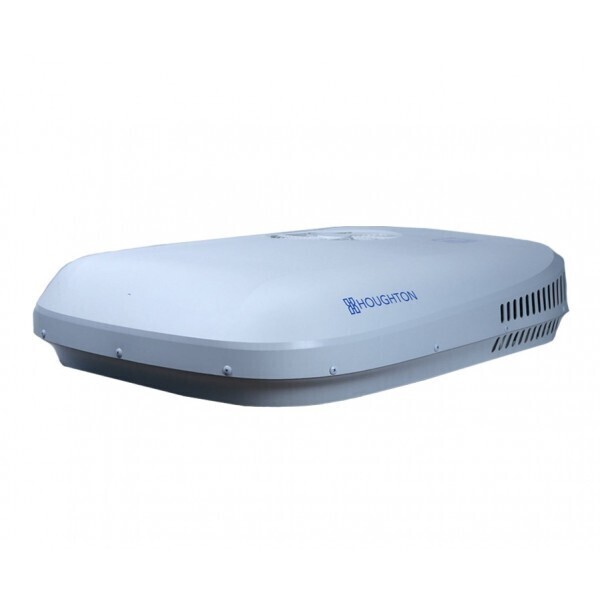

Houghton Belaire HB3400 Reverse Cycle Roof Top Air Conditioner, 2 Year Warranty. Outstanding heating and cooling performance with low noise and vibration, the Belaire H3400 is suitable for larger caravans & motorhomes. Featuring an attractive streamlined design that not only offers better integration with your RV but significantly less drag when you're on the move. An innovative plenum structure provides industry leading air flow via primary and secondary outlets. Optional LED lighting available.

Features:

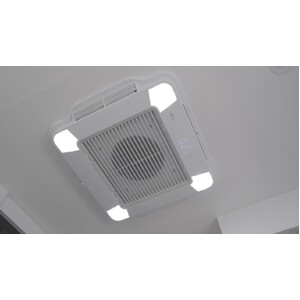

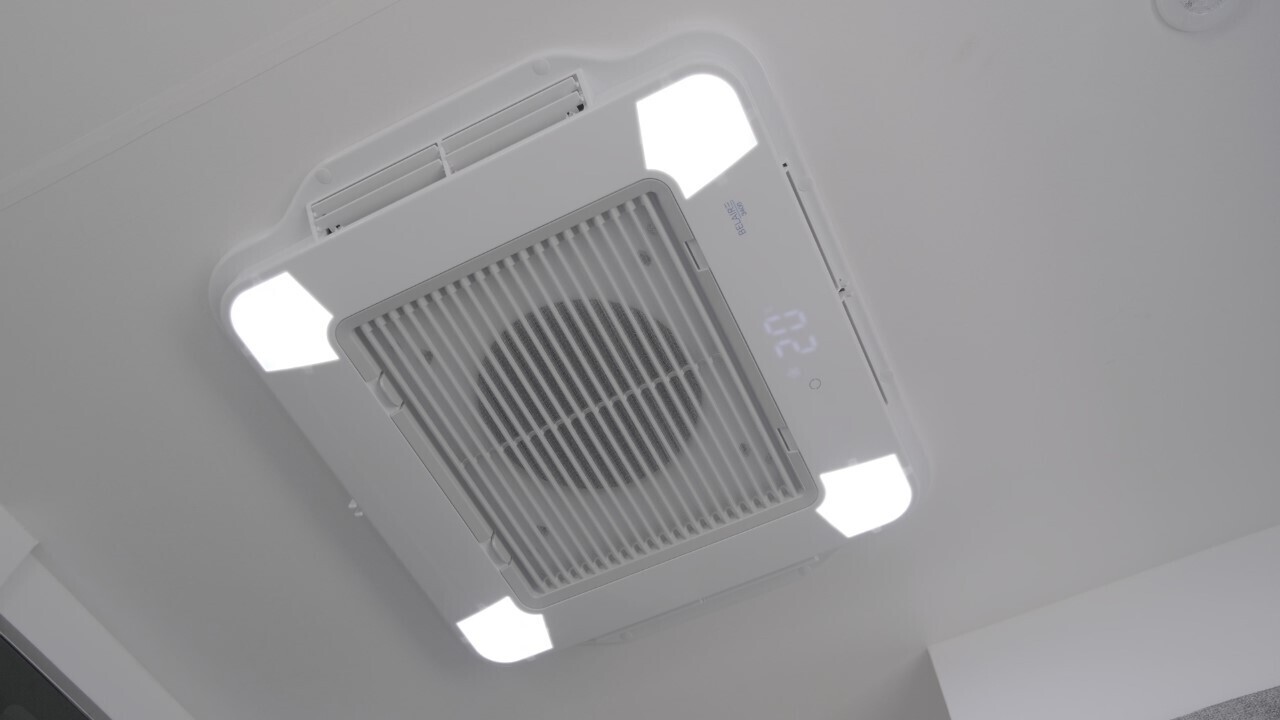

Low profile plenum with an elegant design that complements modern interiors. Features easy to read LED display showing temperature and mode. LED reading light provides conveniences when you are in the room. ( 'A' Model only.)
Attractive streamlined canopy design to perfectly integrate with modern caravan and motorhome design. Just 22.3cm in height, low profile unit lets you park under lower structures. 3.4-way outlet from the interior unit allow air flow to be directed throughout the living space.
The air filter is easy and convenient to remove and clean.
Remote control with cooling, heating, dehumidifying, dry, sleep, timing and LED control functions.
Independent double fan design to ensures better performance in different conditions. The large outdoor axial fan
draws air to exchange heat, leading to highly efficient, powerful performance with low noise levels.
Spiral retractable duct allows easy installation without cutting. Insulation eradicates condensation while optimizing
power and performance.
Super strong and lightweight UV stabilized polypropylene chassis and canopy able to withstand the toughest condi-
tions. Patented integrated outdoor fan grille is simple, aesthetically pleasing and safe.
Excellent reverse cycle performance allows the H3400 to operate in temperatures as low as -50C and up to +500C. Features intelligent defrosting technology.

Go to: Product Details

Go to: Videos

Specifications

SKU HB3400

Brand Houghton Belaire

GTIN 6971817034707

Warranty Period: 2 Years

Product Category RV Air Conditioners

Best for Vehicle Length (m) 6.5

Cooling Capacity (ISO5151) (kW) 3.2

Heating Capacity (W) 2.8 W

Plenum Length 575 mm

Plenum Width 515 mm

Plenum Height 49 mm

Electrical Rating (single phase) 220-240 Volts

Net Weight (kg) 46

Functions LED control panel, three speed, ultra-quiet, high efficiency fan.

Dimensions (WxHxL mm) External: 850 x 223 x 1122

Number of Blower Speeds 3

Airflow (high fan) 150 l/s

Current Draw (Cooling/Heating) 5.6 A / 5.2 A

Installation Advised a qualified installer (electrical contractor) undertakes the installation.

Roof opening (W x D mm) 360 x 360

Remote control Yes

Operating temperature range -5° C Minimum

Go to: Specifications

Go to: Q & A

Videos

Air Conditioners for Recreational Vehicles

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

Hi, I have this air-conditioner on my van and when I turn it on after a while it comes up ER 3 or 4, could you please tell me what would be the reason for this. Thank youKimberley Harrison

Hi Kimberley,

Thank you for your inquiry.

We would recommend contacting the service agent for these air conditioners:

[email protected]
I have 2 questions. Firstly are the H 3400 inverter compressors?Secondly the H3400 I have in my van 2018 model is extremely noisy. It shakes the whole van on start up and shut down. I have had it back to van suppliers and they say its normal. Can you p

Hi Peter,

The HB3400 are not inverter air conditioners.

They will produce some noise, but they should not be shaking your whole van.

We recommend contacting the Australian warrantor of these air conditioners Karma Air on 0448 691 433.
How can I best optimise the performance of my roof-top air conditioner?
Hi there,

Here are some tips to best optimise the performance of your roof top air conditioner:
- Clean the filters of the air distribution box regularly.
- If your caravan has been sitting in direct sunlight for a long period of time, use the 'ventilation' mode with the windows open for a while before switching to the 'cooling' mode.
- Avoid opening doors and windows as much as possible when the air conditioner is running.
- Regularly remove leaves and dirt from the ventilation grilles of the roof top air conditioner. Make sure you do not damage the grilles in the process.
Thanks for your question.
I have a 2018 LTV 25MB mpstjzand only have 120 VAC power. Do you have a model that would work in my coach?

Hi There,

Sorry but we do not sell any air conditioners that run on 120VAC sorry.
Hi do you recommend the Houghton 3400 or the 3500 for a 7 metre hard top caravan?

Hi There,

We would recommend the Houghton Belair HB3500 for a caravan of that size.
Can these air conditioners run on a invertor if so what size

Hi There,

Whilst we have not tested it, we would expect a minimum 2600W inverter to run this air conditioner.
what size generator would i need to run the houghton belairre 3400 air con in our caravan

Hi There,

You would need a minimum 2400w inverter generator or the Yamaha EF2200.

Regards
Why the difference in price between this brand and the Dometic?

The Dometic have a 3 year warranty, whereas the Houghton only have 2. The Dometic also have the option of an inverter air conditioner, which is a newer design.
