Isuzu D-Max (2012-Current) EGR RollTrac Load Bed Load Bar Kit - by Front Runner
SKU: KRRT006 Learn More»Product Description

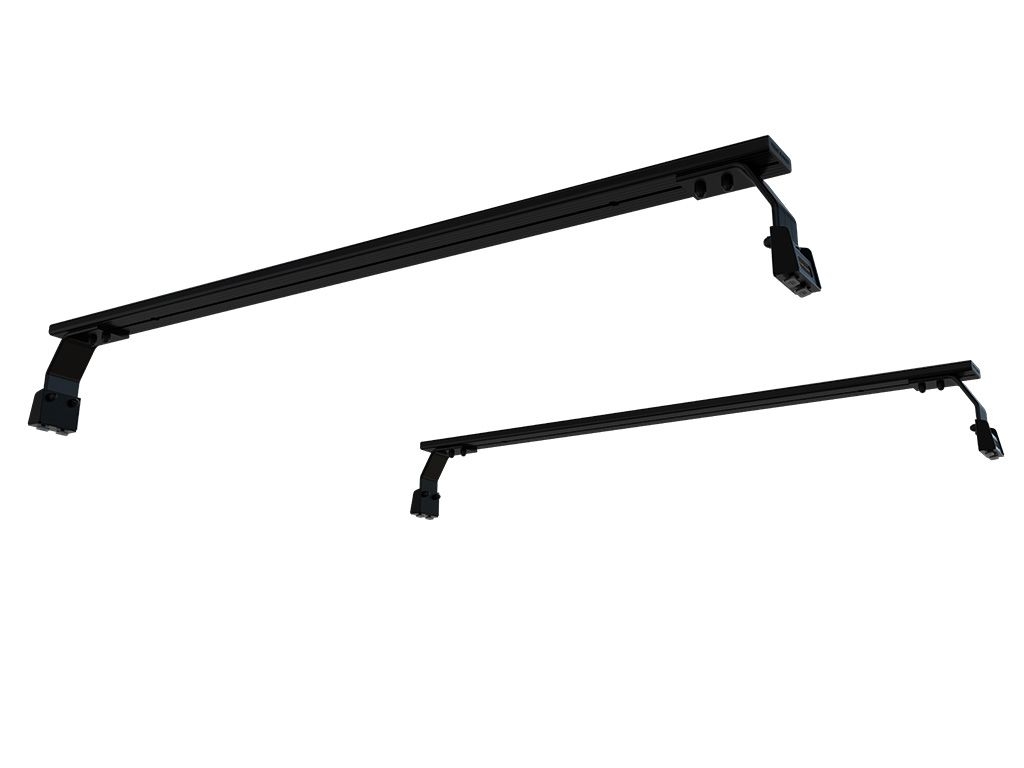

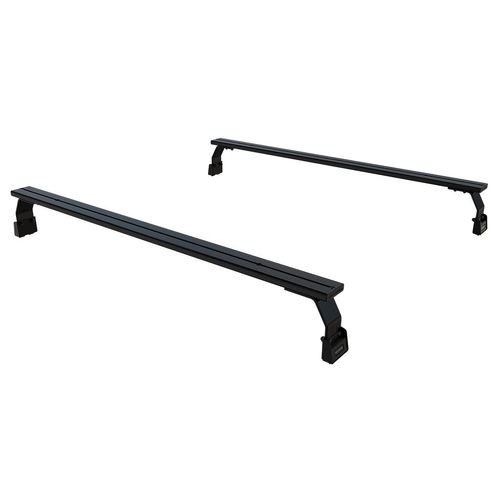

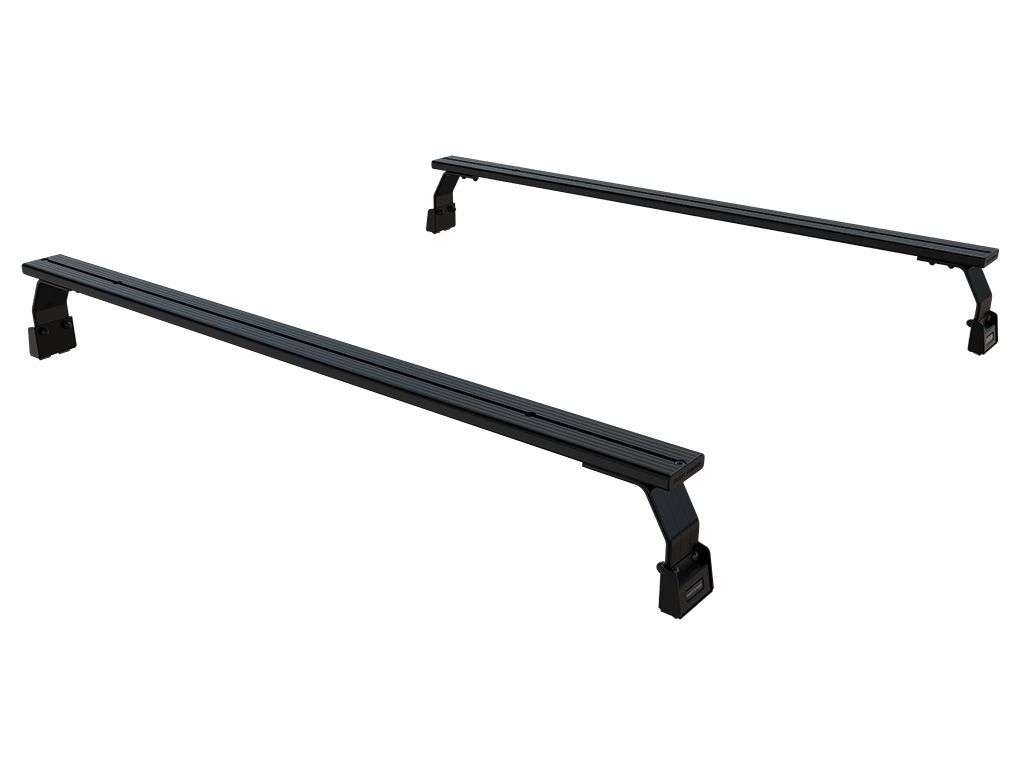

Isuzu D-Max (2012-Current) EGR RollTrac Load Bed Load Bar Kit - by Front Runner Outfitters, Limited Lifetime Warranty. A set of Pickup Bed Load Bars used to transport gear over the bed of your Isuzu D-Max when fitted with a EGR RollTrac roll cover. This low profile solution includes 4 Pickup Roll Top Leg Mounts, 2 1475mm Load Bars that fit into the EGR RollTrac cover tracks, and fitting instructions.
The Load Bars are mounted via Pickup Roll Top Load Mounts that bolt directly onto the EGR RollTrac cover tracks.
Allows for gear to be mounted above the pickup’s load bed.
The load bed retains its load-carrying ability, while the drop-down door functions as usual.

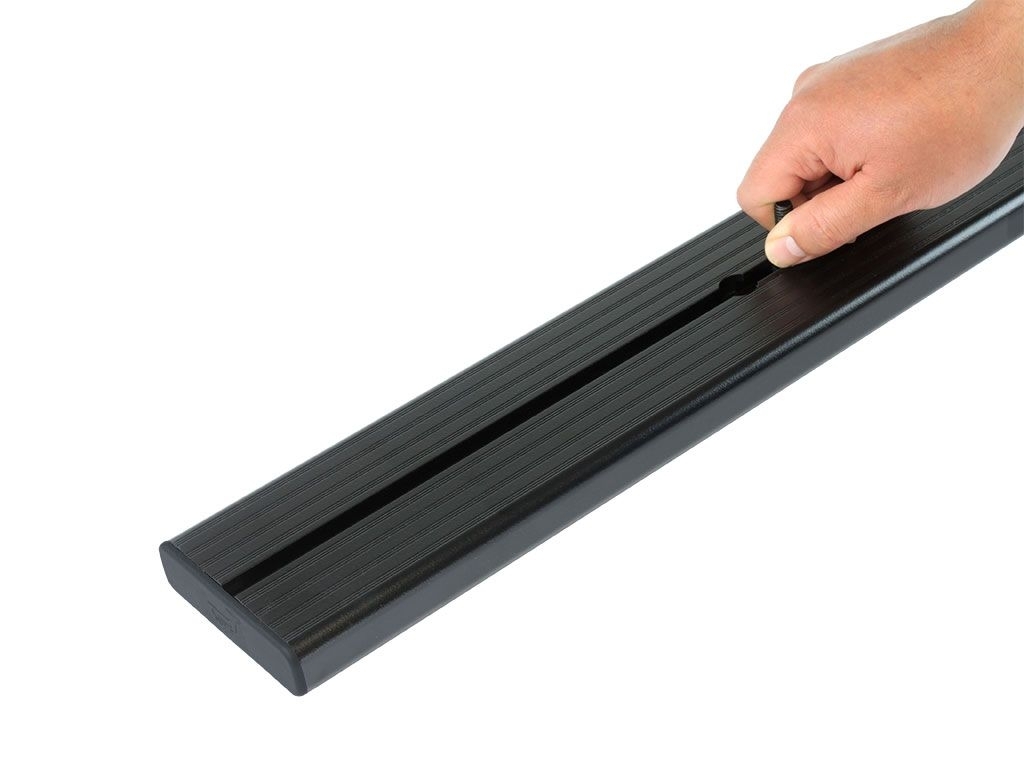

Uses the same strong, corrosion-free aluminum slats found in Front Runner Racks.
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
Made from stainless steel and a durable, weather-resistant black powder coated aluminum.
Includes all hardware, components, and the installation guide needed to fit Load Bars on a vehicle.
Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Installation Instructions for LASS028
Specifications
SKU KRRT006
Brand Front Runner
GTIN 6009542220406
Warranty Period: Limited Lifetime
Product Category Roof Racks and Platforms
Product Material Black epoxy powder - coated T6 aluminium
Weight (kg) 8.24
Dimensions (WxHxL mm) 160mm x 165mm x 1585mm
Included 2x LASS028 - Pick-Up Roll Top Leg Mount | 1x LBSK017 - Roof Load Bar Pair 1475mm(W)
Videos
Front Runner Roof Rack Install
THE ROOF RACK TO END ALL ROOF RACKS?
CRAZY JEEP WRANGLER ROOF RACK STUNT
STRONGEST ROOF RACK
Product Q&A
-
I have heard that roof racks/platforms have different on road and off-road rating. What is the load rating for the Front Runner roof racks?
Great question! Front Runner Outfitters will always have the same on road and off-road load rating on all their roof racks.
However, there are certain weight you will need to consider with any platform/roof rack:
- What is your load capacity of your car roof?
- What is the load rating of the roof rack/platform?
- What is the weight of the roof racks/platform?
- What is the weight of everything you want to add on your racks/platform?
So, for example:
If we use the 2011 Toyota Prado 150 Series as an example vehicle. The roof load rating is 100kg. If you choose to buy the Front Runner Slimline II Roof Rack (KRTP011T), it weighs 32kg. Therefore, you will have 68 kg left of your roof load rating, which means you can continue to load your roof rack with an additional 68kg
