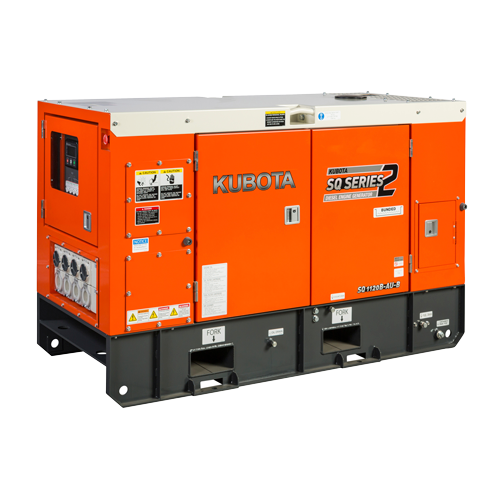

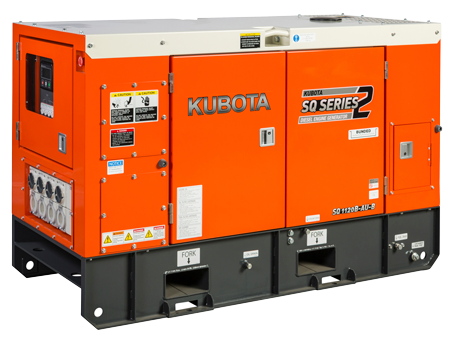

Kubota 11.2kva Single Phase Diesel Generator SQ1120

SKU: SQ1120B-AU-B Learn More»
POA
Express Shipping Price Match Guarantee Customer Reviews

Product Description

The Kubota SQ1120, 11.2 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300series engines used in the SQ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology such as quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy lockable enclosure.

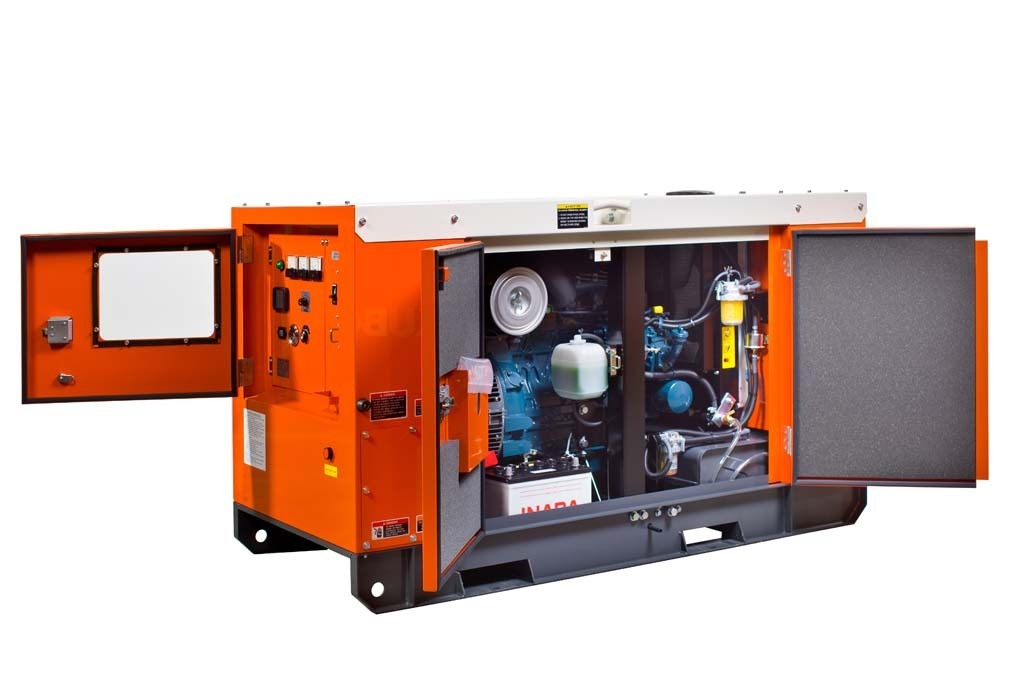

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Ease of Transport: Centre lifting lugs and fork lift slots ensure that the transport of the SQ series is kept as easy as possible.

Kubota Product Brochure

Product Manual

Specifications

SKU SQ1120B-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 11.8

Continuous Output 11.2 kVA / 11.2 kW

Phase Single

Fuel Diesel

Tank Litres 72

Phase & Wire 1 Phase and 4 Wires

Coupling Type Direct Coupled

Weight (wet) 780 kg

Number Of Cylinders 3

Coolant 6.6 L

Bore / Stroke 87 x 92.4 mm

Voltage (Single Phase) 240V

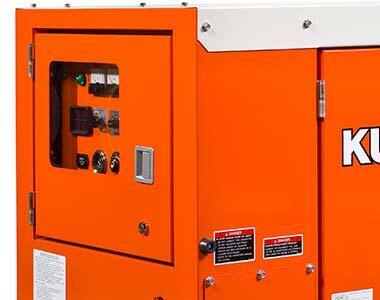

Control Panel Digital Control Panel DSE4520

Max Current Amps 46.7 Amps

Fuel litres per hour (100% load) 3.9 L/h

Insulation Class H

Battery 80D26R | 55 Ah/Hr

Engine Kubota D1703-EBG, 3 cylinder water cooled

Standby Output 11.8 kVA / 11.8 kW

Dimensions (LxWxH mm) 1725 x 795 x 1095

Starting System Electric

Voltage Regulation 1.5 (No Load to Full Load)

Engine Speed 1500 rpm

Oil Capacity 5.6 L

Displacement 1.647 L

Frequency 50 Hz

Alternator Type Revolving field
