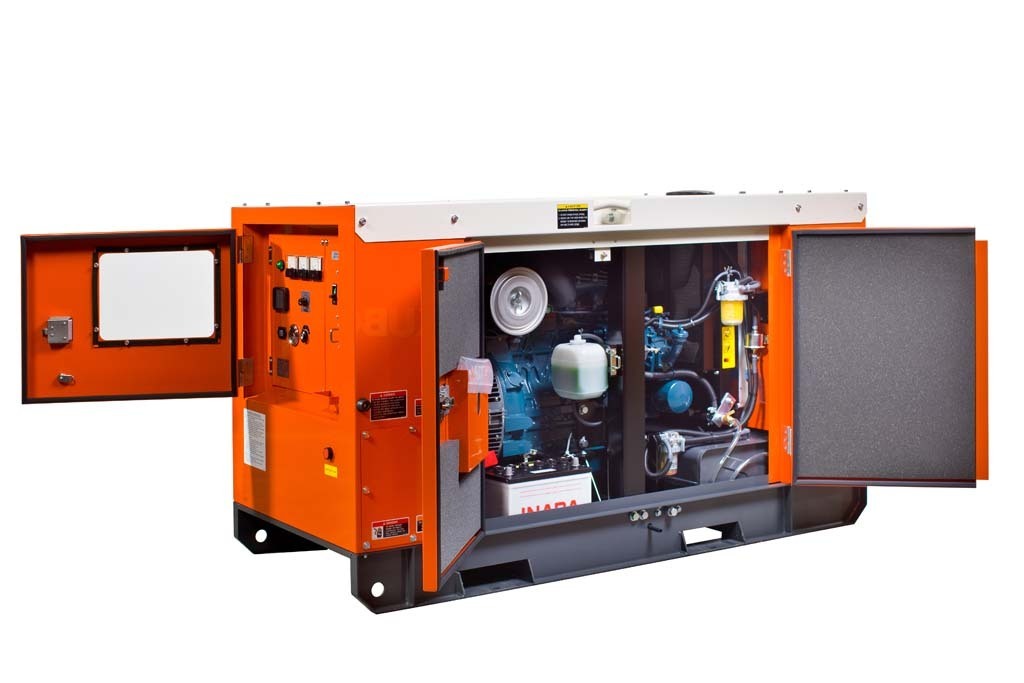

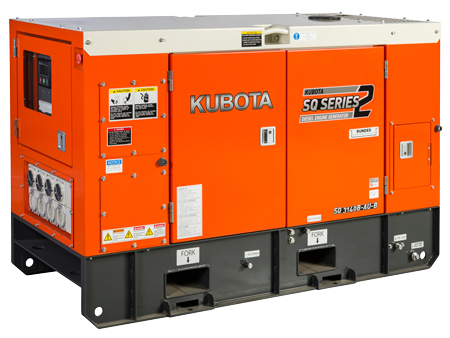

Kubota 14kva Three Phase Diesel Generator SQ3140

SKU: SQ3140B-AU-B Learn More»
Kubota 14kva Three Phase Diesel Generator SQ3140
POA
Get Quote
Call 1300 400 122
Express Shipping Price Match Guarantee Customer Reviews
Go to: Product Details
Go to: Specifications

Product Description

The Kubota SQ3140, 14 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300series engines used in the SQ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology such as quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy lockable enclosure.

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Ease of Transport: Centre lifting lugs and fork lift slots ensure that the transport of the SQ series is kept as easy as possible.


Kubota Product Brochure

Product Manual


Go to: Product Details
Go to: Videos

Specifications

SKU SQ3140B-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 15.4

Continuous Output 14 kVA / 11.2 kW

Phase Three

Fuel Diesel

Tank Litres 72

Voltage 3 Phase 415V

Phase & Wire 3 Phase & 12 Wires

Battery 80D26R (55Ah)

Coupling Type Direct Coupled

Number Of Cylinders 3

Coolant 6.6 L

Bore / Stroke 87 x 92.4 mm

Voltage (Single Phase) 240V

Control Panel Digital Control Panel DSE4520

Max Current Amps Single Phase: 12.5 Amps (3 set) | Three Phase: 19.5 Amps

Fuel litres per hour (100% load) 3.8 L/Hr

Insulation Class H

Engine Kubota D1703-EBG, 3 cylinder water cooled

Weight (wet) 780 kg

Standby Output 15.4 kVA / 12.3 kW

Dimensions (LxWxH mm) 1725 x 795 x 1095 mm

Starting System Electric

Voltage Regulation 1.5 % (No Load to Full Load)

Engine Speed 1500 rpm

Oil Capacity 5.6 L

Displacement 1.647 L

Frequency 50 Hz

Alternator Type Revolving field
