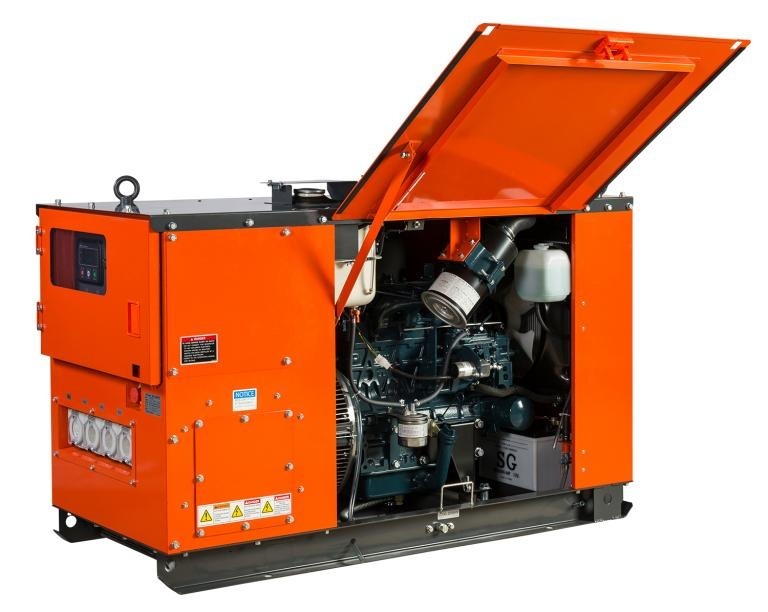

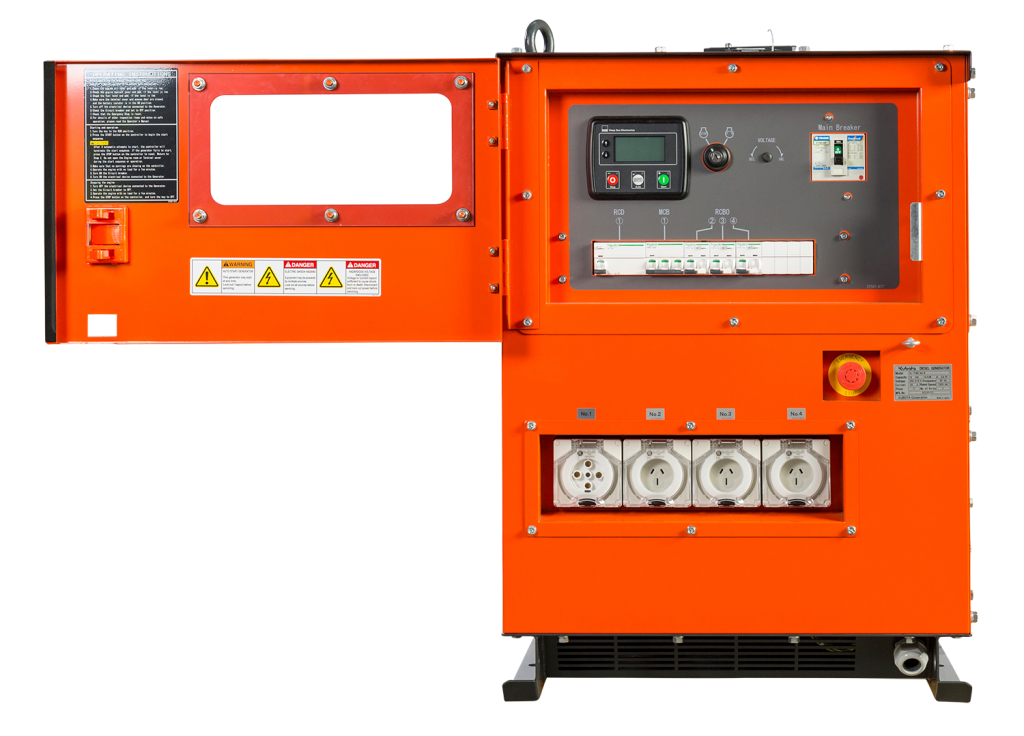

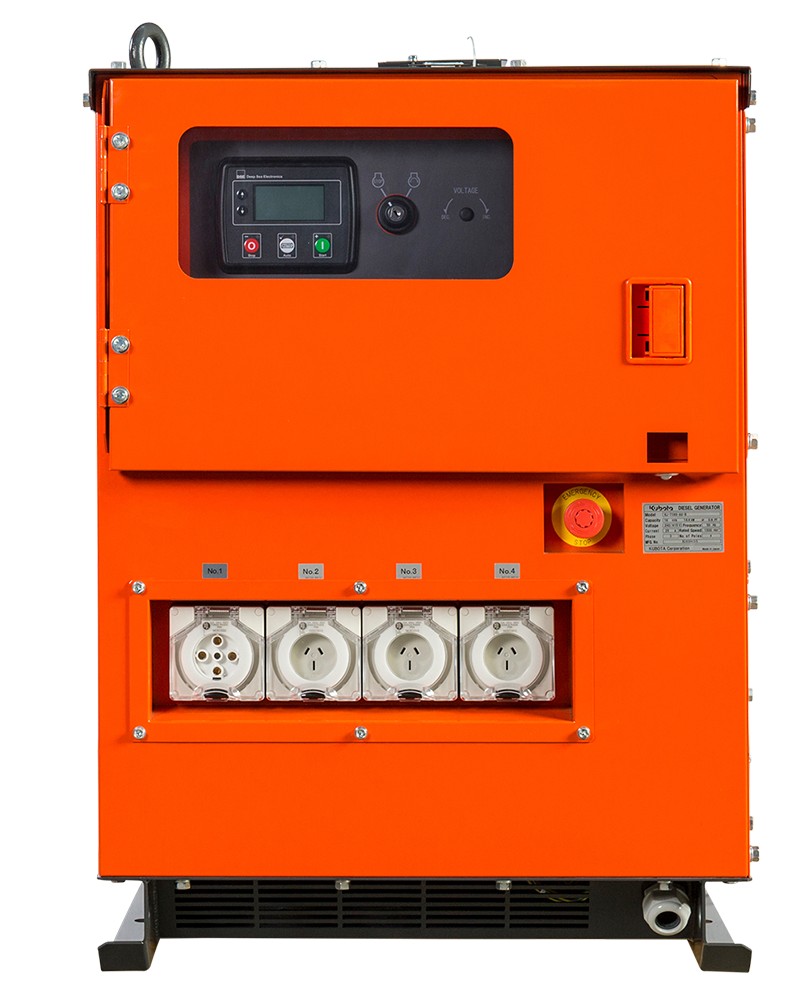

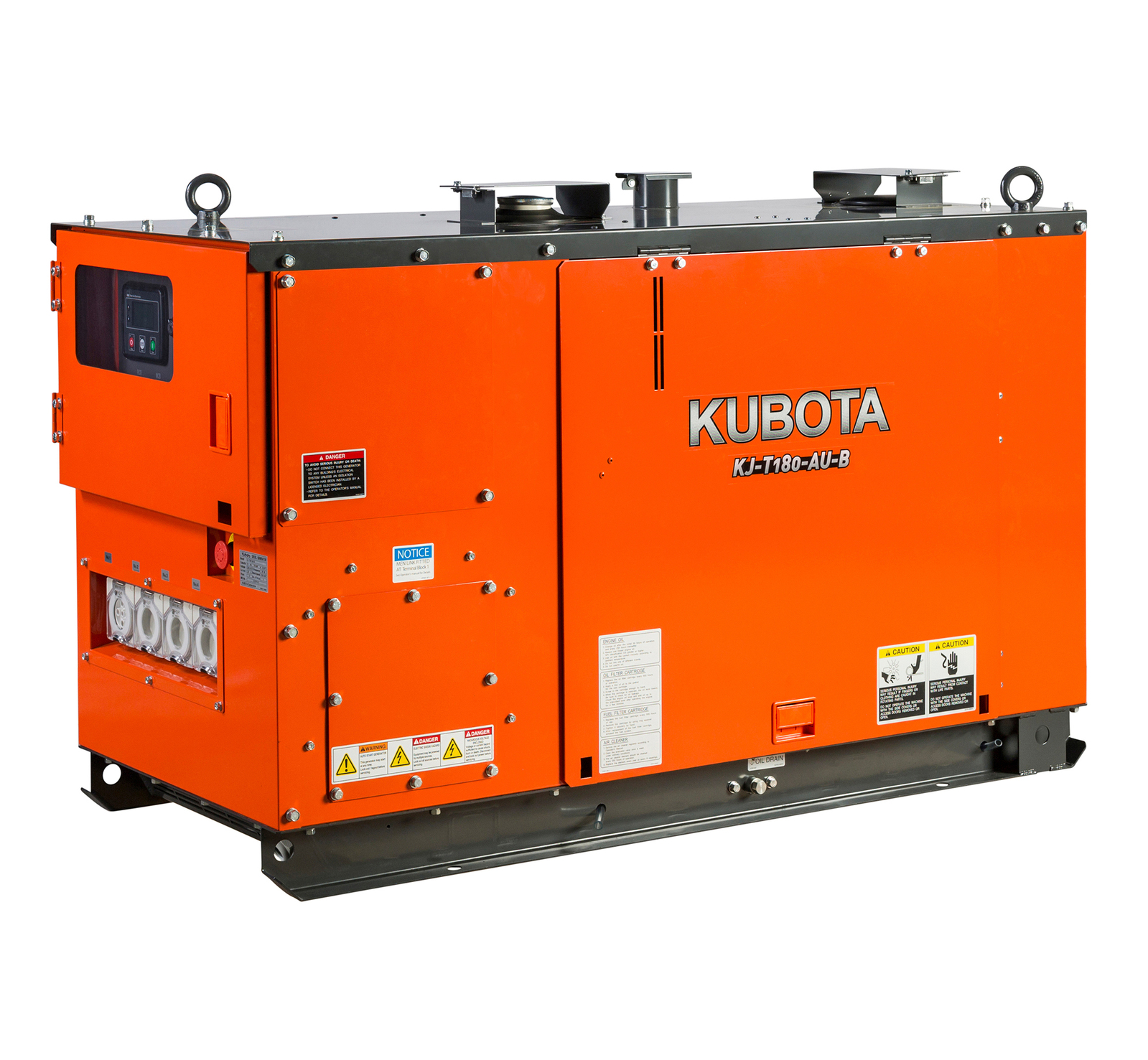

Kubota 18kva Three Phase Diesel Generator KJ-T180
SKU: KJ-T180-AU-B Learn More»![](/assets/thumbL/KJ-T180-AU-B.jpg?20240119084957)
![](/assets/alt_1/KJ-T180-AU-B.jpg?20240119084957)
![](/assets/alt_2/KJ-T180-AU-B.png?20240119084957)
![](/assets/alt_3/KJ-T180-AU-B.png?20240119084957)
Product Description
The Kubota KJ-T180, 18 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.Â
Cleaner Power: The 03 series engines used in the KJ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.
Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.
Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology.
Increased Safety:Â The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy enclosure.
Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.
Specifications
SKU KJ-T180-AU-B
Brand Kubota
Warranty Period: 2 Years
Product Category Kubota Generators
Standby kVA 19.8
Continuous Output 18.0 kVA / 14.4 kW
Phase Three
Fuel Diesel
Tank Litres 37
Standby Output 19.8 kVA / 15.8 kW
Voltage Regulation 3.5 (No Load to Full Load)
Engine Speed 1500 rpm
Engine Kubota V2203, 4 cylinder water cooled
Coupling Type Direct Drive
Bore / Stroke 87 x 92.4 mm
Fuel litres per hour (100% load) 7.0
Weight (wet) 505 kg
Dimensions (LxWxH mm) 1448 x 650 x 971
Oil Capacity 7.6 L
Frequency 50 Hz
Voltage 3 Phase 415V
Number Of Cylinders 4
Voltage (Single Phase) 240V
Insulation Class H
Starting System Electric
Displacement 2197 mL
Alternator Type Revolving field
Phase & Wire 3 Phases 12 Wires
Coolant 9.0 L
Max Current Amps 25.0 Amps
Battery 95D31R | 12 x 64 AH/5Hr
