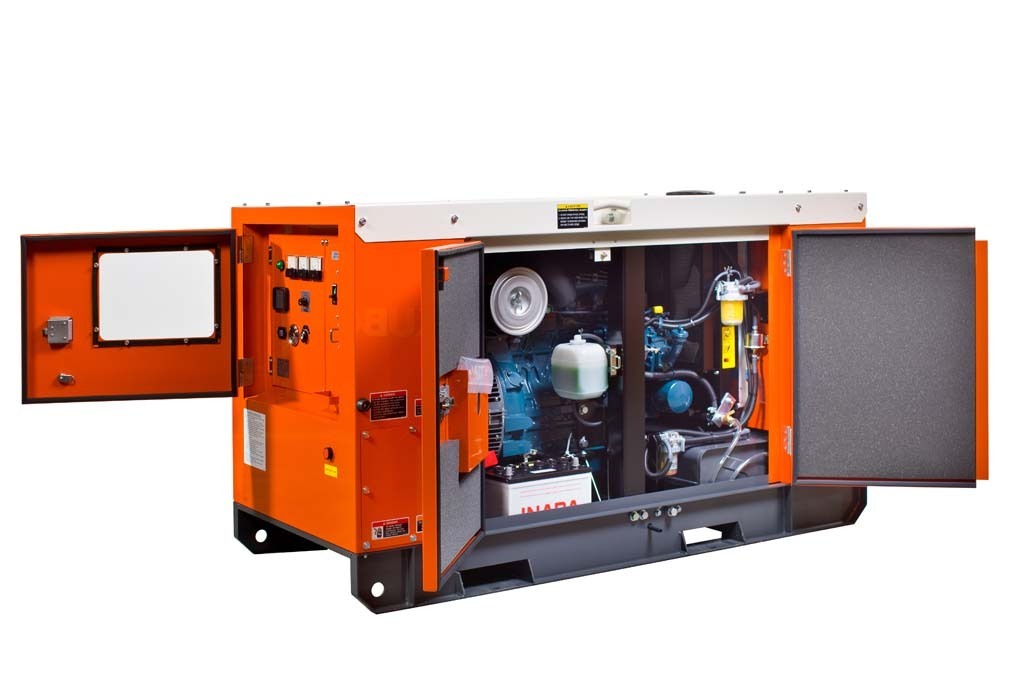

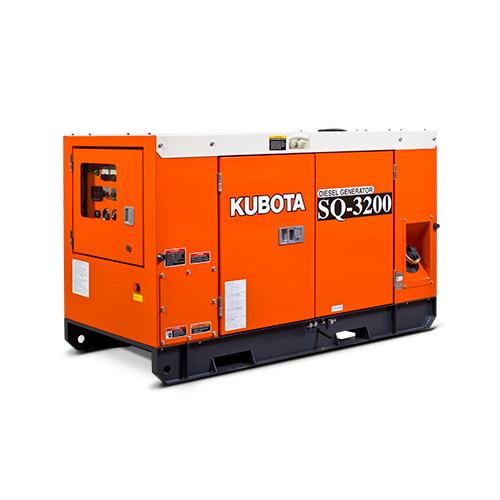

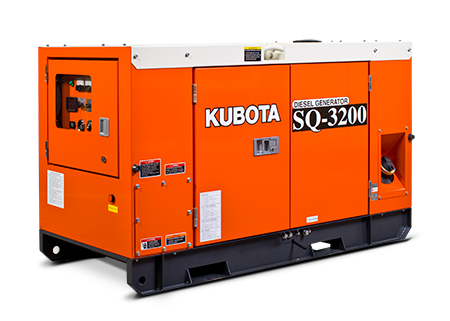

Kubota 20kva Three Phase Diesel Generator SQ3200

SKU: SQ3200B-AU-B Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

The Kubota SQ3200, 20 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300series engines used in the SQ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology such as quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy lockable enclosure.

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Ease of Transport: Centre lifting lugs and fork lift slots ensure that the transport of the SQ series is kept as easy as possible.

Go to: Product Details

Go to: Videos

Specifications

SKU SQ3200B-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 22

Continuous Output 20 kVA / 16 kW

Phase Three

Fuel Diesel

Tank Litres 100

Voltage 3 Phase 415V

Phase & Wire 3 Phase & 12 Wires

Battery 80D26r | 55 Ah/5Hr

Coupling Type Direct Coupled

Number Of Cylinders 4

Coolant 7.4 L

Bore / Stroke 87 x 92.4 mm

Voltage (Single Phase) 240V

Control Panel Digital Control Panel DSE4520

Max Current Amps 27.8 Amps

Fuel litres per hour (100% load) 5.3 L/h

Insulation Class H

Engine Kubota V2203-EBG, 4 cylinder water cooled

Weight (wet) 915 kg

Standby Output 22 kVA / 17.6 kW

Dimensions (LxWxH mm) 1725 x 795 x 1180 mm

Starting System Electric

Voltage Regulation 1.5 % (No Load to Full Load)

Engine Speed 1500 rpm

Oil Capacity 7.6 L

Displacement 2.197 L

Frequency 50 Hz

Alternator Type Revolving field

Go to: Specifications

Go to: Q & A

Videos

Genelite KTA Kubota - SQ & J Series - Generator Range

Go to: Videos

Go to: Reviews

Product Q&A

Ask Us a Question

What does this 22 kva set weigh?

HI there - this unit weighs 730 kilgrams (wet). You can download the full specifications from the PRODUCT BROCHURE label on the product page. Many thanks.
