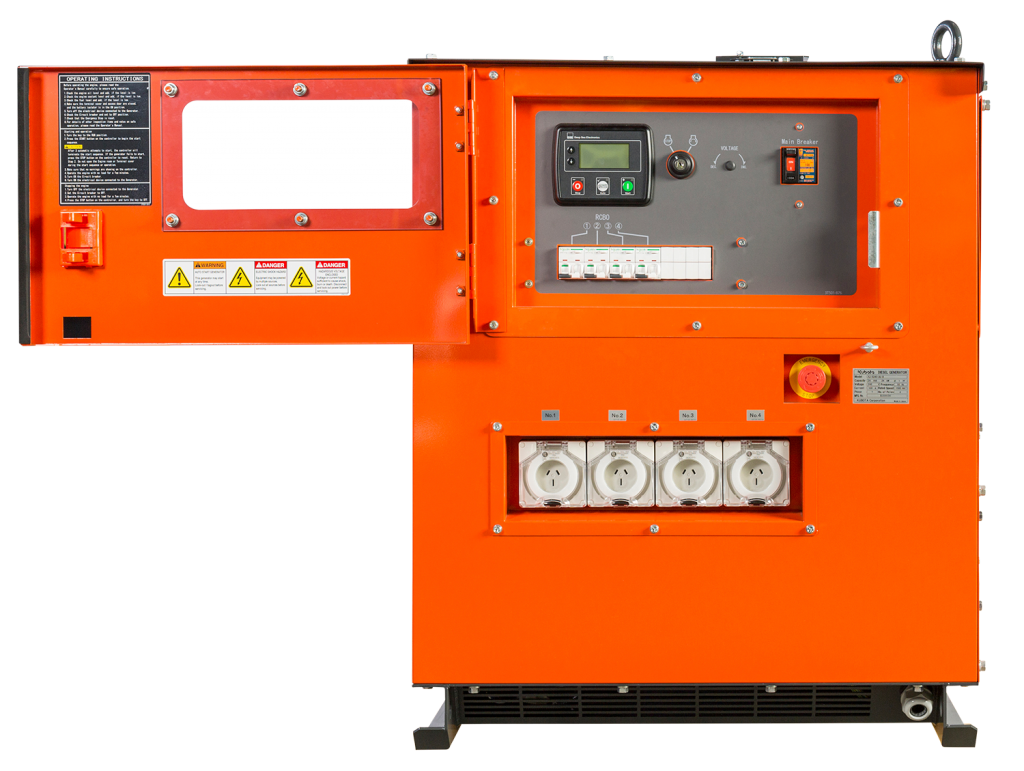

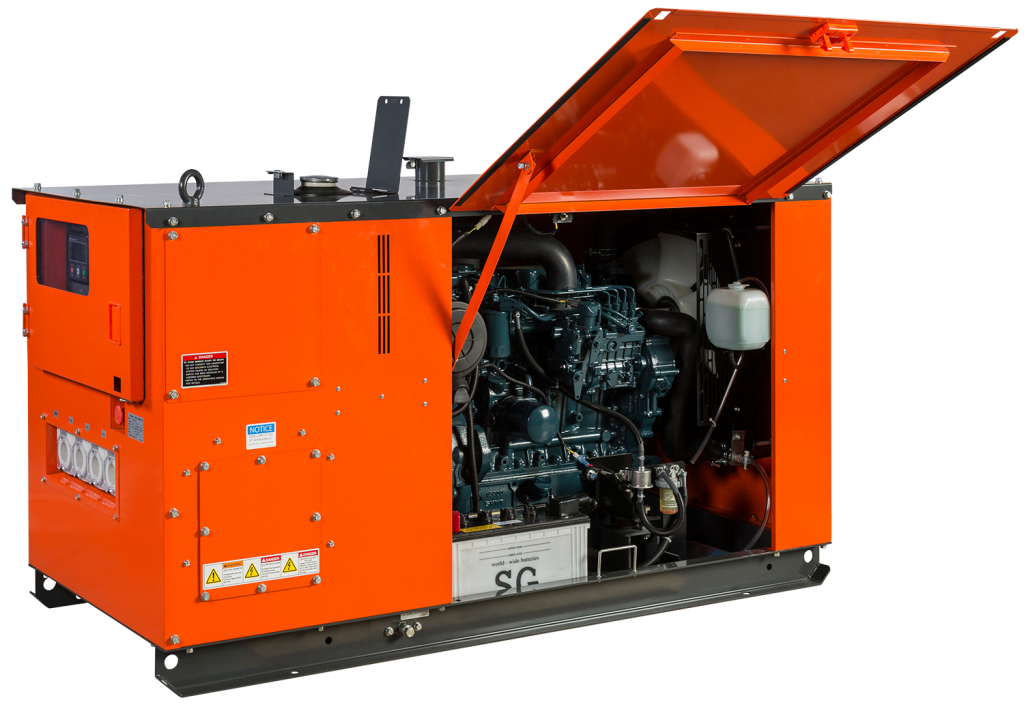

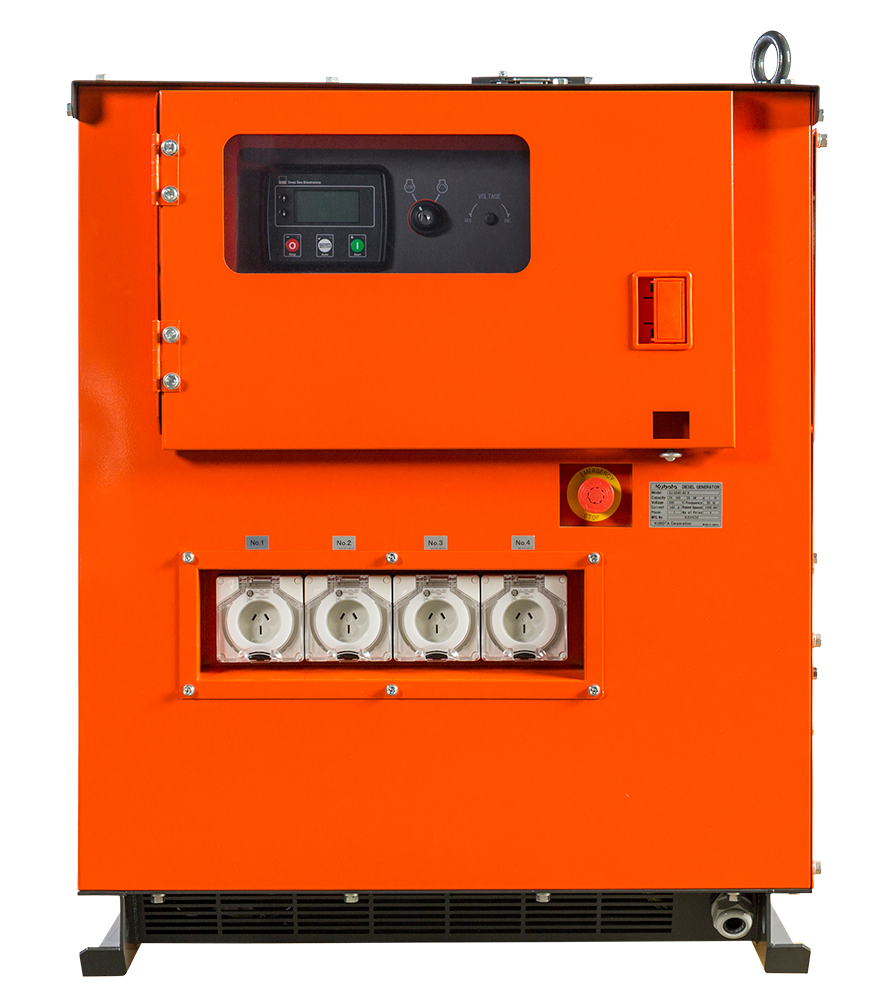

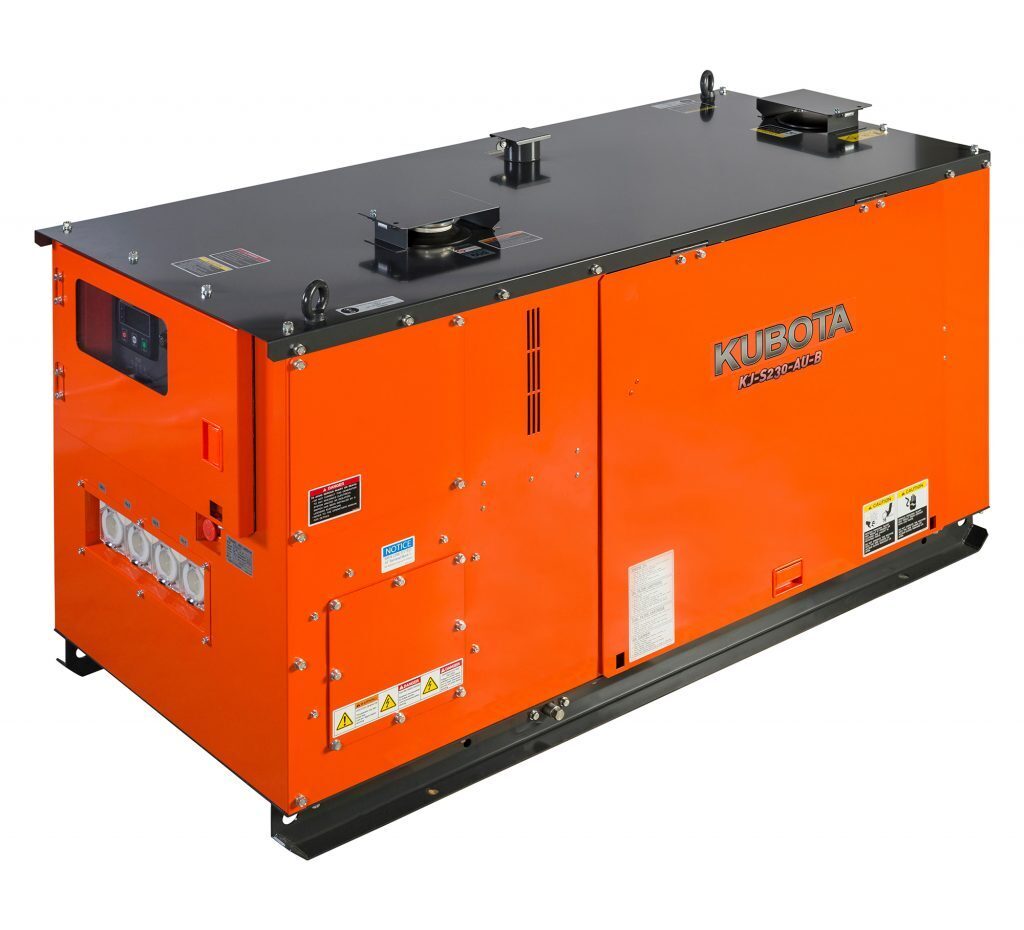

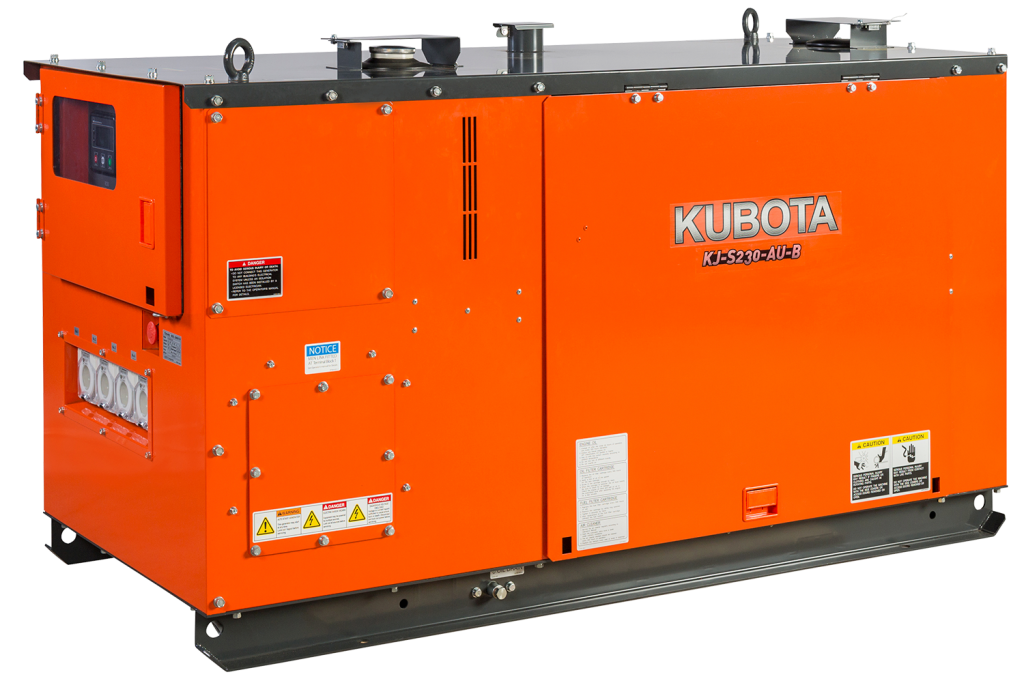

Kubota 23kva Single Phase Diesel Generator KJS230
SKU: KJ-S230-AU-B Learn More»
Product Description
The Kubota KJ-S230, 25.3 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.
Cleaner Power: The V3 series engines used in the KJ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.
Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.
Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology.
Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy enclosure.
Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.
Specifications
SKU KJ-S230-AU-B
Brand Kubota
Warranty Period: 2 Years
Product Category Kubota Generators
Standby kVA 25.3
Continuous Output 23.0 kVA / 23.0 kW
Phase Single
Fuel Diesel
Tank Litres 68
Weight (wet) 630 kg
Phase & Wire 1 Phase 4 Wires
Coupling Type Direct Drive
Number Of Cylinders 4
Coolant 9.5 L
Bore / Stroke 98 x 110 mm
Voltage (Single Phase) 240
Max Current Amps 95.8 Amps
Fuel litres per hour (100% load) 7.7
Insulation Class H
Battery 130E41R | 12 x 92 AH/5Hr
Engine Kubota V3300, 4 cylinder water cooled
Standby Output 25.3 kVA / 25.3 kW
Dimensions (LxWxH mm) 1735 x 805 x 1046 mm
Starting System Electric
Voltage Regulation 3.5 (No Load to Full Load)
Engine Speed 1500 rpm
Oil Capacity 13.2 L
Displacement 3318 mL
Frequency 50
Alternator Type Revolving field
