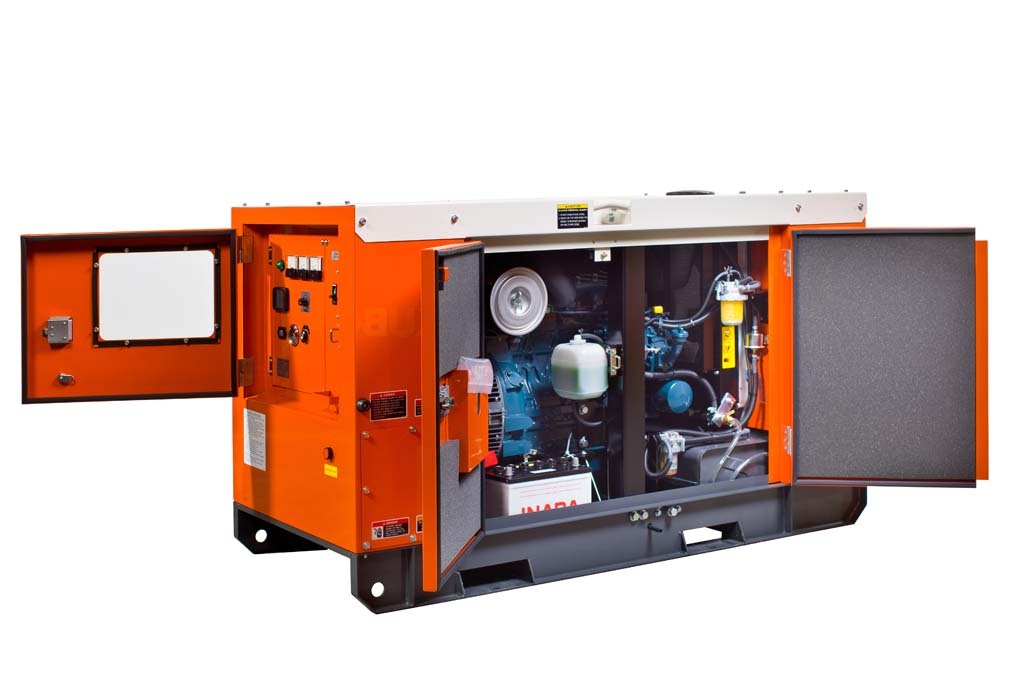

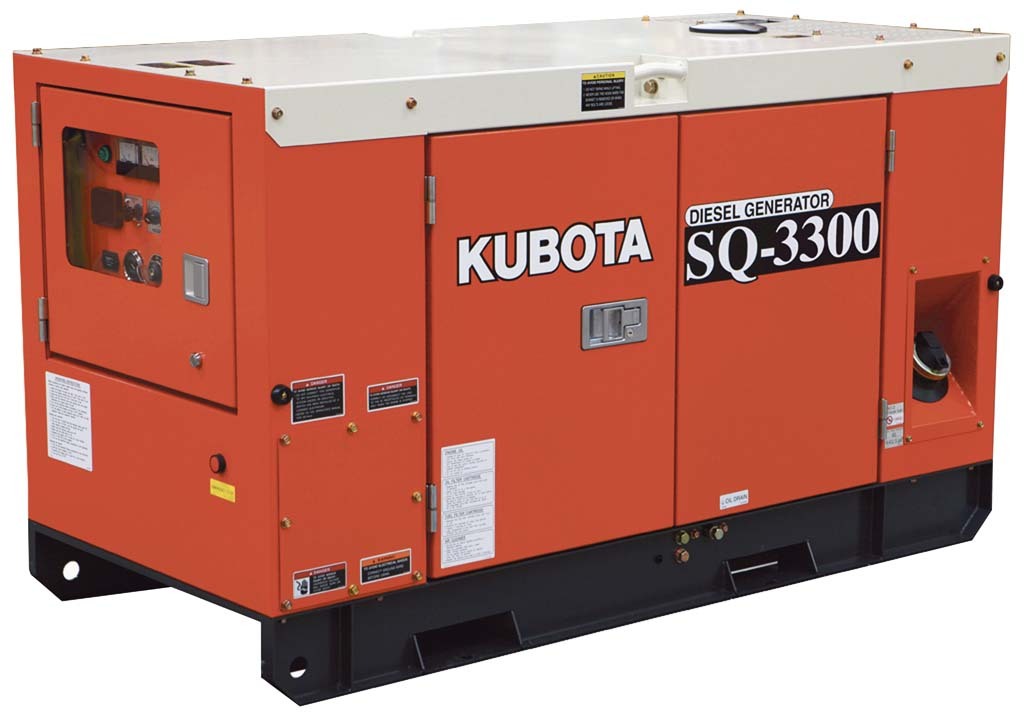

Kubota 30kva Three Phase Diesel Generator SQ3300

SKU: SQ3300B-AU-B Learn More»
POA
Express Shipping Price Match Guarantee Customer Reviews

Product Description

Four Pole fully sound attenuated Three Phase Diesel Generator. The SQ Series diesel generators provide a much quieter, efficient and long service life machine where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300series engines used in the SQ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power

Quieter Power: Sound levels at full load and no load are minimised due to the World renown Kubota Technology such as quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy lockable enclosure

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance

Ease of Transport: Centre lifting lugs and fork lift slots ensures that the transport of the SQ series is kept as easy as possible.

Kubota Product Brochure

Product Manual

Specifications

SKU SQ3300B-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 33

Continuous Output 30.0kVA (24.0kW)

Phase Three

Fuel Diesel

Tank Litres 142 L

Voltage 3 Phase 415V

Phase & Wire 3 Phase & 12 Wires

Battery 13041R | 92 Ah/5Hr

Coupling Type Direct Coupled

Number Of Cylinders 4

Coolant 9.3 L

Bore / Stroke 98 x 110 mm

Voltage (Single Phase) 240V

Control Panel Digital Control Panel DSE4520

Max Current Amps 3 Phase: 27.1 Amps (3 Set) | Single Phase: 41.7 Amps

Fuel litres per hour (100% load) 7.7 L/h

Insulation Class H

Engine KubotaV3300-EBG, Vertical Water Cooled Diesel Engine

Weight (wet) 1135 kgs

Standby Output 33.0kVA (26.4kW)

Dimensions (LxWxH mm) 1985 x 860 x 1310 mm

Starting System Electric

Voltage Regulation 1.5 % (No Load to Full Load)

Engine Speed 1500 rpm

Oil Capacity 13.2 L

Displacement 3.318 L

Frequency 50 Hz

Alternator Type Revolving field
