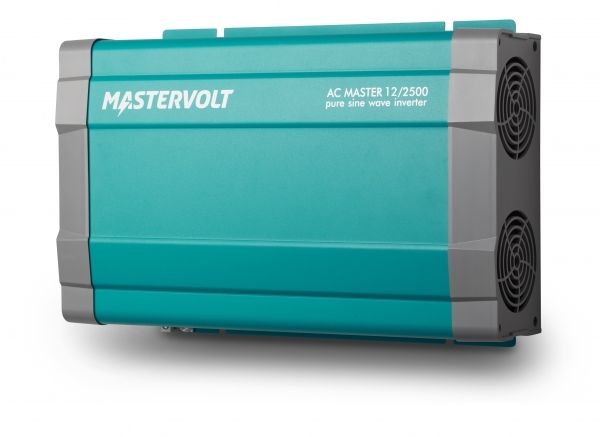

Mastervolt 12V 2500W AC Master Inverter
SKU: 110504 Learn More»
Product Description
Mastervolt 12V 2500W AC Master Inverter, 2 Year Warranty. Reliable AC power for recreational and semi-professional use.
These affordable sine wave inverters convert 12V or 24V battery voltage into reliable grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds. Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.
Features:
- Pure sine wave technology protects sensitive equipment
- Delivers full output at high peak power under the most demanding conditions
- Automatic power saving system for extended runtime
- Compact and lightweight design, saving valuable installation time
- Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage
- Variable speed fan for quiet operation at low power
- Optional remote control for instant switch off
- Convenient plug connection for all models, 2500/3500 Watt models also hard wired. In addition, the 2500/3500 Watt models offer
- Combine 2 up to 15 units to obtain high power or 3-phase systems
- Integrated transfer system, switches automatically between AC power sources
- Combine 2 up to 15 units to obtain high power or 3-phase systems.
- Integrated transfer system, switches automatically between AC power sources.
Specifications
SKU 110504
Brand Mastervolt
GTIN 9319786430149
Product Category Power Inverters
Wattage (W) 2500
Temperature range ✓
Dimensions 283mm x 436mm x 128mm
Cooling temperature and load control fan
Output Voltage and Frequency 230/240V 50/60 Hz (selectable)
Net Weight (kg) 8
Minimal Cable Size 95 mm2
Minimal DC Fuse (Slow Blow)* 300A
Peak Load <3000 W (1 min) <4000 W (1 sec.)
Nominal Battery Voltage 12v
Output Waveform true sine
Continuous Power at 40°C, Cos Phi 1 2500 W
Continuous Power at 25°C, Cos Phi 1 2500 W
MasterBUS Compatible yes, using a MasterBus AC Master Interface
Protection Degree IP21, horizontal wall mounting
Cos Phi ✓
Approvals CE, E-mark, RCM
Display/Read-Out LED Indication: battery voltage, status
Recommended Battery Capacity >270 Ah
Product Q&A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.
For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).
A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
