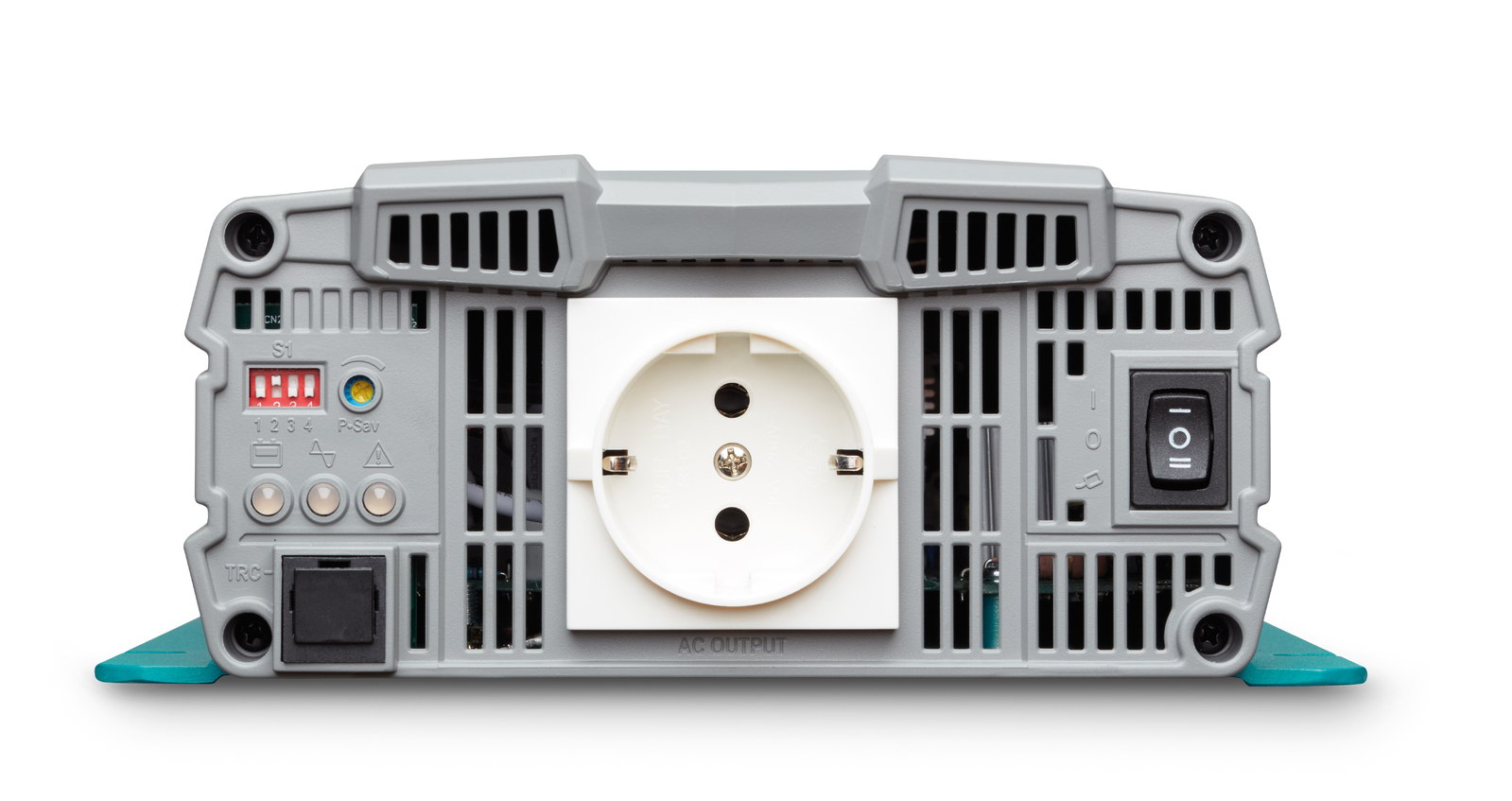

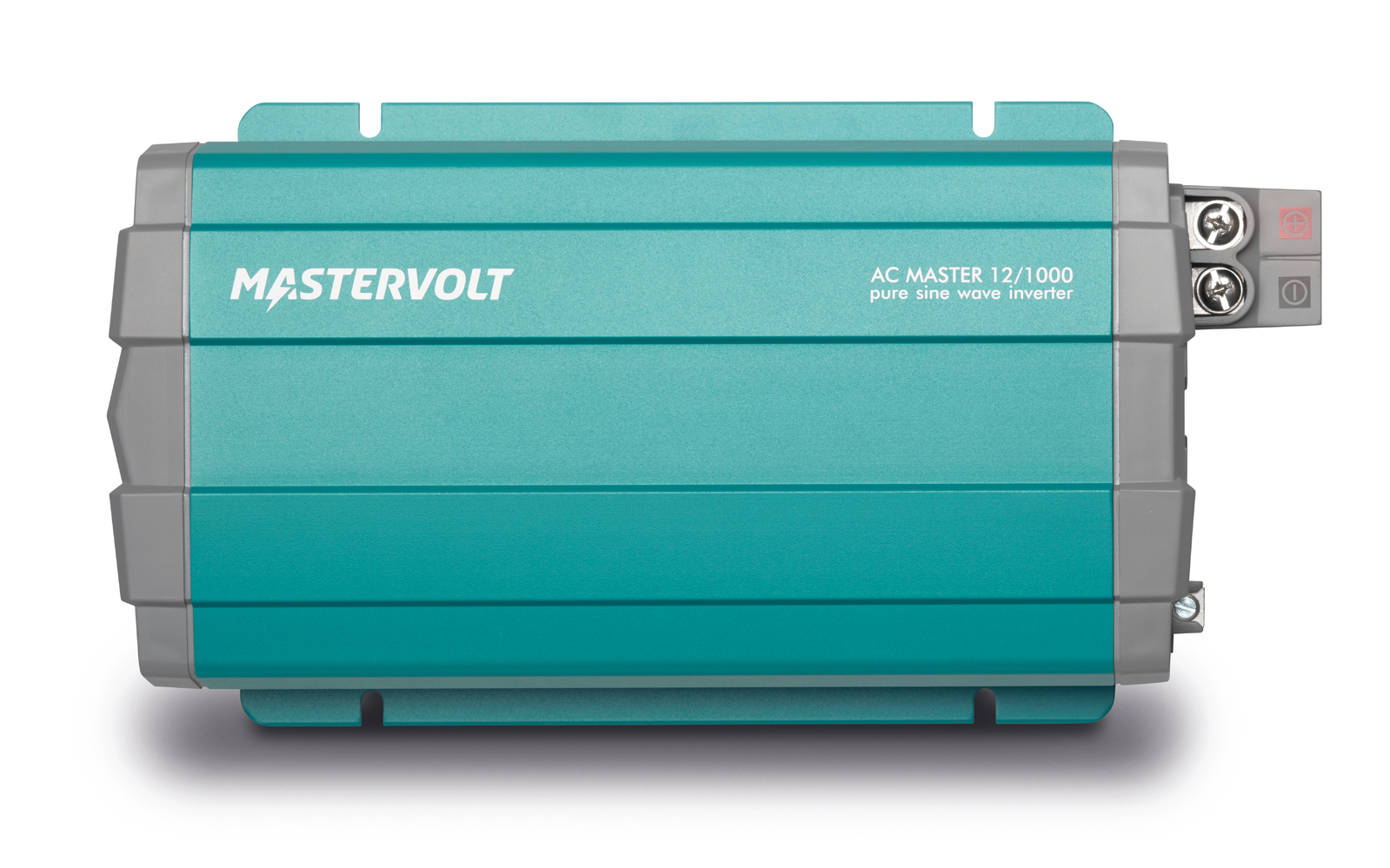

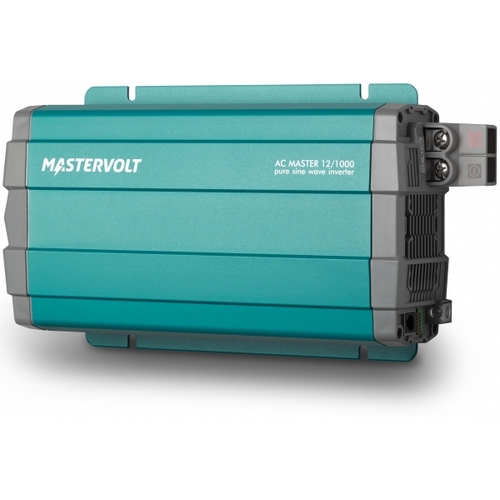

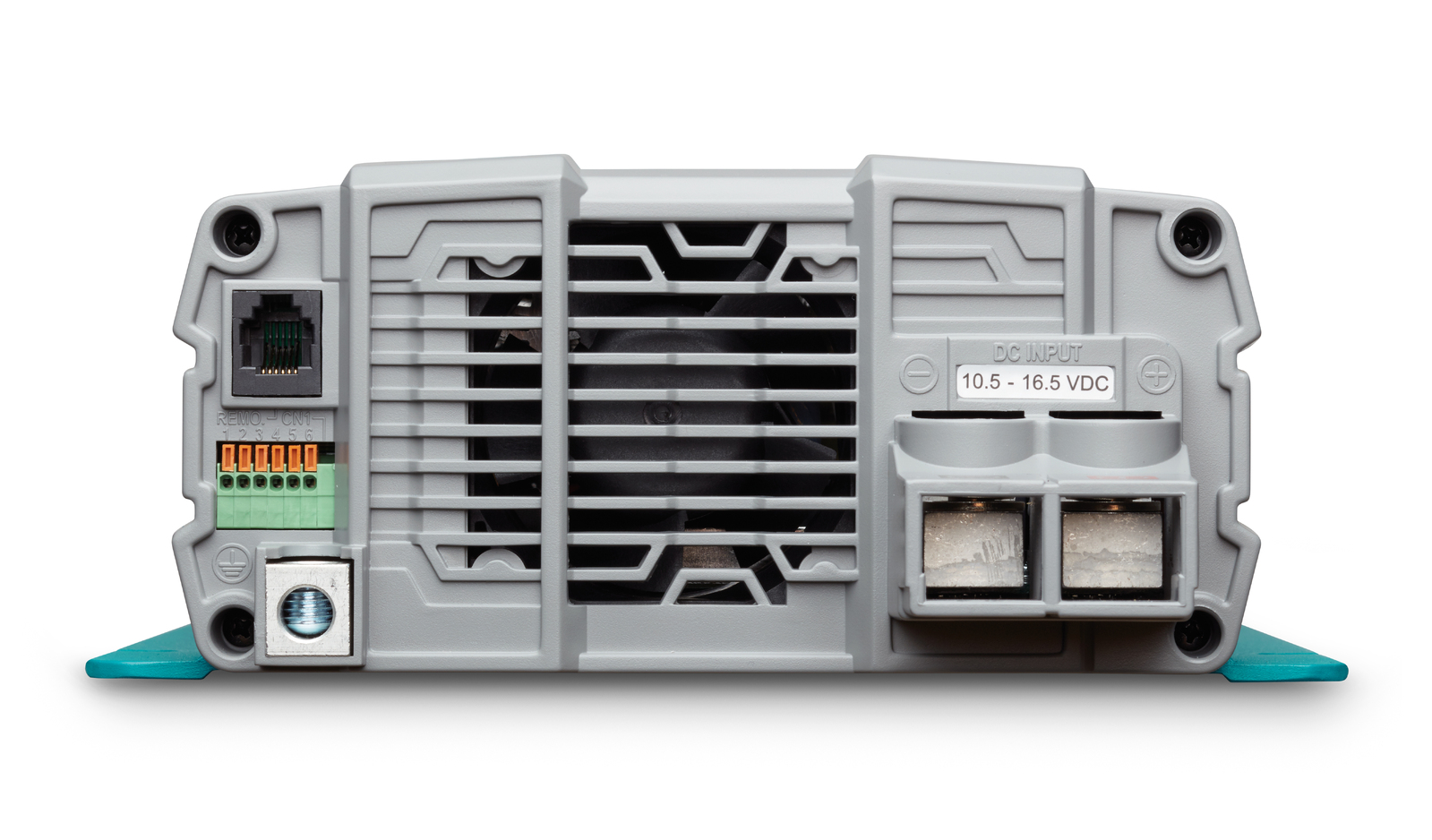

Mastervolt AC Master 12V 1000w Sine Wave Inverter
SKU: 110502 Learn More»
Product Description
Mastervolt AC Master 12V 1000w Sine Wave Inverter, 2 year warranty. Mastervolt sine wave inverters have proven themselves under the most extreme conditions for over 25 years. Our inverter family consists of AC Master, Mass Sine and Mass Sine Ultra models, ranging from 300 watt up to 40 kW. The AC Master is ideal for small and medium-sized applications, while Mass Sine and the advanced Mass Sine Ultra inverters are mainly intended for larger systems and for professional purposes.

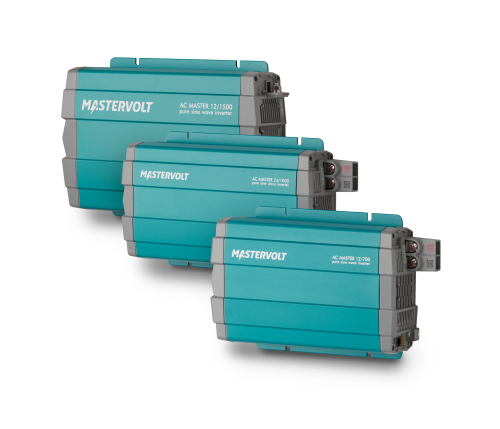

AC Master series: Reliable AC power for recreational and semi-professional use
These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds.
Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.
Features
- Pure sine wave technology protects sensitive equipment.
- Delivers full output at high peak power under the most demanding conditions.
- Automatic power saving system for extended runtime.
- Compact and lightweight design, saving valuable installation time.
- Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.
- Variable speed fan for quiet operation at low power.
- Optional remote control for instant switch off of the inverter and all connected equipment (not available for the 300 and 500 W models).
- Convenient plug connection for all models, 2500/3500 Watt models also hard wired.
In addition, the 2500/3500 Watt models offer:
- Combine 2 up to 15 units to obtain high power or 3-phase systems.
- Integrated transfer system, switches automatically between AC power sources.
Applications
Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking and power tools. For (mobile) applications in your home, office or service vehicle, or during your holidays.
Specifications
SKU 110502
Brand Mastervolt
GTIN 9319786430125
Product Category Power Inverters
Wattage (W) 1000
Temperature range -20 °C to 60 °C, derating power > 40 °C -4 °F to 140 °F
Nominal Battery Voltage 12v
Dimensions 83 x 372 x 200
Efficiency 92%
Net Weight (kg) 3.3
Harmonic Distortion Typical <5%
Minimal Cable Size 35 mm²
Minimal DC Fuse (Slow Blow)* 125 A
Input Current (Nominal Load) 100 A
High Battery Voltage, Switches on at 14.5 V
High Battery Voltage, Switches off at 16.5 V
Low Battery Voltage, Switches on at 12.5 V
Low Battery Voltage, Switches off at 10.5 V
Technology High frequency, input & output fully isolated
Peak Load < 1150 W
Output Voltage (+/- 5%) 200/220/230/240 V – 50/60 Hz (selectable)
Cooling Temperature and load controlled fan
Output Waveform true sine
Continuous Power at 40°C, Cos Phi 1 1000 W
Continuous Power at 25°C, Cos Phi 1 1000 W
MasterBUS Compatible no
Protection Degree IP21, horizontal wall mounting
Cos Phi all power factors allowed
Approvals CE, E-mark, RCM
Display/Read-Out LED indication: battery voltage, load level, status
AC Connection plug connection EU (Schuko), with UK plug (code 28211000) or with NZ/AU plug (code 28411000)
Recommended Battery Capacity ≥ 130 Ah
No Load Battery Draw < 1.5 A
No Load Battery Draw < 0.1 A
Protections over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
Product Q&A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.
For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).
A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
