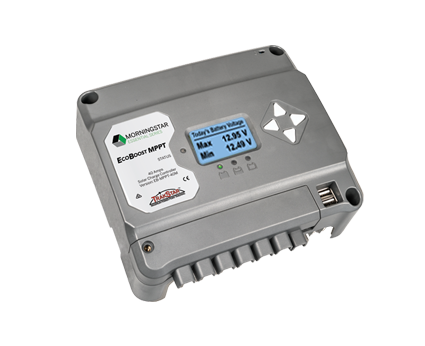

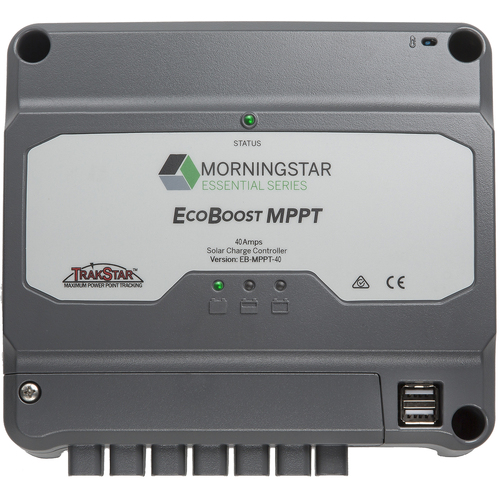

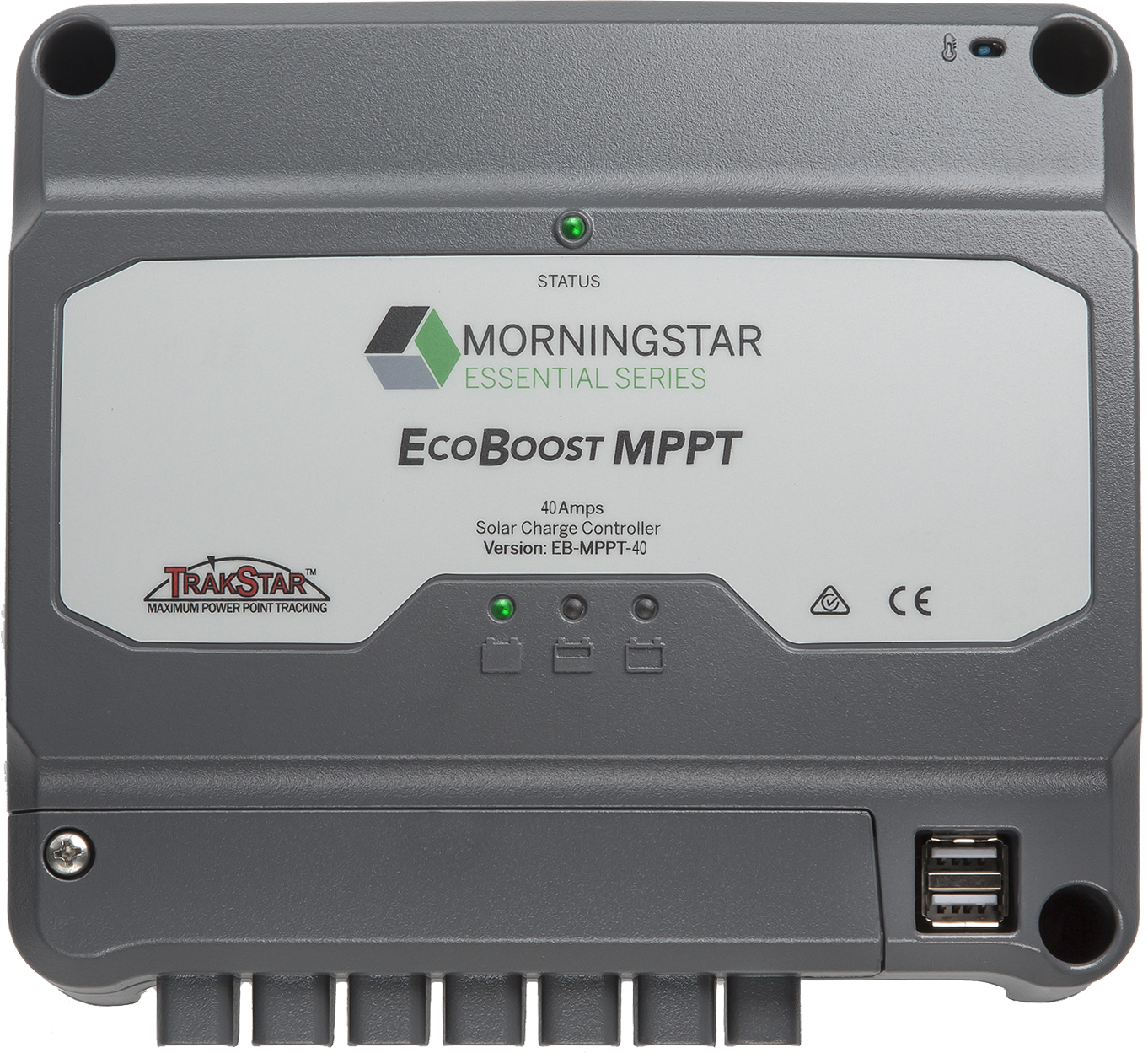

Morningstar EcoBoost MPPT 40 Amp Solar Controller
SKU: SR-EB-MPPT-4 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Product Description
Morningstar EcoBoost MPPT 40 Amp Solar Controller, 5 Year Warranty. The NEW EcoBoost MPPT™ is a Maximum Power Point Tracking (MPPT) solar charge controller within Morningstar’s Essential Series™. This controller was developed for residential and leisure consumer applications where an MPPT controller is desired to provide additional power and accommodations for modules that are not supported by other types of controllers. Metered and non-metered versions of this product are available at 20, 30, and 40 amp charge ratings for 12 and 24 volt battery systems.
- Two USB-A ports for charging multiple mobile phones/tablets
- 3 Amps of USB charging capacity
- Metered and non-metered versions
- Four stage battery charging
- Dusk ‘til dawn lighting control
- Load control
- Electronic and environmental protections
- Wide operating temperature range
Specifications
SKU SR-EB-MPPT-4
Brand Morningstar
GTIN 9342616026458
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 40
Amps 40
Humidity 100% Non - condensing
Weight (kg) 1.4
Dimensions (LxWxH mm) 173 x 196 x 71
Open Circuit Voltage Voc(V) 120 Volts
Operating temperature range -40C to +60C
Efficiency 98% (Peak)
Power 560 W @ 40 C | 1120 W @ 40C
Enclosure Class IP20, Type 1
Nominal Battery Voltage 12 or 24 Volt - Automatic Sensing and Setting
Battery Voltage Range 10 - 35V
Max. Battery Current 40 Amps
