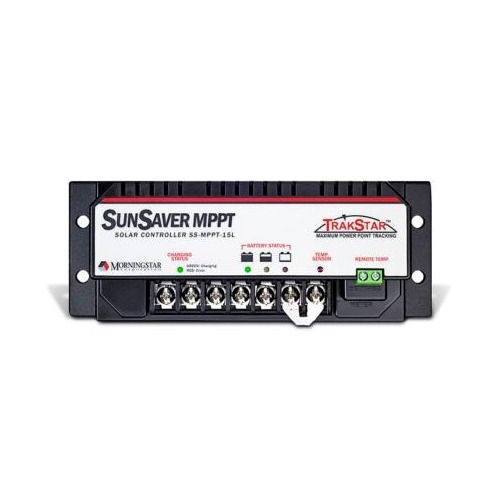

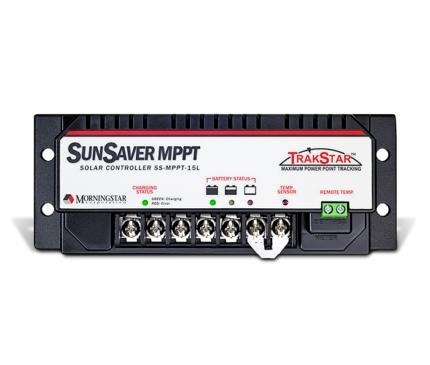

Morningstar SunSaver MPPT Controller 15 AMP 12/24V
SKU: SR-SS-MPPT-15L Learn More»
Free Shipping
Product Description
Morningstar SunSaver MPPT Controller 15 AMP 12/24V, 5 Year Warranty. The Morningstar SunSaver MPPT with TrakStar technology is an advanced maximum power point tracking controller for off-grid solar systems up to 400Wp.
- Use of high Voltage Modules – In addition to 12 volt crystalline modules, enables the use of high voltage and thin film modules for off-grid battery charging.
- Power Boost – Maximum power point tracking provides an increase of amps from the solar array into the battery.
- Converts 24V to 12V – Provides a means to use a 24V solar array to charge a 12V battery, reducing power losses in systems with a long cable run between the solar array and the battery.
- Automatic Lighting Control – Includes up to four programmable timer sequences for PV lighting applications.
Specifications
SKU SR-SS-MPPT-15L
Brand Morningstar
GTIN 9342616026816
Warranty Period: 5 Years
Product Category Solar Charge Controllers
Charge Current (A) 15
Voltage 12/24 V
Amps 15
Weight (kg) 0.6
Dimensions (LxWxH mm) 168 x 55 x 70
Open Circuit Voltage Voc(V) 75 V (Max)
Operating temperature range –40°C to +60°C
Input 200Wp (12V Battery) | 400Wp (24V Battery)
Max. Battery Current 15A
