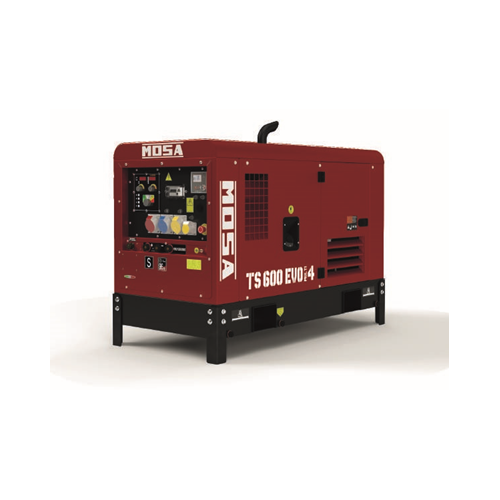

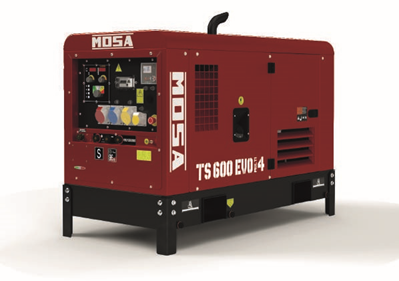

Mosa 18kva Deutz Three Phase Diesel Welder Generator TS 600 EVO Multi 4
SKU: C1NN2041 Learn More»
Product Description
Mosa 18kva Deutz Three Phase Diesel Welder Generator TS 600 EVO Multi 4, 2 Year Warranty
Attributes:
- Fuel:Â Diesel
- Phase:Â 3 Phase
- Engine Speed:Â 1500 RPM
- Welding Current:Â 550 Amps
- Prime Kva:Â 18 (26A)
- Process:Â DSP (Digital)
- Fuel Tank:Â 60L
Features:Â
- Reliable, heavy duty construction with up to 600A output
- Digital setting of welding parameters
- Stick easy start
- Arc force and multi-process parameters setting
- Digital Ammeter and Voltmeter: presetting of welding parameters
- VRD - Voltage reduction device
- A.C. generator, single-phase and three-phase also available while welding
- Engine digital control
- Bunded base
- Main battery switch
- Base with forklift pockets
- Canopy suitable for stacking up max 2 machines
- Single point lifting eye
- Large access for engine maintenance
- Meets EC directives
Â
Specifications
SKU C1NN2041
Brand Mosa
Warranty Period: 2 Years
Product Category Portable Generators
kVA 18
Max Output (kW) 14.4
Max Output (Watts) 14400
Model TS 600 EVO Multi 4
Phase Three
Fuel Diesel
Fuel Tank Capacity 60 L
Starting Method Electric
Engine Type 4-Stroke
Net Weight (kg) 870
Product Dimensions (mm) LxWxH 1600 x 790 x 1141mm
Cylinders (q.ty) 4
Duty Cycle 50Hz: 500A @ 33V- 60%, 400A @ 34V - 100% | 60Hz: 550A @ 38V - 60%, 450A @ 36.5V - 100%
Engine Horsepower 1500 RPM
Running Time (Rated Output) 50Hz: 13 h | 60Hz: 10.5 h
Engine Features 4 Stroke, Direct Injection
Engine DEUTZ F4L2011
NOTE Product specifications provided by Manufacturer. This is a portable air-cooled diesel generator designed for short term/standby applications - for pri
Fuel Consumption 50Hz: 7.3 l/h @ 100% | 60Hz: 9 l/h
Displacement 3100 cm3
Frequency 50Hz-60Hz
Outlets 1x 400V 32A 3P+N+T AUS, 2x230V 32A 2P+T AUS
Alternator Type Self-excited, self-regulated, brushless
Voltage 115V, 240V, 400V
