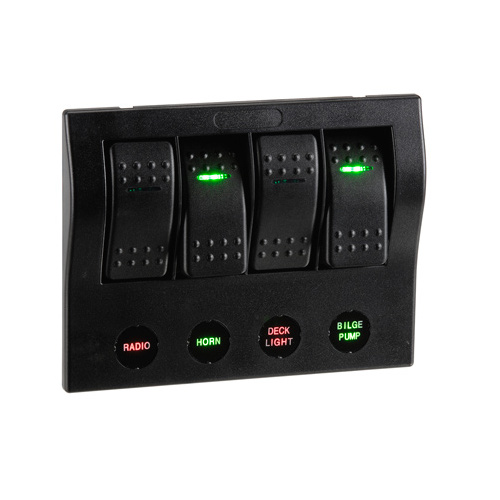

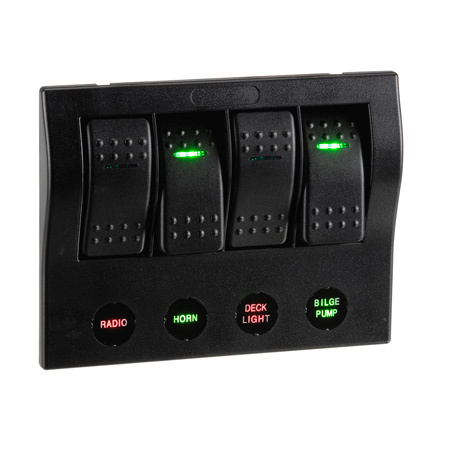

Narva 4-Way 12/24V LED Switch Panel with Circuit Breaker Protection
SKU: 63191 Learn More»
Product Description
Narva 4-Way 12/24V LED Switch Panel with Circuit Breaker Protection, 1 Year Warranty. Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.
Included in the pack:Â
- SPST
- Amperage rating 20A at 12V, 10A at 24V
- Mounting opening: 108 x 83mm
- Overall panel dimensions:130 x 100mm
- Circuit breakers: 2 x 10A (Part Number 55310), 2 x 15A (Part Number 55315)
- 3 Off/On switches and 1 Momentary (On) switch.
- Symbol and switch illuminate green when ‘On’ and symbol illuminates red when ‘Off’.
- 60 piece symbol set for RV and Marine applications
Specifications
SKU 63191
Brand Narva
GTIN 9314464631917
Warranty Period: 1 Year
Product Category Switch Panels
Voltage 12/24V
Dimensions 130 x 100mm
Current draw Amperage rating 20A at 12V, 10A at 24V
Mounting Hole 108mm x 83mm
